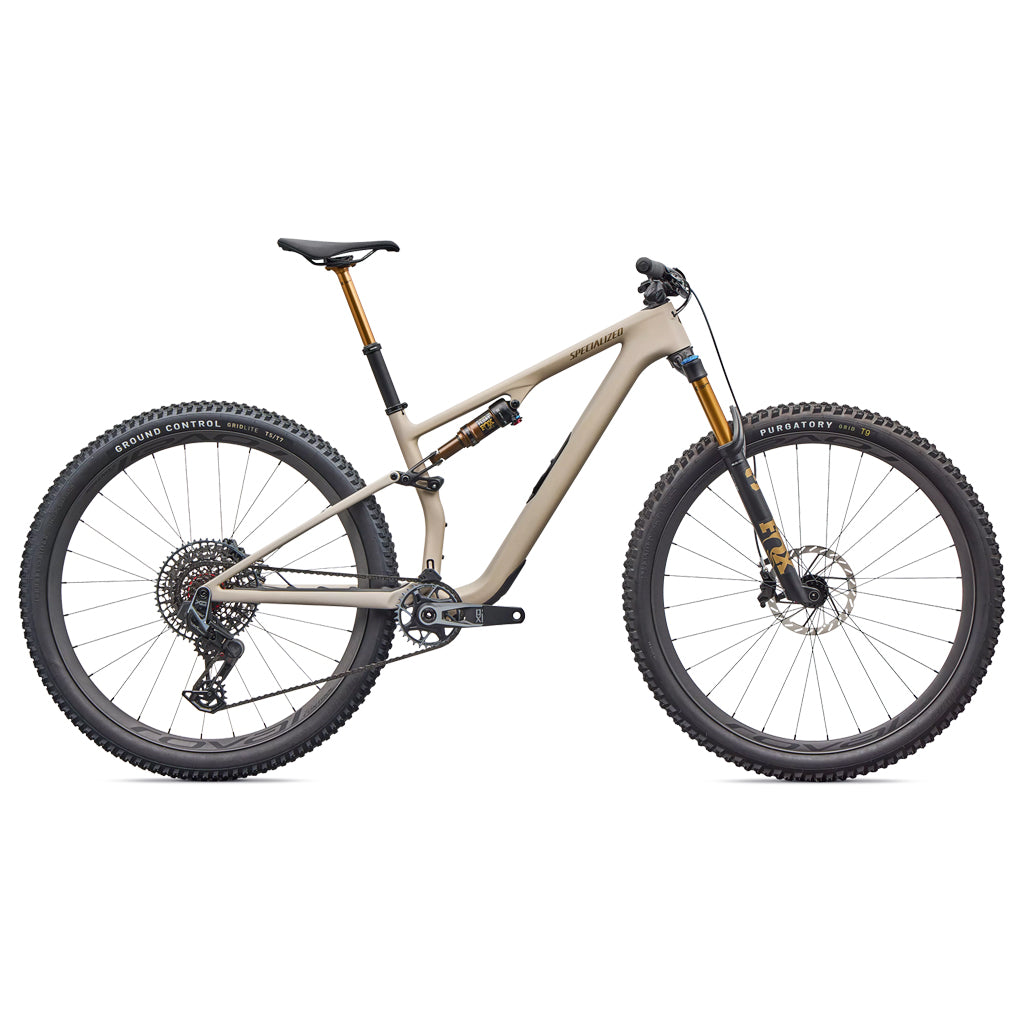

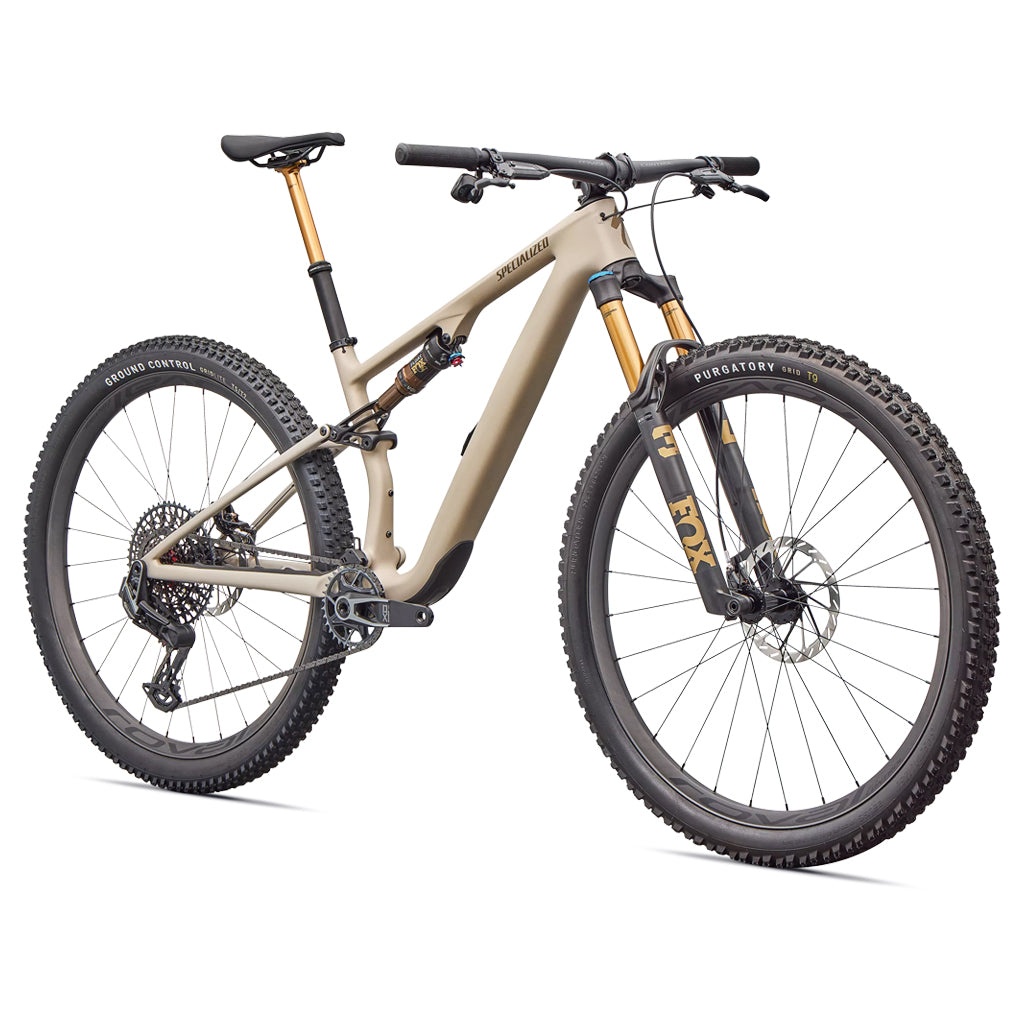

Specialized Epic 8 Evo Pro
Specifications
Frame FACT 11m Carbon, SWAT downtube storage, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel
Seat Binder Specialized Alloy, 34.9, Steel bolt
SWAT SWAT internal downtube storage
Fork Fox 34 SL Factory, Grip X Damper, HSC, LSC, LSR adjust, 130mm travel, 44mm offset, 15x110mm
Rear Shock FOX FLOAT Factory, EVOL LV, Ride Dynamics Tuned, 2-position compression adjust, 190x45mm
Saddle Body Geometry Power Expert
SeatPost Fox Transfer Factory, 30.9, 1X remote, (SM:125mm, MD: 150mm, L-XL: 175mm)
Handlebars Roval Control Rise Carbon Handlebar, 780mm wide, 20mm rise, 35mm
Grips Specialized Trail Grips
Stem Raceface Turbine R, 50mm, 35mm clamp
Front Brake SRAM Motive Silver, 4-piston caliper, hydraulic disc, 180mm rotor
Rear Brake SRAM Motive Silver, 4-piston caliper, hydraulic disc, 160mm rotor
Shift Levers SRAM AXS POD Controller
Bottom Bracket SRAM DUB Threaded Wide
Chain Sram X0 Eagle
Rear Derailleur SRAM X0 Eagle Transmission
Crankset SRAM X0 Eagle, DUB, 170/175mm
Cassette SRAM XS 1295, 12 speed, 10-52
Chainrings Alloy, 32T
Rims Roval Control, Carbon offset design, 29mm internal width, 4mm hook width, Tubeless ready, 28h
Front Hub Industry Nine 1/1, 6-bolt, 15mm Thru-axle, 110mm spacing, 28h
Rear Hub Industry Nine 1/1, 12x148mm thru axle, XD freehub body, 28h
Front Tire Specialized Purgatory, GRID Casing, T9 Compound, 29x2.4
Rear Tire Specialized Ground Control, GRID Casing, T5/T7 Compound, 29x2.35
Spokes Stainless, 14g, black
Inner Tubes Standard, Presta Valve
Weight 11.74kg (25 lb, 14.1 oz) - Size MD
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | ||
| A | Reach | 390 | 420 | 450 | 475 | 500 |
| B | Stack | 603 | 597 | 598 | 610 | 628 |
| C | Head Tube Angle | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° | 66.4° | 65.9° |
| D | Seat Tube Length | 370 | 390 | 410 | 450 | 500 |
| E | Front Center | 687 | 716 | 747 | 778 | 811 |
| F | Bottom Bracket Height | 323/318 | 329/324 | 331/326 | 333/328 | 333/328 |
| G | Bottom Bracket Drop | 52 | 46 | 44 | 42 | 42 |
| H | Wheelbase | 1117 | 1147 | 1179 | 1210 | 1243 |
| I | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| J | Head Tube Length | 92 | 92 | 95 | 110 | 130 |
| K | Top Tube Length | 535 | 569 | 605 | 633 | 662 |
| L | Seat Tube Angle | 76.5° | 76° | 75.5° | 75.5° | 75.5° |
| M | Standover Height | 748 | 755 | 760 | 769 | 774 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| XS | 4'10" - 5'1" | 148 - 155cm |
| S | 5'2" - 5'5" | 158 - 165cm |
| M | 5'5" - 5'10" | 165 - 178cm |
| L | 5'10" - 6'1" | 178 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
Part Numbers
| Size | Model Number | Satin Sandstone Metallic |
|---|---|
| S | 94826-1002 |
| M | 94826-1003 |
| L | 94826-1004 |
| XL | 94826-1005 |
