Giant Fathom 27.5
Giant Fathom 27.5
Giant Fathom 27.5
Giant Fathom 27.5

Giant Fathom 27.5

210000085695

$1,899.99 CAD
/
Local Pickup Only
The Giant Fathom's lightweight ALUXX SL aluminum frame and 140mm suspension fork provide a responsive ride, while its progressive geometry ensures confident handling on technical trails.
Colour
Size

EMAIL: sales@steedcycles.com

PHONE: 604-987-2168

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Giant Fathom 27.5

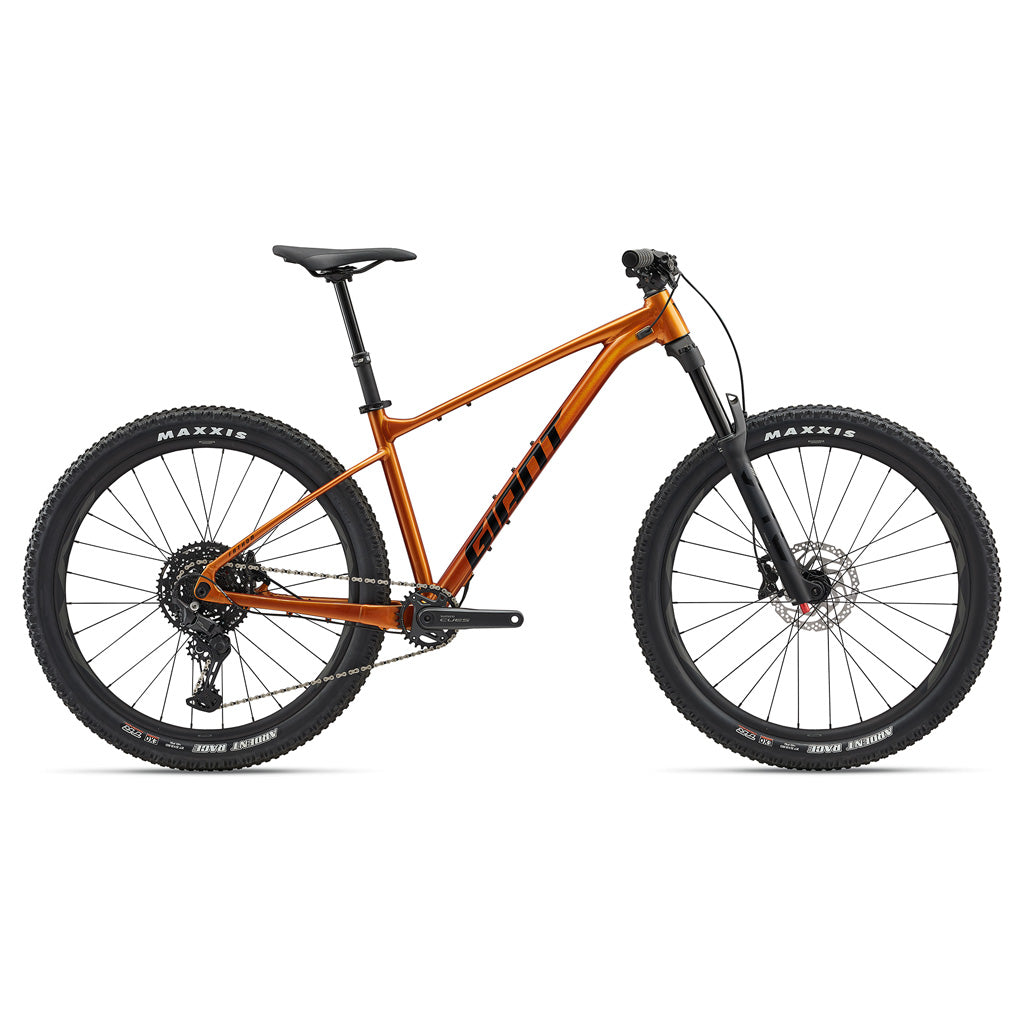

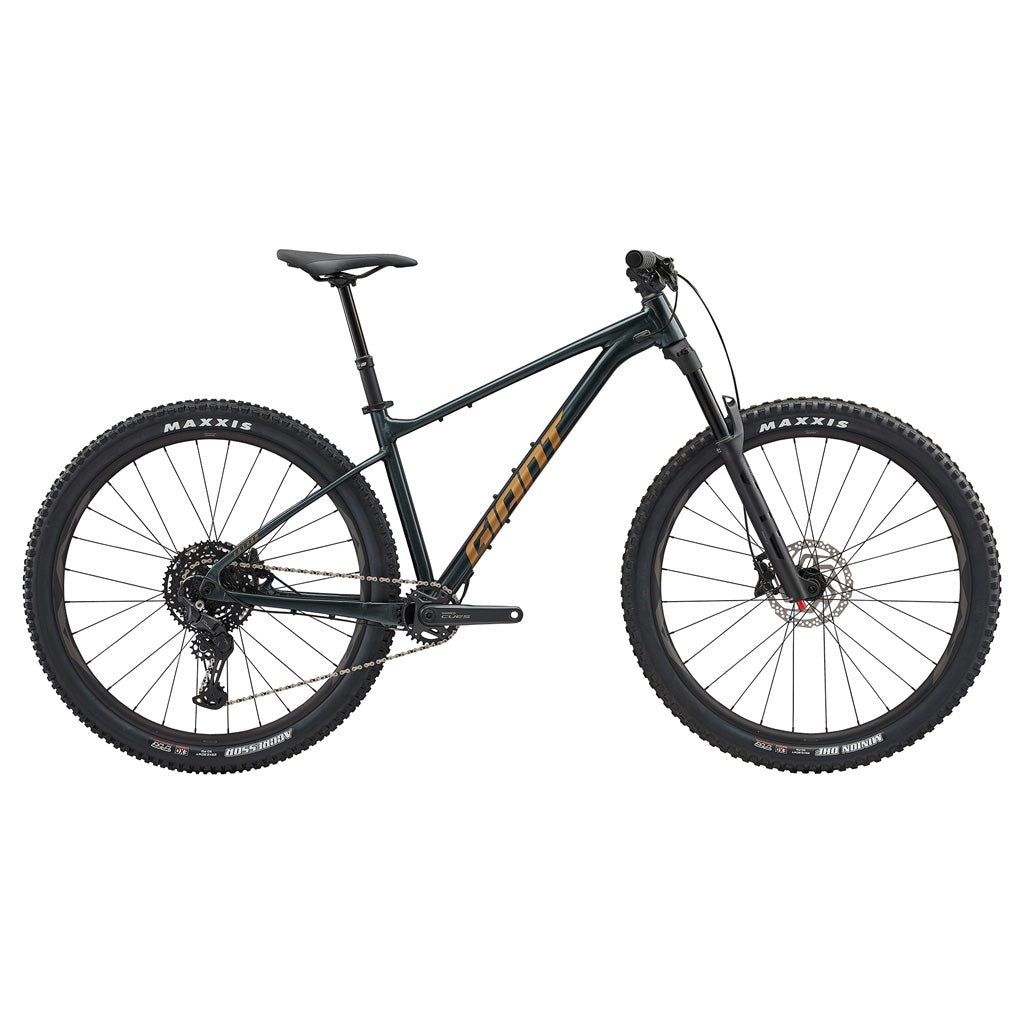

Take on technical climbs and rip through descents with the Giant Fathom, a hardtail built for riders who want more out of every ride. Its lightweight ALUXX SL aluminum frame is paired with a 140mm suspension fork and progressive geometry, striking the perfect balance between efficiency and stability. A slack 66-degree head angle keeps handling stable at speed, while the 75-degree seattube angle puts you in the perfect position to power up steep sections. With knobby tires, a dropper seatpost, and 27.5 wheels, the Fathom delivers confident handling and traction to keep you charging forward.

Specifications

Frame ALUXX SL-grade aluminum, 12x148mm thru-axle

Fork Giant STL 34 RCL, 140mm, 44mm offset, 15x110mm thru-axle, custom tuned

Handlebar Giant Contact SL TR35, 20mm rise, 35mm

Grips Giant Sole-O

Stem Giant Contact SL 35

Seatpost Giant Contact Switch AT adjustable dropper, remote
S: 110-140mm travel / 30.9 x 395mm
M: 140-170mm travel / 30.9 x 470mm
L: 170-200mm travel / 30.9 x 530mm

Saddle Giant Romero

Shifters Shimano CUES U6000, 1x10

Rear Derailleur Shimano CUES RD-U6000

Brakes Shimano BR-MT420, hydraulic
Shimano RT-26 rotors [F] 180mm, [R] 180mm

Brake Levers Shimano Deore BL-MT401

Cassette Shimano CUES, LinkGlide, 10-speed, 11x48

Chain KMC X11

Crankset Shimano CUES U6000, 30t, 52mm chainline

Bottom Bracket Shimano, threaded

Rims Giant AM 27.5, tubeless ready sleeve-joint rim, 30mm IW

Hubs [F] Giant MTB alloy, 6-bolt, sealed
[R] Giant MTB alloy, 6 bolt, sealed

Spokes Stainless

Tires 27.5" [F&R] Maxxis Ardent Race, 27.5x2.6, foldable, TR

Extras Tubeless prepared, 2.5" max tire size, 32t max chainring size

*Specifications are subject to change without notice

Geometry

S M L
A Reach 425 445 470
B Stack 622 622 631
C Head Tube Angle 66.0° 66.0° 66.0°
D Bottom Bracket Drop 60 60 60
E Wheelbase 1157 1177 1206
F Chainstay Length 438 438 438
G Head Tube Length 95 95 105
H Top Tube Length 592 612 639
I Seat Tube Angle 75.0° 75.0° 75.0°
J Stand Over Height 708 727 746
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Start a chat with our team
Size Height
Imperial Metric
S 5'4" - 5'8" 163 - 171cm
M 5'7" - 5'11" 171 - 180cm
L 5'10" - 6'2" 179 - 188cm
