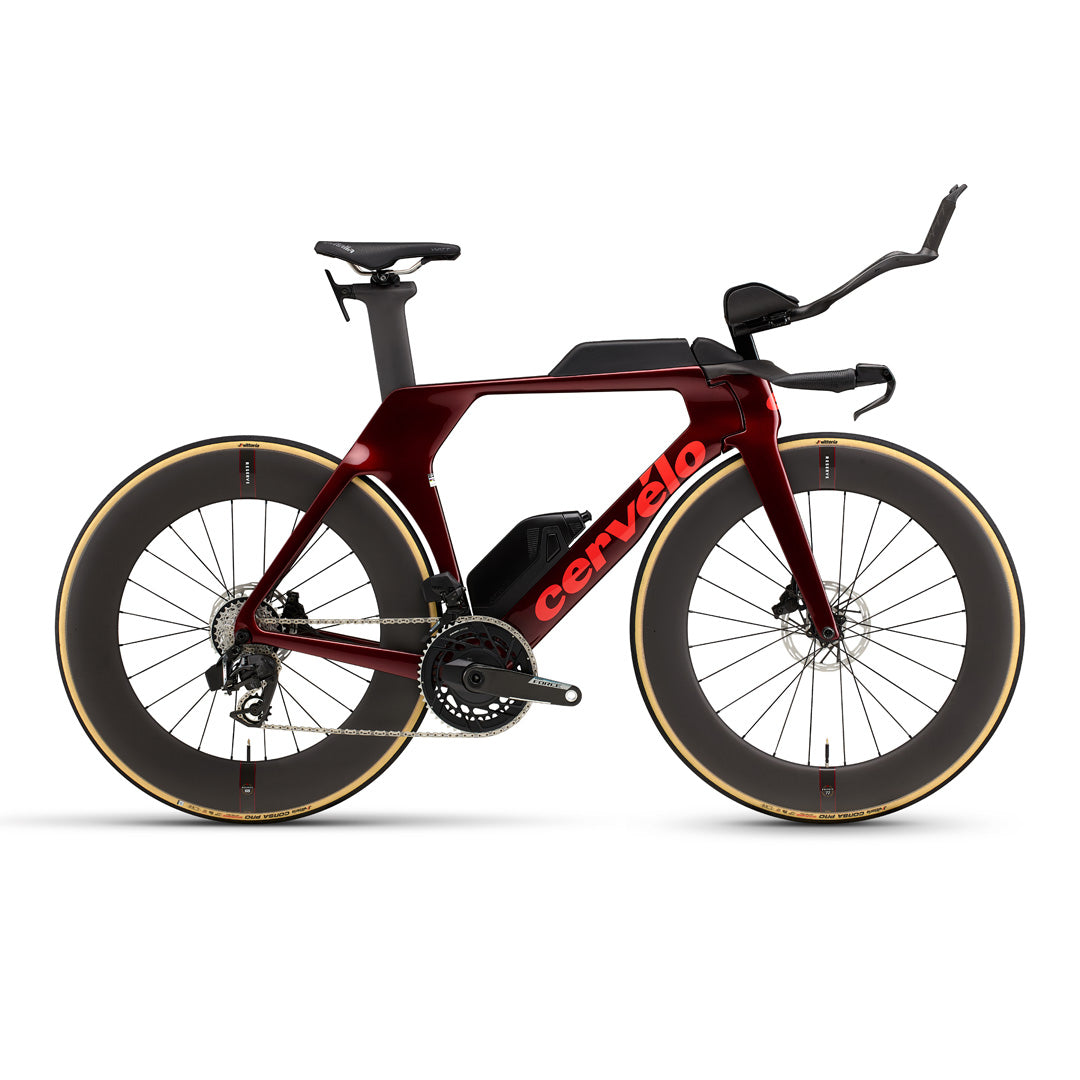

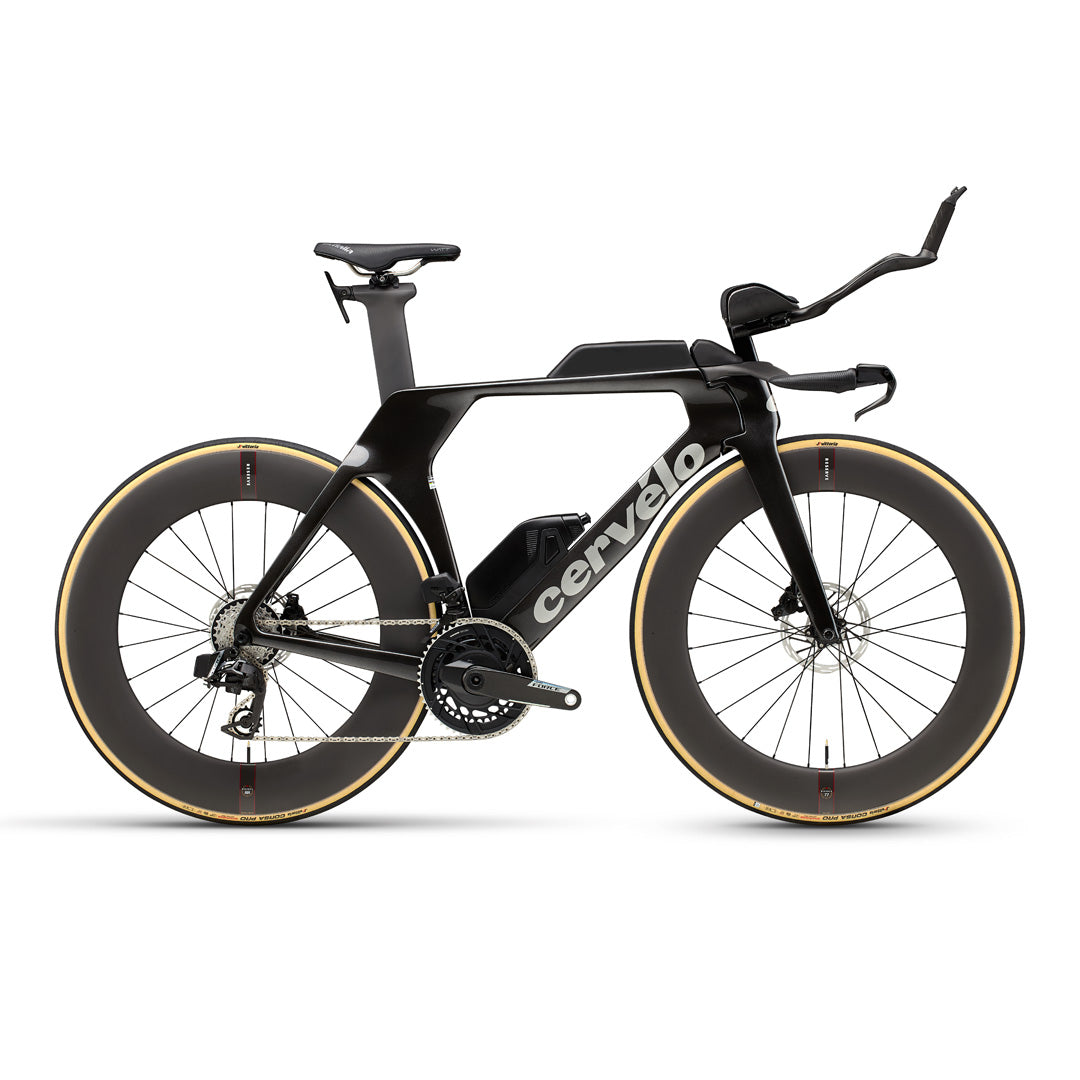

Cervélo P5 Force AXS
When the gun goes off and the clock starts ticking, the Cervélo P5 is the bike that turns time into your ally. The P5 has already proven itself on cycling's most demanding stages, powering Team Jumbo-Visma to stunning victories at both the 2023 Giro d'Italia and Tour de France. That's the company this bike keeps.
But the P5 isn't just about time trial glory. It's engineered to extract every ounce of speed from every watt you produce, transforming your effort into relentless forward momentum. Optimized for modern aero wheels, with clearance for up to 34mm tires and packed with cutting-edge refinements, this bike rewrites what's possible when you're racing against the clock. Whether you're battling the Kona winds or throwing down at your hometown triathlon, the P5 gives you the tools to absolutely dominate.
World-beating aerodynamics are just the beginning. The P5 also delivers the adjustability and comfort you need to stay in your optimal position for hours. The revolutionary one-piece front end simplifies setup while allowing precise fit and stack adjustments, keeping you locked into that perfect aero tuck. Redesigned armrests provide rock-solid stability and control, so you can stay confident and powerful even when fatigue sets in. Integrated storage solutions designed specifically for triathletes mean fuelling mid-race is effortless and clean.
From the reimagined fastback seat stays to the refined geometry that puts every detail in service of speed, the P5 is built for one thing: helping you push harder, race smarter, and cross the finish line knowing you left everything out there.
But the P5 isn't just about time trial glory. It's engineered to extract every ounce of speed from every watt you produce, transforming your effort into relentless forward momentum. Optimized for modern aero wheels, with clearance for up to 34mm tires and packed with cutting-edge refinements, this bike rewrites what's possible when you're racing against the clock. Whether you're battling the Kona winds or throwing down at your hometown triathlon, the P5 gives you the tools to absolutely dominate.
World-beating aerodynamics are just the beginning. The P5 also delivers the adjustability and comfort you need to stay in your optimal position for hours. The revolutionary one-piece front end simplifies setup while allowing precise fit and stack adjustments, keeping you locked into that perfect aero tuck. Redesigned armrests provide rock-solid stability and control, so you can stay confident and powerful even when fatigue sets in. Integrated storage solutions designed specifically for triathletes mean fuelling mid-race is effortless and clean.
From the reimagined fastback seat stays to the refined geometry that puts every detail in service of speed, the P5 is built for one thing: helping you push harder, race smarter, and cross the finish line knowing you left everything out there.
Specifications
Fork Cervélo All-Carbon, Bayonet P5 Fork
Headset FSA IS2 1-1/8, 36° x 45° / 1-1/4, 45° x 45°
Seatpost Cervélo SP23 Carbon
Front Derailleur SRAM Force AXS E1
Rear Derailleur SRAM Force AXS E1
Front Brake System SRAM S900 Aero
Rear Brake System SRAM S900 Aero
Brake Rotors SRAM Paceline Centerlock
Front Thru Axles Cervélo Aero Thru Axle Front, M12x1.5mm, 127mm length
Rear Thru Axles Cervélo Aero Thru Axle Rear, M12x1.5mm, 170.5mm length
Bottom Bracket SRAM DUB, BBright
Crankset SRAM Force AXS E1, 50/37T, DUB, with power meter
Crank Sizing 48cm - 160mm, 51cm - 165mm, 54cm - 165mm, 56cm - 170mm, 58cm - 170mm, 61cm - 172.5mm
Handlebar Sizing 48cm - 38cm, 51cm - 38cm, 54cm - 38cm, 56cm - 38cm, 58cm - 38cm, 61cm - 38cm
Aero Basebar Cervélo HB15 Carbon
Aero Riser Assembly Cervélo EX14 Carbon
Aero Extension Assembly Profile Design 52ASC 400mm Extension Assembly
Bar-End Satellite Shifter SRAM AXS Blip controller
Satellite Shifter SRAM AXS Blip controller, SRAM AXS Blip controller
Saddle Selle Italia WATT Superflow Ti316
Cassette SRAM Force E1, 10-33T, 12-Speed
Chain SRAM Force E1
Front Wheel Reserve 77TA, DT Swiss 240, 12x100mm, 24H, centerlock, tubeless compatible
Rear Wheel Reserve 88TA, DT Swiss 240, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
Tire Vittoria Corsa Pro TLR G2.0 700x29c
Max Tire Width 34mm
Accessories Cervélo Aero Water Bottle w/ Cage, Cervélo P5 Stem Storage, Cervélo Rear Hydration Mount, Cervélo Smartpak Top Tube Storage Bag 400
Geometry
| 48 | 51 | 54 | 56 | 58 | ||
|---|---|---|---|---|---|---|
| A | Reach | 387 | 403 | 417 | 431 | 444 |
| B | Stack | 466 | 486 | 502 | 521 | 539 |
| C | Head Tube Angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° |
| D | Front Center | 582 | 583 | 602 | 622 | 640 |
| E | Bottom Bracket Drop | 75 | 75 | 75 | 75 | 75 |
| F | Wheelbase | 975 | 976 | 995 | 1015 | 1033 |
| G | Head Tube Length | 67.5 | 81 | 98 | 117 | 137 |
| H | Standover Height | 728 | 754 | 769 | 786 | 804 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
For information on sizing please refer to Cervélo's interactive bike size and setup calculator for the P5.
