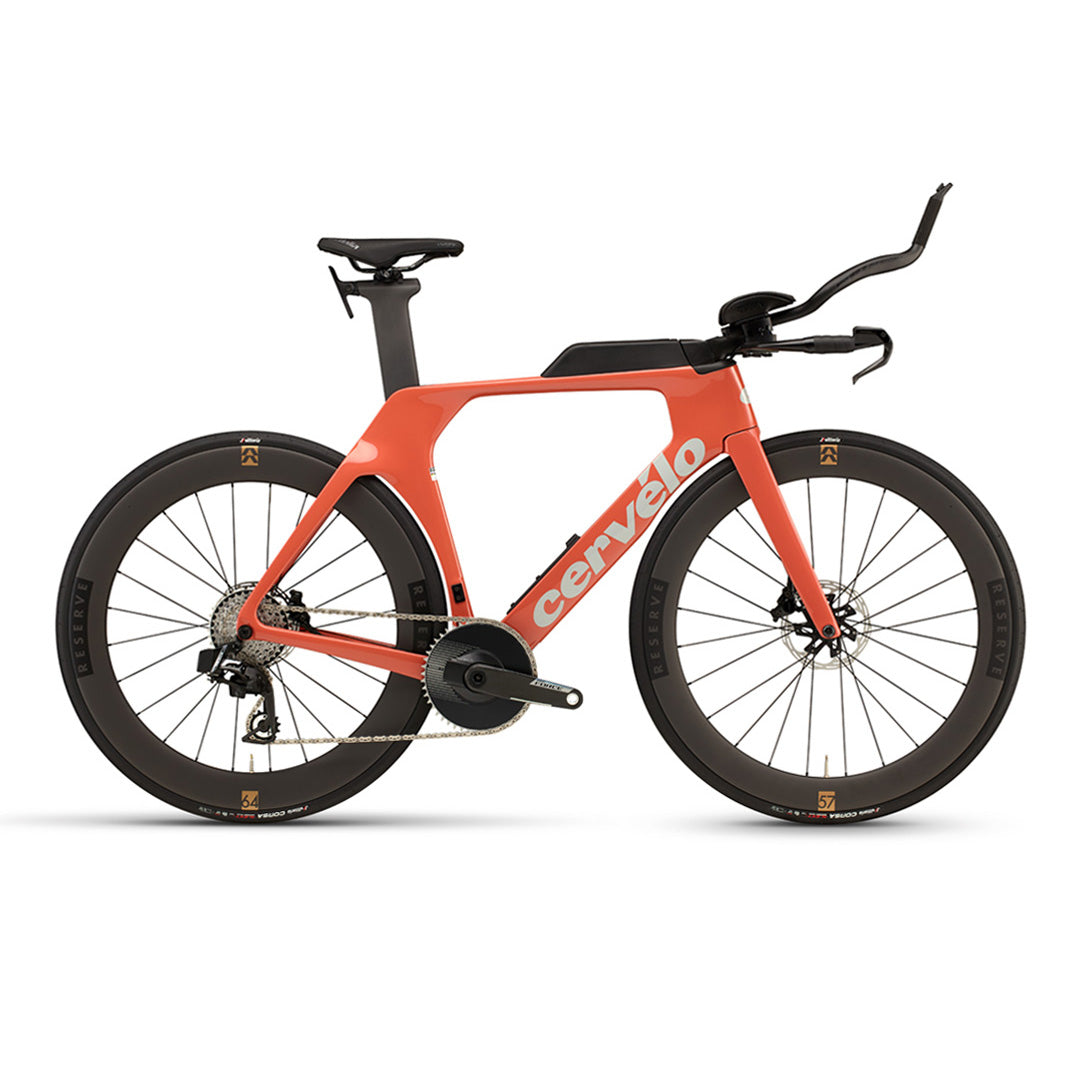

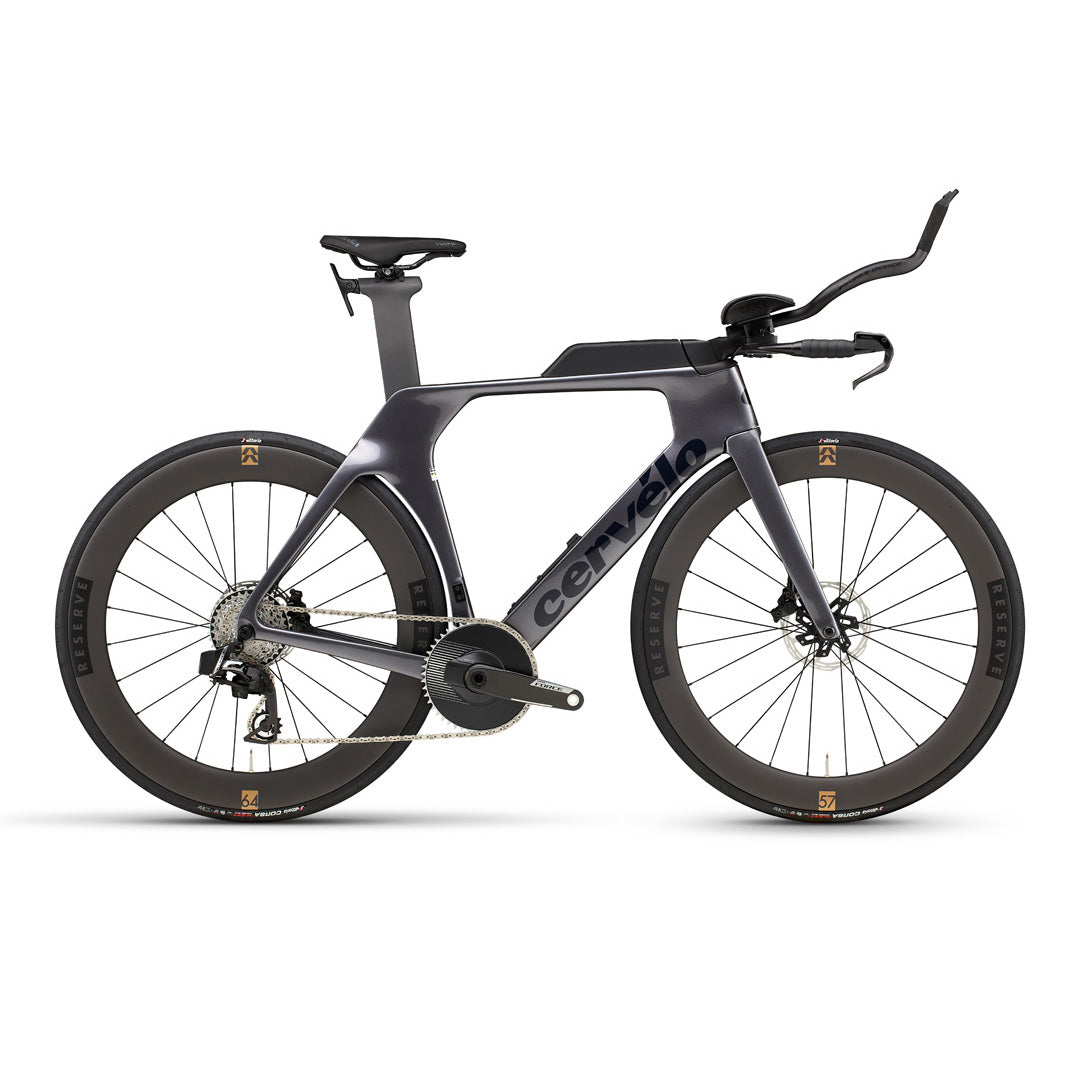

Cervélo P Force AXS 1
Specifications
FORKCervélo All-Carbon, Tapered P Fork
HEADSETFSA IS2 1-1/4 x 1-3/8
STEMCervélo ST36 Alloy
AERO BASEBAR/EXTENSIONSZipp Vuka Bull Carbon/Zipp Carbon Extensions
SEATPOSTCervélo SP23 Carbon
SADDLEPrologo Dimension Tri T4.0
FRONT BRAKERiderever Triva Carbon Di2
REAR BRAKERiderever Triva Carbon Di2
BRAKE ROTORSJagwire RS04 6-Bolt
REAR DERAILLEURSRAM Force AXS E1, 12 speed
CASSETTESRAM Force E1, 10-36T, 12-Speed
CHAINSRAM Force E1
CRANKSETSRAM Force 1 AXS E1, 48T Aero, DUB, with power meter
BOTTOM BRACKETSRAM DUB, BBright
FRONT WHEELReserve 57TA, DT Swiss 350, 12x100mm, 24H, centerlock, tubeless compatible
REAR WHEELReserve 64TA, DT Swiss 350, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible
THRU AXLESCervélo Aero Thru-Axles, 12x100/142
TIRESCorsa N.EXT TLR G2.0 700x29
ACCESSORIESSmartpak 400, Rear Hydration Mount
Geometry
| 48 | 51 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 378 | 395 | 409 | 422 | 434 | 443 |
| B | Stack | 494 | 515 | 531 | 549 | 569 | 587 |
| C | Head Tube Angle | 71° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| D | Front Centre | 581 | 583 | 602 | 620 | 638 | 653 |
| E | Bottom Bracket Drop | 80 | 80 | 80 | 80 | 80 | 80 |
| F | Wheelbase | 973 | 983 | 993 | 1012 | 1030 | 1045 |
| G | Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| H | Head Tube Length | 87.8 | 101.7 | 118.4 | 137.3 | 158.3 | 177.2 |
| I | Standover Height | 734 | 755 | 770 | 787 | 806 | 823 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
