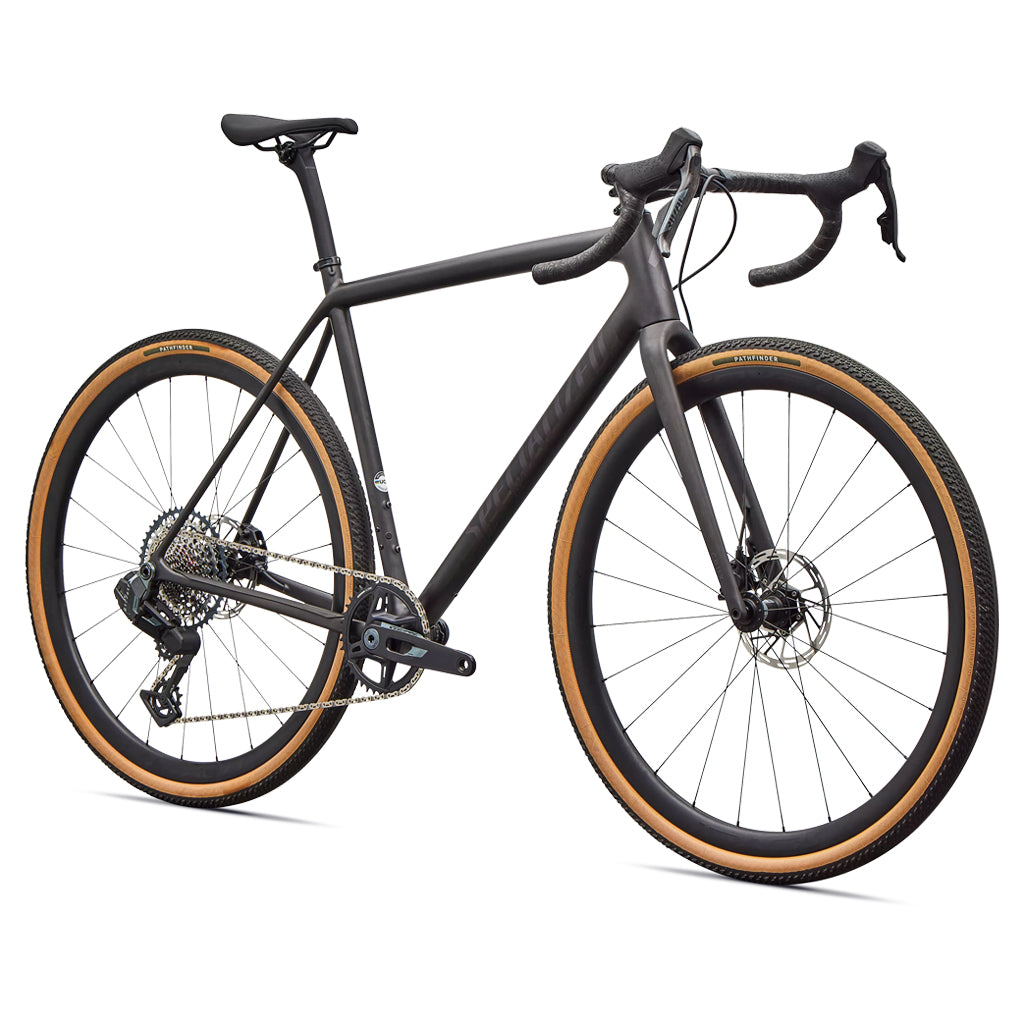

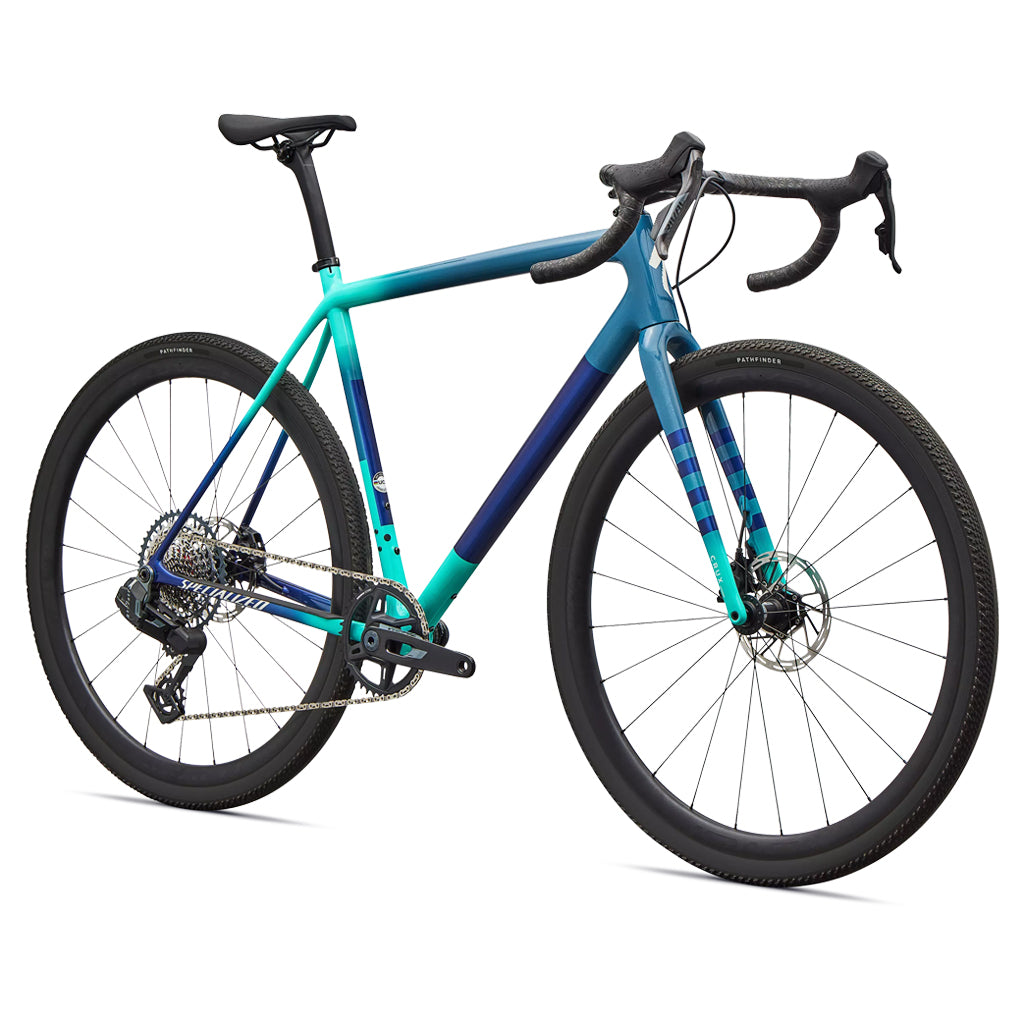

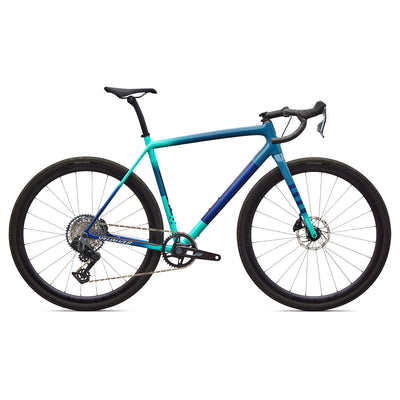

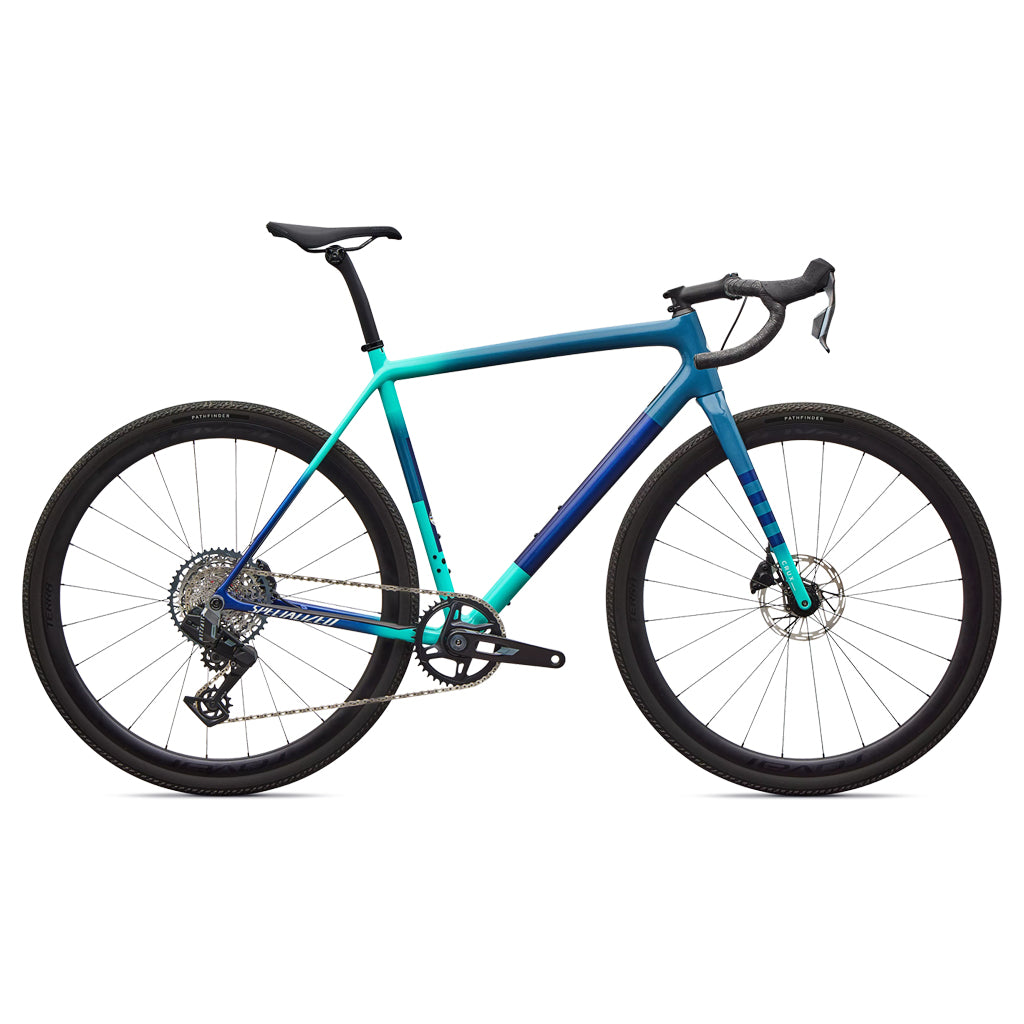

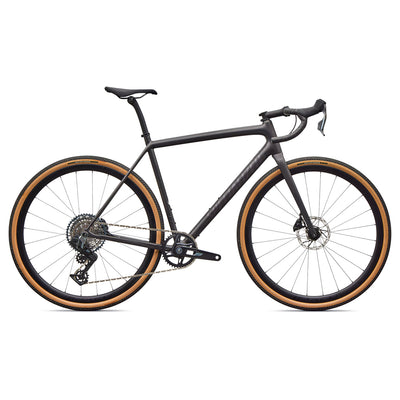

Specialized Crux Expert SRAM Rival XPLR AXS
Specialized Crux Expert SRAM Rival XPLR AXS
Specialized Crux Expert SRAM Rival XPLR AXS
Specialized Crux Expert SRAM Rival XPLR AXS
Specialized Crux Expert SRAM Rival XPLR AXS
Specialized Crux Expert SRAM Rival XPLR AXS
Specialized Crux Expert SRAM Rival XPLR AXS
Specialized Crux Expert SRAM Rival XPLR AXS

Specialized Crux Expert SRAM Rival XPLR AXS

210000100225

$7,849.99 CAD
/
Shipping Canada Wide

Unleash your gravel potential with the Crux Expert. Its lightweight FACT 10r carbon frame and fork, SRAM Rival AXS XPLR E1 13-speed groupset, and Roval Terra C wheels deliver speed, reliability, and versatility for every epic adventure.

Colour
Size

EMAIL: sales@steedcycles.com

PHONE: 604-987-2168

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Specialized Crux Expert SRAM Rival XPLR AXS

The Specialized Crux is made to be the lightest gravel bike in the world, combining cutting-edge technology with ultimate capability to redefine your gravel riding experience. Built with the same revolutionary breakthroughs that made the Aethos the lightest bike ever, the Crux carbon lineup features a 725g S-Works 12r frame and an 825g 10r frame—delivering a gravel bike that climbs effortlessly, glides over rough roads, and weighs less than a full water bottle. Whether you’re venturing out on new gravel routes or racing across rugged landscapes, the Crux carbon options set the benchmark for lightness and efficiency.

But the Crux isn’t just about carbon. The Crux DSW brings that same gravel-first DNA to a premium aluminum frame, crafted with Specialized’s advanced Smartweld technology. The result is a frame that tips the scales at just 1,399g, making it the lightest alloy gravel frame in the world. Riders get the same tire clearance, progressive geometry, and confident handling as the carbon versions, but in a more accessible and incredibly durable package. For those who want the full Crux experience with a touch more toughness and value, the DSW is the perfect match.

Designed for adventure, every Crux—carbon or DSW—boasts an impressive 47c/650b x 2.1" tire clearance, allowing you to take on everything from muddy cross-country paths to chunky gravel backroads. Nimble at the pedals and comfortable in the saddle, the Crux is engineered for riders who demand speed, versatility, and connection to the ride. With performance gravel geometry and a race-inspired fit, the Crux is more than just a bike—it’s your ticket to gravel enlightenment.

Specifications

Frame rux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Fork S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Front Brake NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor

Rear Brake NEW SRAM Rival AXS E1, hydraulic disc 160mm rotor

Bottom Bracket SRAM DUB BSA

Crankset NEW SRAM Rival XPLR E1

Shift Levers NEW SRAM Rival AXS E1 HRD

Rear Derailleur NEW SRAM Rival XPLR AXS E1

Chain NEW SRAM Rival E1

Cassette NEW SRAM Rival XPLR XG-1351, 13sp, 10-46t

Chainrings 48/35T, INCLUDED W/CRANK SET

Front Tire Pathfinder 700x40, Tan Sidewall, Tubeless Ready

Rear Tire Pathfinder 700x40, Tan Sidewall, Tubeless Ready

Front Wheel Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes

Rear Wheel Roval Terra C, 25mm inner width carbon rim, 32mm depth, DT 370 hub, 24h, DT Swiss Comp Race spokes

Inner Tubes Standard 40mm PV 700x32-50

Saddle Body Geometry Power Expert

SeatPost Roval Terra Carbon Seat Post, 20mm Offset

Handlebars Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare

Seat Binder Specialized Alloy, 30mm

Stem Specialized Pro SL, alloy, 4-bolt

Tape Supacaz Super Sticky Kush

Product ID 223489

Weight Size 56

Weight 8.1 kg (17 lb, 13.7 oz)

*Specifications are subject to change without notice

Geometry

49 52 54 56 58 61
A Reach 375 382 388 397 405 415
B Stack 530 547 560 578 598 621
C Head Tube Angle 70.5° 71.25° 71.5° 72° 72.25° 72.5°
D Front Centre 594 600 608 618 630 644
E Bottom Bracket Drop 74 74 72 72 72 72
F Wheelbase 1008 1014 1023 1033 1045 1059
G Chainstay Length 425 425 425 425 425 425
H Head Tube Length 100 115 130 147 167 190
I Top Tube Length 512 539 549 568 582 599
J Seat Tube Angle 75.5° 74° 74° 73.5° 73.5° 73.5°
K Standover Height 749 772 794 816 841 866
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Start a chat with our team
Size Height
Imperial Metric
49 5'1" - 5'5" 155 - 163cm
52 5'4" - 5'7" 163 - 170cm
54 5'7" - 5'9" 170 - 175cm
56 5'9" - 5'11" 175 - 180cm
58 5'11" - 6'2" 180 - 188cm
61 6'2" - 6'5" 188 - 196cm

Part Numbers

Size Model Number
Grey Blue Satin Carbon
49 91426-3049 91426-3149
52 91426-3052 91426-3152
54 91426-3054 91426-3154
56 91426-3056 91426-3156
58 91426-3058/td> 91426-3158
61 91426-3061 91426-3161
