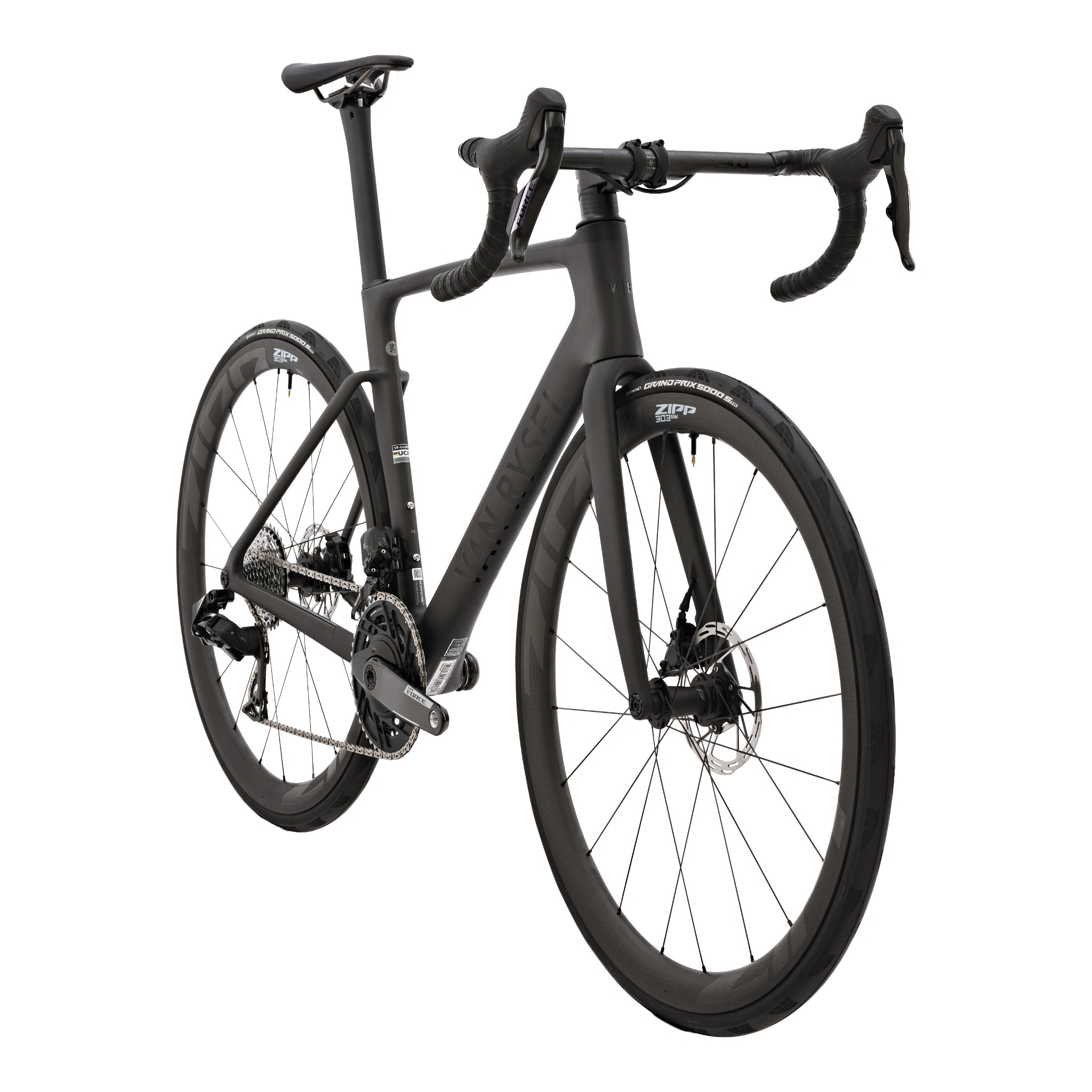

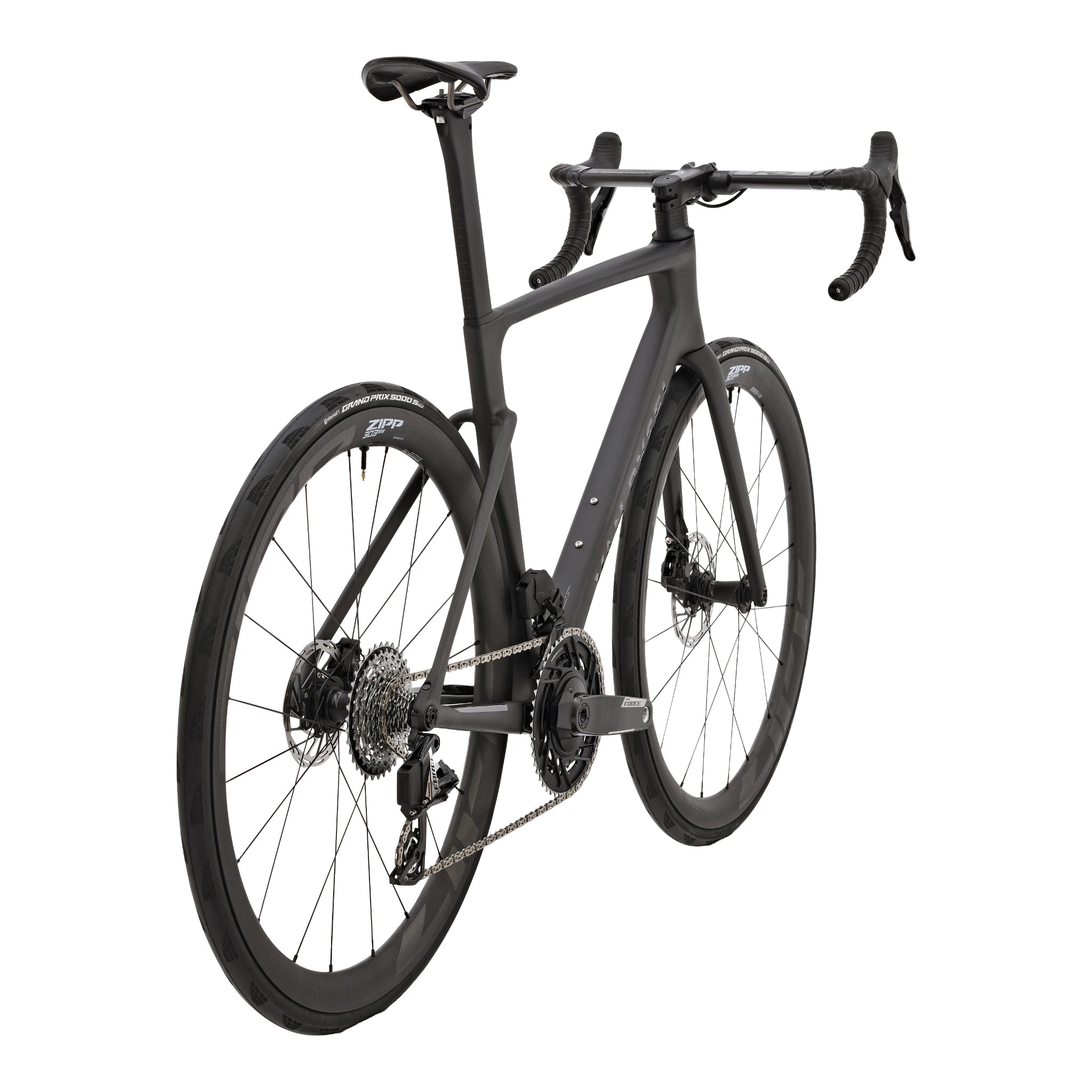

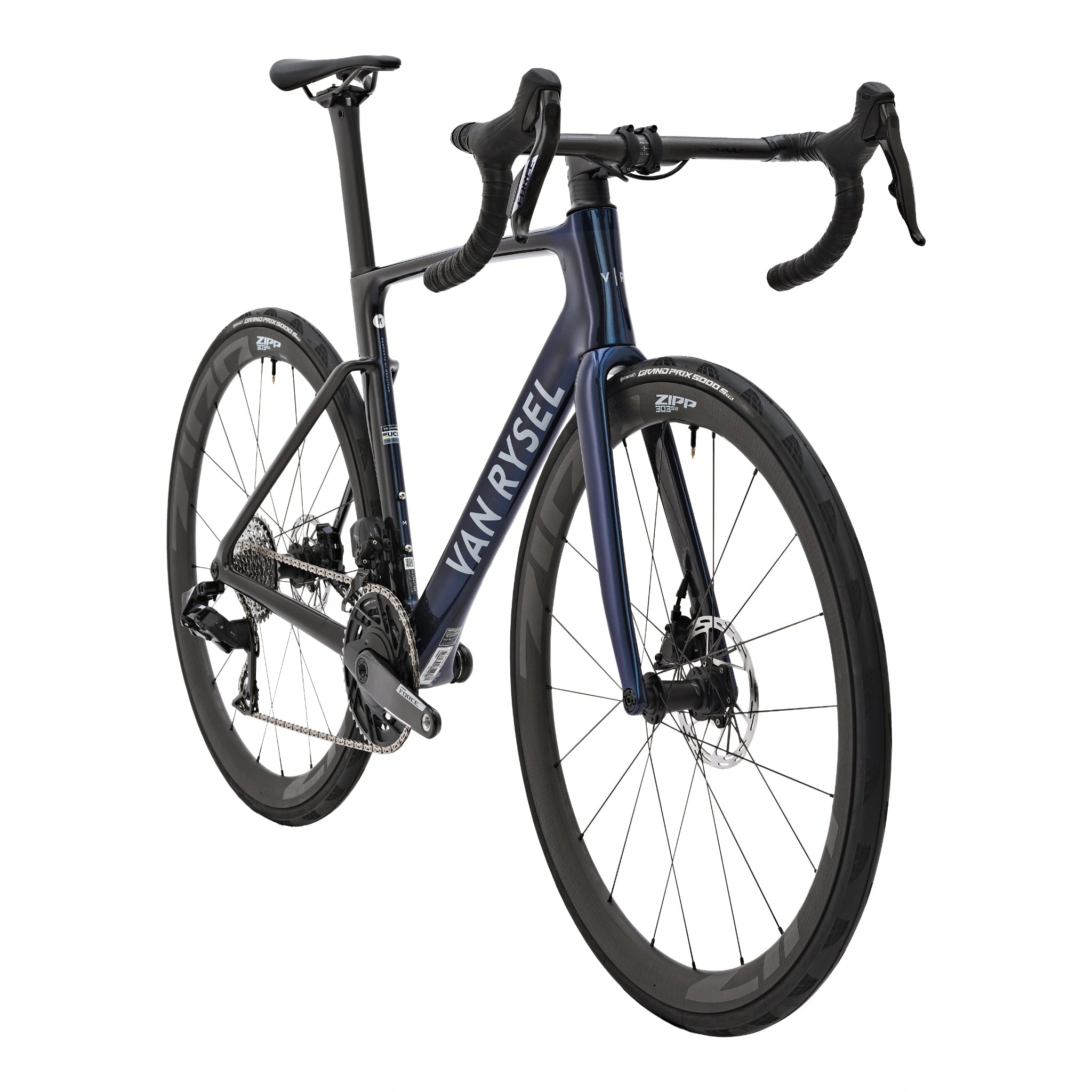

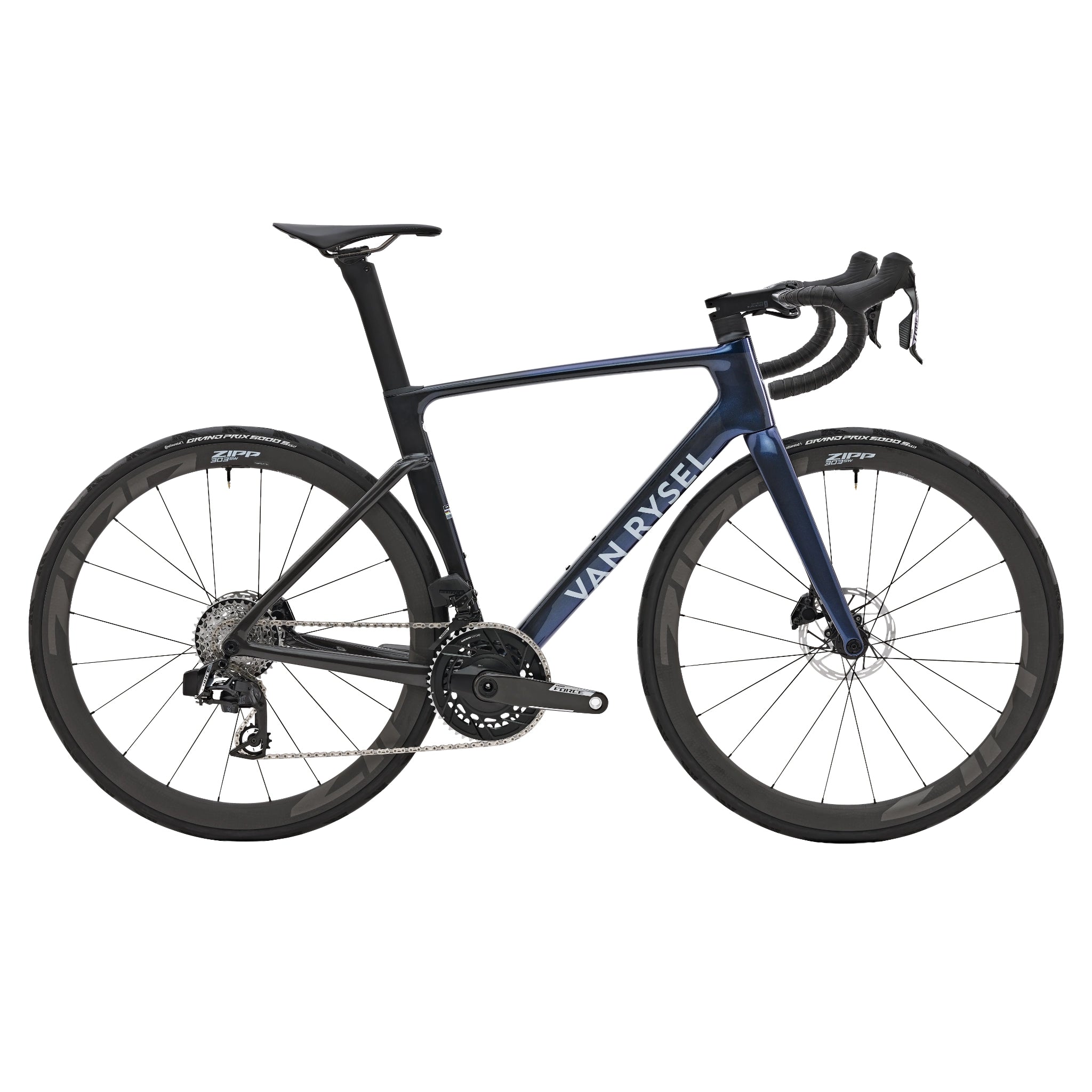

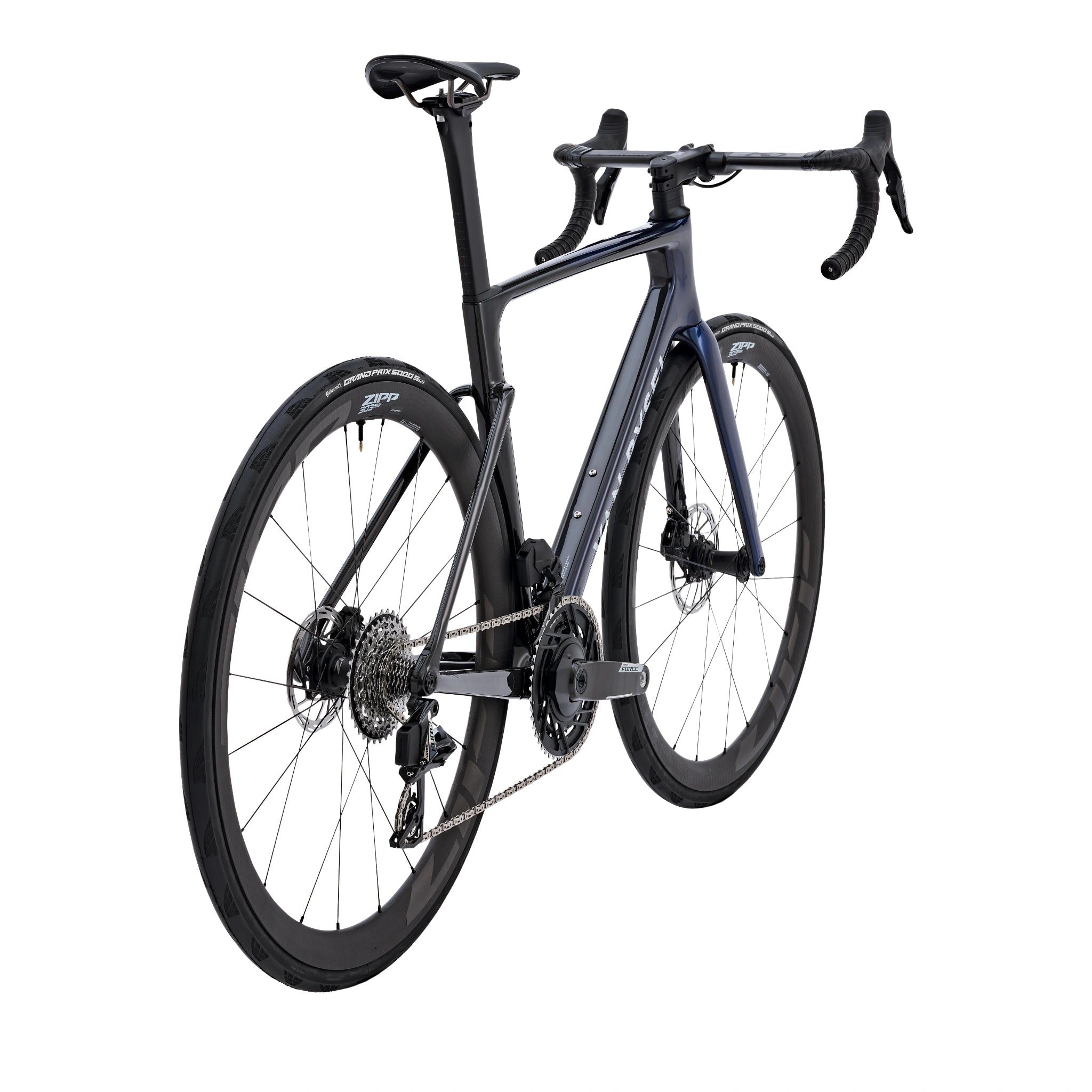

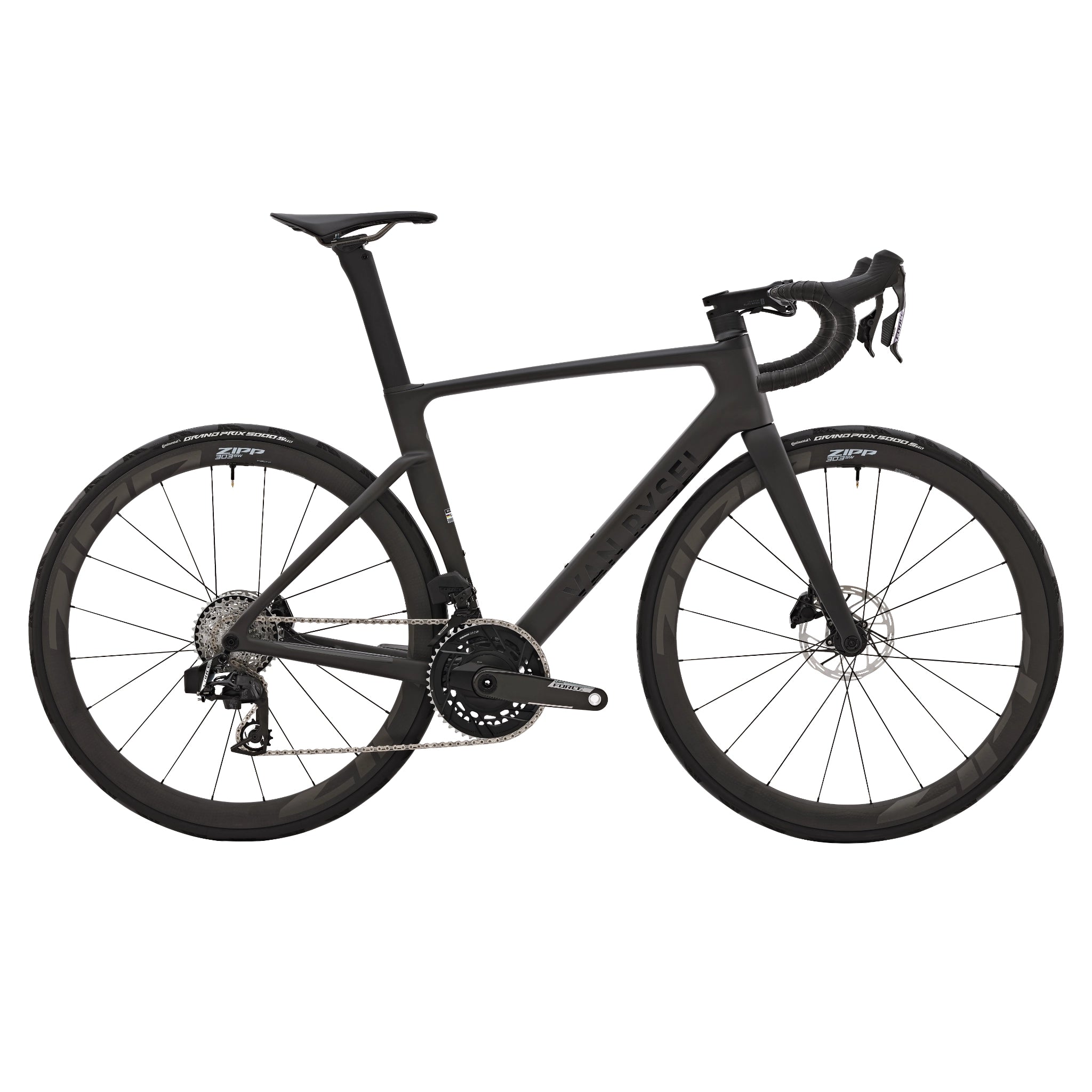

Van Rysel RCR-R PRO Force AXS
The Van Rysel RCR-R is built for riders who demand nothing less than speed, efficiency, and race-ready handling. Engineered in Lille and proven on the roads of Europe, the RCR-R blends a lightweight carbon frame with aerodynamic shaping to deliver explosive acceleration on climbs and razor-sharp control through descents. Every detail has been refined for pure performance.Whether you’re chasing podiums or pushing your own limits, the RCR-R offers the perfect balance of stiffness and comfort for long days in the saddle. Designed to compete with the world’s best, it’s a bike that turns every ride into a race and every finish line into an invitation to go faster.
Specifications
FrameRCR Full Carbon

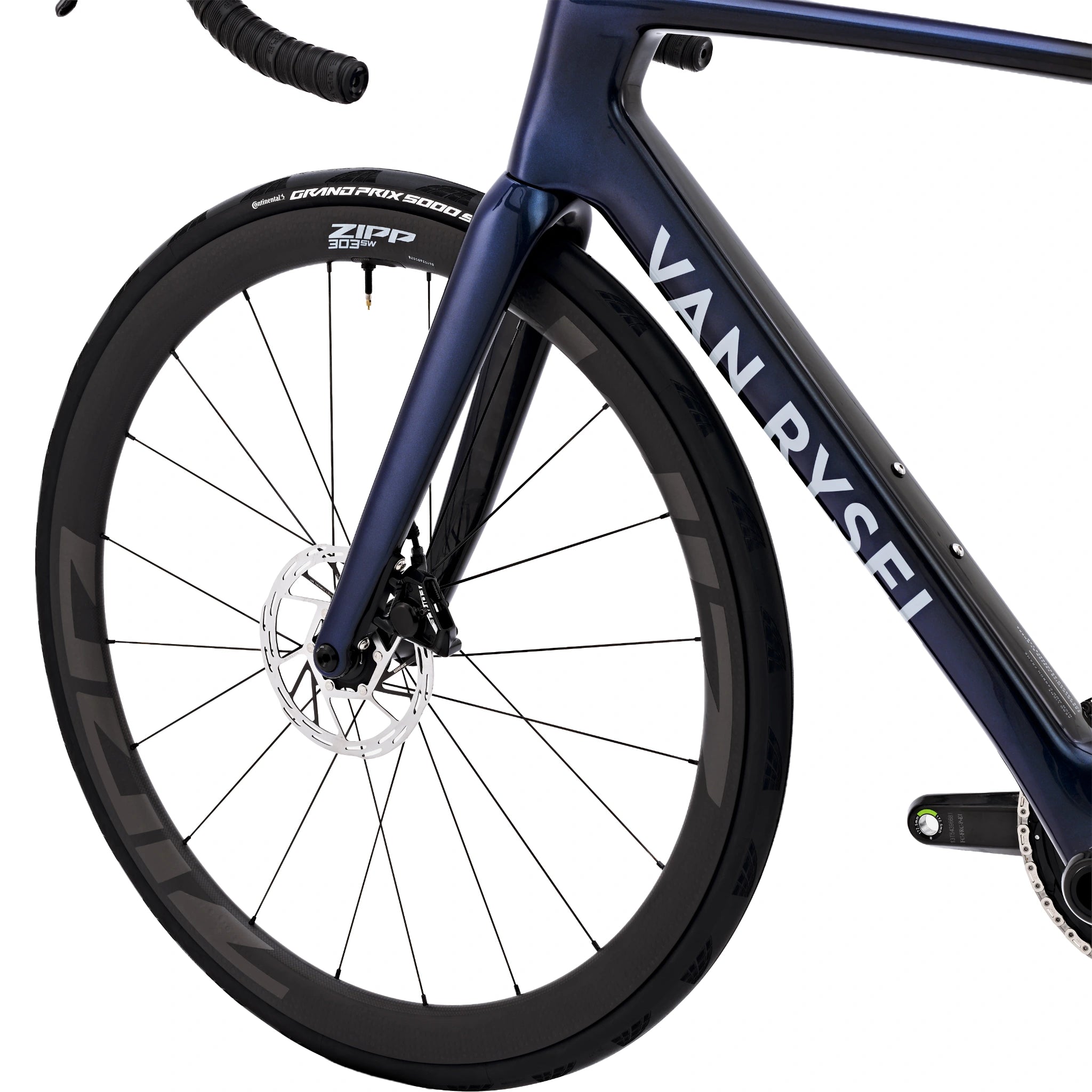

ForkRCR Full Carbon

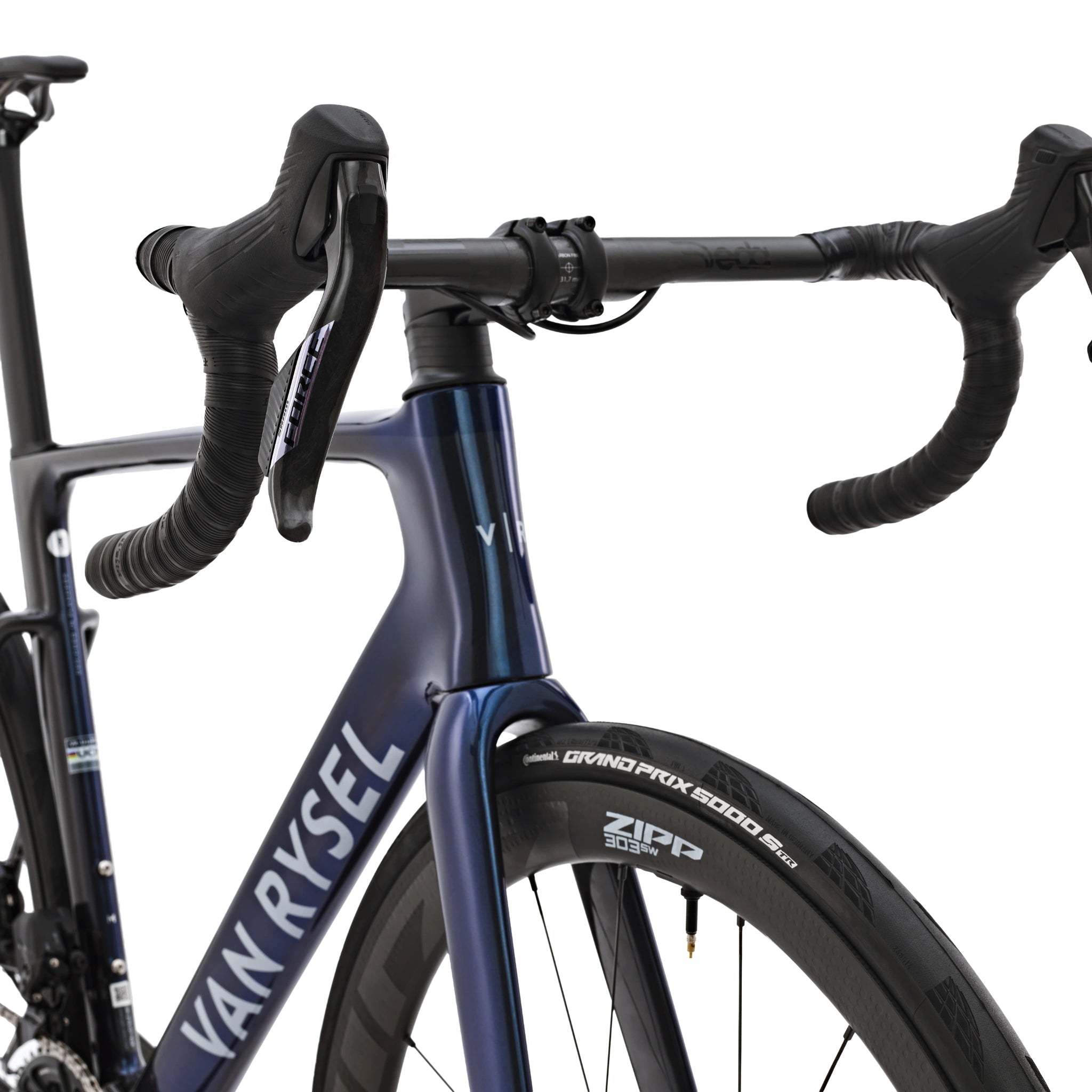

HandlebarDeda Superzero RS Carbon
StemDeda Superbox EVO
SaddleFizik Argo Vento R5 140mm or Fizik Antares R5 140mm

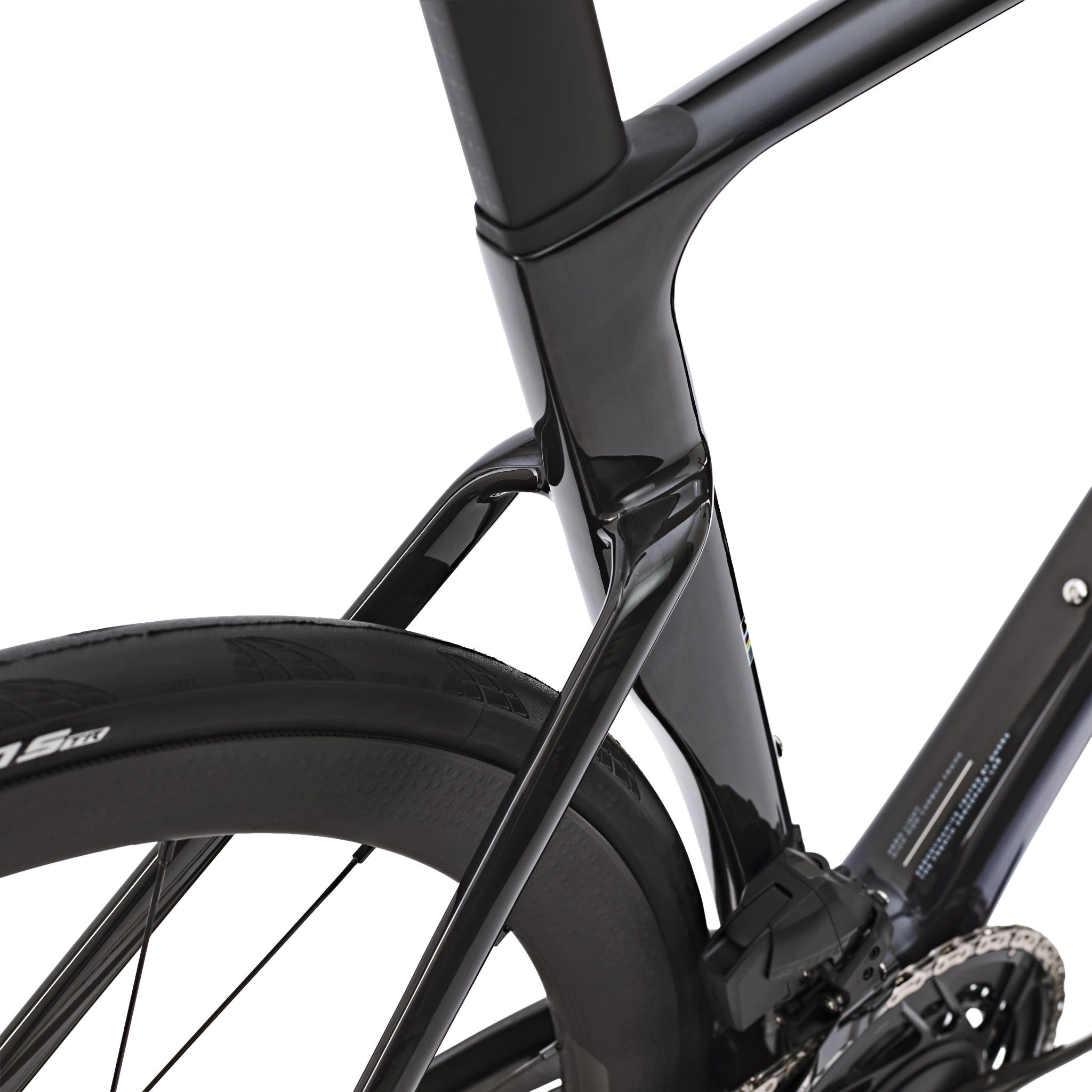

SeatpostVan Rysel RCR-R Carbon 15mm setback
ShiftersSRAM Force ETAP AXS E1
Front DerailleurSRAM Force ETAP AXS E1
Rear DerailleurSRAM Force ETAP AXS E1 Max 36T
CassetteSRAM Force XG 1270 E1 10-36T
CranksetSRAM Force E1 DUB w/ Powermeter 48/35T
WheelsZipp 303 SW
TiresContinental Grand Prix 5000 S TR 30c
BrakesForce ETAP AXS E1
RotorFront: SRAM Paceline 160mm / Rear: SRAM Paceline 140mm
Weight17.64 lbs | 8 kg Size Medium
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| A | Reach | 382.5 | 385.7 | 388.2 | 395.5 | 408.4 |
| B | Stack | 515 | 531 | 546 | 572 | 596 |
| C | Head Tube Angle | 72.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| D | Bottom Bracket Drop | 70 | 67 | 67 | 67 | 67 |
| E | Wheelbase | 978.2 | 979.1 | 986.0 | 1001.5 | 1021.7 |
| F | Chainstay Length | 410 | 410 | 410 | 410 | 410 |
| G | Head Tube Length | 114 | 131 | 147 | 174 | 199 |
| H | Top Tube Length | 536.4 | 544.4 | 556.4 | 571.4 | 591.4 |
| I | Seat Tube Angle | 74.0° | 74.0° | 73.5° | 73.5° | 73.5° |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
