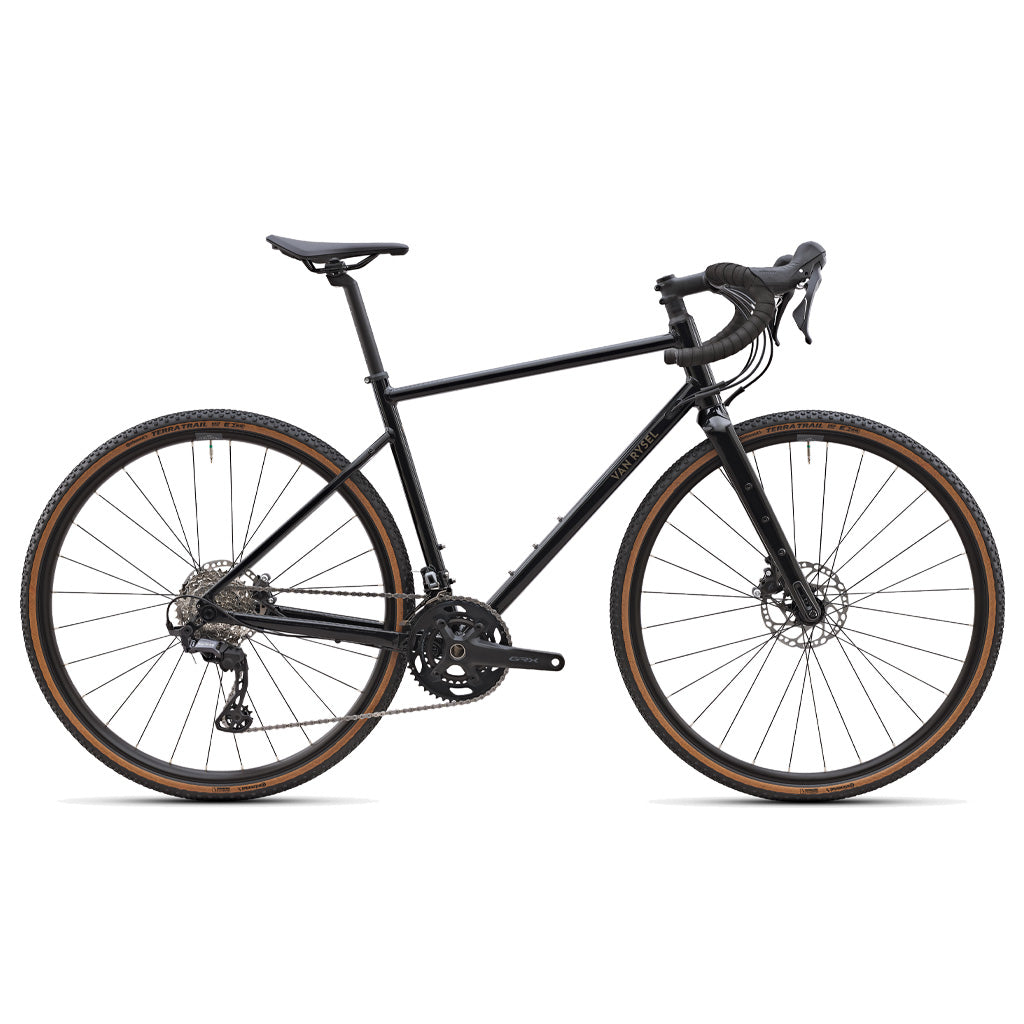

Van Rysel GRVL AF GRX 2x12
Shipping Canada Wide
Van Rysel GRVL AF GRX 2x12
$1,999.00
The Van Rysel GRVL AF is your gateway to fast, confident riding beyond the pavement. With its durable aluminum frame, 2x Shimano GRX, and 50c tire clearance, it’s built to handle gravel, tarmac, and everything in between. It's made to be loaded up for any adventure.
210000106947
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
Alloy Frame
Carbon Fork
Ready to be loaded up
Specifications
FrameEVOG22 Aluminium 6061 (Double Butted)
ForkCarbon with Aluminium Steerer
HandlebarVan Rysel Aluminium 6061 T6 31.8mm 16º flare
StemVan Rysel Aluminium 6061 T6 7º/-7º
SaddleDecathlon Comfort 30º 155mm
SeatpostB'twin Aluminium 6061 T6
ShiftersShimano GRX 610 2x12
Front DerailleurShimano GRX FD RX820F
Rear DerailleurShimano GRX RD RX820D Direct Mount
CassetteShimano CS-HG710 11/36T
CranksetShimano GRX RX-610 46/30
WheelsVan Rysel Tubeless Ready Aluminium
TiresContinental Terra Trail 40c
BrakesShimano GRX BR-RX40 Flatmount
RotorsShimano SM-RT64 160mm Centerlock
Weight23.4 lbs or 10.6kg Size Medium
*Specifications are subject to change without notice
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| A | Reach | 372 | 378 | 391 | 397 | 404 |
| B | Stack | 535 | 549 | 572 | 600 | 629 |
| C | Head Tube Angle | 70° | 70° | 70° | 70° | 70° |
| D | Bottom Bracket Drop | 67 | 67 | 67 | 67 | 67 |
| E | Wheelbase | 1020 | 1031 | 1052 | 1069 | 1086 |
| F | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| G | Head Tube Length | 115 | 130 | 155 | 185 | 215 |
| H | Top Tube Length | 530 | 540 | 560 | 575 | 590 |
| I | Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| XS | 5'1" - 5'5" | 155 - 166cm |
| S | 5'5" - 5'8" | 166 - 173cm |
| M | 5'8" - 5'11" | 173 - 181cm |
| L | 5'11" - 6'1" | 181 - 186 cm |
| XL | 6'1" - 6'5" | 186 - 196cm |
