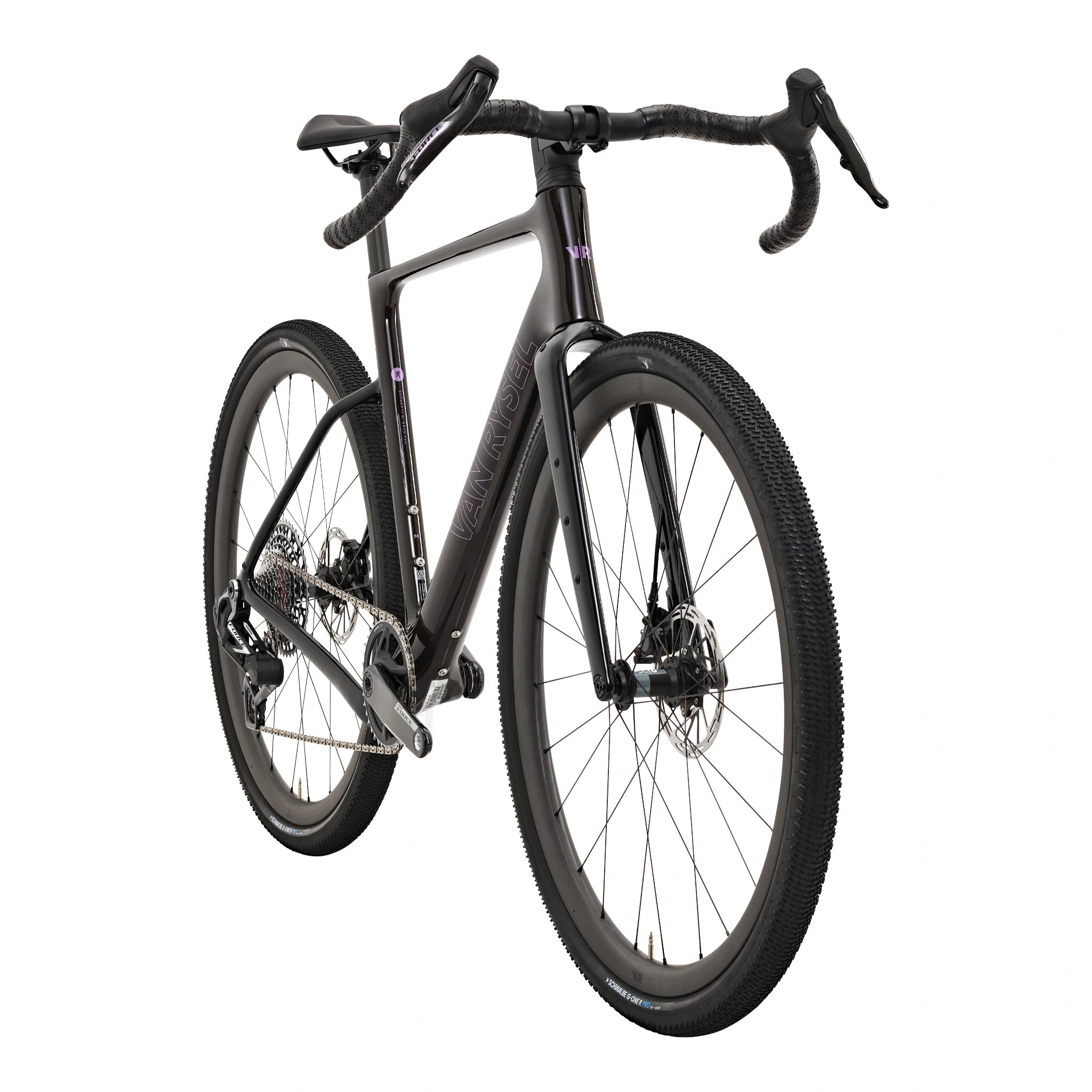

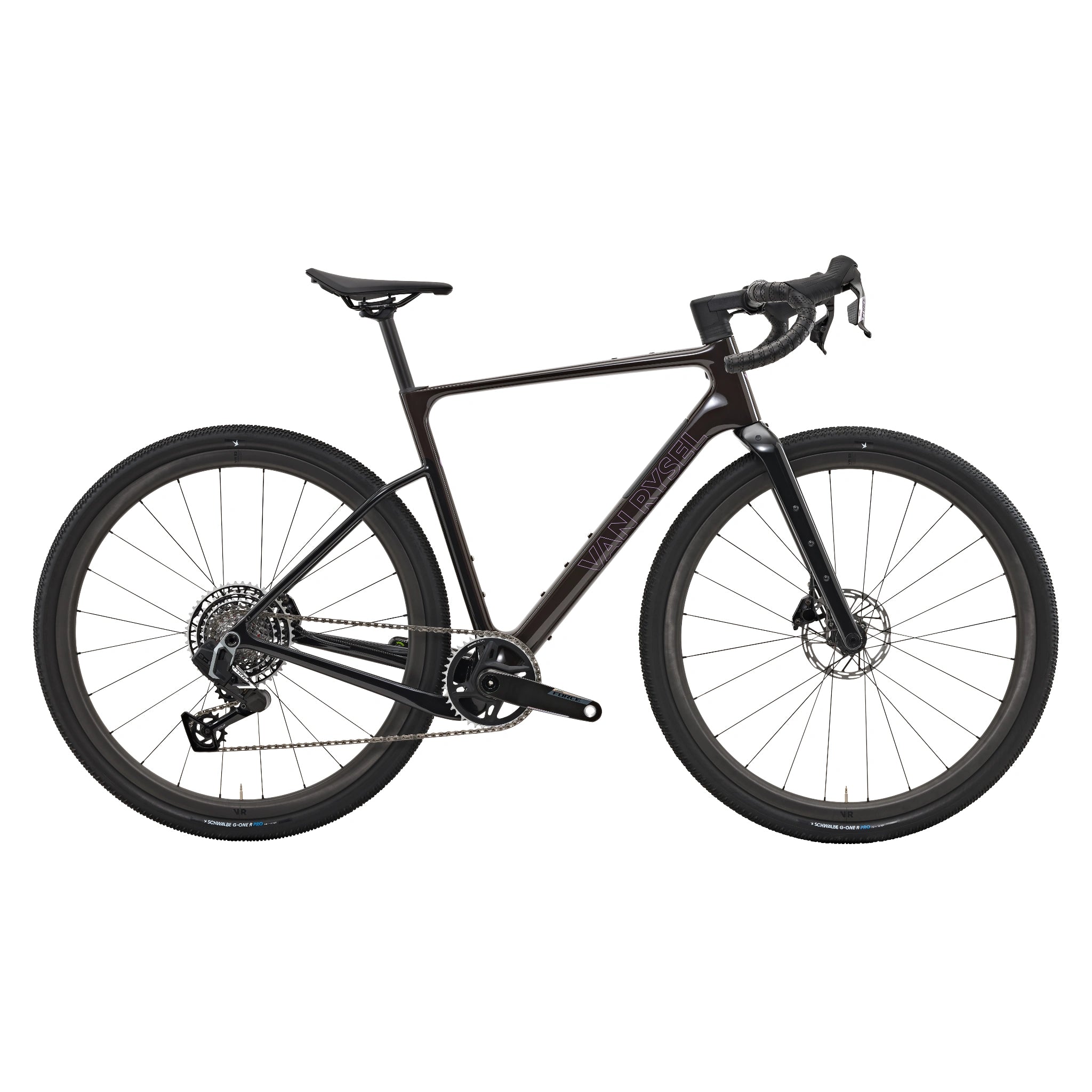

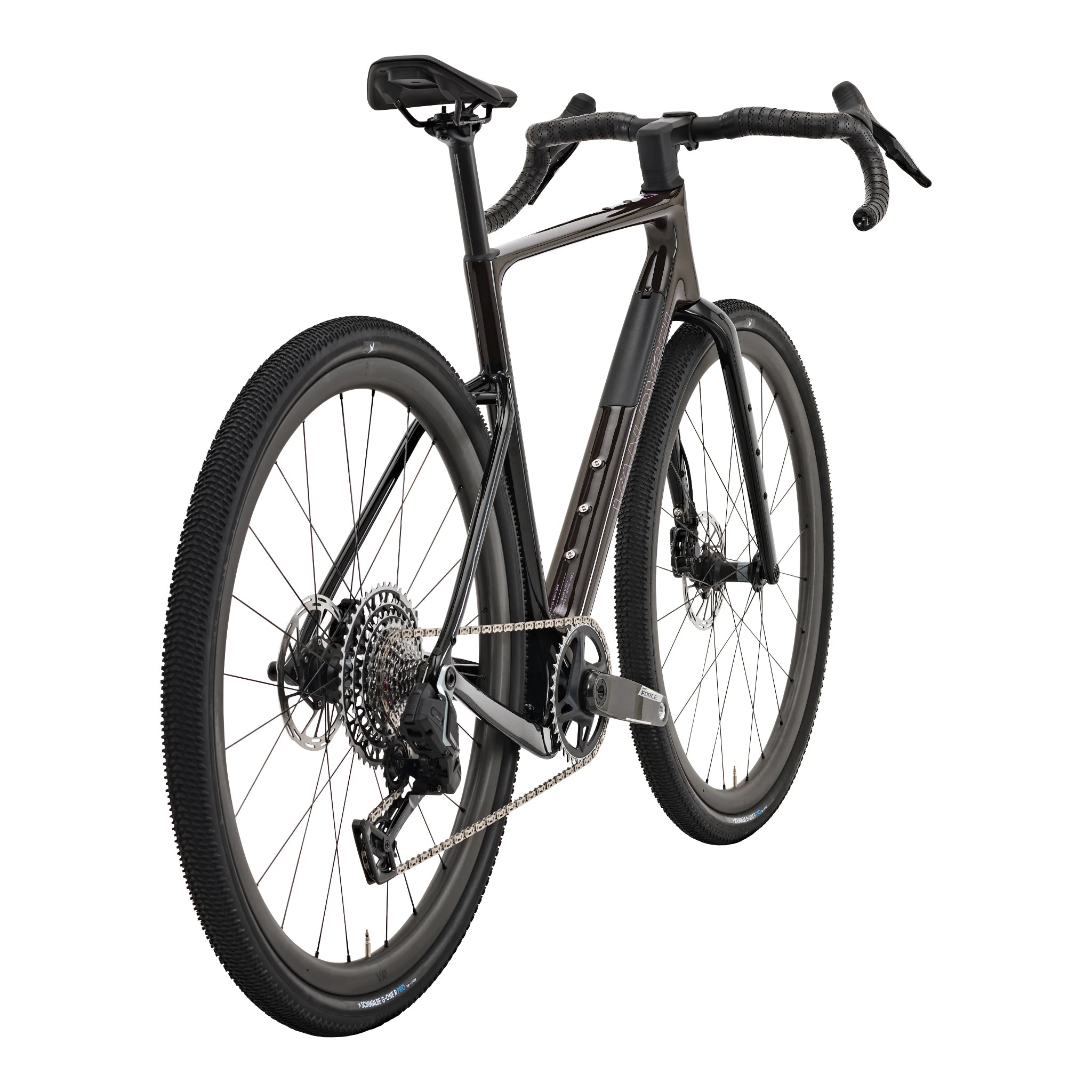

Van Rysel EDR-G CF Force AXS
Coming Soon
Contact For Availability
Van Rysel EDR-G CF Force AXS
$5,498.99

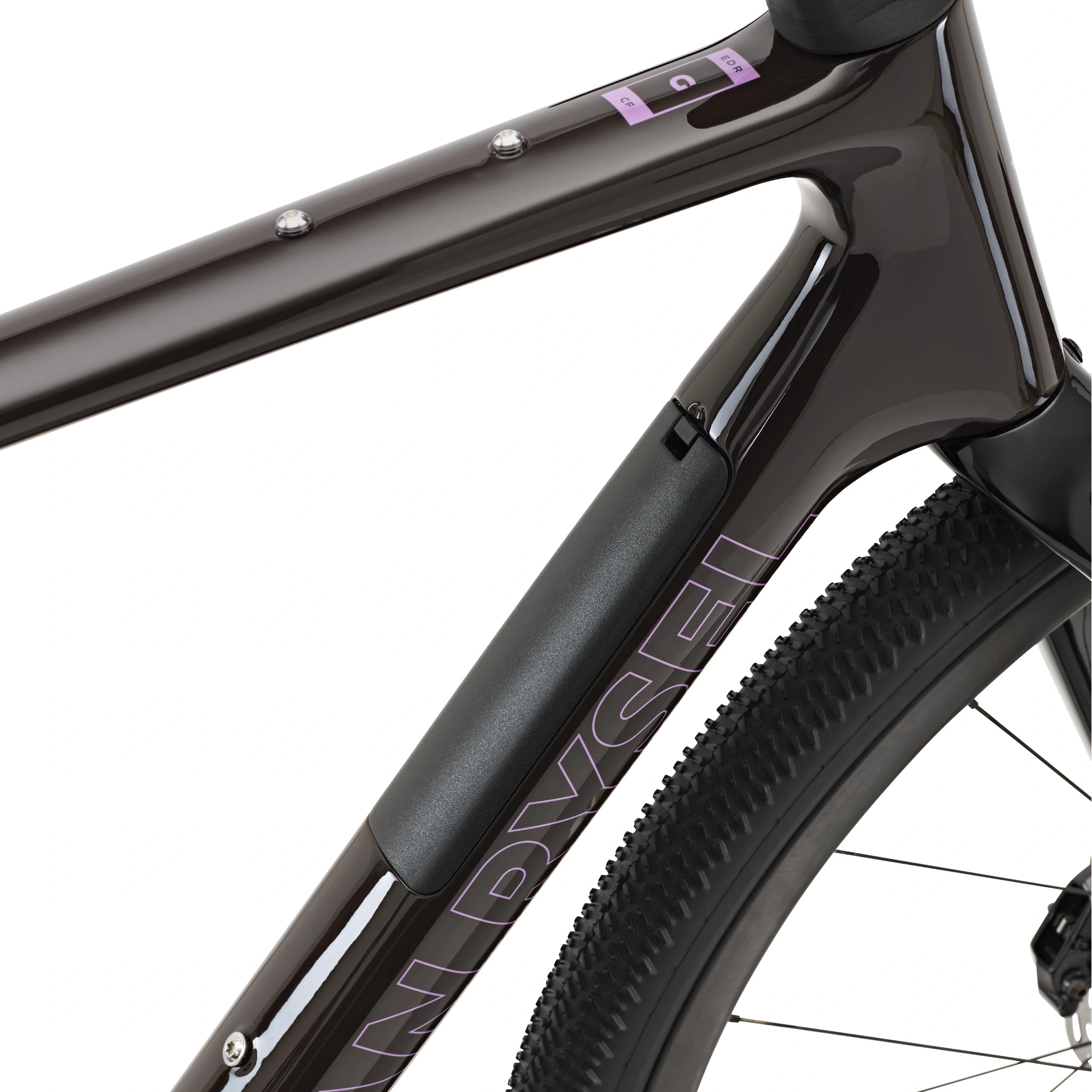

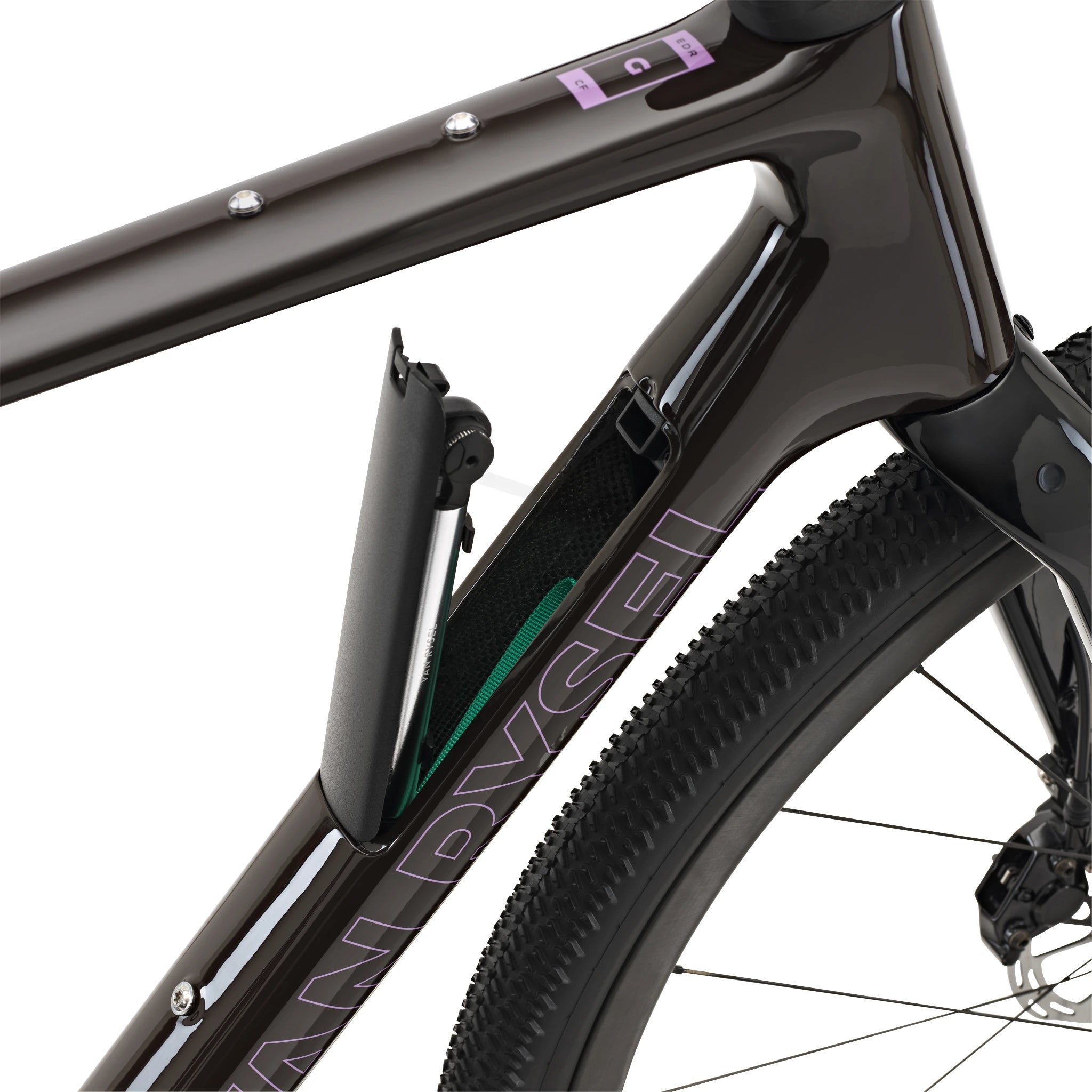

Designed for cyclists who refuse to stop when the tarmac ends, the Van Rysel EDR-G CF range pushes the boundaries of adventure. These carbon gravel bikes combine off-road durability with endurance comfort. With up to 50 mm tire clearance, integrated storage, and bikepacking mounts: find the perfect ride tailored for your explorations.
Quick Highlights

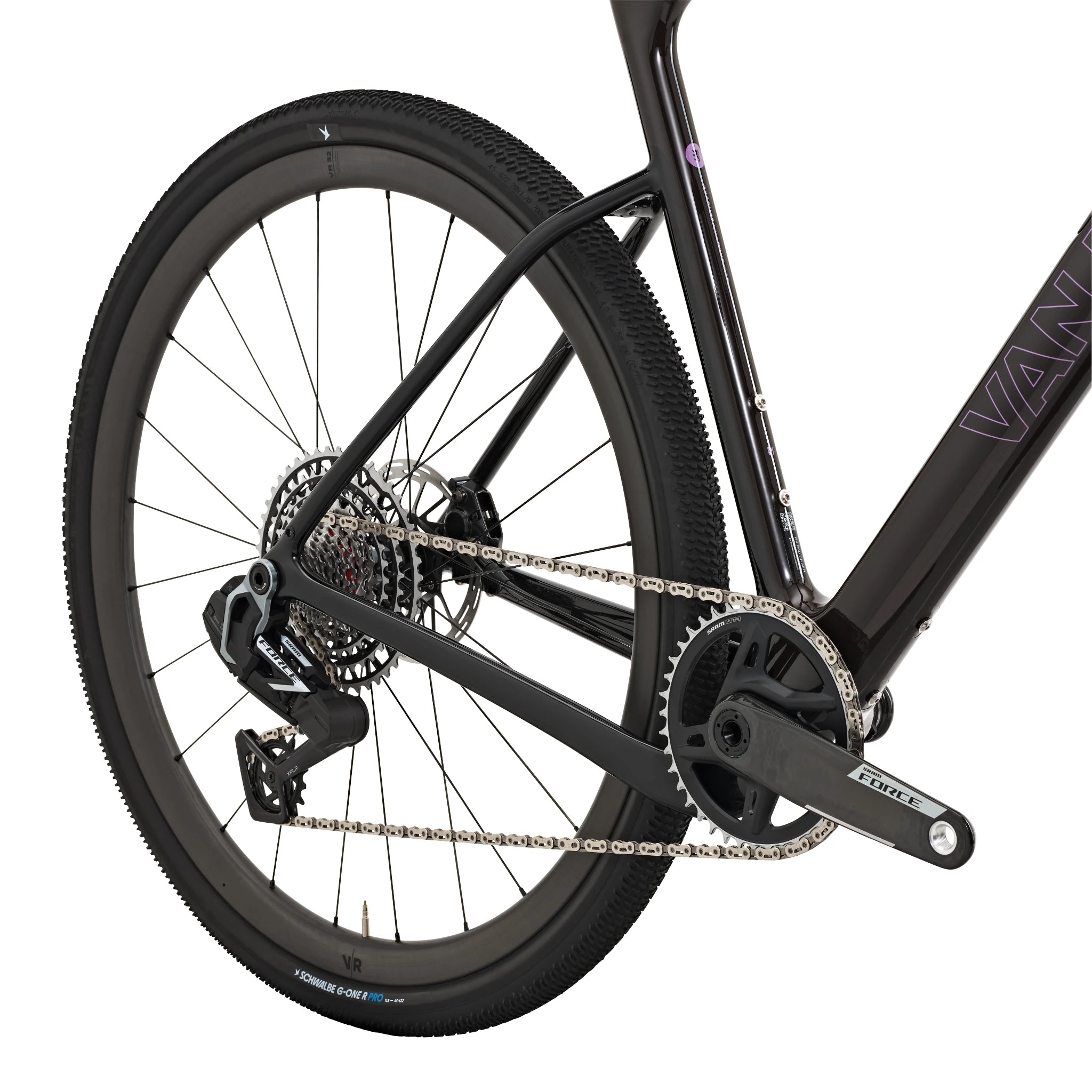

- SRAM Force XPLR Drivetrain
- VR32 Carbon Wheels
210000130325
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
Specifications
| Frame | EDR-G High Modulus Carbon |
|---|---|
| Weight | 19.4 lbs | 8.8 kg Size Medium |

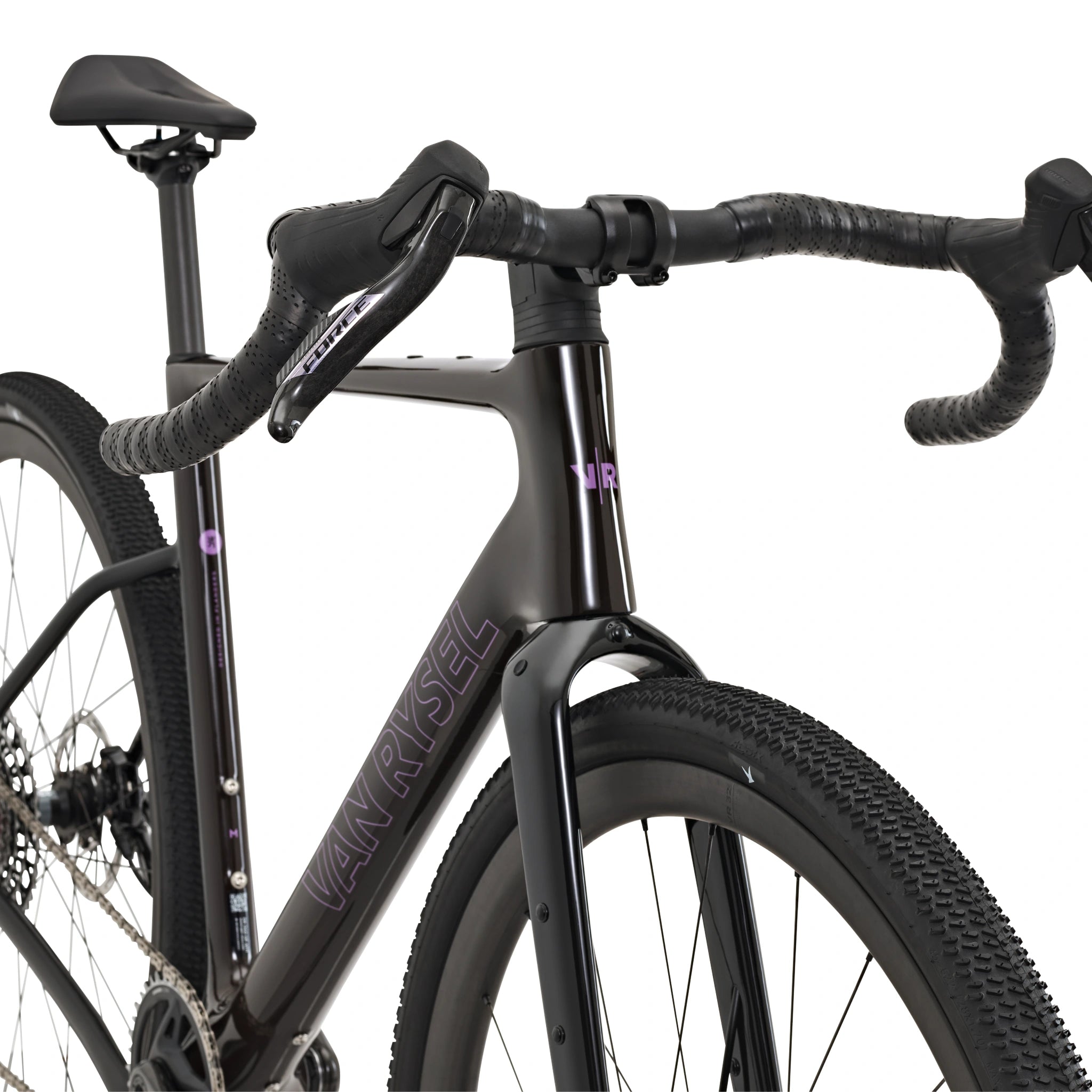

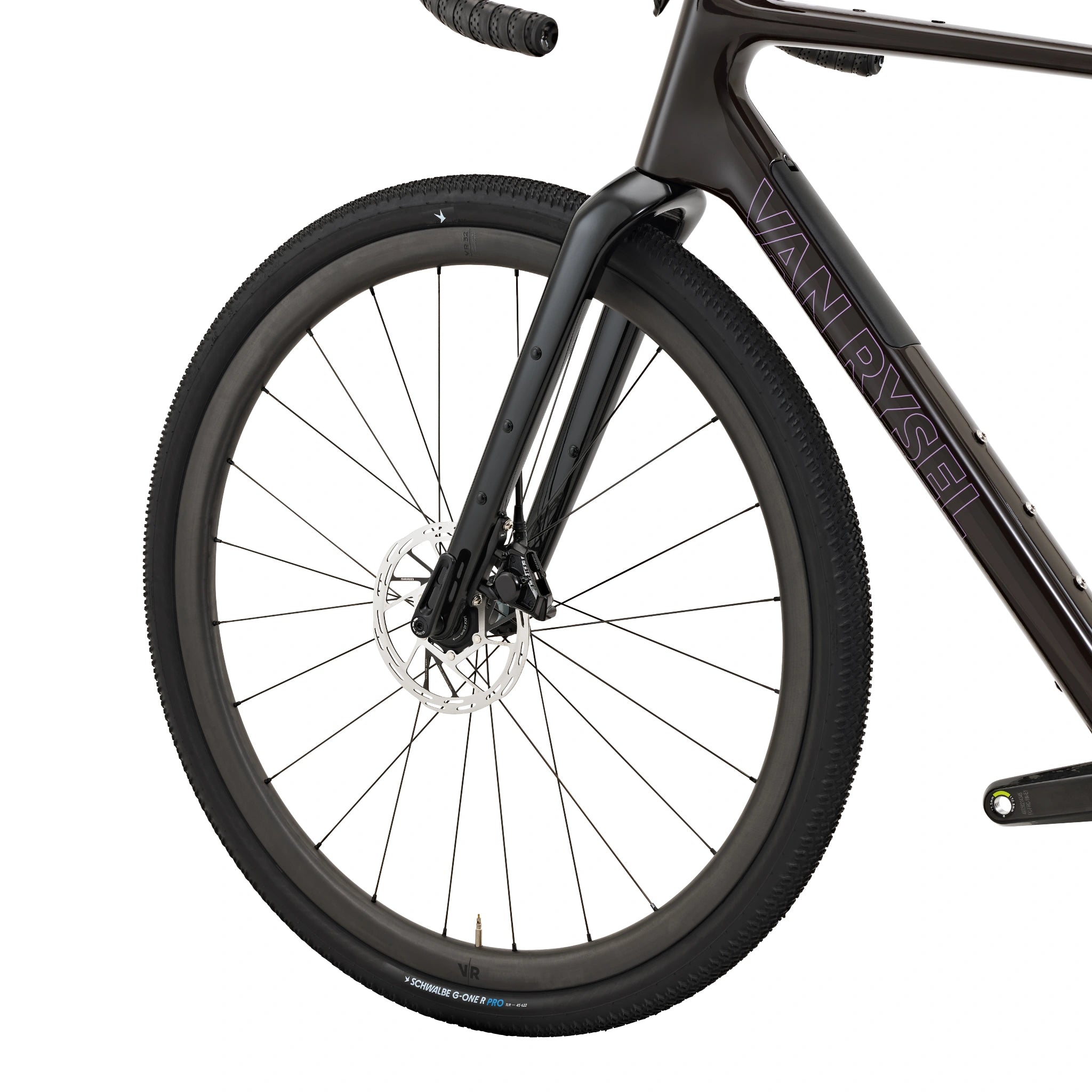

| Fork | EDR-G Full Carbon |

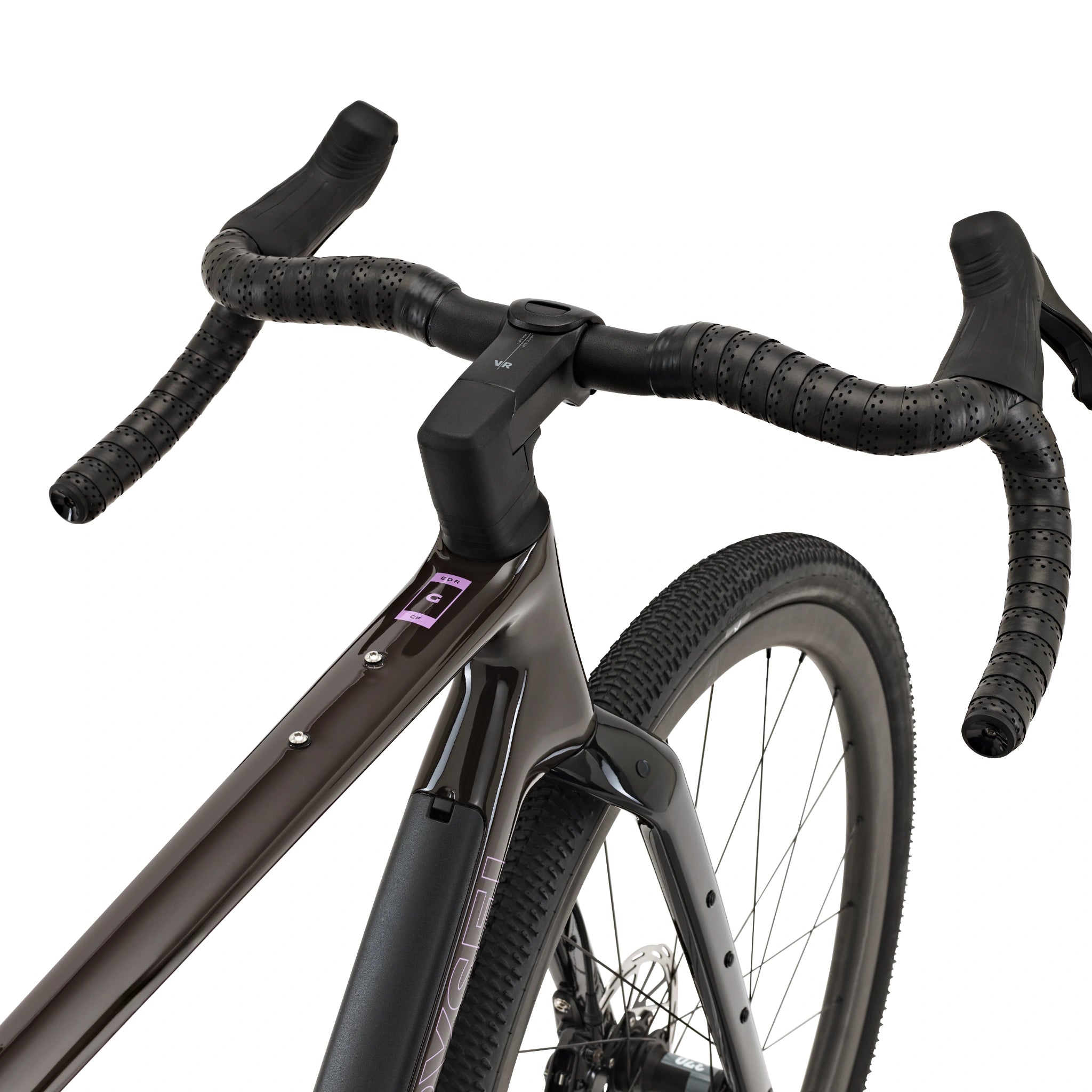

| Handlebar | Deda Gera |
| Handlebar Sizing | XS - 420mm, S - 440mm, M/L - 460mm, XL - 480mm |

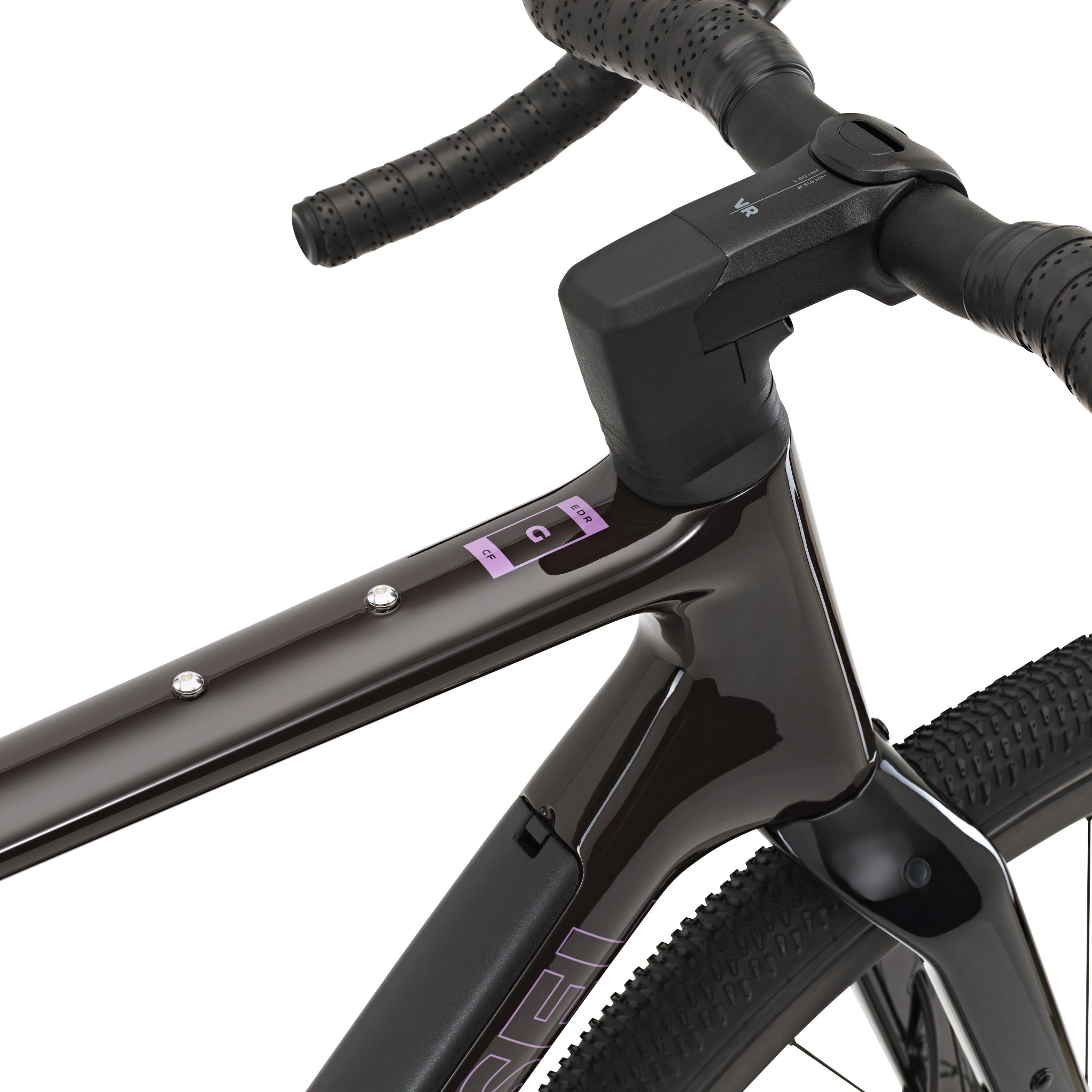

| Stem | Van Rysel VR AL |
| Stem Sizing | XS/S - 70mm, M - 80mm, L - 90mm, XL - 100mm |

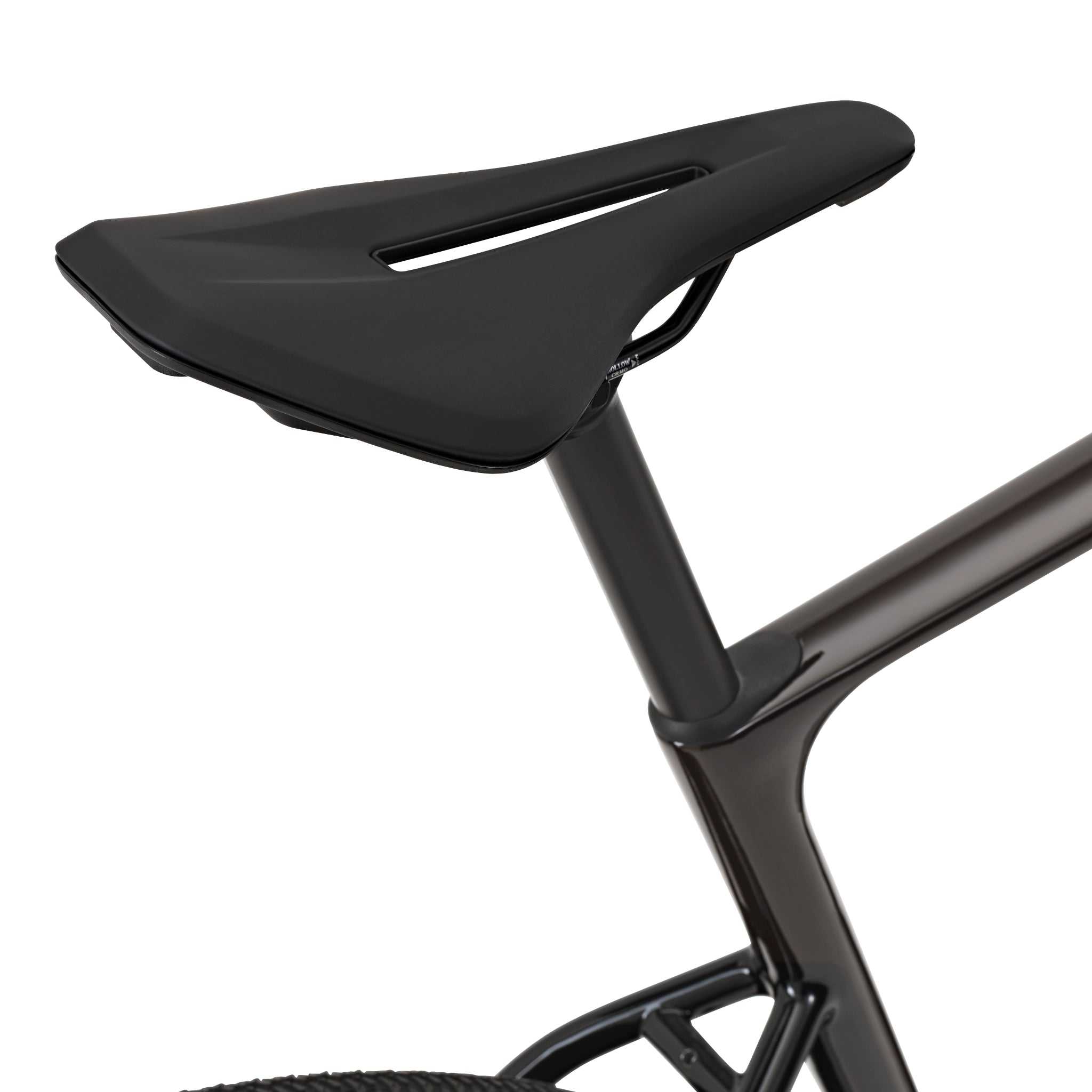

| Saddle | Van Rysel Light |
| Seatpost | Van Rysel VR Carbon 27.2mm |
| Shifters | SRAM Force AXS E1 |
| Derailleur | SRAM Force XPLR AXS E1 |
| Cassette | SRAM Force XPLR XG 1371 46t |

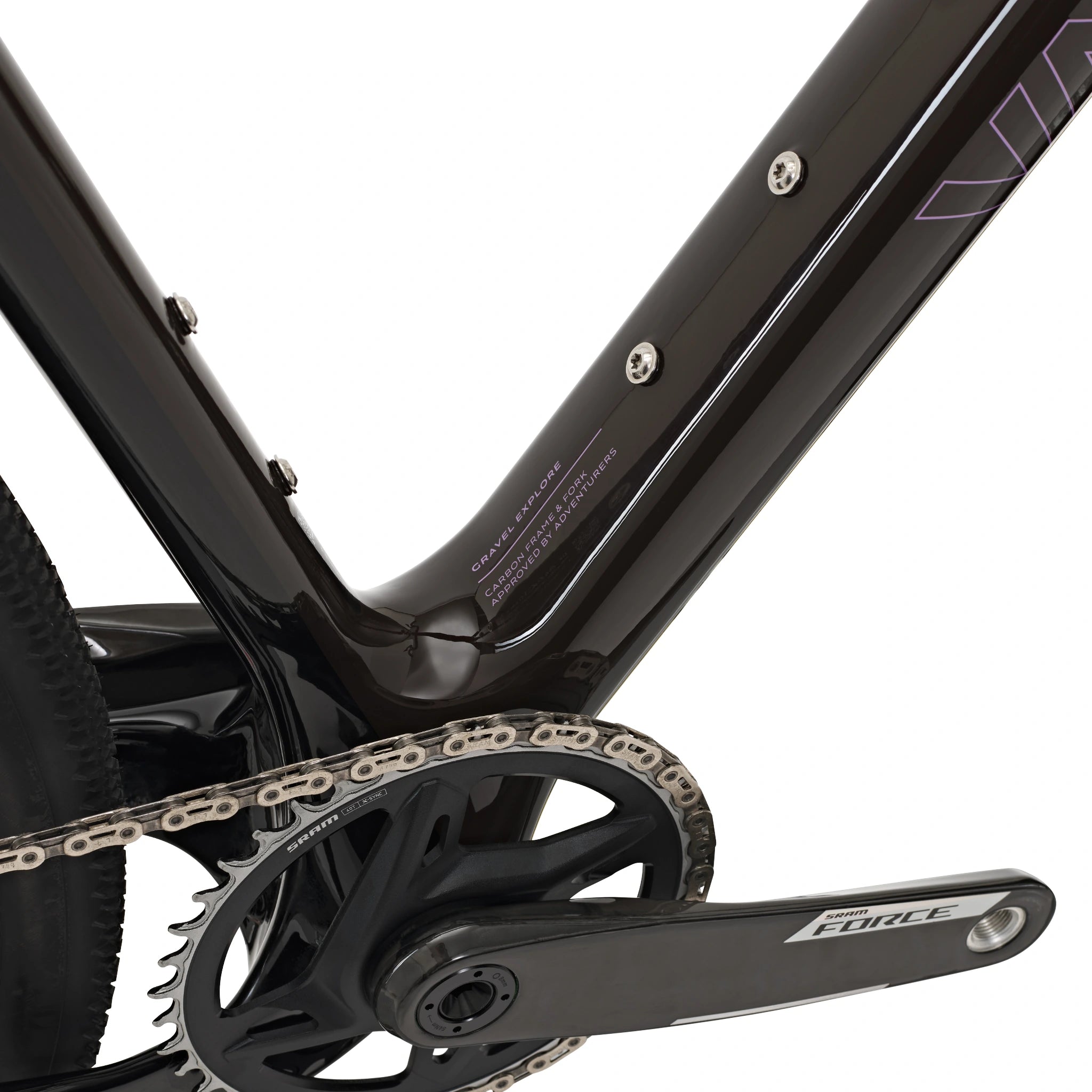

| Crankset | SRAM Force AXS E1, 42T, DUB Wide, with power meter |
| Crank Length | XS/S - 165mm, M/L - 172.5mm, XL - 175mm |
| Wheels | Van Rysel VR 32 Carbon |

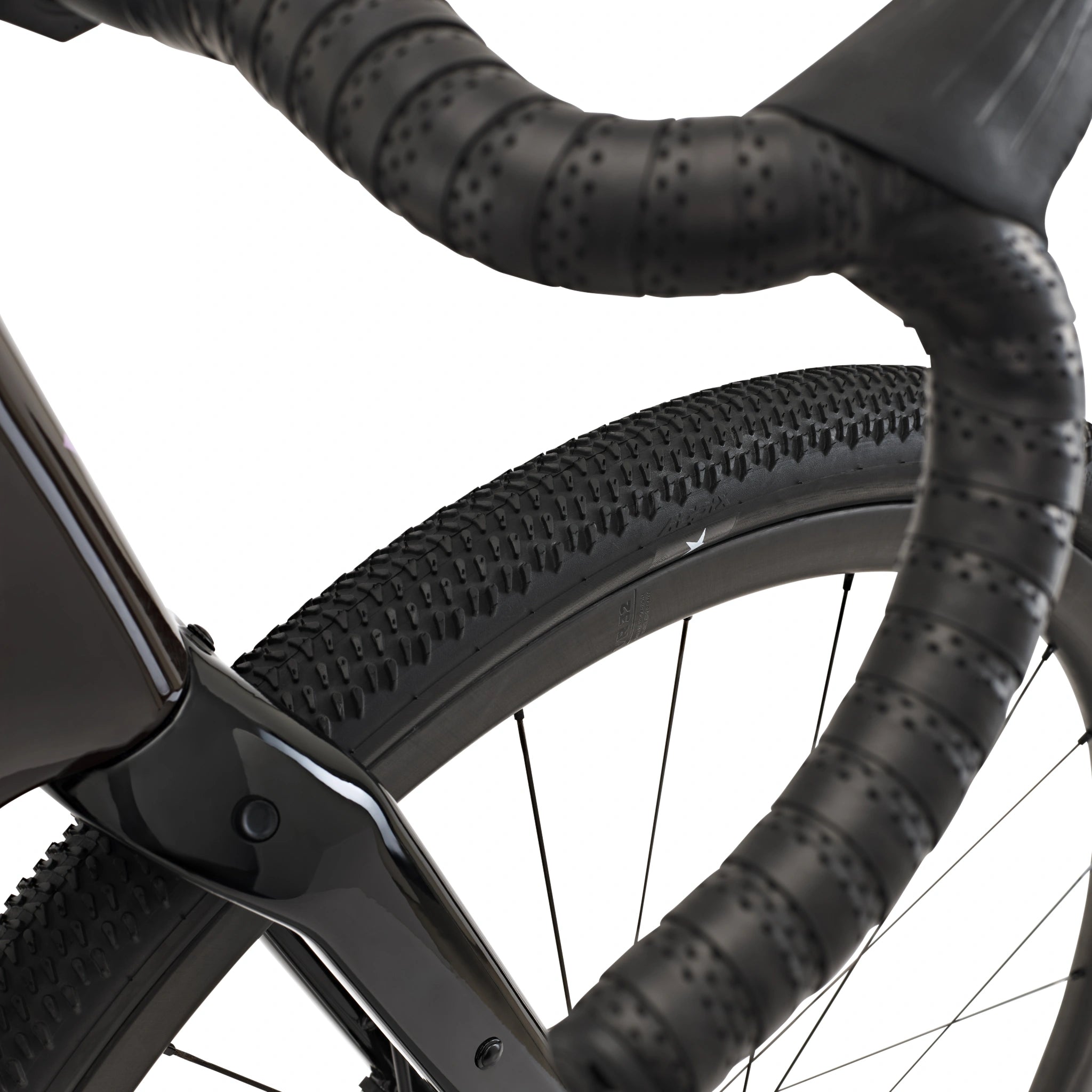

| Tires | Schwable G-One R Pro 700x45mm |
| Brakes | SRAM Force ETAP AXS E1 |
| Rotors | SRAM Paceline 160mm |
*Specifications are subject to change without notice
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| A | Reach | 363 | 378 | 380 | 391 | 411 |
| B | Stack | 529 | 547 | 574 | 605 | 638 |
| C | Head Tube Angle | 68° | 69.5° | 70.5° | 71.5° | 71.5° |
| D | Bottom Bracket Drop | 74 | 74 | 74 | 74 | 74 |
| E | Wheelbase | 1030 | 1037 | 1039 | 1050 | 1081 |
| F | Chainstay Length | 435 | 435 | 435 | 435 | 435 |
| G | Head Tube Length | 115 | 130 | 150 | 180 | 215 |
| H | Top Tube Length | 510 | 535 | 550 | 570 | 600 |
| I | Seat Tube Angle | 74.5° | 74° | 73.5° | 73.5° | 73.5° |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| XS | 5'1" - 5'5" | 155 - 165cm |
| S | 5'5" - 5'8" | 165 - 173cm |
| M | 5'8" - 5'11" | 173 - 180cm |
| L | 5'11" - 6'1" | 180 - 185 cm |
| XL | 6'1" - 6'5" | 185 - 196cm |
