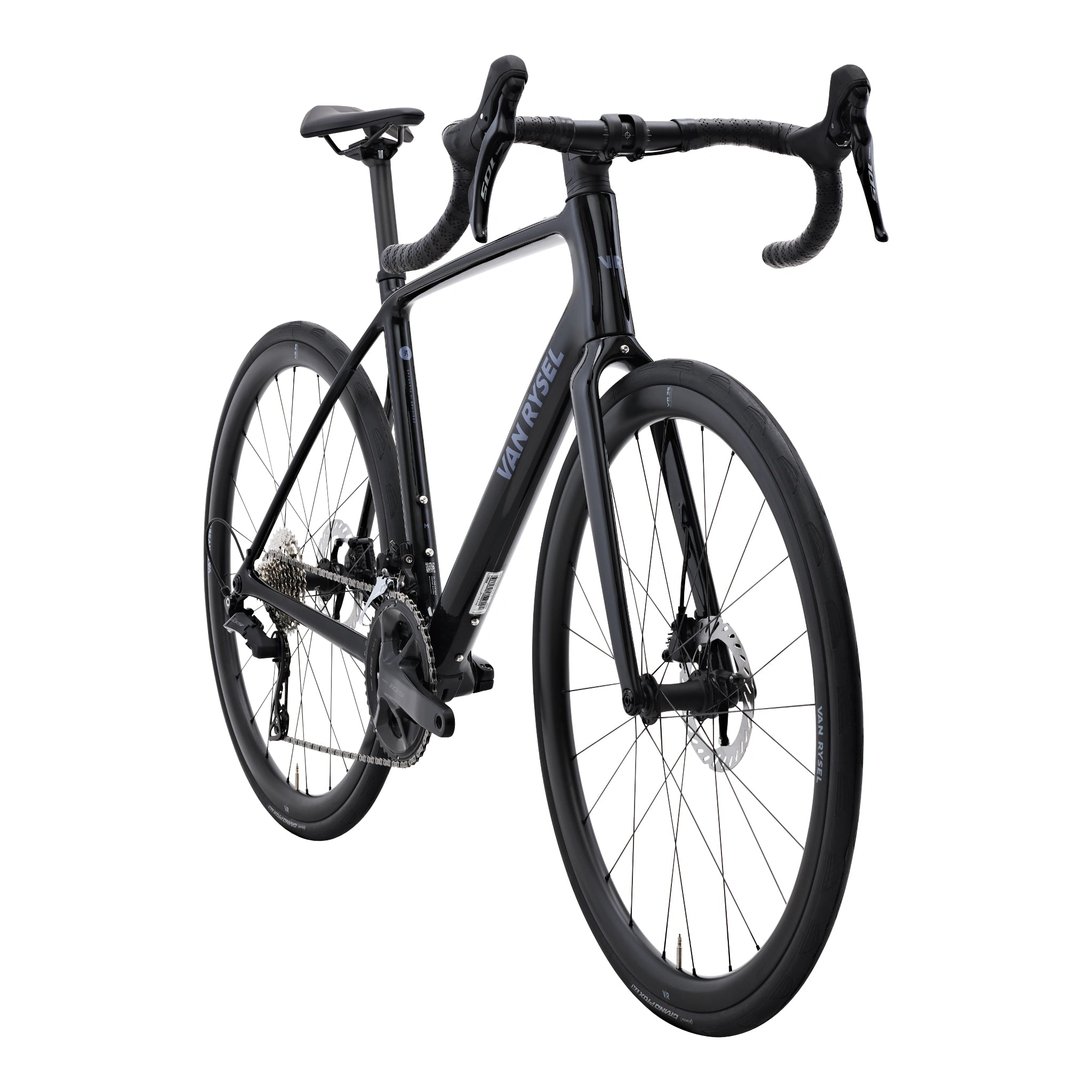

Van Rysel EDR CF 105
$3,899.00
Proven in the world’s most demanding ultra-endurance events, the EDR CF geometry inherits directly from the ULTRA version to carry you across thousands of miles. Highly versatile, it effortlessly adapts to your needs, easily equip it with frame bags, aero bars, or hydration systems.
Quick Highlights
- Carbon Frame
- Shimano 105 Drivetrain
- Van Rysel VR35 Lite Carbon Wheels
210000106678
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features

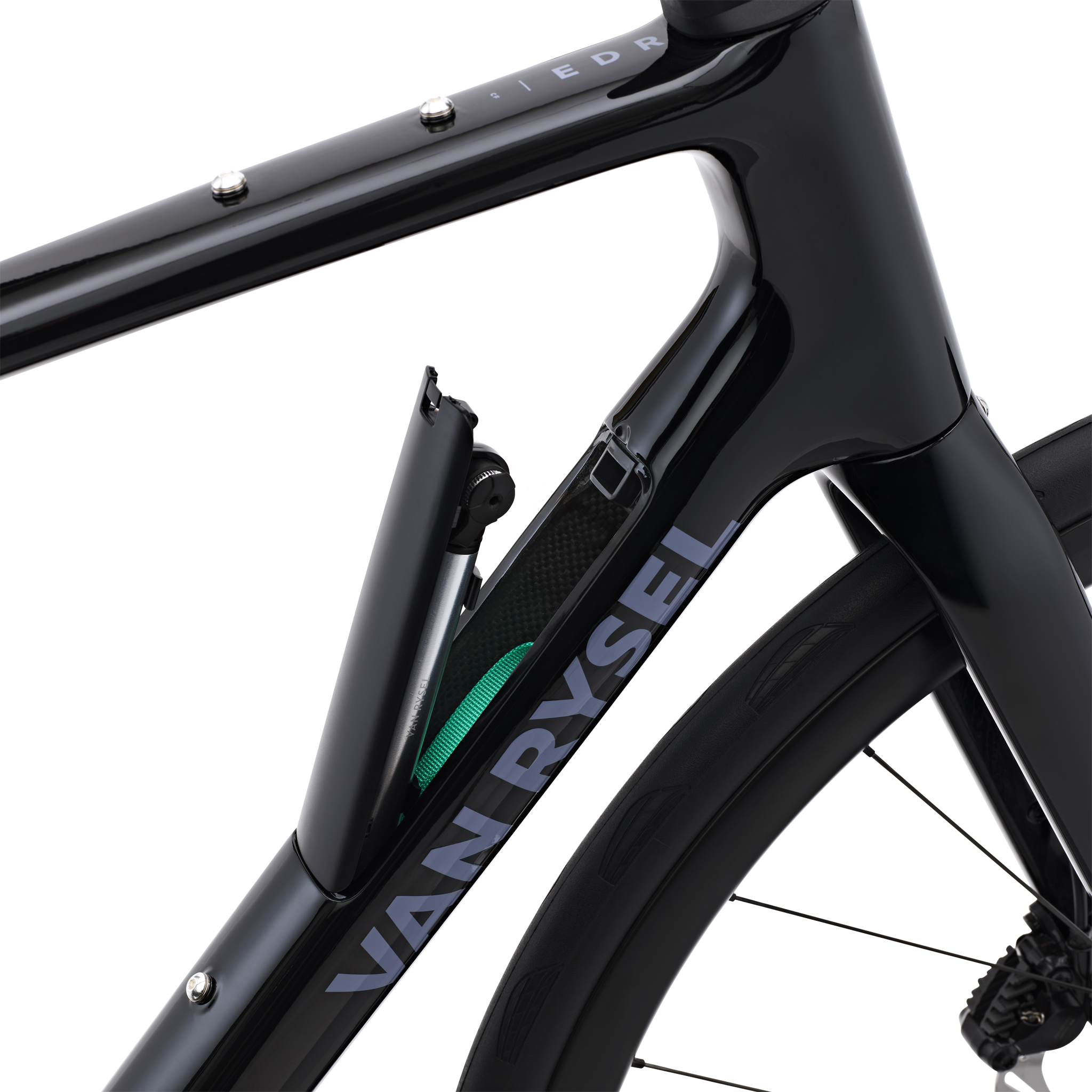

The Toolbox
38mm of freedom
Built for the long haul
Specifications
| Frame | EDR CF |
|---|---|
| Fork | EDR CF |
| Handlebar | Van Rysel Handlebar 10° sweep |
| Stem | Van Rysel alloy stem |
| Saddle | Decathlon Road Light 155mm |
| Seatpost | Van Rysel Carbon |
| Shifters | Shimano 105 ST-R7120 |
| Derailleur | Shimano 105 RD-R7100 |
| Cassette | Shimano 105 HG R7101-12 11-36 |
| Brakes | Shimano 105 BR-R7170 |
| Crankset | Shimano 7100 52/36 |
| Chain | Shimano SLX M7100 |
| Wheels | Van Rysel VR35 |
| Tires | Continental Grand Prix TR 28c |
| Weight | 19.1 lbs | 8.66kg Size Medium |
*Specifications are subject to change without notice
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| A | Reach | 375 | 380 | 380 | 386 | 388 |
| B | Stack | 524 | 540 | 568 | 601 | 630 |
| C | Head Tube Angle | 70° | 71° | 72° | 73° | 73° |
| D | Bottom Bracket Drop | 67 | 67 | 67 | 67 | 67 |
| E | Wheelbase | 1010 | 1012 | 1015 | 1016 | 1026 |
| F | Chainstay Length | 425 | 425 | 425 | 425 | 425 |
| G | Head Tube Length | 115 | 130 | 155 | 185 | 215 |
| H | Top Tube Length | 515 | 530 | 548 | 564 | 580 |
| I | Seat Tube Angle | 75.1° | 74.6° | 73.5° | 73.5° | 72.9° |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| XS | 5'1" - 5'5" | 155 - 166cm |
| S | 5'5" - 5'8" | 166 - 173cm |
| M | 5'8" - 5'11" | 173 - 181cm |
| L | 5'11" - 6'1" | 181 - 186 cm |
| XL | 6'1" - 6'5" | 186 - 196cm |
