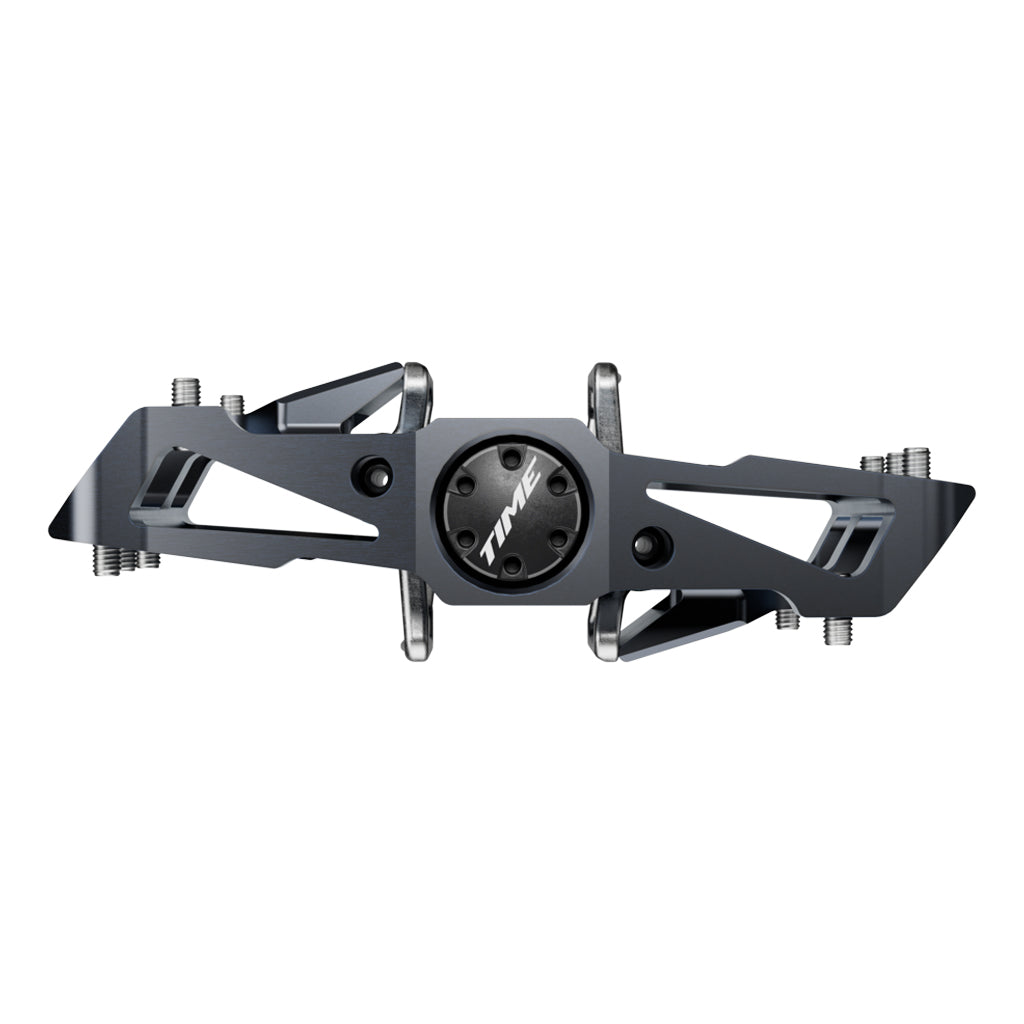

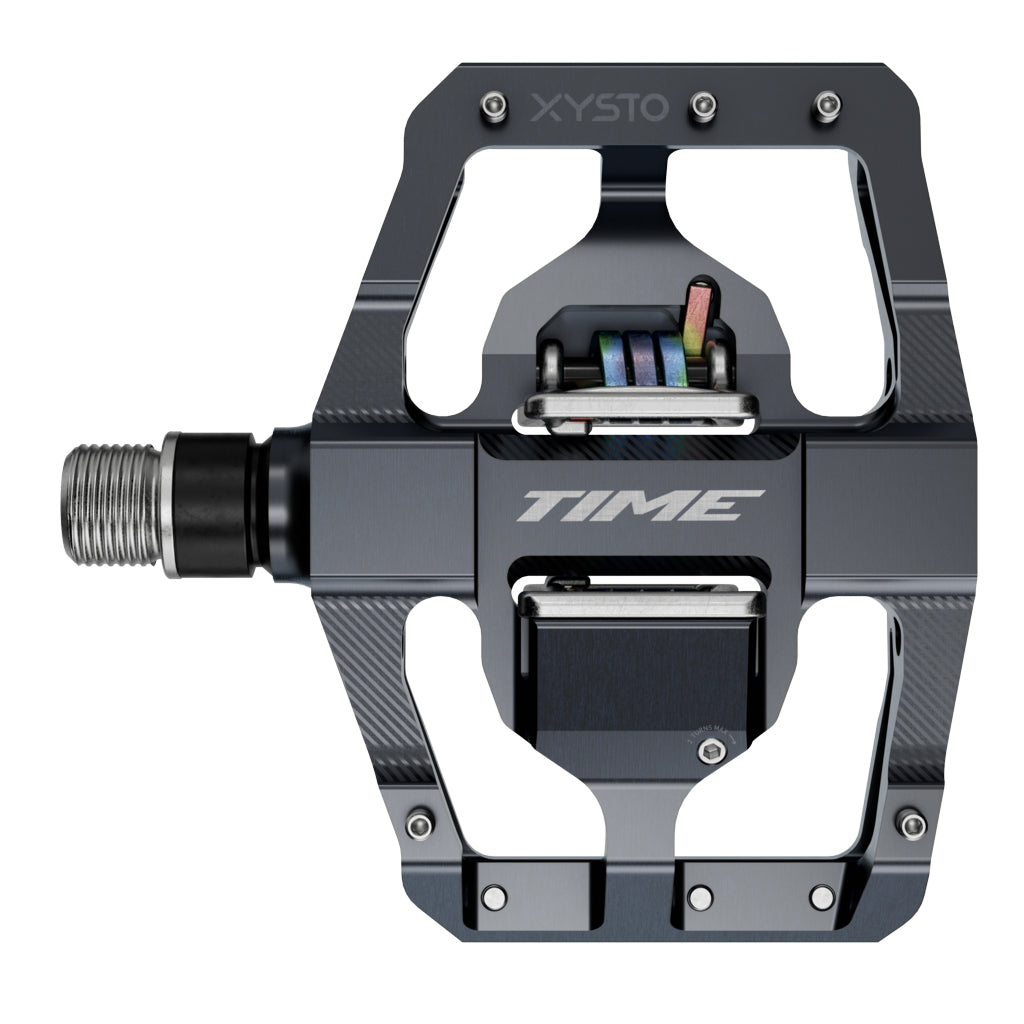

TIME Xysto Pedals

TIME XYSTO is a robust full-bodied pedal system for DH, Enduro, and aggressive off-road riders. The asymmetrical design fits the natural shape of your sole, with the extra-large platform providing additional support and control. TIME’s proven ATAC technology provides easy entry, retention, and mud clearance.

Specifications:

Bearings: Steel
Body component:  6106 T6 - Aluminum
Cleats:  ATAC cleats
Pedal stack height: 18.3mm
Angular freedom: 5° to -5° with free cleats, 0° with fixed cleats
Distance pedal spindle / crank arm: 57mm
Lateral freedom: 2.5 mm or -2.5 mm
Release angle: 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
Tension: Micro adjustment
Threading: 9/16 - 20 inch
Platform Size: X-Large (79 X 94 mm)
Colour (Pedal): Dark Grey
Accessories: ATAC Cleats and 20 Grip screws
Intended use: Gravity
Power Measurement: Not Compatible
Weight (per pedal): 226g

SKU: 00.6718.046.000
Model ID: PD-XYS-A1
