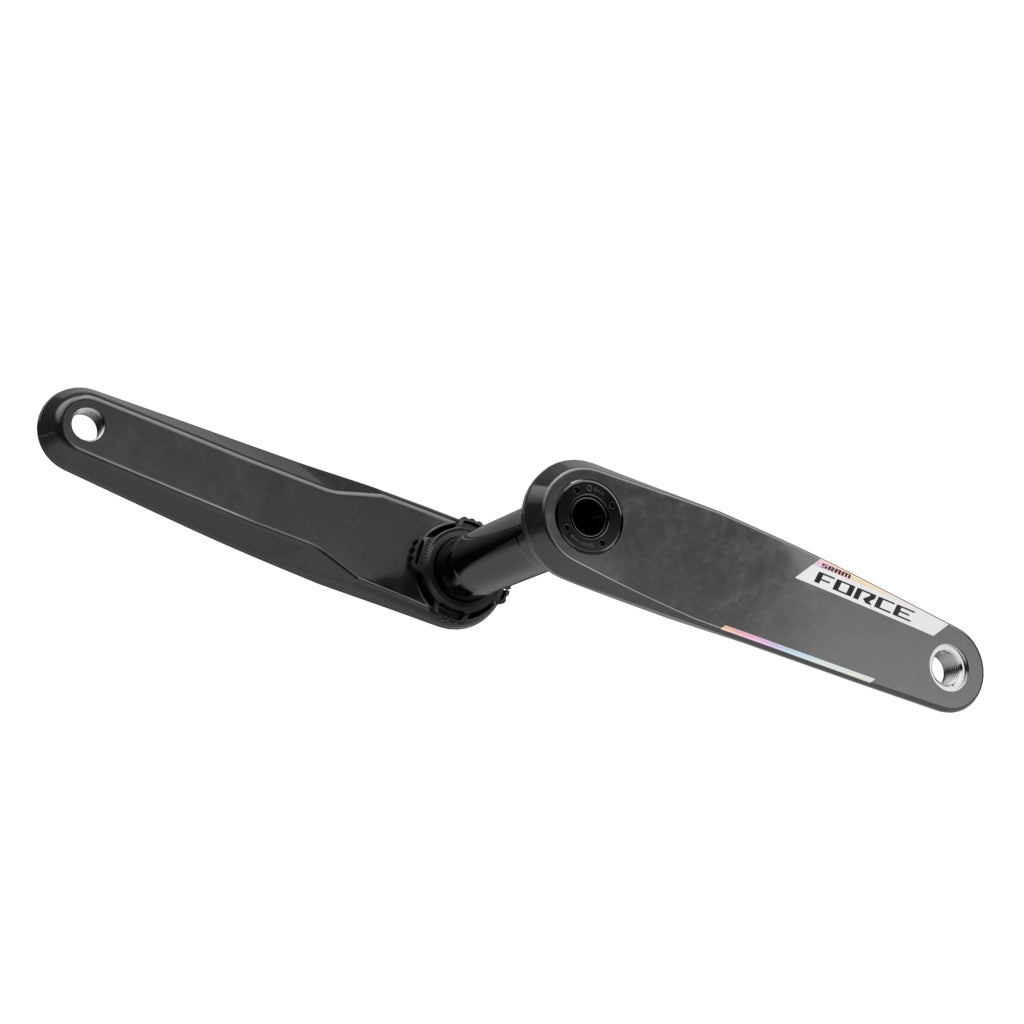

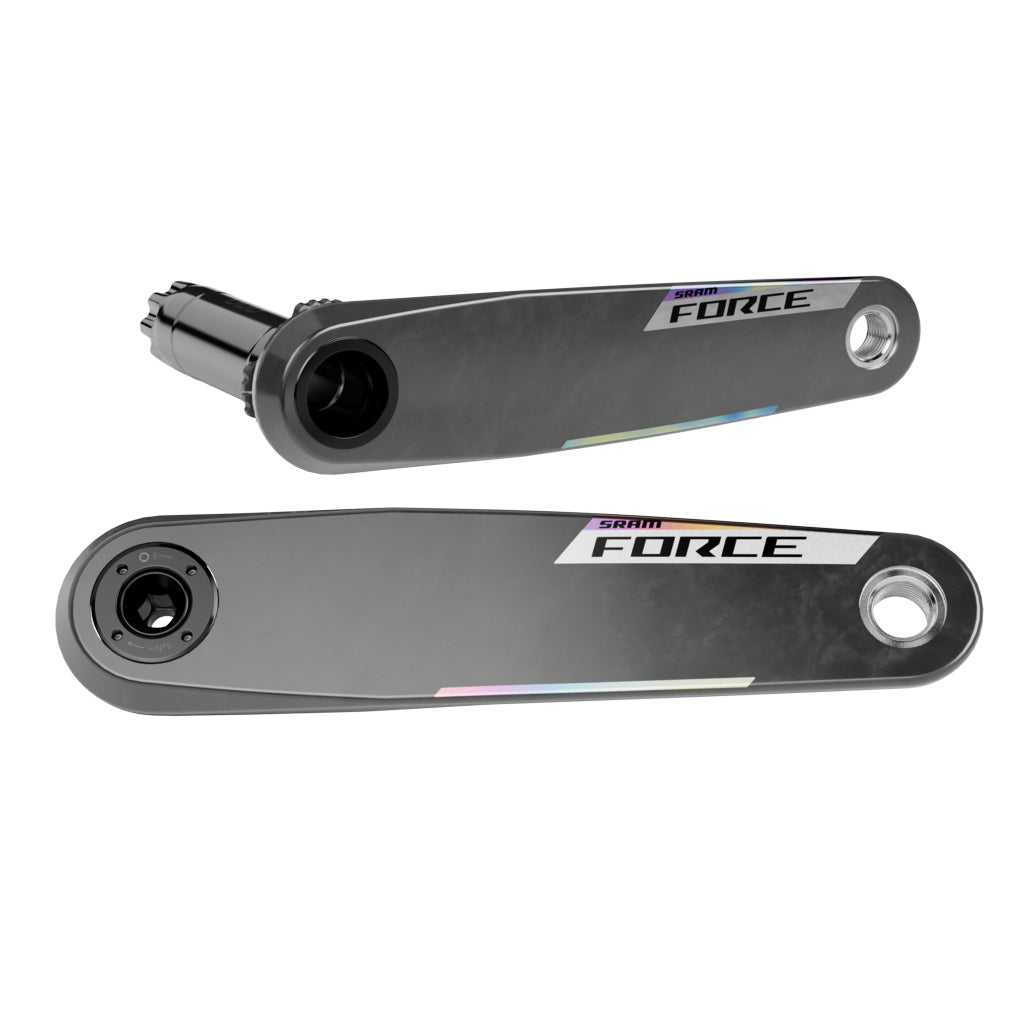

Form and function. The design of the Force crankarm is a wonder of carbon; light and stiff to effortlessly propel you forward. Available in lengths from 160 to 175 mm and in standard and Wide Q-factor so every rider can achieve their proper fit. The 8-bolt interface will fit any SRAM AXS spider or integrated chainring, with or without power. The light, stiff, and durable DUB spindle interface also fits nearly any frame.

FEATURES

• 8-bolt interface compatible with power and non-power AXS spiders and integrated chainrings
• DUB bottom bracket adds durability and simplicity
• Carbon fiber arms with gloss finish

SPECIFICATIONS

Speeds: 12, 13
BB Compatibility: All SRAM Road DUB BBs
Crank arm length: 160mm, 165mm, 170mm, 172.5mm, 175mm
Chainline: 44.7mm, 47.5mm
Bolt Circle Diameter (BCD): Direct Mount (DM)

SKUs
Product Numbers:
160mm: 00.6118.746.006
165mm: 00.6118.746.007
170mm: 00.6118.746.009
172.5mm: 00.6118.746.010
175mm: 00.6118.746.011
Model ID: FC-FRC-ASSY-E1
