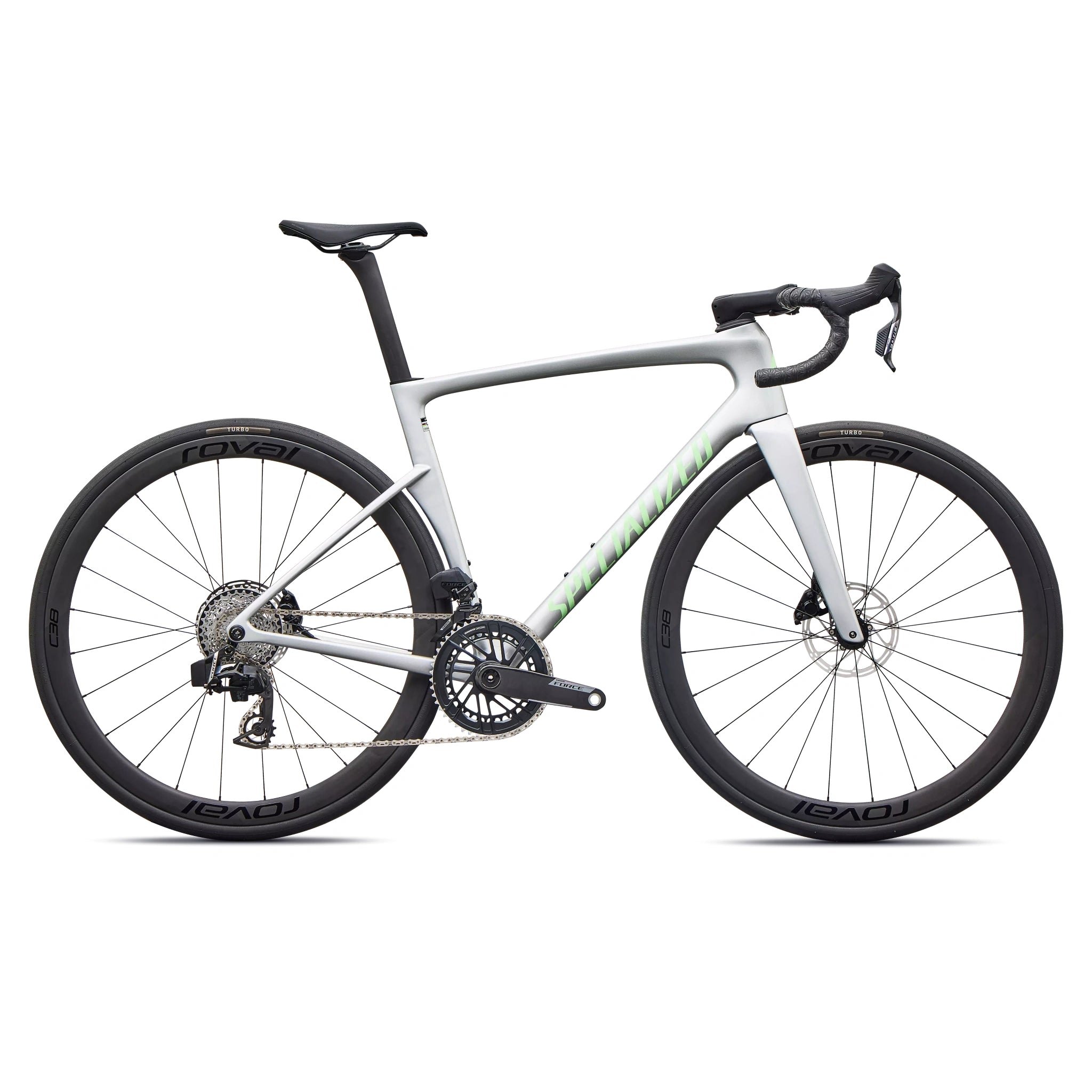

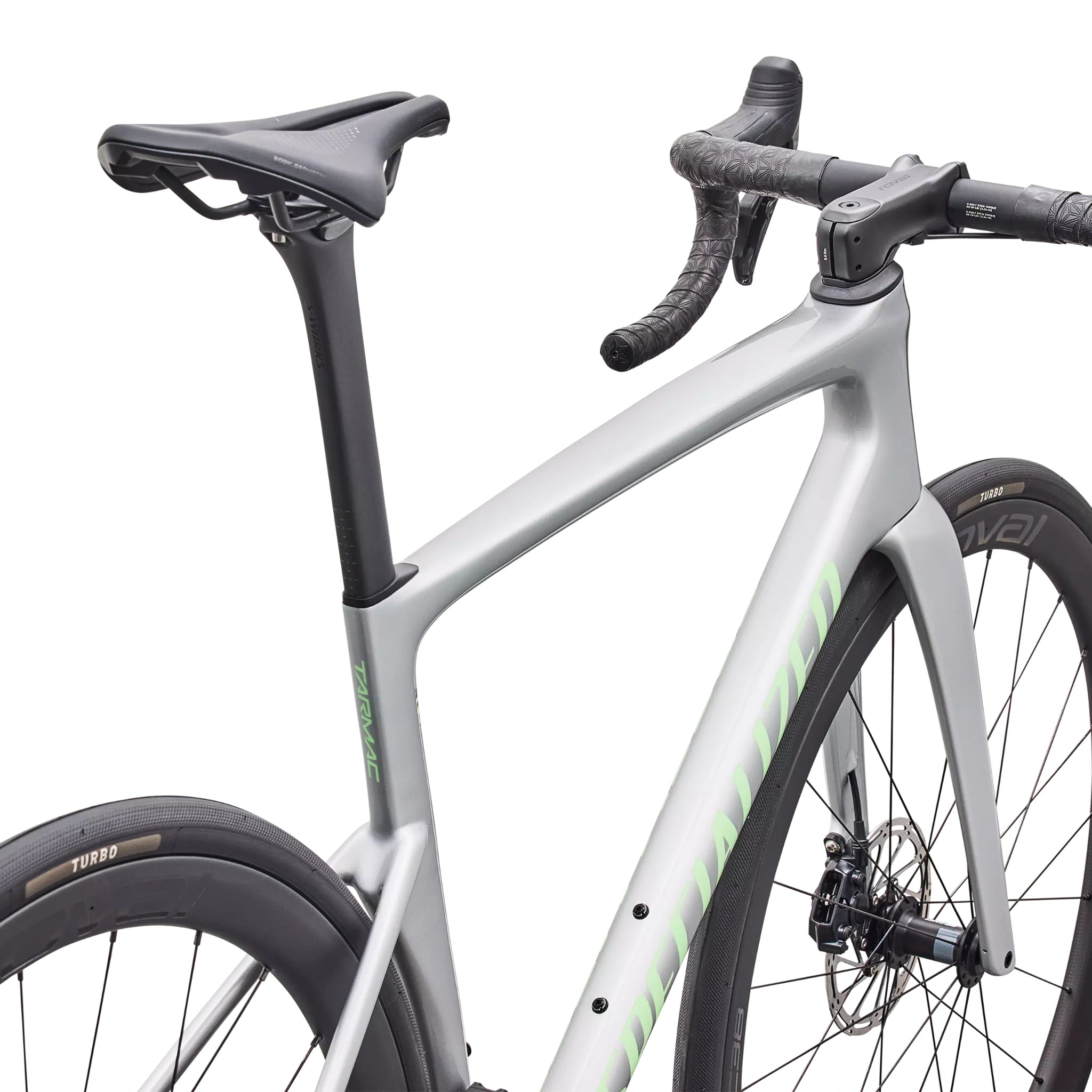

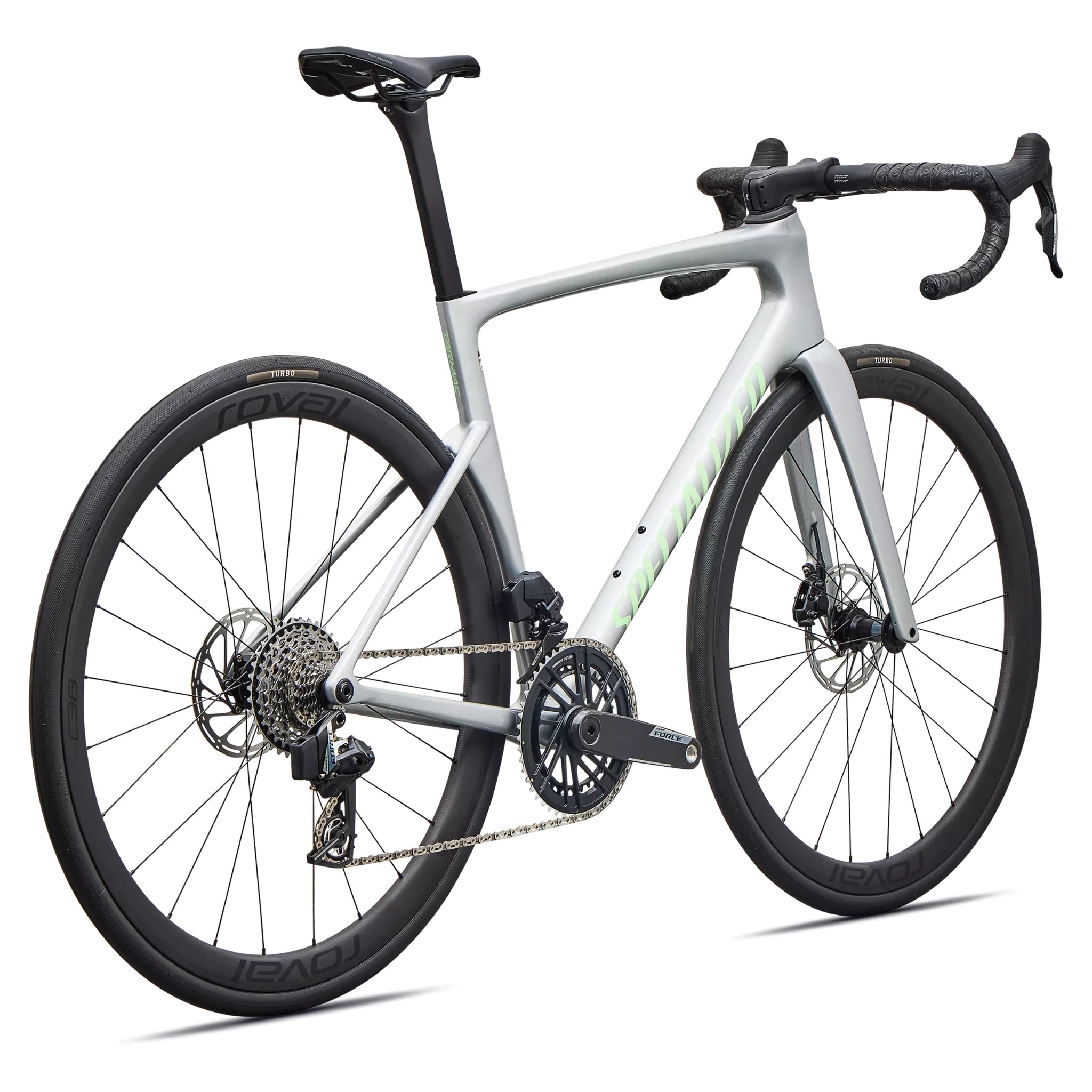

Specialized Tarmac SL9 Expert SRAM Force AXS
The Specialized Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s the most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Made in Racing
Specialized Tarmac SL9 Expert SRAM Force AXS
Features
Specifications
| Tarmac SL9 FACT 10r Carbon, Rider First Engineered, Win Tunnel Engineered, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout | |
| Fork | FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc |
|---|---|
| Front Brake | SRAM Force E1, hydraulic disc |
| Rear Brake | SRAM Force E1, hydraulic disc |
| Shift Levers | SRAM Force AXS E1 |
| Front Derailleur | SRAM Force AXS E1, braze-on |
| Rear Derailleur | SRAM Force AXS E1, 12-speed |
| Cassette | SRAM Force XG-1270 E1, 12 speed 10-36 |
| Crankset | SRAM Force E1 Crankset, 48/35t |
| Bottom Bracket | SRAM DUB BSA 68 |
| Chain | SRAM Force E1, Flattop |
| Front Wheel | Roval C38, 21mm internal width carbon rim, tubeless ready |
| Rear Wheel | Roval C38, 21mm internal width carbon rim, tubeless ready |
| Front Tire | S-Works Turbo, 700x30 |
| Rear Tire | S-Works Turbo, 700x30 |
| Inner Tubes | 700x24-34, 60mm presta valve |
| Handlebars | Specialized Expert Shallow Drop, alloy, 125mm drop x 75mm reach |
| Stem | Roval Rapide, alloy, 4 bolt, -6 degrees |
| Tape | Supacaz Super Sticky Kush |
| Saddle | Body Geometry Power Expert, hollow Ti rails |
| Seatpost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset |
| Seat Binder | Tarmac integrated wedge |
| Weight | 7.55 kg (16 lb, 10.3 oz) |
| Weight Size | 56 |
*Specifications are subject to change without notice
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Head Tube Angle | 70.5° | 71.75° | 72.5° | 72.5° | 73.5° | 73.5° | 74.0° |
| D | Front Centre | 567 | 570 | 572 | 582 | 587 | 602 | 609 |
| E | Bottom Bracket Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Wheelbase | 970 | 973 | 975 | 986 | 991 | 1006 | 1013 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 99 | 109 | 120 | 140 | 157 | 184 | 204 |
| I | Top Tube Length | 496 | 509 | 531 | 540 | 563 | 577 | 595 |
| J | Seat Tube Angle | 75.5° | 75.5° | 74.0° | 74.0° | 73.5° | 73.5° | 73.0° |
| K | Standover Height | 722 | 734 | 745 | 767 | 785 | 807 | 833 |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Model Numbers
| Size | Model Number | |
|---|---|---|

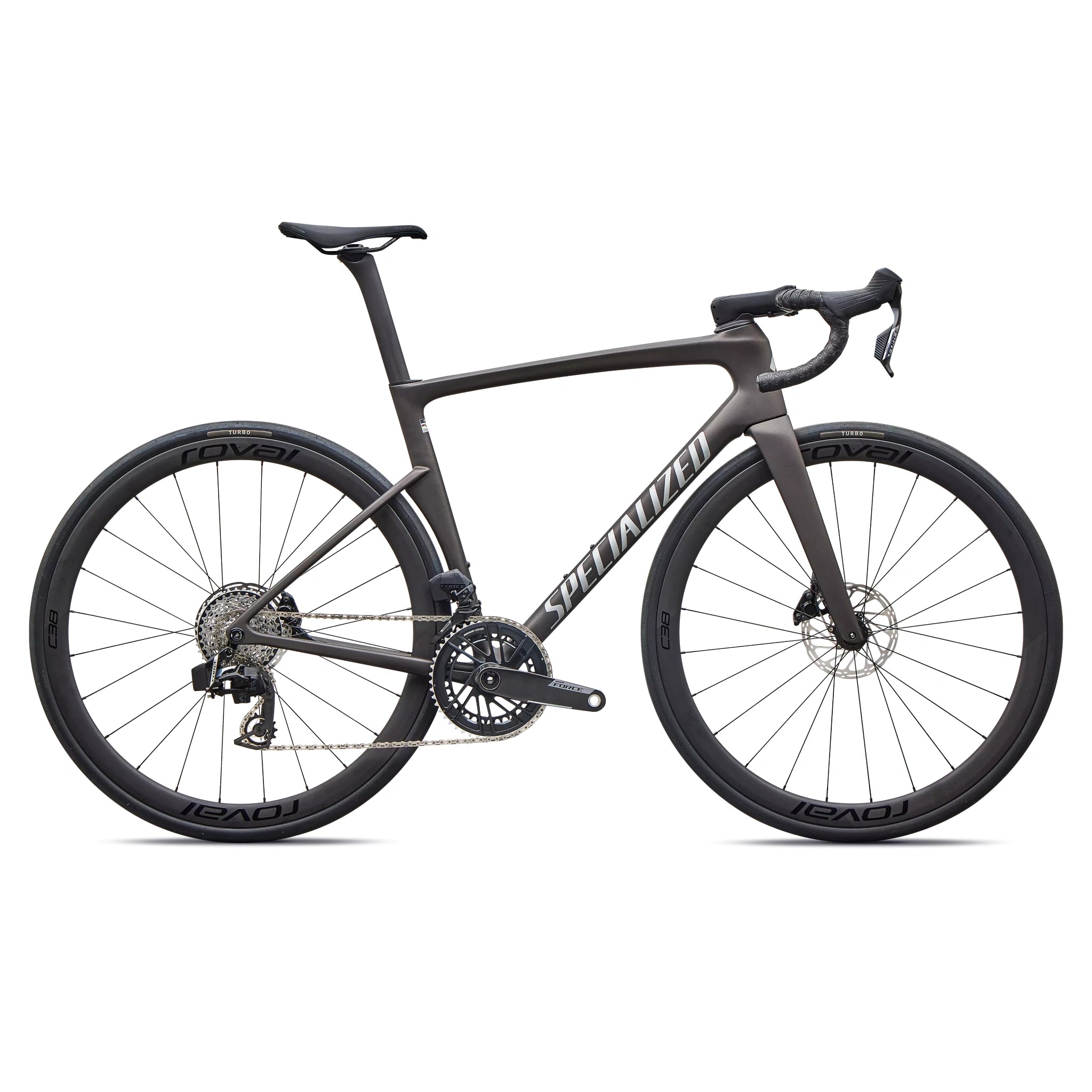

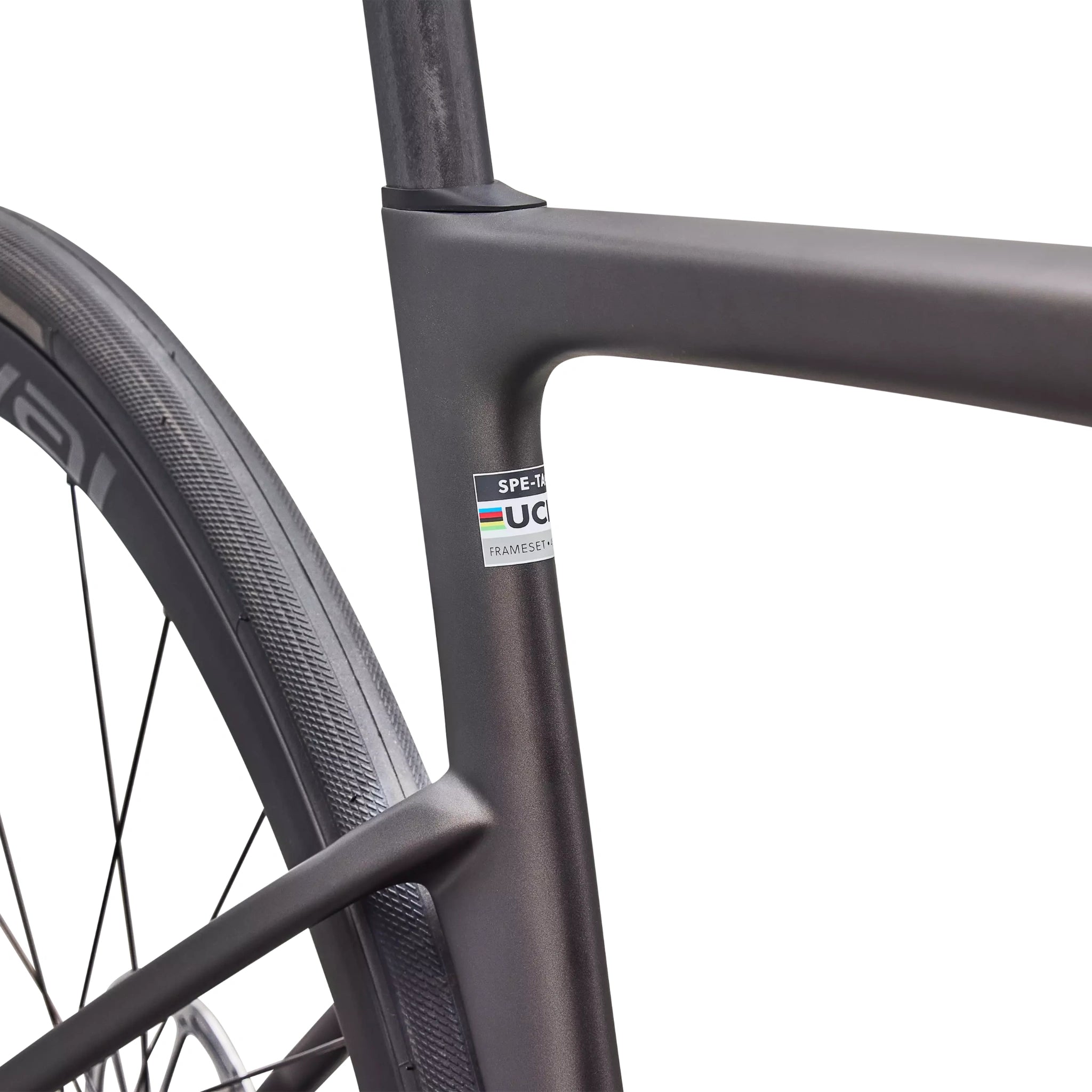

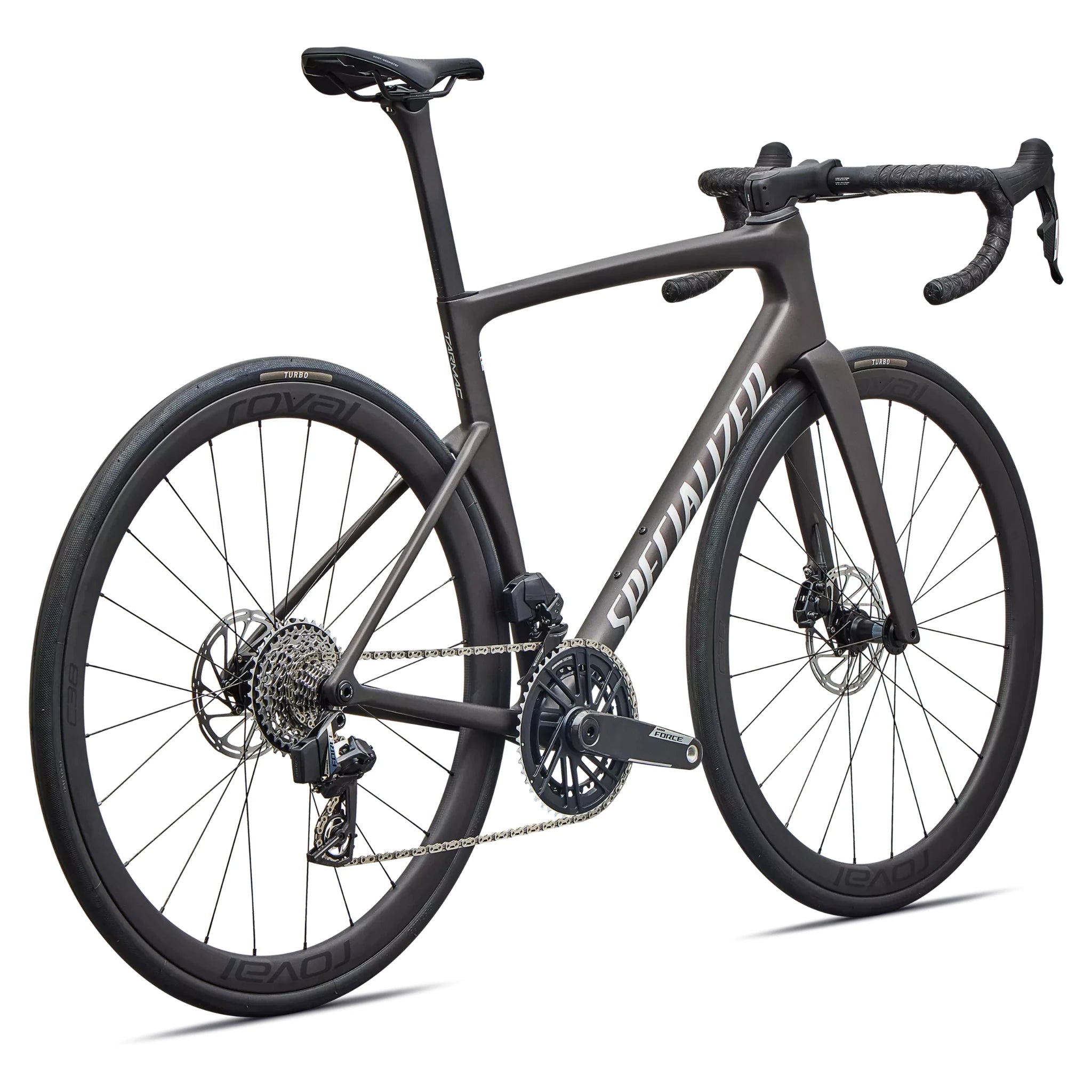

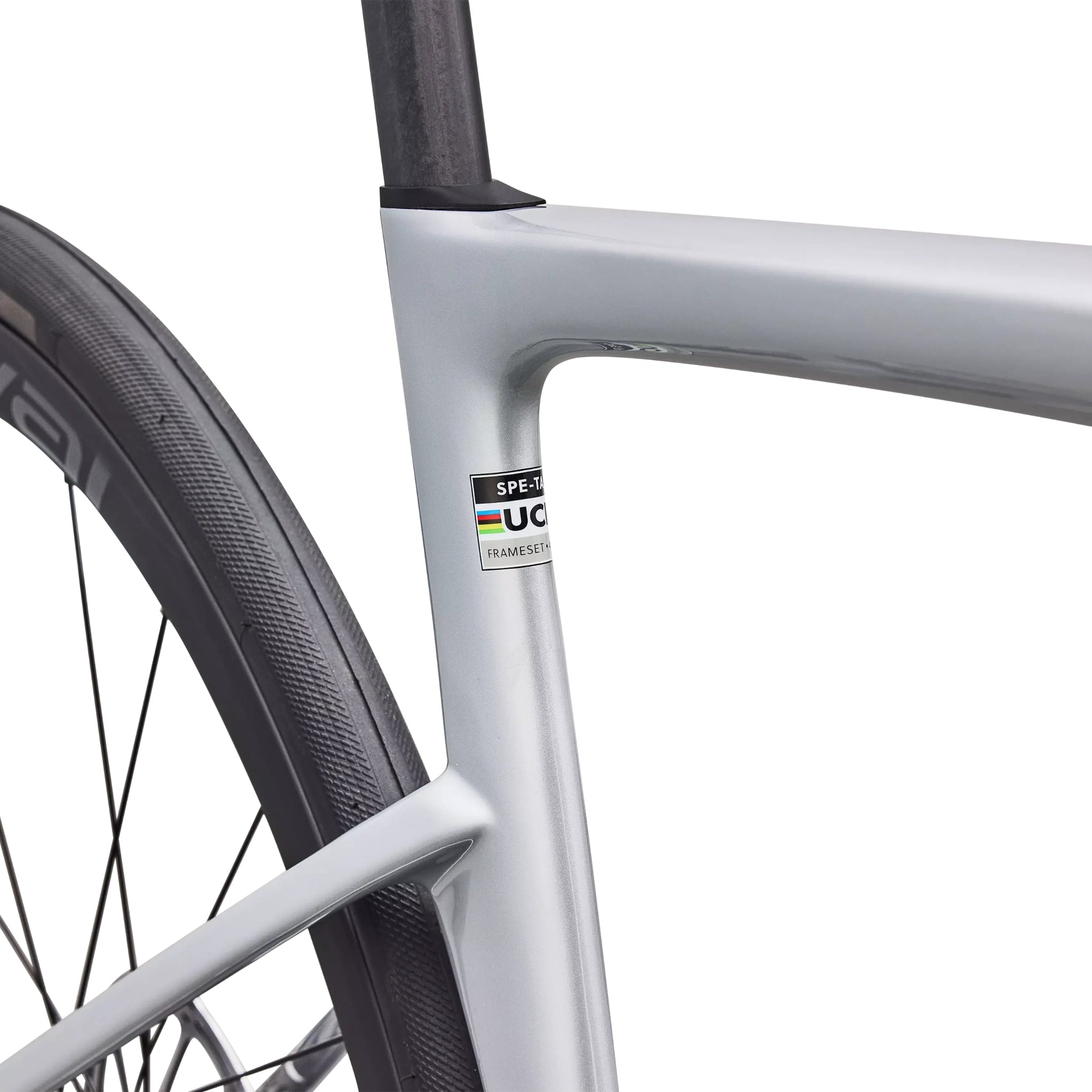

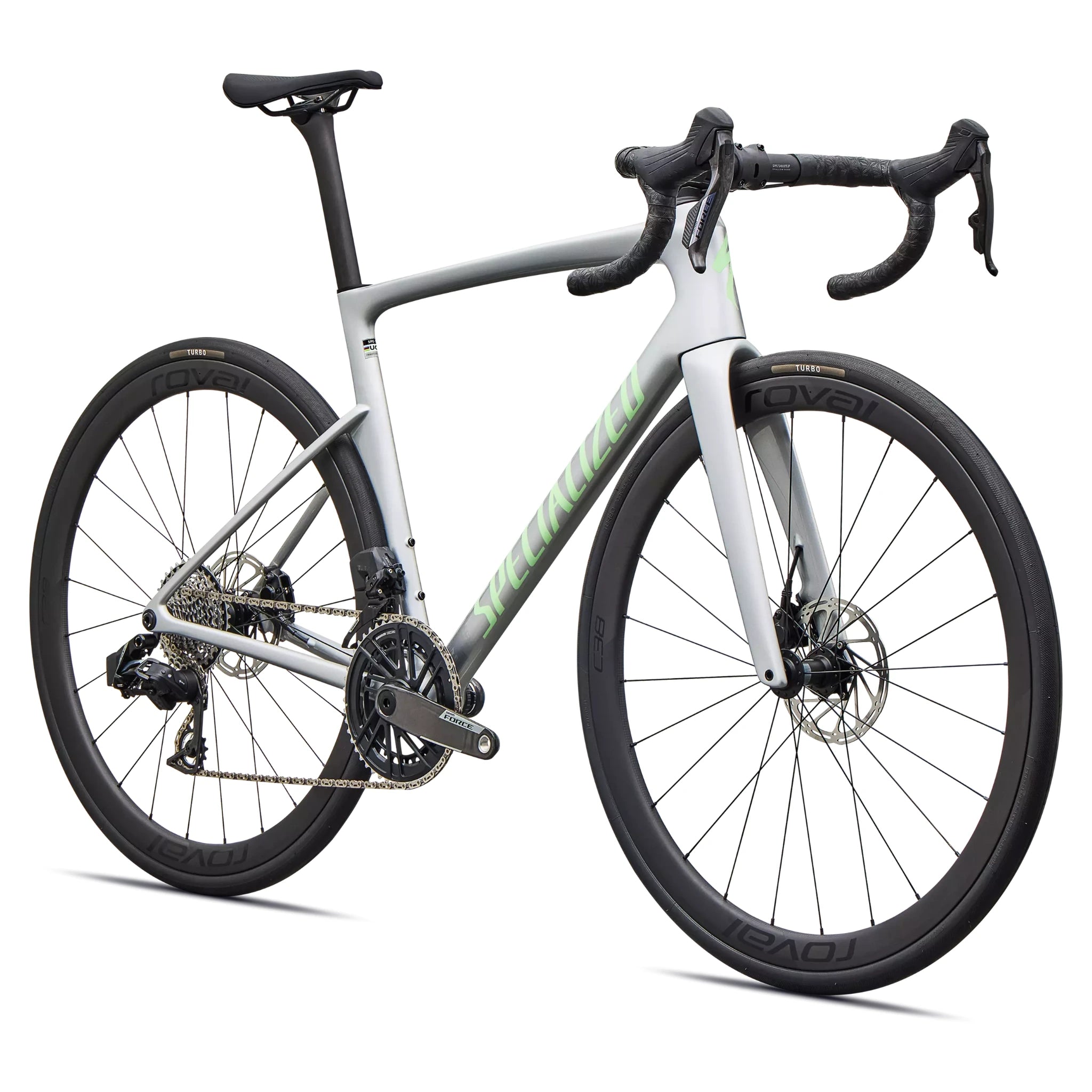

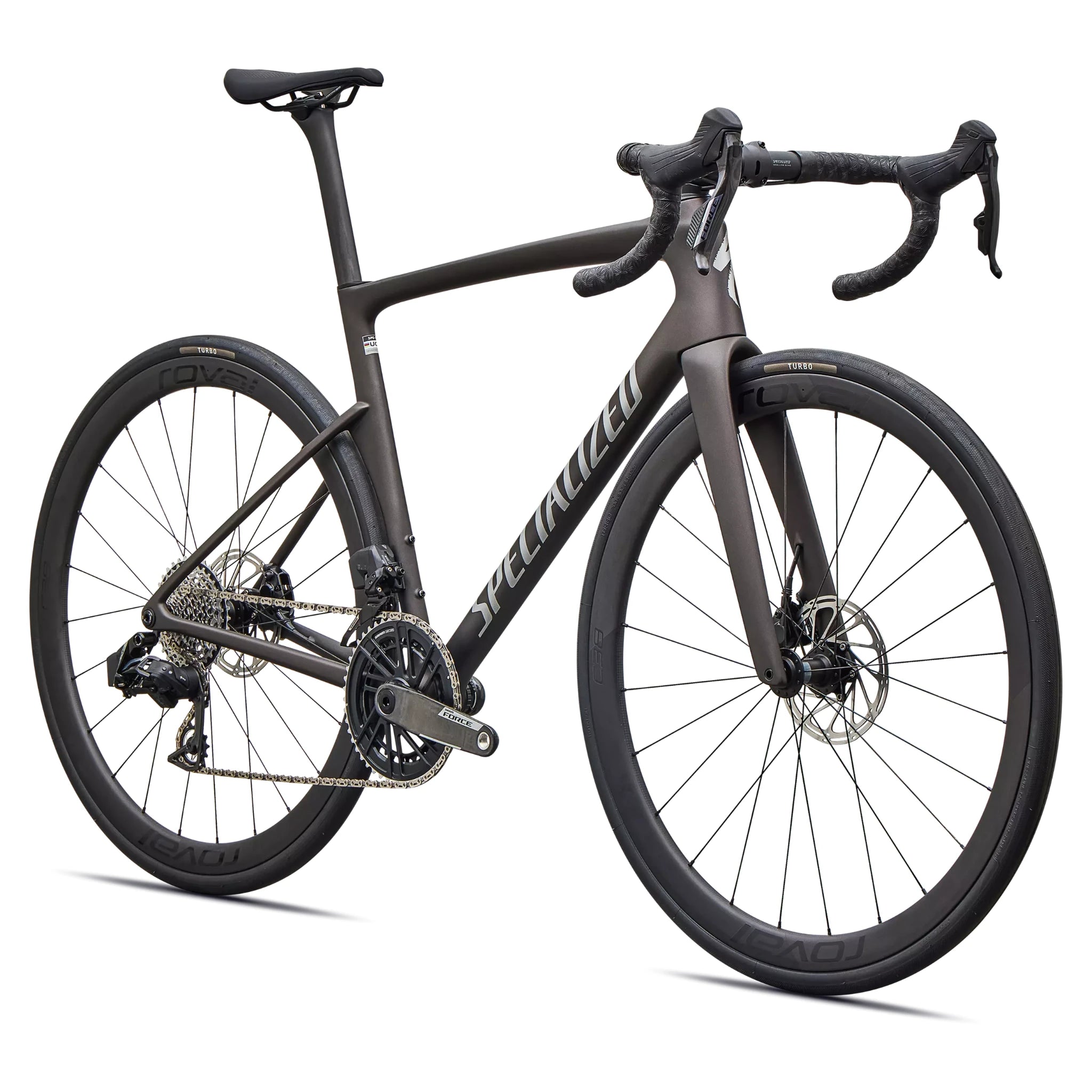

| Gloss Silver Dust / Powder Lime | Satin Warm Smoke Metallic / Silver Dust | |
| 44 | 94927-3144 | 94927-3044 |
| 49 | 94927-3149 | 94927-3049 |
| 52 | 94927-3152 | 94927-3052 |
| 54 | 94927-3154 | 94927-3054 |
| 56 | 94927-3156 | 94927-3056 |
| 58 | 94927-3158 | 94927-3058 |
| 61 | 94927-3161 | 94927-3061 |
