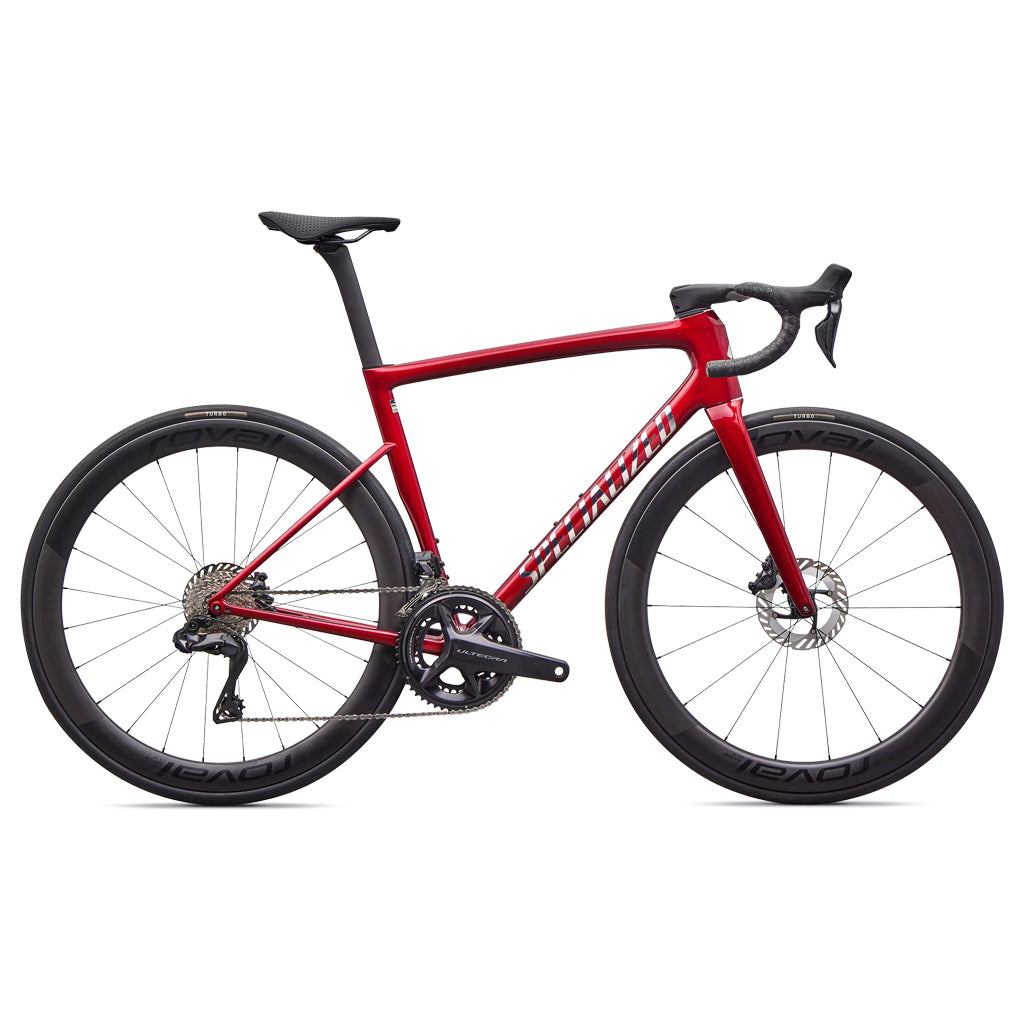

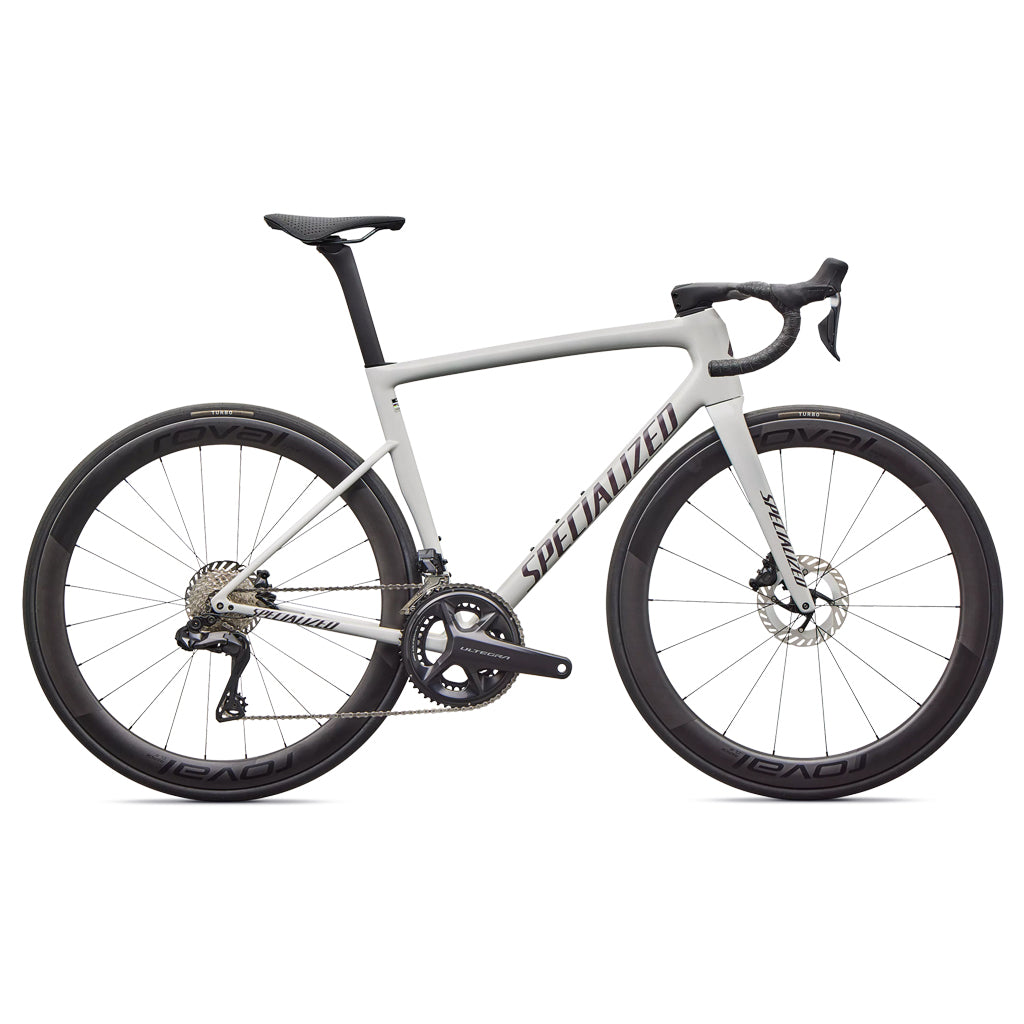

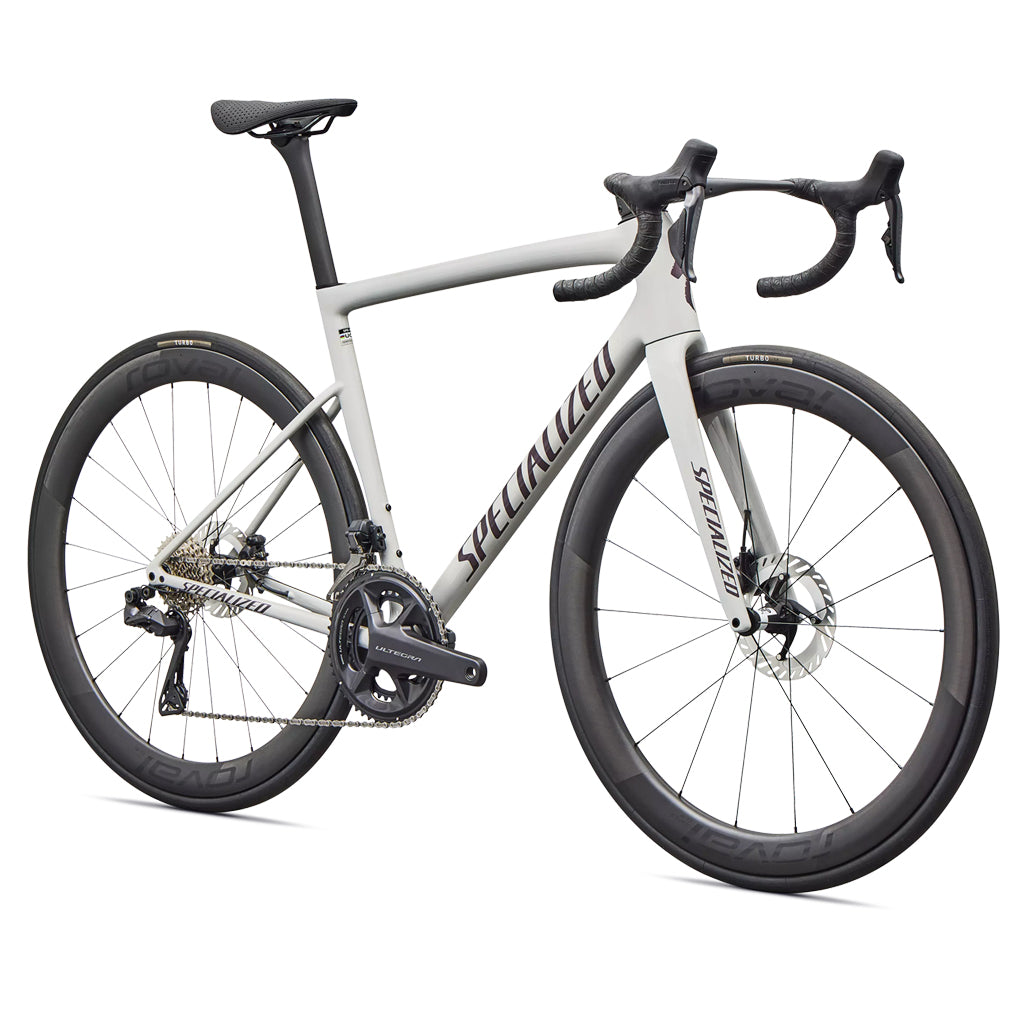

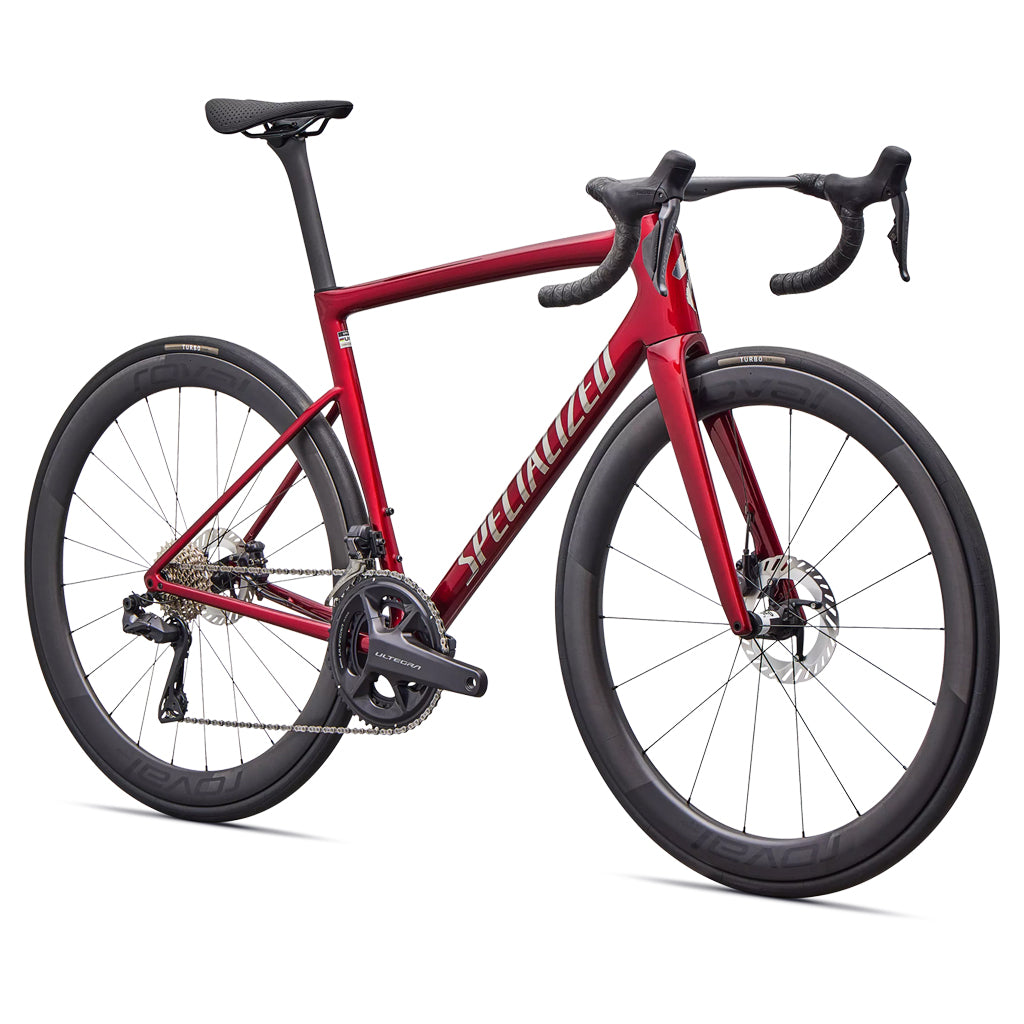

Specialized Tarmac SL8 Pro Shimano Ultegra Di2
Specifications
Frame Tarmac SL8 FACT 10r Carbon, Rider First Engineered™, Win Tunnel Engineered, Clean Routing, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork FACT 10r Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake Shimano Ultegra BR-R8170 hydraulic disc
Rear Brake Shimano Ultegra BR-R8170 hydraulic disc
Bottom Bracket Shimano Threaded BSA BB
Chain Shimano XT M8100, 12-speed w/ quick link
Crankset Shimano Ultegra R81000 52/36t
Front Derailleur Shimano Ultegra Di2 R8150, braze-on
Shift Levers Shimano Ultegra Di2 R8170, hydraulic disc
Cassette Shimano Ultegra, 12-speed, 11-30t
Rear Derailleur Shimano Ultegra Di2 R8150, 12-speed
Rear Wheel Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 48.5mm depth, Win Tunnel Engineered, DT350 hub, 24h, DT Swiss Competition Race Straight Pull Spokes
Front Wheel Roval Rapide CL III, Tubeless, 21mm internal width carbon rim, 51mm depth, Win Tunnel Engineered, DT350 hub, 18h, DT Swiss Competition Race Straight Pull Spokes
Front Tire S-Works Turbo TLR Race Tire, 700x28c
Rear Tire S-Works Turbo TLR Race Tire, 700x28c
Inner Tubes Standard 700 x 20-28 80mm PV
Handlebars Roval Rapide Cockpit, Integrated Bar/Stem
Saddle Power Pro Mirror, Hollow Ti rails
SeatPost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Tape Supacaz Super Sticky Kush
Seat Binder Tarmac integrated wedge
Weight 7.25 kg (15 lb, 15.7 oz) - Size 56
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Head Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| D | Front Centre | 572 | 574 | 577 | 579 | 592 | 606 | 613 |
| E | Bottom Bracket Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Wheelbase | 970 | 973 | 975 | 978 | 991 | 1006 | 1013 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 99 | 109 | 120 | 137 | 157 | 184 | 204 |
| I | Top Tube Length | 496 | 509 | 531 | 541 | 563 | 577 | 595 |
| J | Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° | 75.5° |
| K | Standover Height | 723 | 735 | 746 | 768 | 786 | 808 | 834 |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Dolomite Metallic | Gloss Red Sky |
|---|---|---|
| 44 | 94926-1244 | 94926-1344 |
| 49 | 94926-1249 | 94926-1349 |
| 52 | 94926-1252 | 94926-1352 |
| 54 | 94926-1254 | 94926-1354 |
| 56 | 94926-1256 | 94926-1356 |
| 58 | 94926-1258 | 94926-1358 |
| 61 | 94926-1261 | 94926-1361 |
