DESCRIPTION

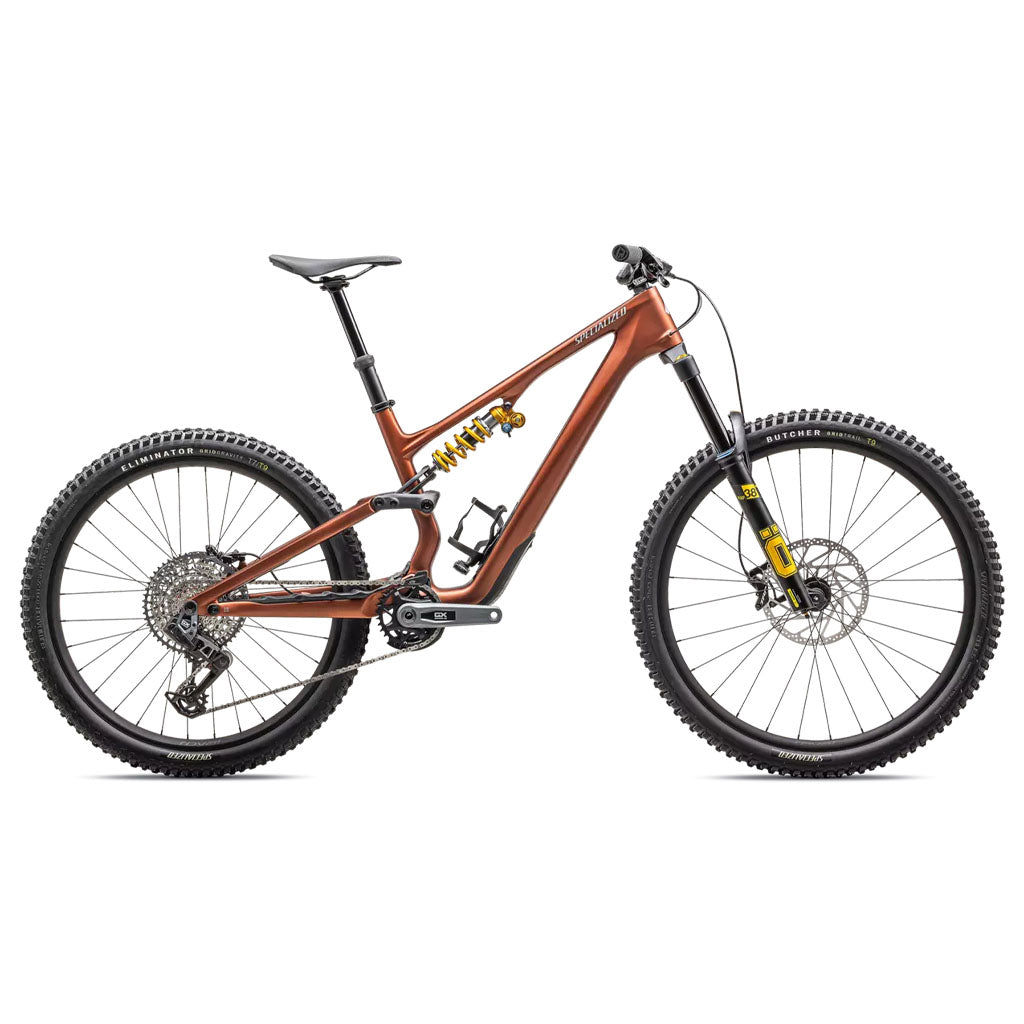

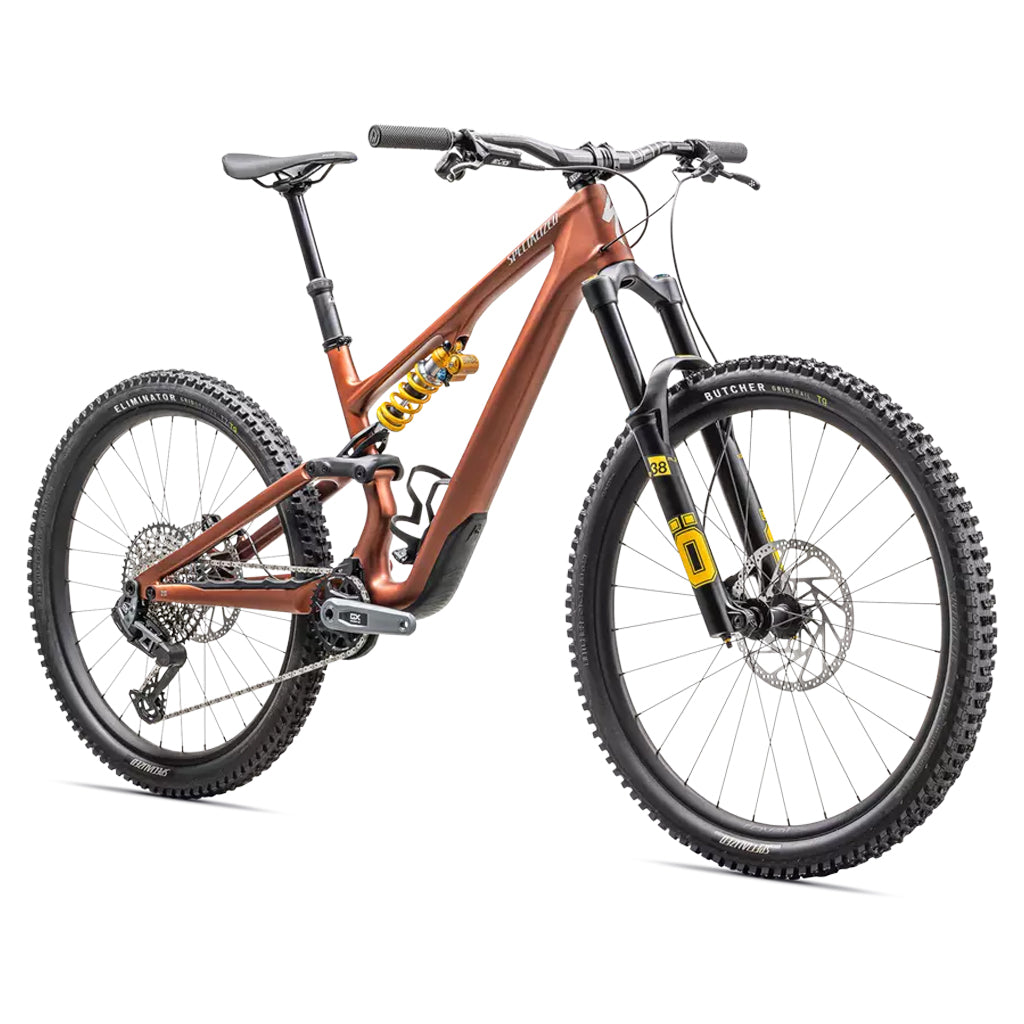

The Stumpjumper 15 carries the legacy of one of the famous names in mountain biking. Labelled as the ultimate trail bike, the new Stumpjumper handles bumps like a heavyweight, ensuring a smooth ride. It offers the agility, control, and efficiency of a short-travel bike, making it incredibly versatile. The bike’s geometry is engineered for versatility, offering the capability of a larger bike when needed, nimbleness in tight sections, and efficient climbing. Its spacious cockpit enhances traction and cornering control, while the low bottom bracket, slack head tube angle, and optimised fork offset ensure stability on rough terrain.
The Stumpjumper 15 stands out with its unprecedented level of customizability, featuring six distinct geometry settings for fine-tuning performance to match any riding style or terrain. You can adjust the head angle and bottom bracket for increased stability or better clearance. All coil-sprung models come with mixed wheel sizes, but with our aftermarket shock links, you have the option to use large wheels both front and rear or opt for a 27.5” rear wheel for a more responsive and playful ride without affecting the bike’s geometry. Additionally, the SWAT 4.0 system revolutionizes downtube storage, providing the smoothest, most weather-resistant, and flush-mounted system available. Built to endure years of hard riding, our full suspension bikes are supported by unparalleled policies, including a lifetime no-questions-asked replacement of suspension pivot bearings for the original owner, ensuring you’re always ready for the trail.
- Lightweight FACT 11m carbon chassis and rear-end
- Incredibly tough Roval Traverse wheels with DT Swiss 370 hub
- Premium suspension support from an Öhlins TTX 22 M Coil, Ride Dynamics tuned
- Plow through anything with a 160mm Öhlins RXF38 M.2 29 fork
- Reliable and smooth shifting from SRAM GX Eagle AXS T-Type drivetrain
- Powerful brakes with great hand feel thanks to TRP DH-R EVO 4-piston brakes
- Adjustable travel PNW LOAM dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
- Compatible with electronic drivetrains only
Specifications
SWAT
SWAT 4.0 internal downtube storage
Frame
FACT 11m carbon chassis and rear-end with 145mm of travel
Seat Binder
Alloy, 38.6mm
Fork
Öhlins RXF38 M.2 29, TTX Twin Tube Damping, 160mm of travel
Rear Shock
Öhlins TTX 22 M Coil, 210x55
Saddle
Bridge Comp, Hollow Cr-mo rails, S1-S2: 155mm, S3-S6: 143mm
Stem
Deity, 35mm clamp, 35mm length
Grips
Diety, Supracush, Black
Handlebars
Deity, Racepoint, 5-degree upsweep, 9-degree backsweep, 810 width, S2: 25mm rise; S3-S6: 38mm rise
SeatPost
PNW Loam Dropper, tool-less travel adjust, Range lever, 34.9, S2: 150mm, S3: 170mm, S4-S6: 200mm
Front Brake
TRP DH-R EVO, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
TRP DH-R EVO, 4-piston caliper, hydraulic disc, 203mm
Chain
SRAM GX Eagle Transmission Flattop Chain
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
Bottom Bracket
SRAM DUB, BSA 73mm Wide, Threaded
Shift Levers
SRAM AXS POD Controller
Crankset
SRAM GX Eagle Crankset, 32T ring, 55mm Chainline, S2-S3:165mm, S4-S6: 170mm
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
Rims
Roval Traverse, hookless alloy, 30mm inner width, tubeless ready, Front: 29, Rear: 27.5
Front Hub
DT Swiss 370, 15x110mm, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Hub
DT Swiss 370, 12x148mm, 32h
Rear Tire
Eliminator, GRID GRAVITY casing, GRIPTON® T9/T7 compound, 2Bliss Ready, 27.5x2.3"
Spokes
Sapim Force
Inner Tubes
Standard, Presta valve
Weight - Size S4
15.30kg (33 lb, 11.7 oz)
*Specifications are subject to change without notice
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 400 | 425 | 450 | 475 | 500 | 530 |
| B | Stack | 608 | 618 | 627 | 640 | 654 | 667 |
| C | Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| D | Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| E | Front Center | 720 | 751 | 780 | 812 | 843 | 879 |
| F | Bottom Bracket Height | 334 | 337 | 337 | 337 | 337 | 337 |
| G | Bottom Bracket Drop | 41 | 38 | 38 | 38 | 38 | 38 |
| H | Wheelbase | 1149 | 1181 | 1213 | 1244 | 1285 | 1322 |
| I | Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
| J | Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| K | Top Tube Length | 541 | 573 | 595 | 624 | 647 | 677 |
| L | Seat Tube Angle | 77 | 76.5 | 77 | 76.9 | 77.3 | 77.6 |
| M | Bike Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
*ALL MEASUREMENTS IN DEGREES OR MILLIMETRES
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
