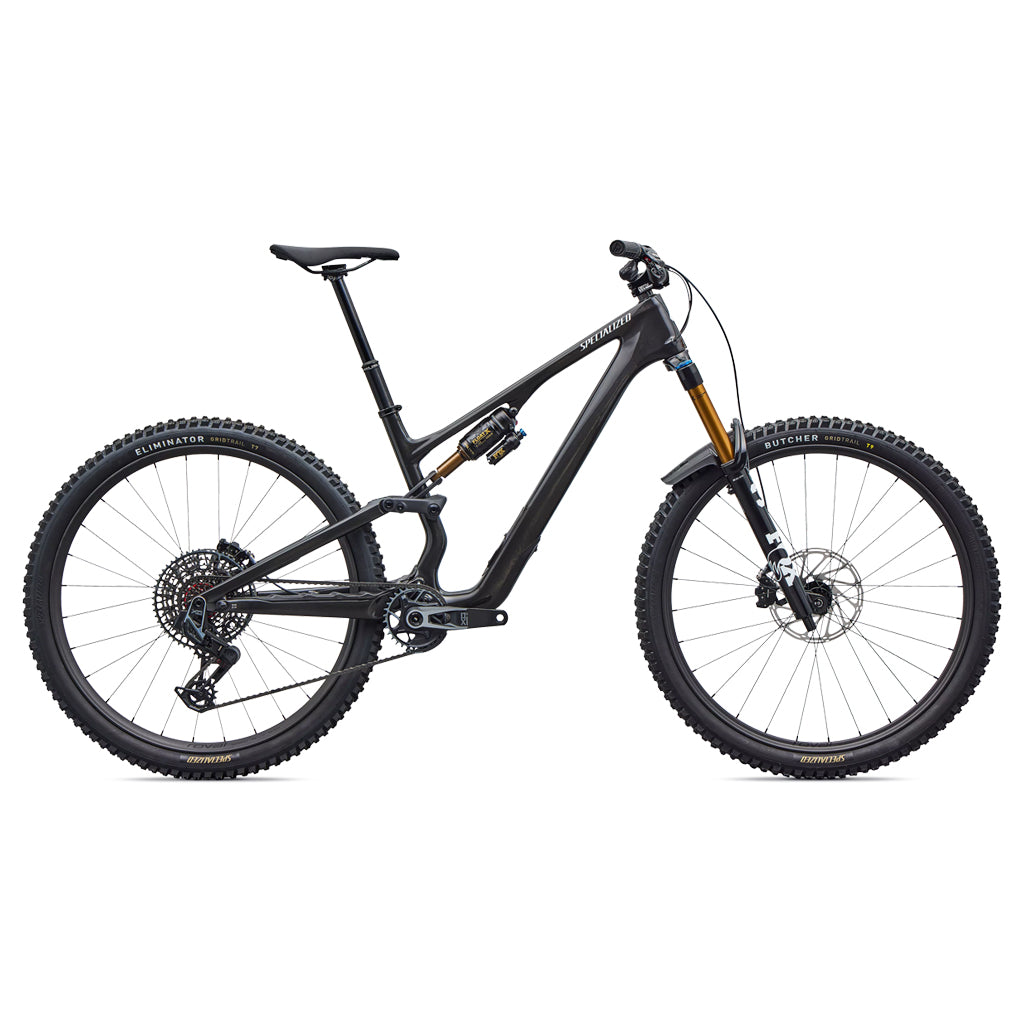

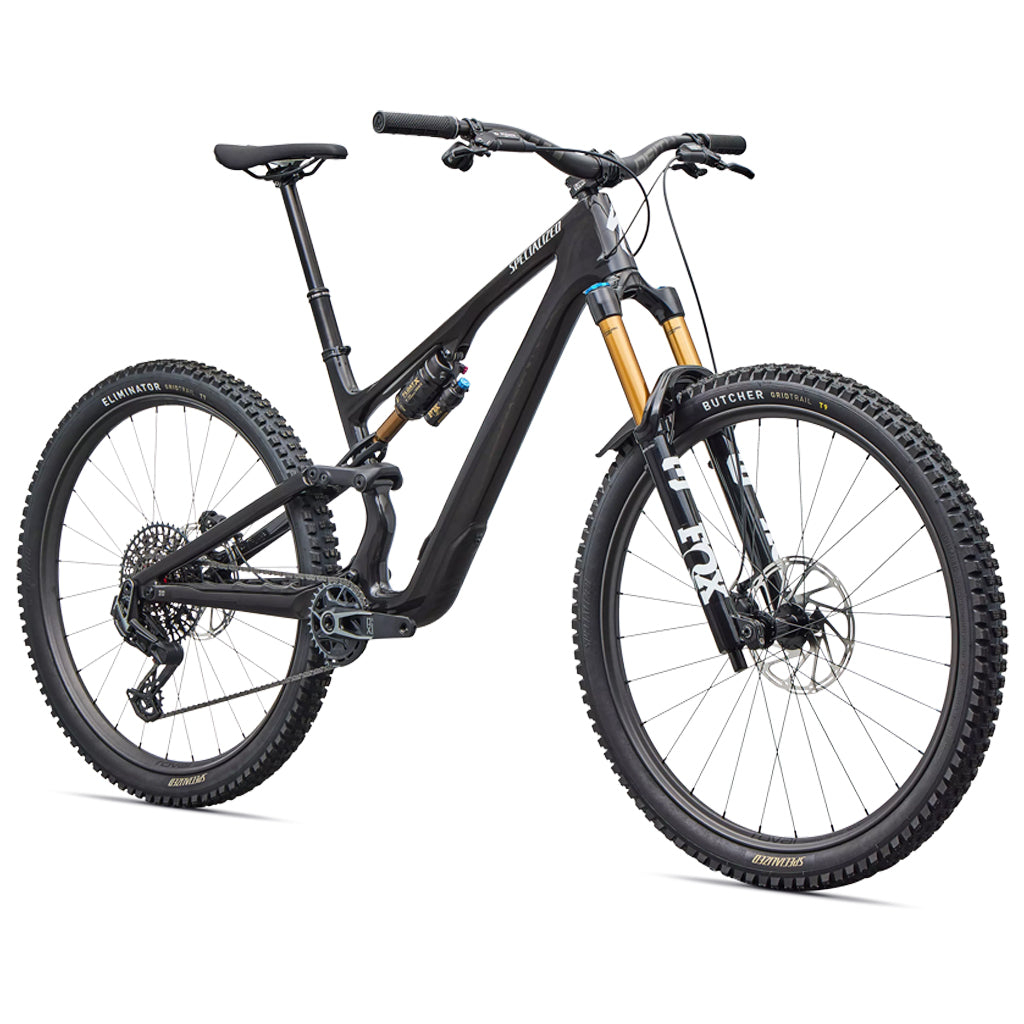

Specialized Stumpjumper 15 EVO Pro
Specifications
Seat BinderAlloy, 38.6mm
FrameFACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
ForkFOX FLOAT 36 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm QR axle, 44mm offset, S1:150mm of travel, S2-S6:160mm of travel
Rear ShockFOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC adjustment, LSR adjustment, 210x55mm
Front BrakeSRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm Centerline Rotor
Rear BrakeSRAM Maven Silver, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 200mm Centerline Rotor
Shift LeversSRAM AXS POD Controller w/discrete clamp
Rear DerailleurSRAM X0 Eagle Transmission
ChainSRAM X0
CassetteSRAM XS 1295, 12 speed, 10-52
CranksetSRAM X0 Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm
Bottom BracketSRAM DUB Threaded Wide
Front TireButcher, GRID TRAIL casing, Gripton T9 compound, 29X2.4
Rear TireEliminator, GRID TRAIL casing, GRIPTON® T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4"
Front WheelRoval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 1/1 Hub, 15x110mm, 28h, Sapim D-Light Spokes
Rear WheelRoval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, Industry 9 1/1 Hub, 15x110mm, 28h, Sapim D-Light Spokes
Inner TubesStandard, Presta Valve
StemDeity, 35mm clamp, 42mm length
SaddleBridge Expert with MIMIC, Hollow Ti rails, S1-S2: 155mm, S3-S6:143mm
GripsDeity Lockjaw Grips
SeatPostBike Yoke, Revive Max 3.0, 34.9, S1: 125mm, S2: 160mm, S3-S4: 185mm, S5-S6: 213mm
HandlebarsDeity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
Weight14.05 kg (30 lb, 15.6 oz)
Weight SizeS4
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 400 | 420 | 445 | 470 | 495 | 525 |
| B | Stack | 611 | 621 | 630 | 644 | 658 | 671 |
| C | Headtube Angle | 64° | 64° | 64° | 64° | 64° | 64° |
| D | Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| E | Front Centre | 724 | 755 | 785 | 816 | 848 | 884 |
| F | Bottom Bracket Height | 337 | 340 | 340 | 340 | 340 | 340 |
| G | Bottom Bracket Drop | 38 | 35 | 35 | 35 | 35 | 35 |
| H | Wheelbase | 1153 | 1186 | 1217 | 1249 | 1290 | 1327 |
| I | Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
| J | Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| K | Top Tube Length | 542 | 574 | 596 | 625 | 649 | 678 |
| L | Seat Tube Angle | 77.7° | 76.5° | 76.5° | 76° | 76° | 76° |
| M | Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
Part Numbers
| Size | Model Number | Gloss Carbon |
|---|---|
| S1 | 93326-1001 |
| S2 | 93326-1002 |
| S3 | 93326-1003 |
| S4 | 93326-1004 |
| S5 | 93326-1005 |
| S6 | 93326-1006 |
