One Bike to Rule All Trails

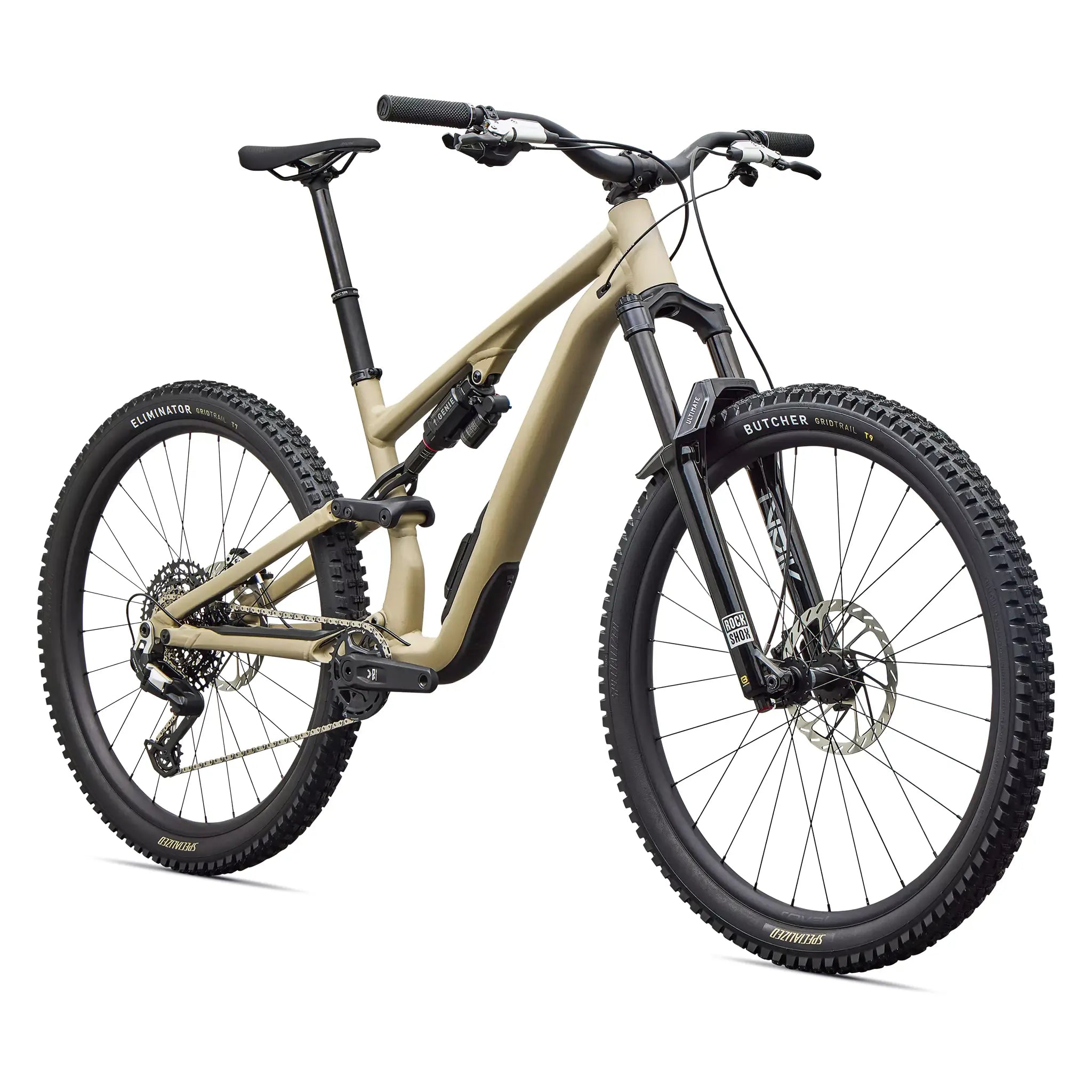

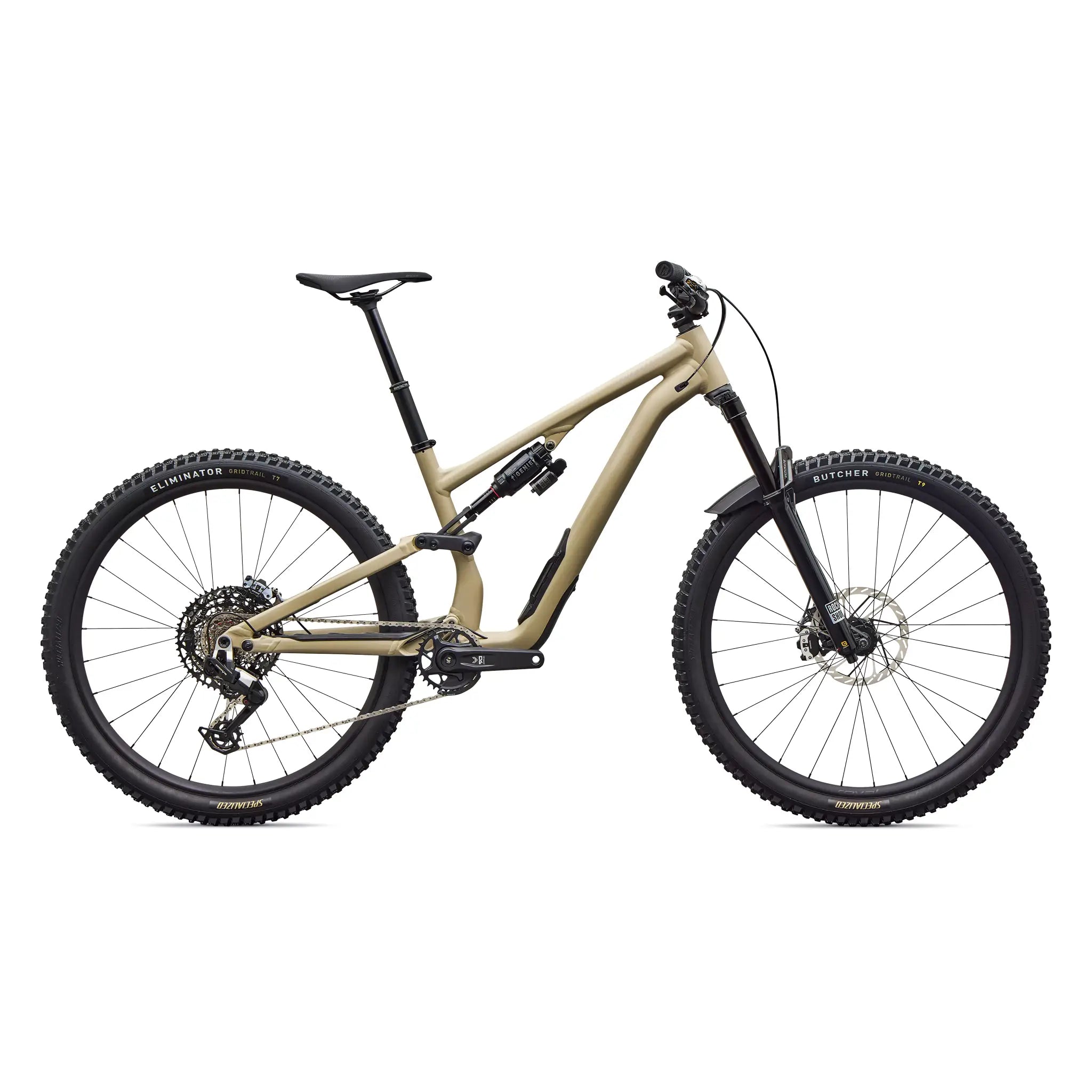

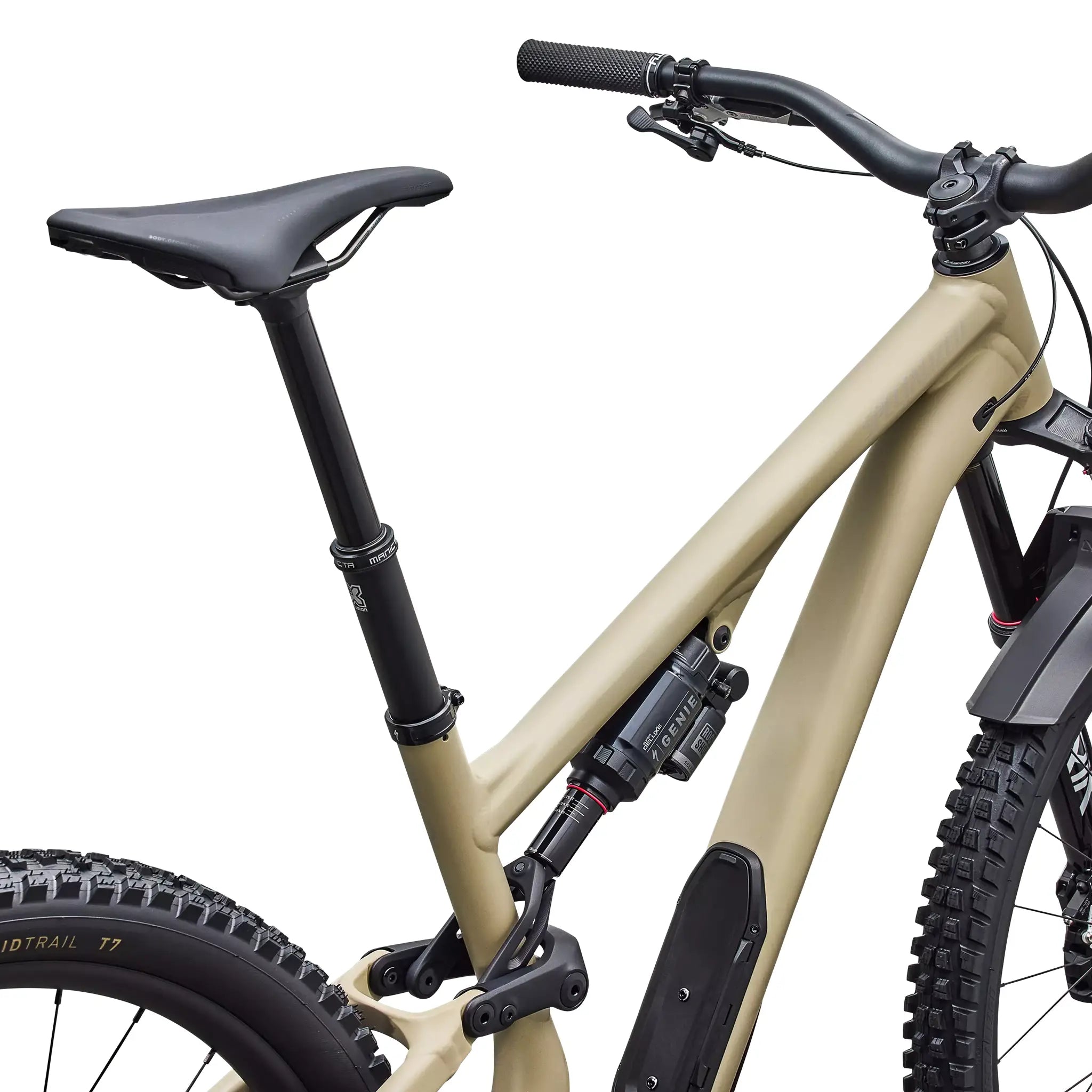

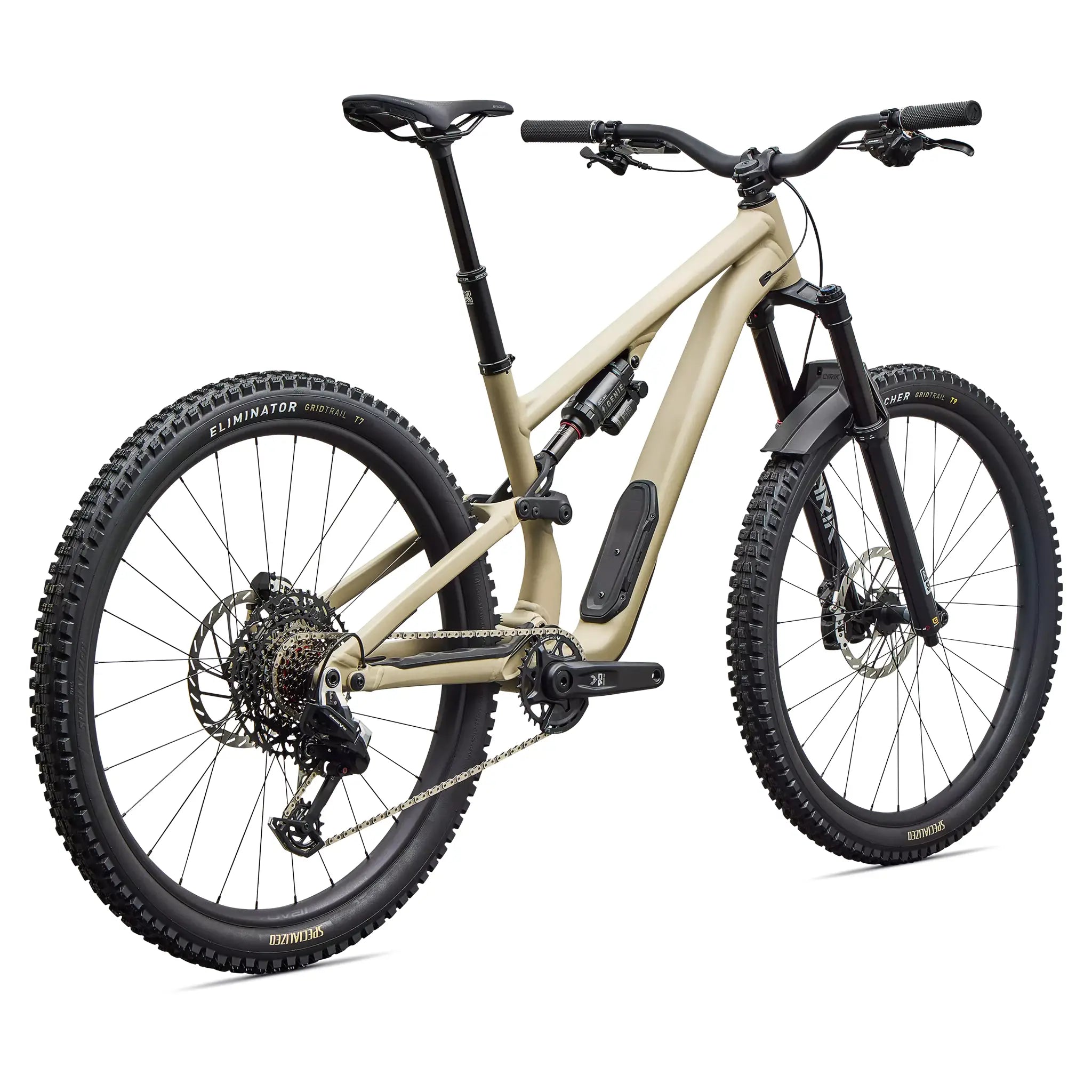

Specialized Stumpjumper 15 EVO Elite Alloy
Stumpjumper 15 EVO is here to obliterate every trade-off in the trail game. Devour bumps like a big bike? Check. Short-travel control, playfulness, and efficiency? Double check. How about a heaping helping of personalization to make it perfect for the only rider who really matters - you? Check, check, check.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
One Bike to Rule All Trails
Specialized Stumpjumper 15 EVO Elite Alloy
Features
Specifications
| Frame | M5 alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel |
|---|---|
| SWAT | SWAT 4.0 internal downtube storage |
| Fork | All New SRAM Rockshox Lyrik Ultimate, 29" 160mm (S2-S6); 150mm (S1), LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust |
| Rear Shock | All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm |
| Seat Binder | Alloy, 38.6mm |
| Front Brake | SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor |
| Rear Brake | SRAM Maven Ultimate B1, 4-piston caliper, hydraulic disc, 200mm rotor |
| Crankset | SRAM X0 Eagle Crankset, 32T ring, Integrated Guard, 55mm Chainline, S1-S3:165mm, S4-S6: 170mm |
| Shift Levers | SRAM 90 trigger, 12-speed, single click |
| Bottom Bracket | SRAM DUB Threaded Wide |
| Crankset | SRAM Eagle 90, S1-S3: 165mm, S4-S6: 170mm, 55mm chainline, 32T |
| Rear Derailleur | SRAM Eagle 90 T-Type |
| Cassette | SRAM 12-speed,10-52t |
| Chain | SRAM GX Eagle Transmission 12-Speed Flattop Chain |
| Front Wheel | Roval Traverse 29" Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 15x110mm, 28h, Sapim Force Spokes |
| Front Tire | Butcher, GRID TRAIL casing, Gripton T9 compound, TLR, 29X2.4 | Rear Wheel | Roval Traverse Rim, hookless alloy, 30mm inner width, tubeless ready, DT Swiss 370 Hub, 12x148mm, 28h, Sapim Force Spokes, S1-S2: 27.5", S3:-S6: 29" |
| Rear Tire | Eliminator, GRID TRAIL casing, Gripton T7 compound, TLR, S1-S2: 27.5x2.4, S3- S6: 29x2.4" |
| Inner Tubes | Standard, Presta Valve |
| Grips | Deity Supracush, Lock On, 34mm OD, 133mm Length |
| Stem | Specialized, 35mm Clamp, 35mm Reach |
| Handlebars | Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise: S3-S6: 800 width, 50mm rise |
| SeatPost | Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 |
| Weight | 16.79 kg (37 lb, 0.2 oz) - Size S4 |
*Specifications are subject to change without notice
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 400 | 420 | 445 | 470 | 495 | 525 |
| B | Stack | 611 | 621 | 630 | 644 | 658 | 671 |
| C | Headtube Angle | 64° | 64° | 64° | 64° | 64° | 64° |
| D | Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| E | Front Centre | 724 | 755 | 785 | 816 | 848 | 884 |
| F | Bottom Bracket Height | 337 | 340 | 340 | 340 | 340 | 340 |
| G | Bottom Bracket Drop | 38 | 35 | 35 | 35 | 35 | 35 |
| H | Wheelbase | 1153 | 1186 | 1217 | 1249 | 1290 | 1327 |
| I | Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
| J | Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| K | Top Tube Length | 542 | 574 | 596 | 625 | 649 | 678 |
| L | Seat Tube Angle | 77.7° | 76.5° | 76.5° | 76° | 76° | 76° |
| M | Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
Model Numbers
| Size | Model Number |
|---|---|
| Satin East Sierra | |
| S2 | 93327-4002 |
| S3 | 93327-4003 |
| S4 | 93327-4004 |
| S5 | 93327-4005 |
| S6 | 93327-4006 |
