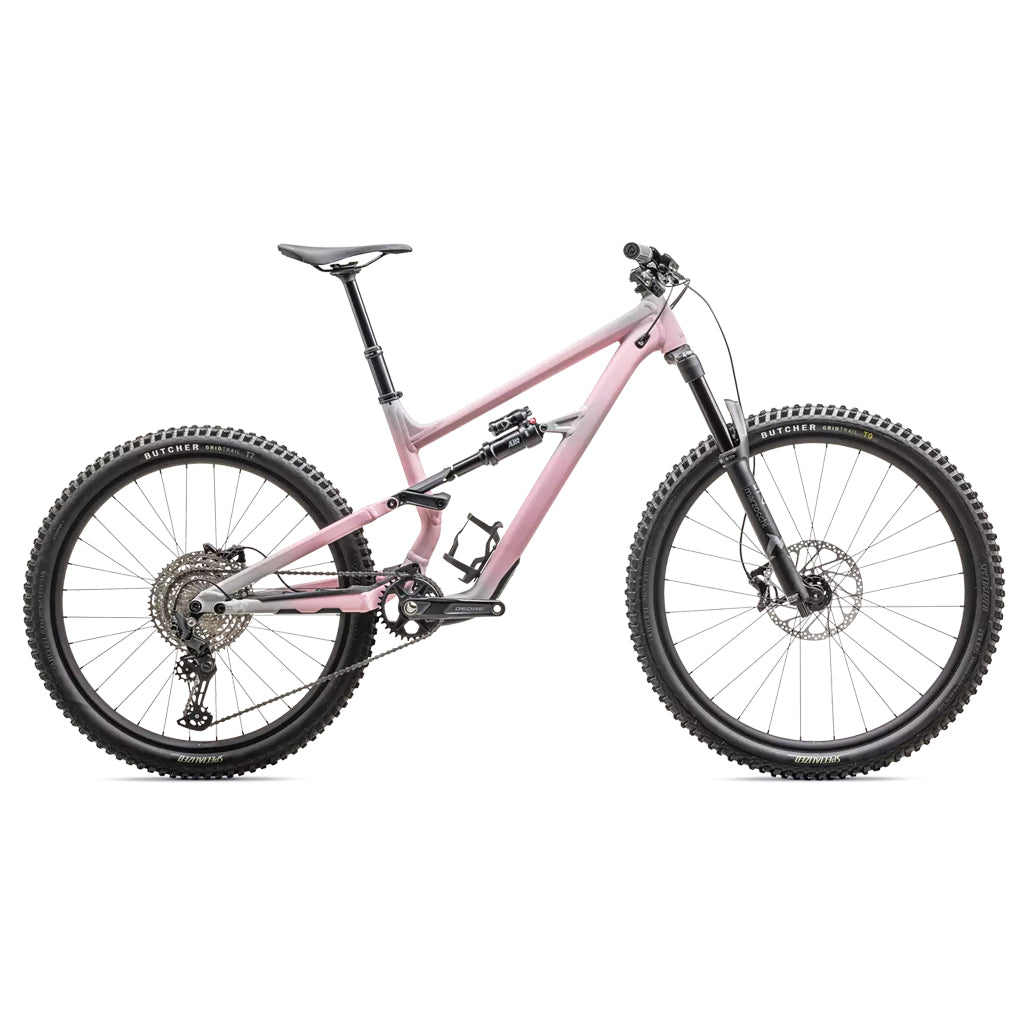

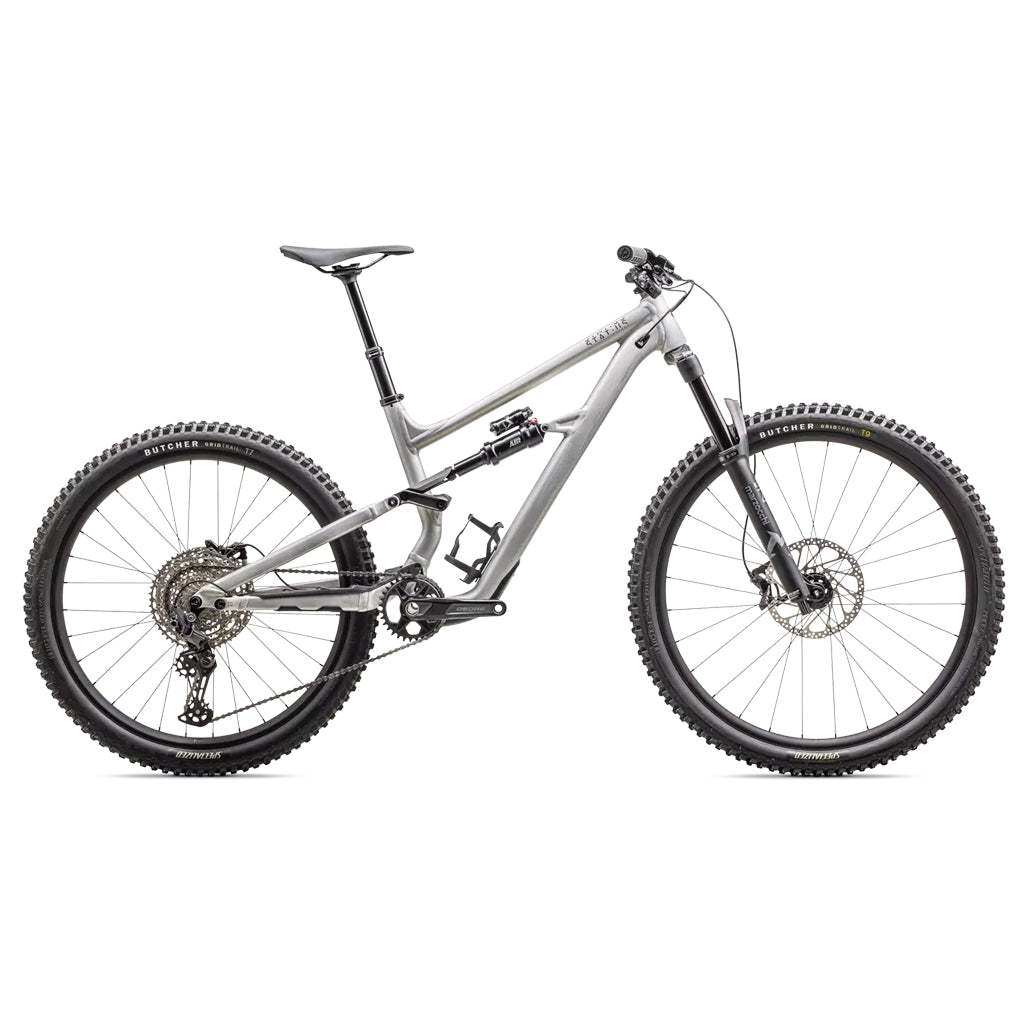

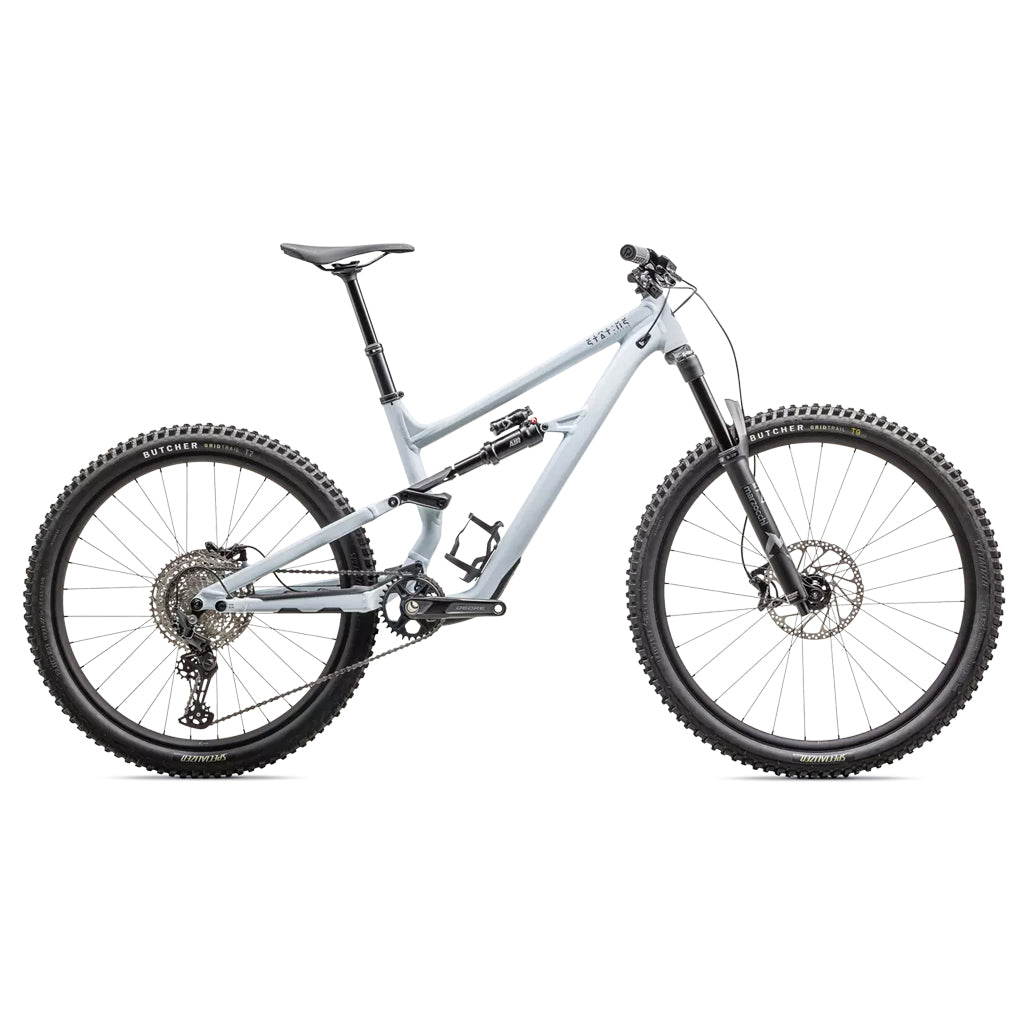

STATUS 2 finds the boundaries of mountain bikes and pushes past them. Is it a trail bike? Yes. Park bike? Yep. Cruise to the convenience store and stop for a stealth session on a concrete wall ride? Oh yeah. STATUS 2 is a bike meant to be ridden, however or wherever you ride.
Whether you are on the trails, at the bike park, in the streets, or just cutting turns with your friends on a local hill, the STATUS 2 will allow you to ride your way.
BUILT BY RIDERS: Each build starts with a super strong M5 alloy chassis and tough alloy wheels. Stout suspension, powerful brakes, and popular drivetrain options round out these builds to catch big hits, pedal smooth, and provide a ton of stoppage. It’s not for the gram counter—it’s for those riders who push the boundaries of progression and come back for more.
RIDE DYNAMICS TUNED: Before showing up at your doorstep or local bike shop, each STATUS 2 gets a special shock tune from our Specialized Ride Dynamics team—a group that eats, sleeps, and breathes mountain bike suspension. The characteristics of the shock are designed to complement the kinematics of the new STATUS 2 perfectly.
LET’S GET PERSONAL: Each model of STATUS 2 features neatly packaged flip chips (located on the Horst pivot link, close to the rear axle) that allow the rider to finely tune the frame’s geometry to their desired ride or terrain. Bikes ship in the high position but can be ‘flipped’ to lower and slacker—8 mm lower bottom bracket and half a degree slacker head tube angle.
- 100% Redesigned durable alloy chassis
- New, more durable alloy rims
- Horst Link geometry adjust flip chip
- Updated geometry for more usability
- Curated parts spec for your desired ride experience
Frame
M5 Alloy chassis and rear-end with 140mm of travel
Seat Binder
Alloy, 38.6mm
Rear Shock
Marzocchi Bomber Air, S1:210x50mm, S2-S5:210x52.5mm
Fork
Marzocchi Z1, GRIP damper with 140mm of travel
Stem
Alloy Trail Stem, 35mm bar bore
Saddle
Bridge Comp, Hollow Cr-mo rails, 143mm
Grips
Deity Knuckleduster
SeatPost
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3-S4: 170mm, S5: 190mm
Handlebars
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, S1: 780mm width; S2-S5: 800mm width
Front Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Rear Brake
TRP Trail EVO, 4-piston caliper, hydraulic disc, 203mm
Crankset
Shimano Deore, M6120, 32T ring, 55mm chainline, S1:165mm, S2-S5: 170mm
Cassette
Shimano Deore M6100, 12spd w/Hyperglide+, 10-51t
Chain
Shimano Deore M6100, 12spd
Rear Derailleur
Shimano Deore, M6100, 12pd, Shadow Plus
Shift Levers
Shimano Deore, M6100, I-Spec EV, 12 speed
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
Rear Tire
Butcher, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"
Spokes
DT Swiss Industry
Rear Hub
Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
Rims
Specialized, hookless alloy, 30mm inner width, tubeless ready
Inner Tubes
Standard, Presta valve
Weight - Size S3
15.29 kg (33 lb, 11.3 oz)
*Specifications are subject to change without notice
S1 | S2 | S3 | S4 | S5 | ||
---|---|---|---|---|---|---|
lo|hi | lo|hi | lo|hi | lo|hi |
lo| hi |
||
A | Reach | 415|421 | 440|446 | 465|471 | 490|496 | 515|521 |
B | Stack | 605|601 | 609|605 | 618|614 | 627|623 | 636|632 |
C | Headtube Angle | 64|64.5 | 64|64.5 | 64|64.5 | 64|64.5 | 64|64.5 |
D | Seat Tube Length | 390 | 400 | 420 | 440 | 465 |
E | Front Center | 741 | 768 | 798 | 827 | 857 |
F | Bottom Bracket Height | 338|346 | 338|346 | 338|346 | 338|346 | 338|346 |
G | Bottom Bracket Drop | 38|30 | 38|30 | 38|30 | 38|30 | 38|30 |
H | Wheelbase | 1168 | 1195 | 1225 | 1259 | 1288 |
I | Chainstay Length | 427|431 | 427|431 | 427|431 | 432|436 | 432|436 |
J | Headtube Length | 100 | 105 | 115 | 125 | 135 |
K | Toptube Length (horizontal) | 549 | 590 | 630 | 671 | 711 |
L | Seat Tube Angle | 77|77.6 | 77|77.6 | 77|77.6 | 77|77.6 | 77|77.6 |
M | Standover Height | 735 | 735 | 739 | 743 | 747 |
*ALL MEASUREMENTS IN DEGREES OR MILLIMETRES
