Get Ready to Rally

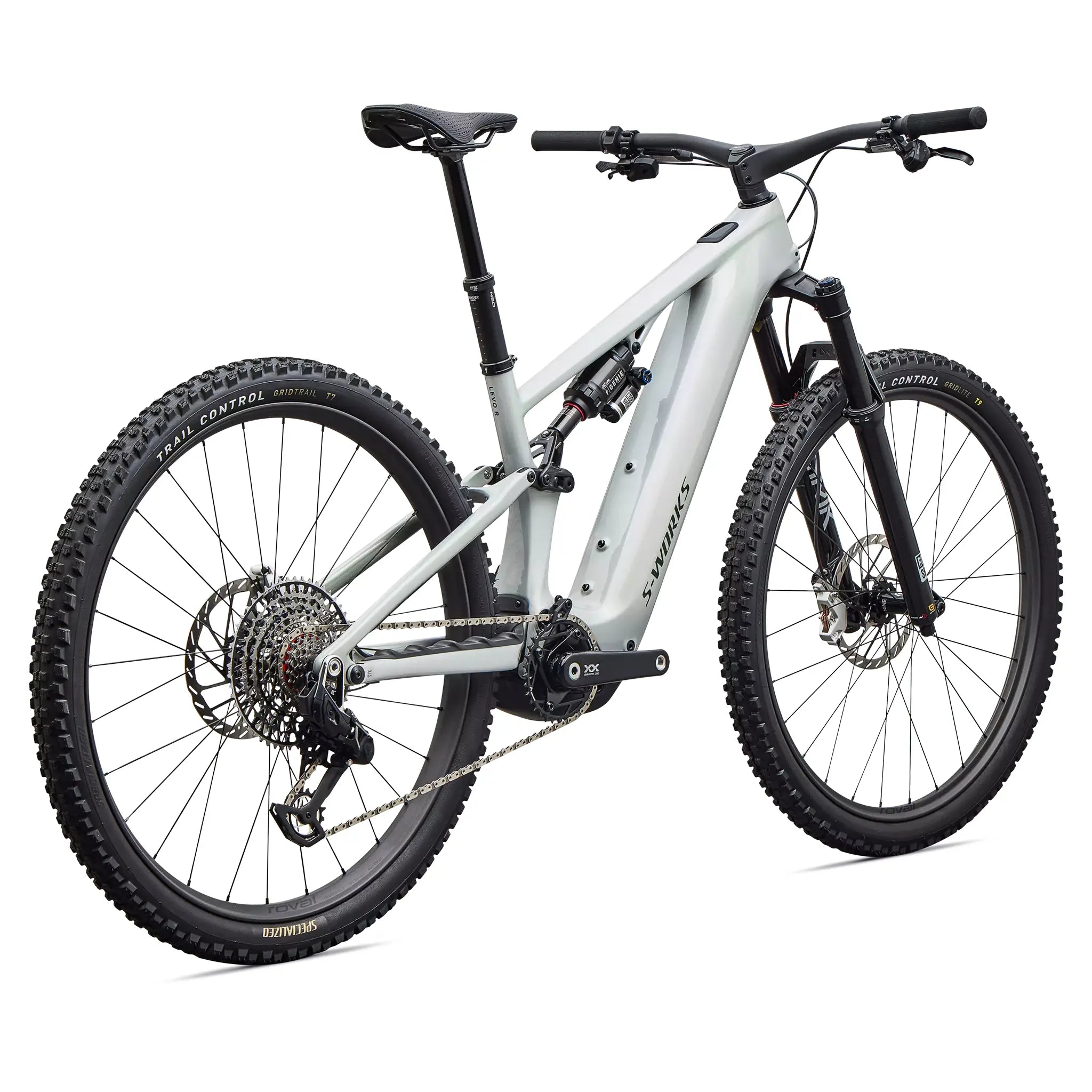

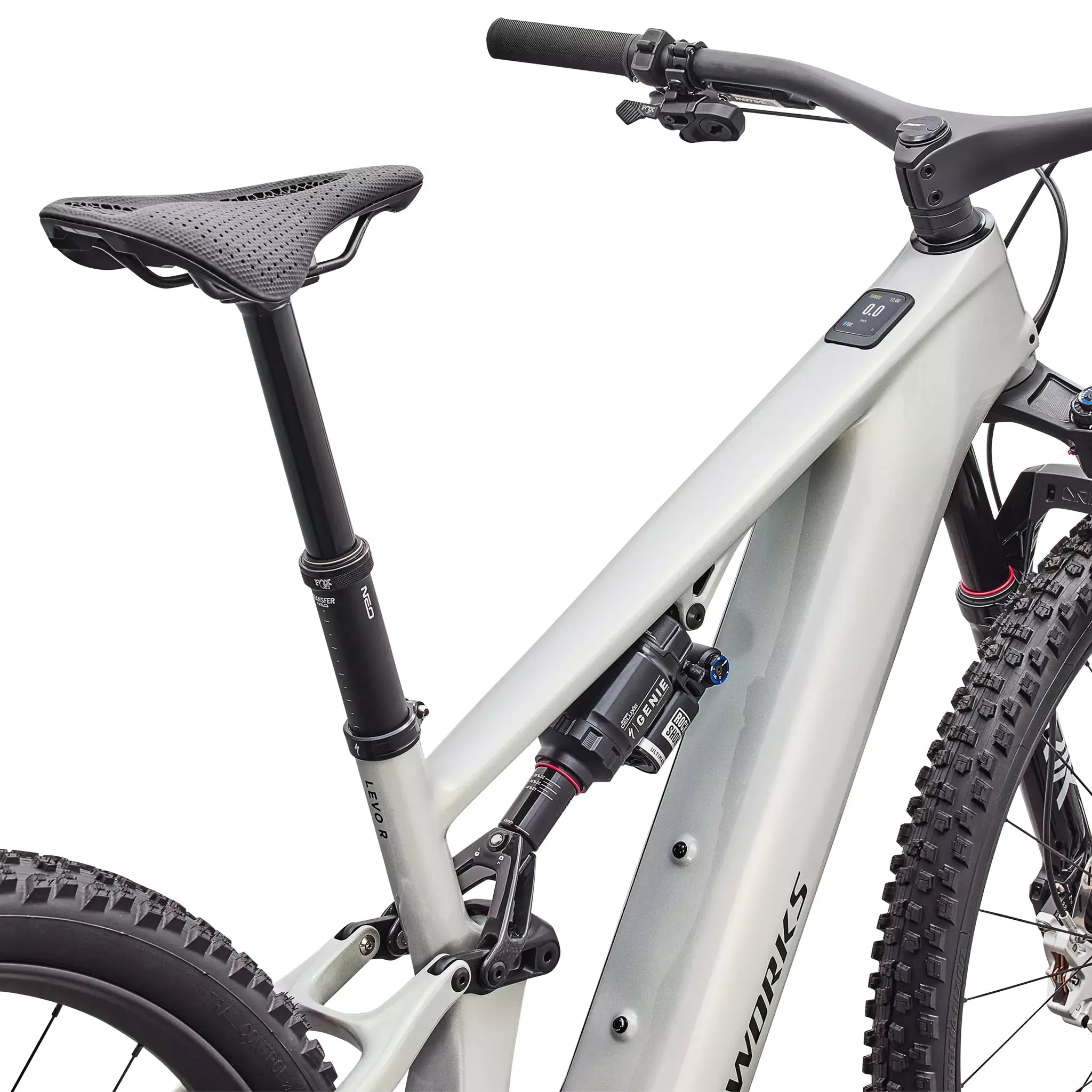

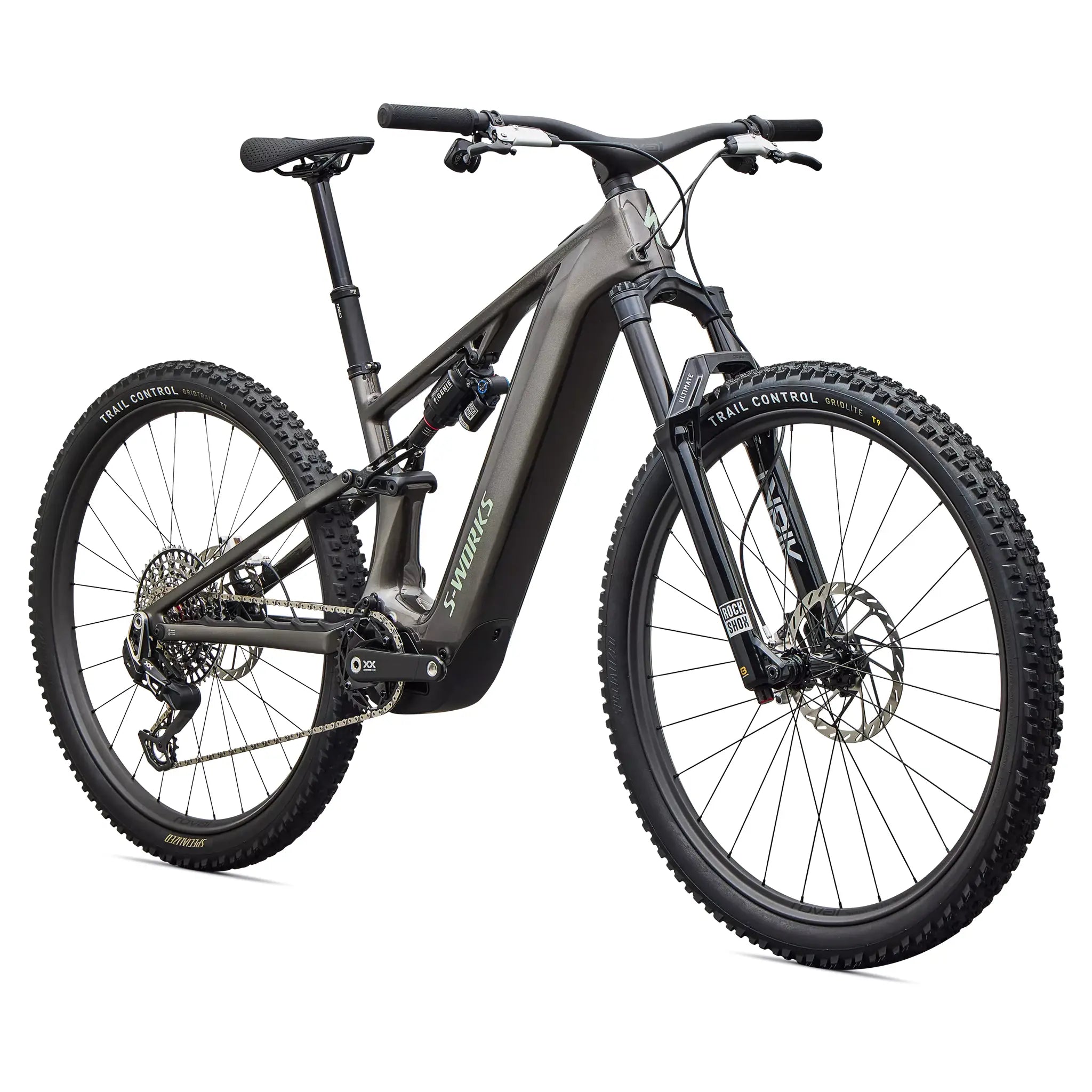

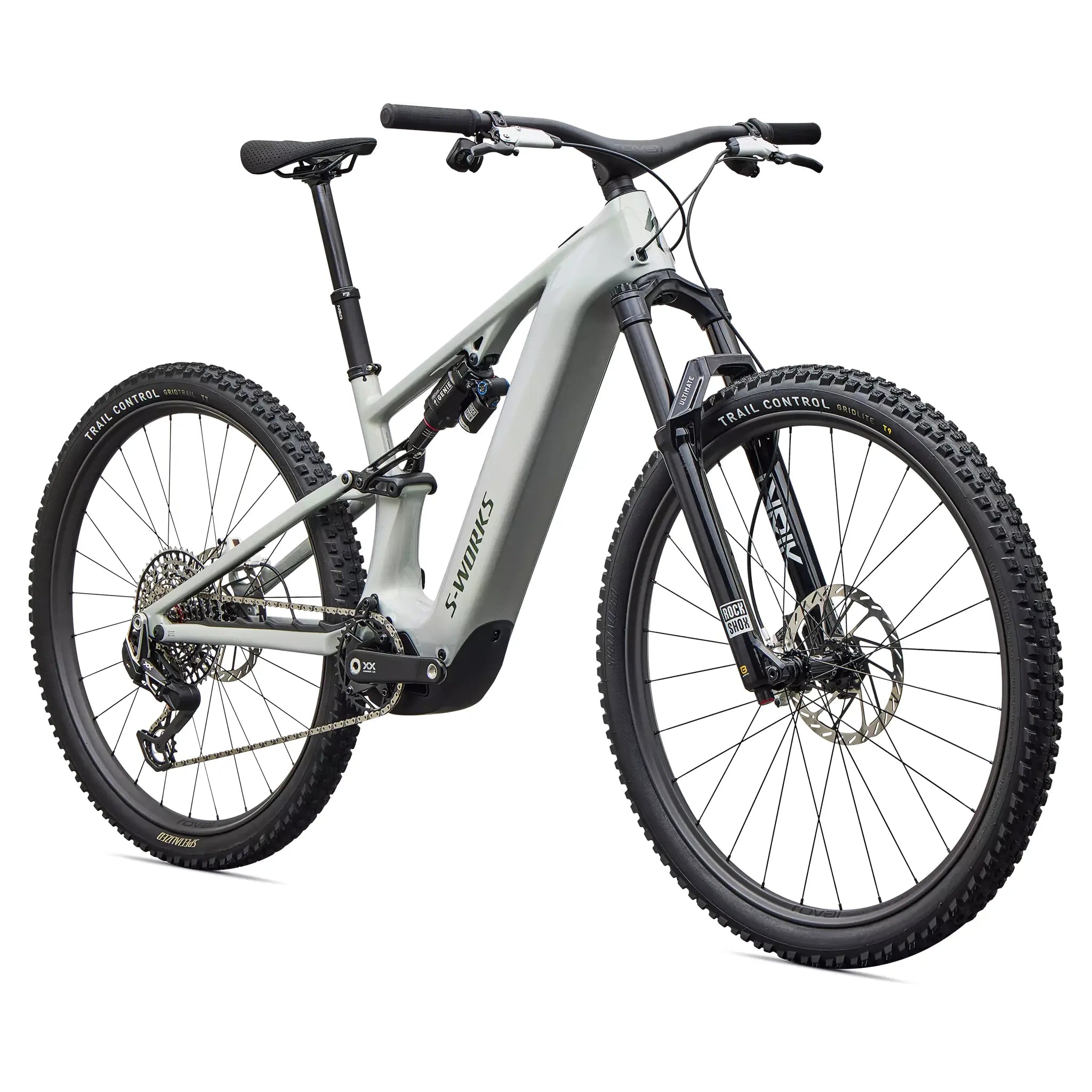

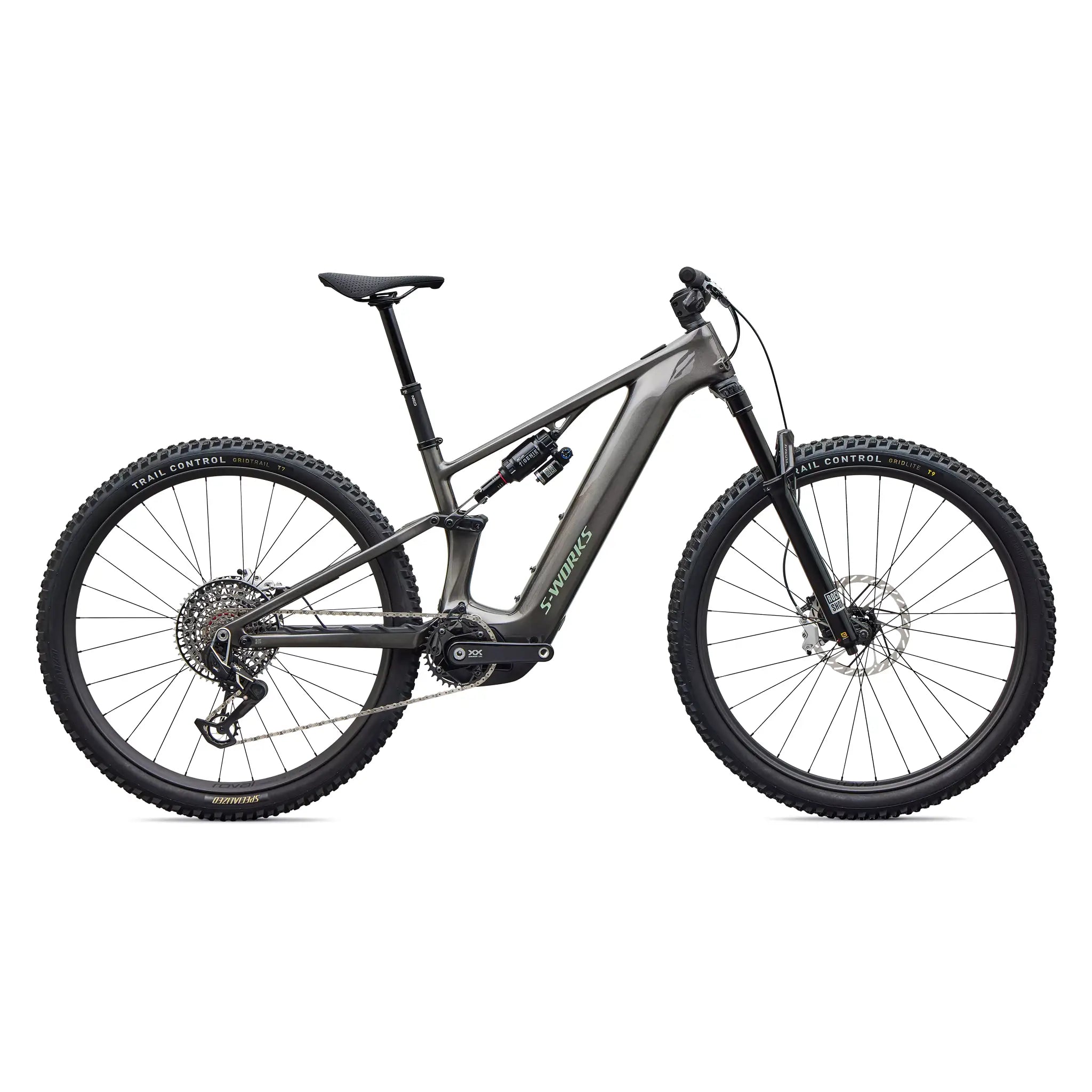

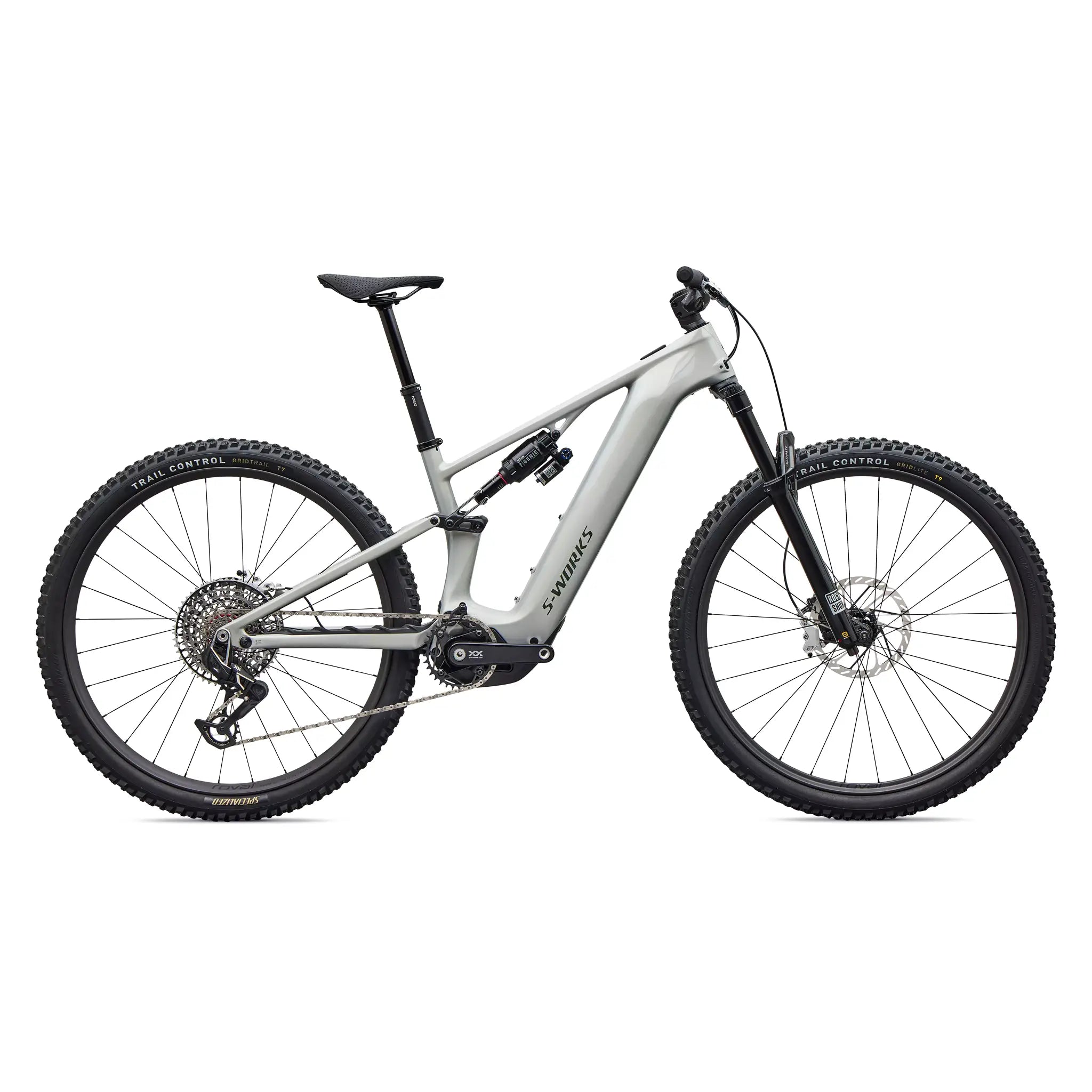

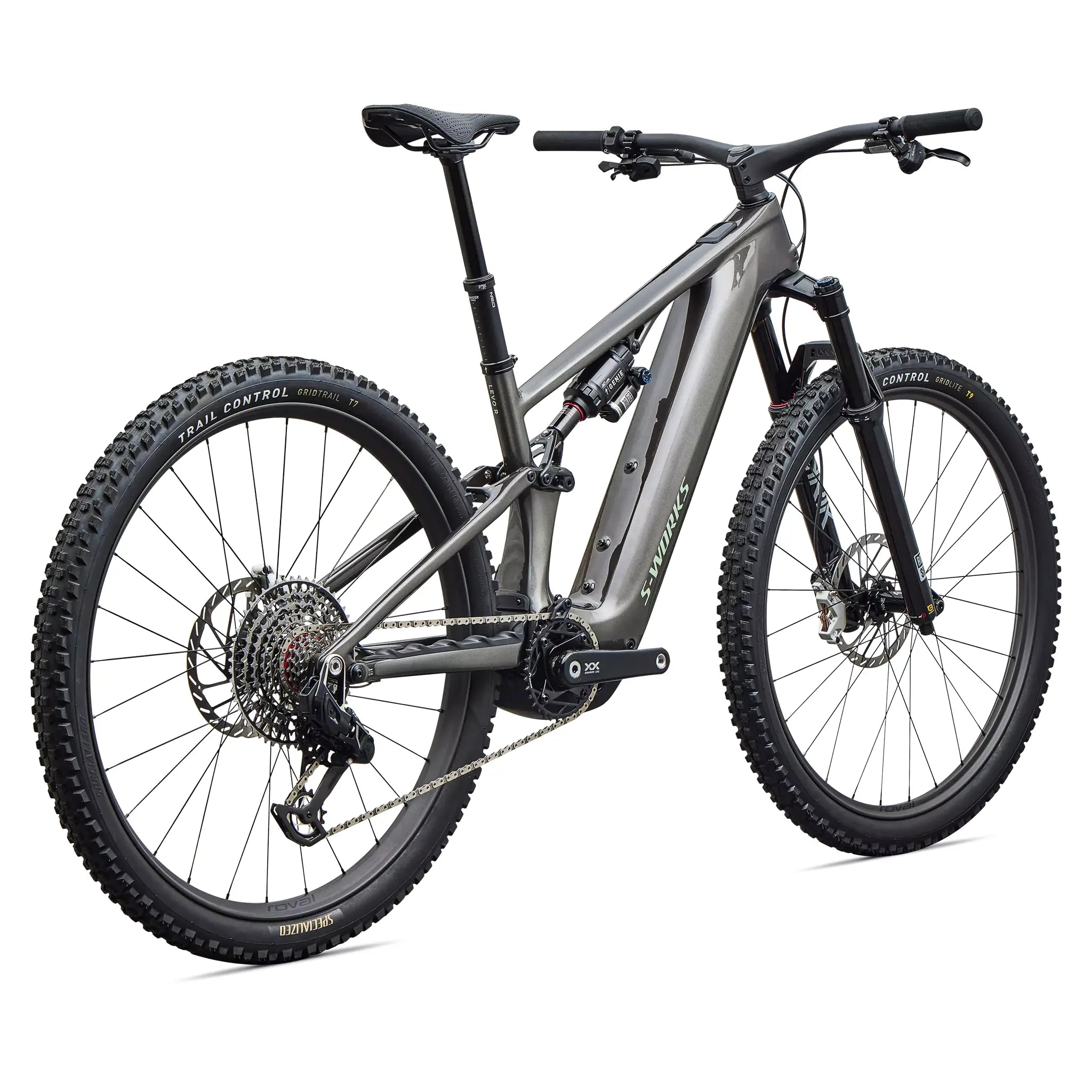

Specialized S-Works Turbo Levo R
Nothing this powerful has ever felt this agile. Light, tight, and ready to fight, the Levo R e-MTB channels the SuperNatural power of Levo 4 - but sheds its manners. And with complete builds up to 2 kg lighter than Levo 4, it brings an even more responsive, lively feel to every trail. Its purpose‑built chassis and XC Trail‑tuned suspension make it feel like a rally car unleashed on dirt: you and Levo R become one, stealing endless flow and finishing with the grin of a thief who slipped away clean.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Get Ready to Rally
Specialized S-Works Turbo Levo R
Features
Specifications
| Battery | 900Wh battery |
|---|---|

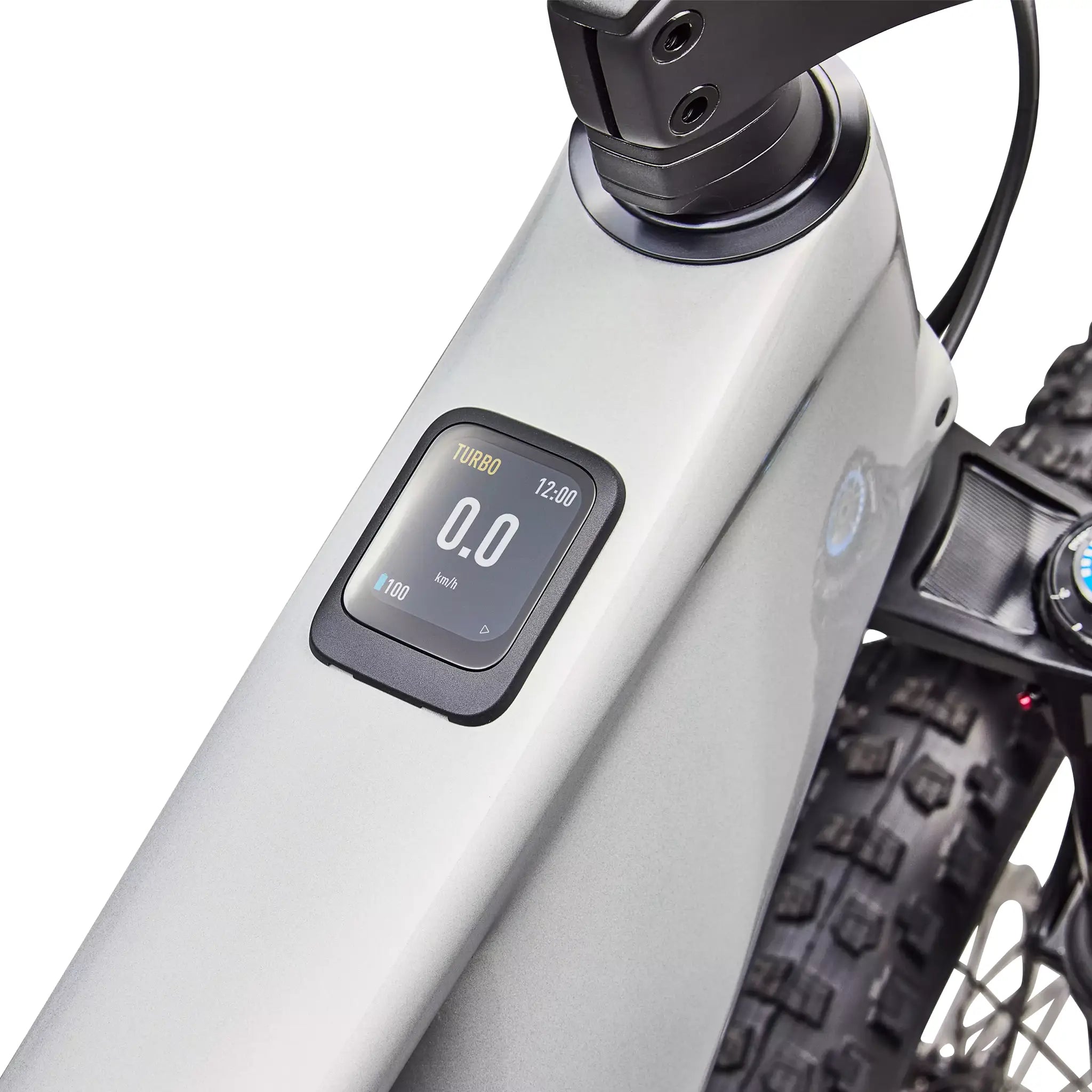

| UI/Remote | Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My |
| Charger | Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80% |

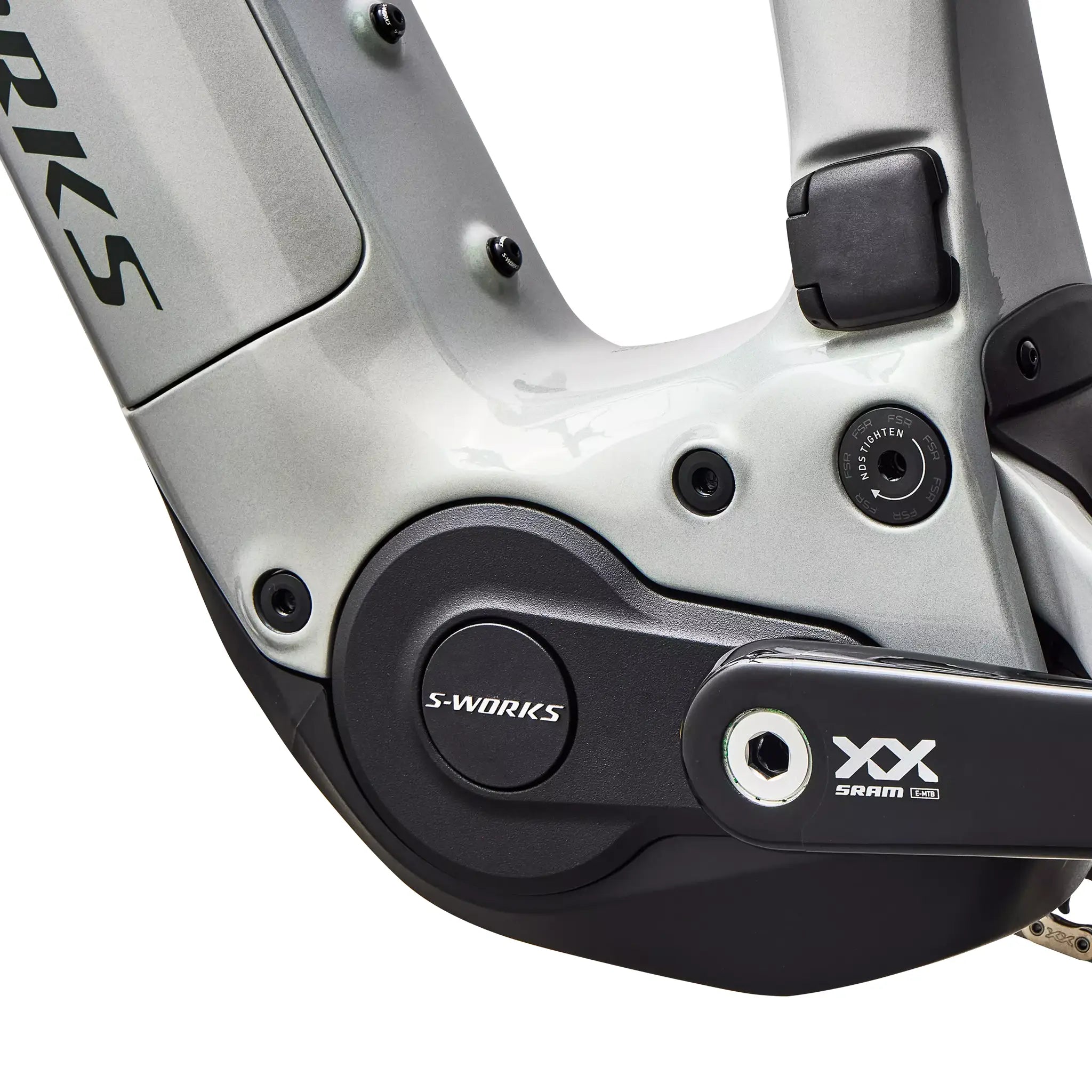

| Motor | Specialized 3.1 Motor, 111Nm torque, 850W power |
| Seat Binder | Alloy, 38.6mm |
| Frame | FACT 11m Carbon, carbon shock extension, titanium hardware, SWAT downtube storage, 12x148mm UDH compatible rear dropout, side entry battery, adjustable geometry, 130mm of travel |
| Fork | All New SRAM Rockshox Lyrik Ultimate, 29" 140mm, LinearXL air spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust |

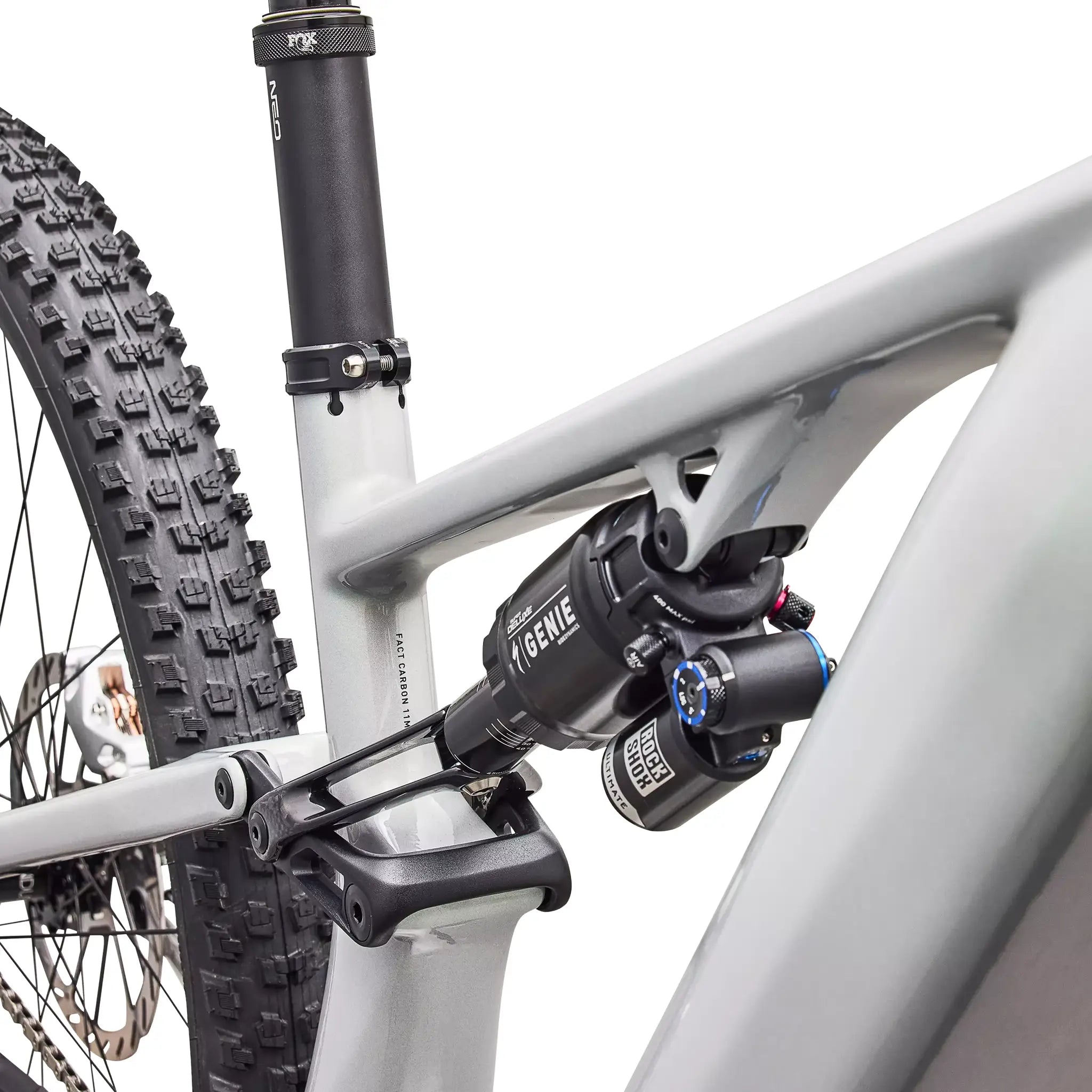

| Rear Shock | All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 190x45mm |
| Rear Brake | SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor |
| Front Brake | SRAM Motive Ultimate, 4-piston caliper, hydraulic disc, 200mm rotor |
| Chainrings | SRAM 34t T-Type chainring, 104 BCD, steel |
| Shift Levers | SRAM AXS POD Ultimate Controller |
| Crankset | SRAM XX Carbon crank, 160mm, ISIS interface |
| Rear Derailleur | SRAM XX SL Eagle AXS |
| Cassette | SRAM XX Transmission, XS 1297, 10-52t |
| Chain | SRAM XX, T-Type |
| Front Tire | Specialized Trail Control, GRID Casing, T9 Compound, TLR, 29x2.4 |
| Rear Tire | Specialized Trail Control, GRID Casing, T7 Compound, TLR, 29x2.4 |
| Front Wheel | Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 15x110mm, 28H, DT Swiss Revolite Spokes, 6 bolt |
| Rear Wheel | Roval Traverse SL II Rim, hookless carbon, 30mm inner width, tubeless ready, 29", Industry 9 Hydra 2 Hub, 12x148mm, 32H, DT Swiss Revolite Spokes, 6 bolt |
| Inner Tubes | Specialized Turbo Tube |
| Grips | Specialized Trail Grips |
| Handlebars | Roval Control SL RISE Integrated cockpit, 50mm integrated stem, 8-degree backsweep, 2 degree upsweep, 780mm wide |
| SeatPost | FOX Transfer Neo E-Optimized, 34.9mm, S2: 125mm, S3: 150mm, S4-6: 200mm, 1320mm cable powered by e-system battery |
| Saddle | Specialized S-Works Power Mirror, Ti Rails, 143mm/155mm |
| SWAT | SWAT Internal downtube storage |
| Weight | 21.82 kg (48 lb, 1.7 oz) - Size S3 |
*Specifications are subject to change without notice
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | |||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 400 | 420 | 450 | 475 | 500 | 525 | |
| B | Stack | 603 | 607 | 617 | 630 | 644 | 657 | |
| C | Headtube Angle | 64.8° | 65.0° | 65.0° | 65.0° | 65.0° | 65.0° | |
| D | Seat Tube Length | 374.92 | 385 | 405 | 425 | 445 | 465 | |
| E | Front Centre | 716 | 736 | 770 | 801 | 833 | 864 | |
| F | Bottom Bracket Height | 339 | 339 | 339 | 339 | 339 | 339 | |
| G | Bottom Bracket Drop | 36.2 | 36.0 | 36.0 | 36.0 | 36.0 | 36.0 | |
| H | Wheelbase | 1161 | 1181 | 1215 | 1246 | 1277 | 1309 | |
| I | Chainstay Length | 447 | 447 | 447 | 447 | 447 | 447 | |
| J | Headtube Length | 96 | 100 | 110 | 125 | 140 | 155 | |
| K | Top Tube Length | 539 | 560 | 592 | 620 | 649 | 677 | |
| L | Seat Tube Angle | 76.91° | 77° | 77° | 77° | 77° | 77° | |
| M | Standover Height | 759 | 765 | 771 | 771 | 778 | 778 | |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
Model Numbers
| Size | Model Number | |
|---|---|---|
| Gloss Warm Smoke | Gloss Dolomite | |
| S2 | 95727-0202 | 95727-0302 |
| S3 | 95727-0203 | 95727-0303 |
| S4 | 95727-0204 | 95727-0304 |
| S5 | 95727-0205 | 95727-0305 |
| S6 | 95727-0206 | 95727-0306 |
