Specialized S-Works Tarmac SL9 Team Replica Frameset FACT 12r Carbon
The all-new S-Works Tarmac SL9 is the fastest road bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not because it handles better than anything else on the road. But because it delivers the lowest real-world Time to Finish of any road bike ever made. Tarmac SL9 turns more of your effort into pure speed - validated across real race courses, real terrain, real riders. When the goal is to cross the line first, no road bike gets you there faster.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Made in Racing
Specialized S-Works Tarmac SL9 Team Replica Frameset FACT 12r Carbon
Features
Specifications
| Frame | S-Works Tarmac SL9 FACT 12r Carbon, Rider First Engineered™, Win Tunnel Engineered, Ceramic Speed SLT headset bearings, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Fork | S-Works FACT 12r Carbon, 12x100mm thru-axle, flat-mount disc |
| Seat Post | S-Works Rapide seat post, FACT Carbon, 15mm offset |
| Seat Binder | Tarmac integrated wedge |
| Weight | 1.39 kg (3 lb, 1.0 oz) – Size 56 |
*Specifications are subject to change without notice
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| B | Stack | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| C | Head Tube Angle | 70.5° | 71.75° | 72.5° | 72.5° | 73.5° | 73.5° | 74.0° |
| D | Front Centre | 567 | 570 | 572 | 582 | 587 | 602 | 609 |
| E | Bottom Bracket Drop | 74 | 74 | 74 | 72 | 72 | 72 | 72 |
| F | Wheelbase | 970 | 973 | 975 | 986 | 991 | 1006 | 1013 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 99 | 109 | 120 | 140 | 157 | 184 | 204 |
| I | Top Tube Length | 496 | 509 | 531 | 540 | 563 | 577 | 595 |
| J | Seat Tube Angle | 75.5° | 75.5° | 74.0° | 74.0° | 73.5° | 73.5° | 73.0° |
| K | Standover Height | 722 | 734 | 745 | 767 | 785 | 807 | 833 |
| All measurements in degrees or millimetres | ||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Model Numbers
| Size | Model Number | ||||
|---|---|---|---|---|---|

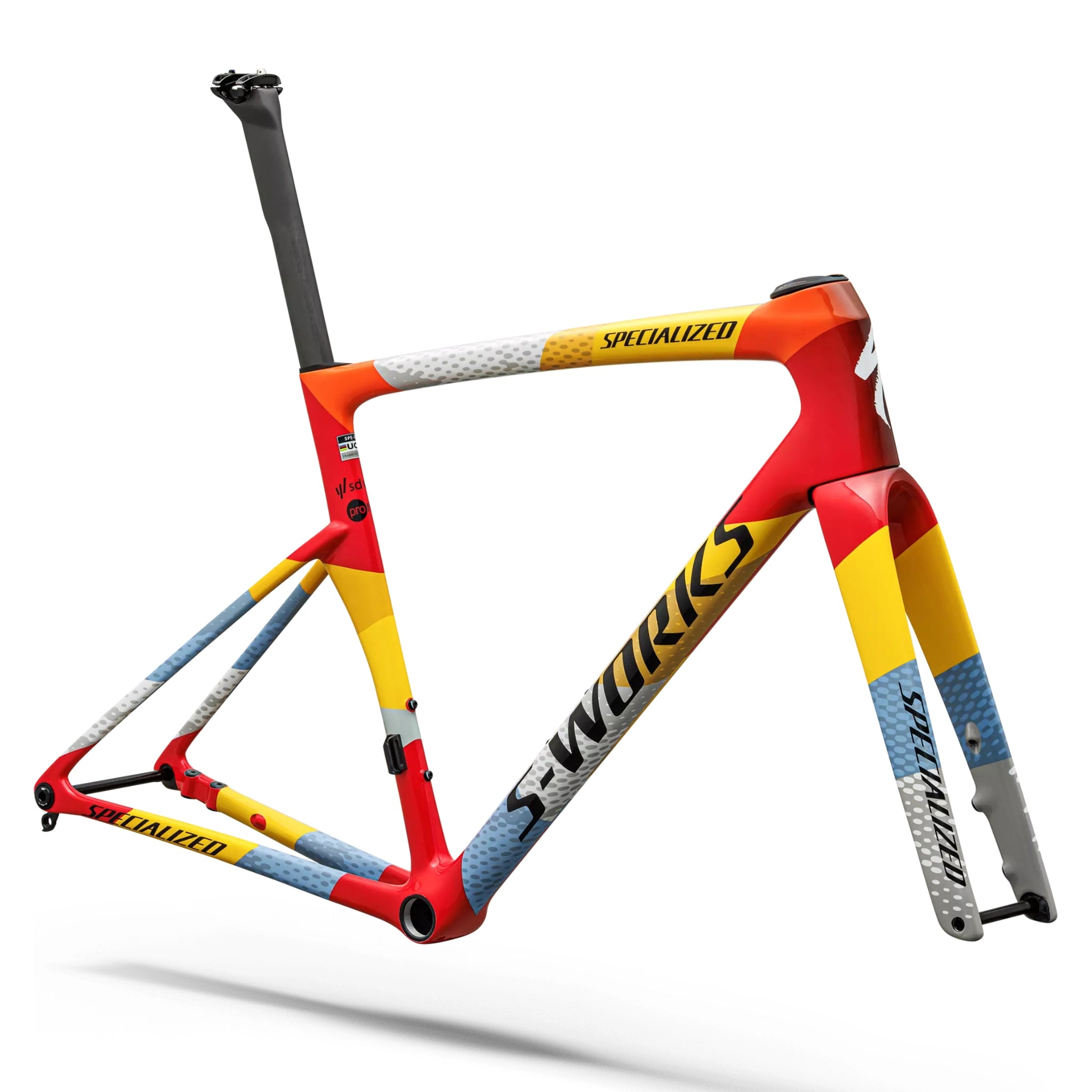

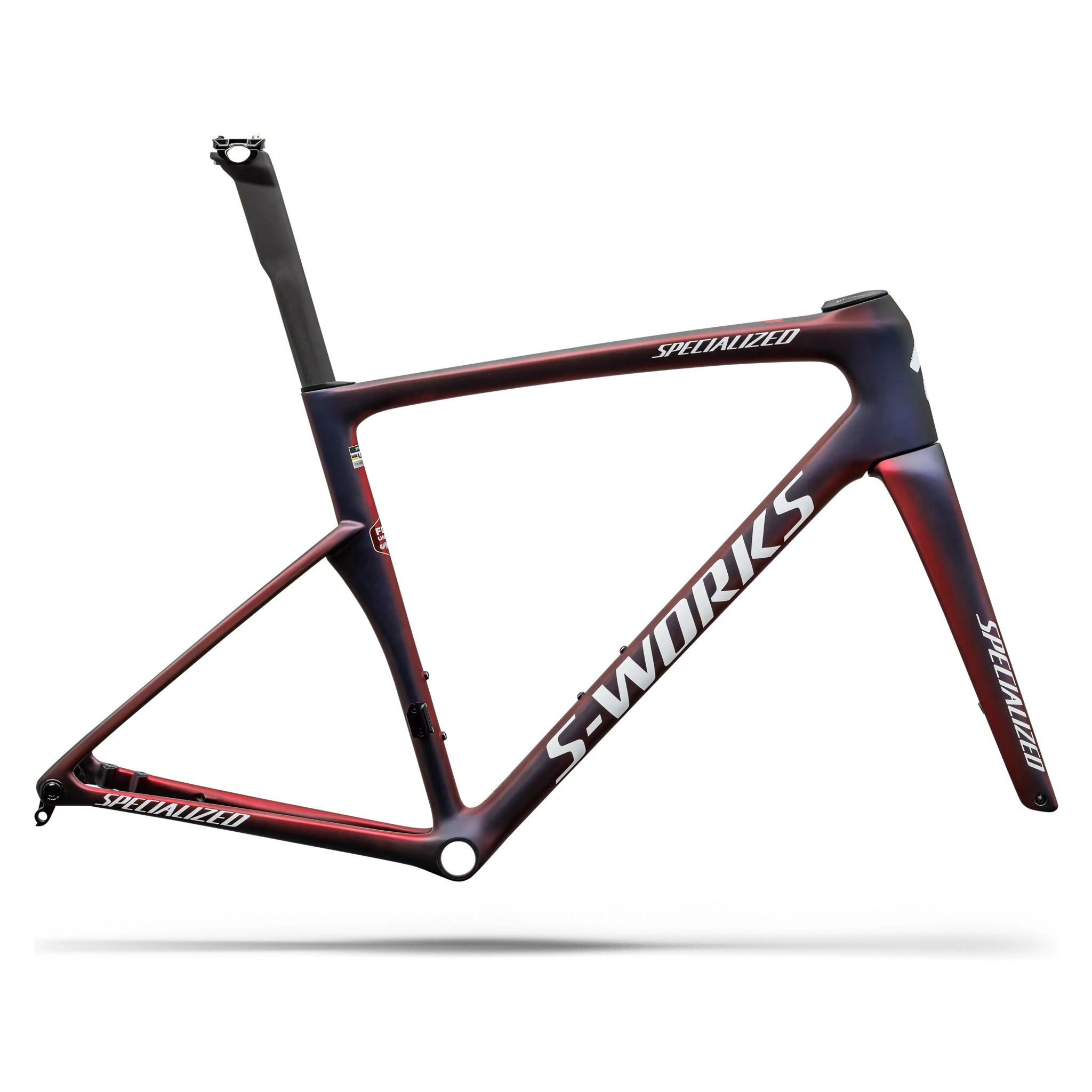

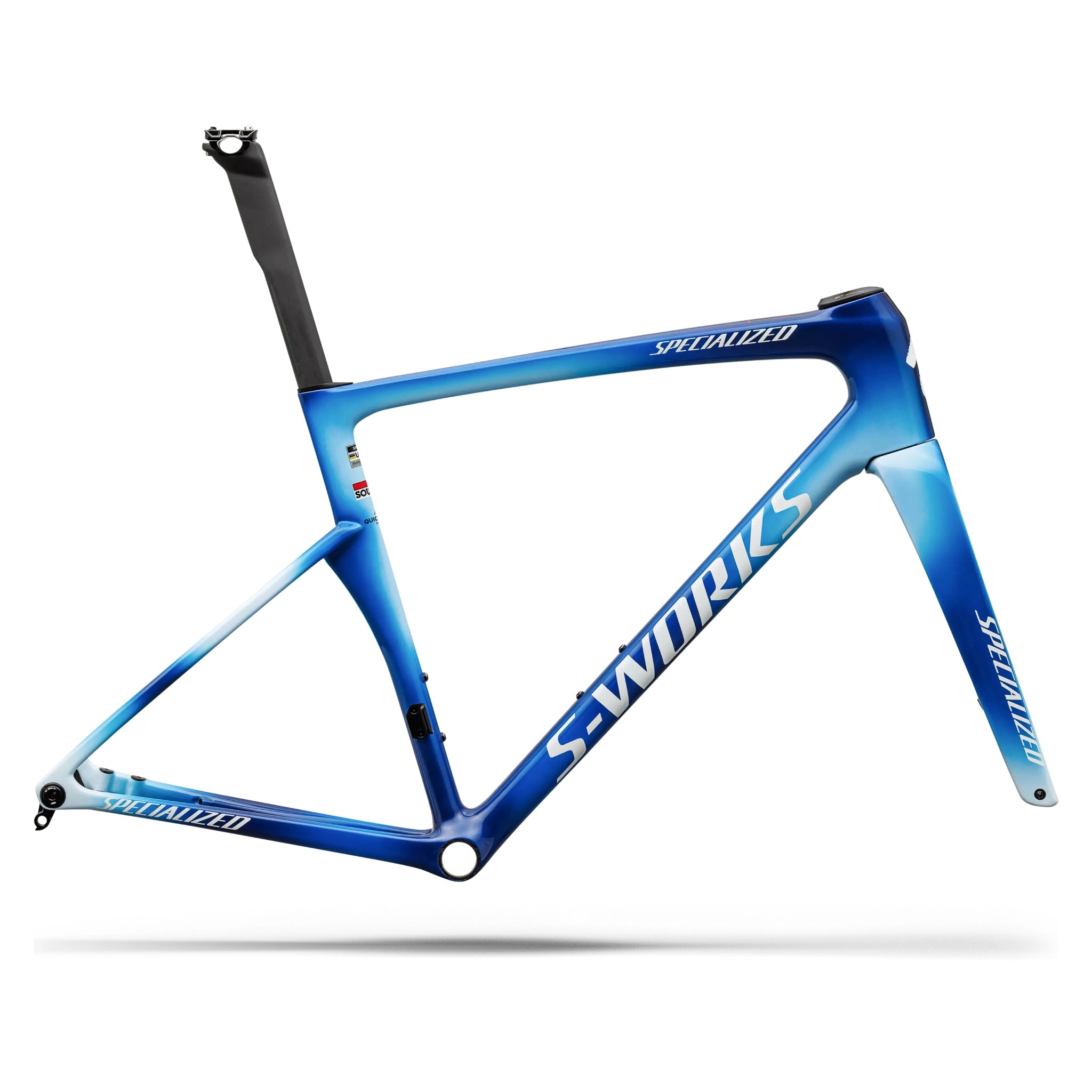

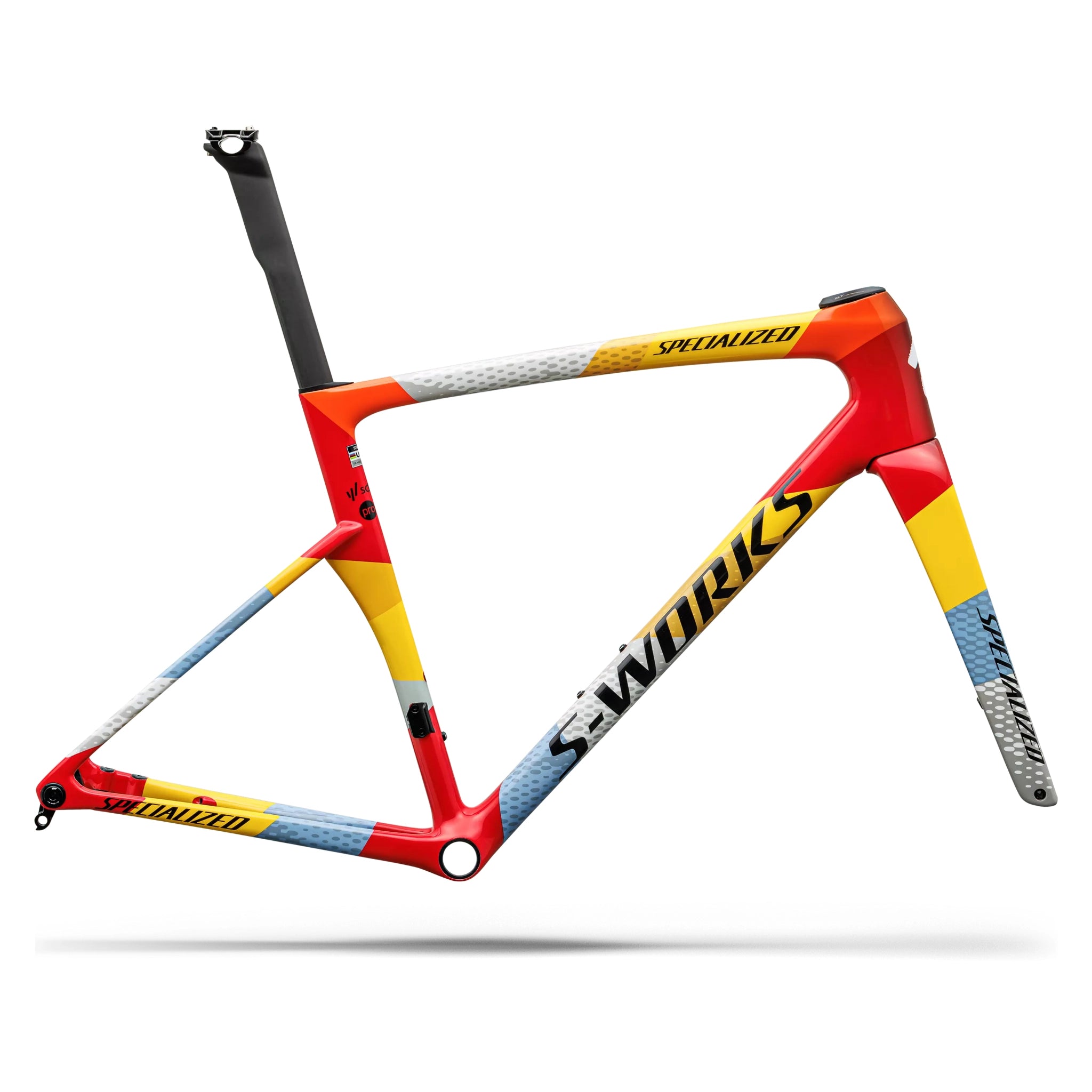

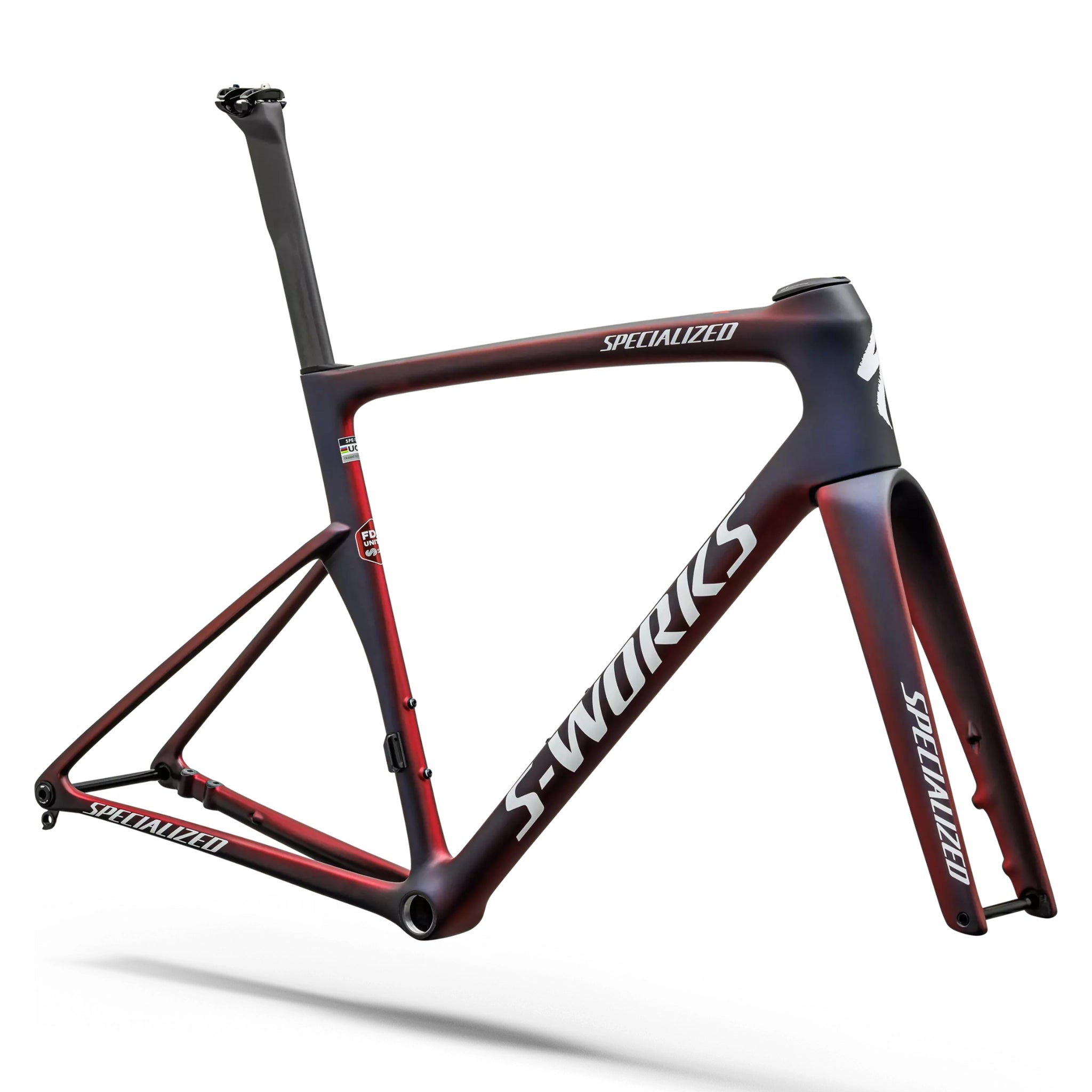

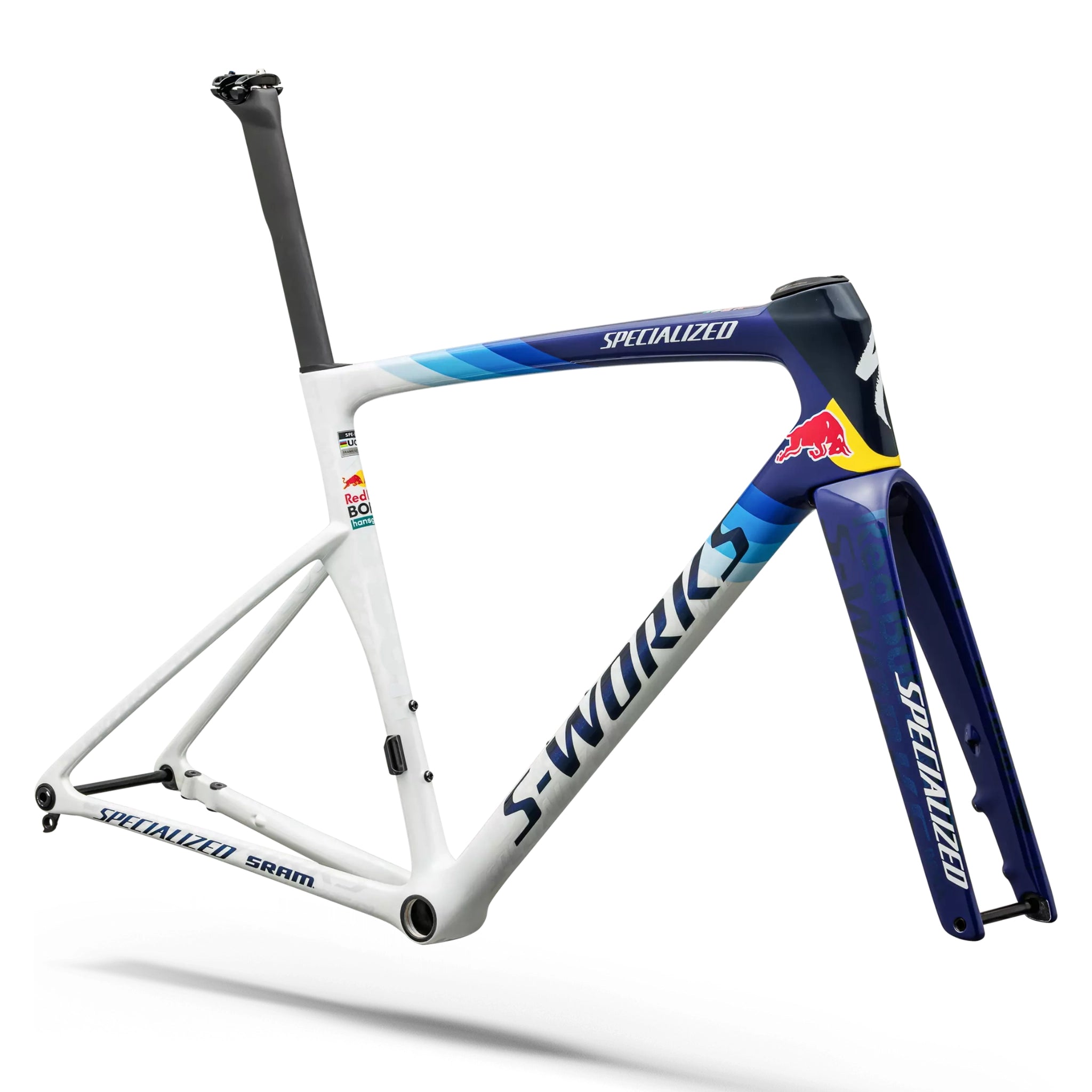

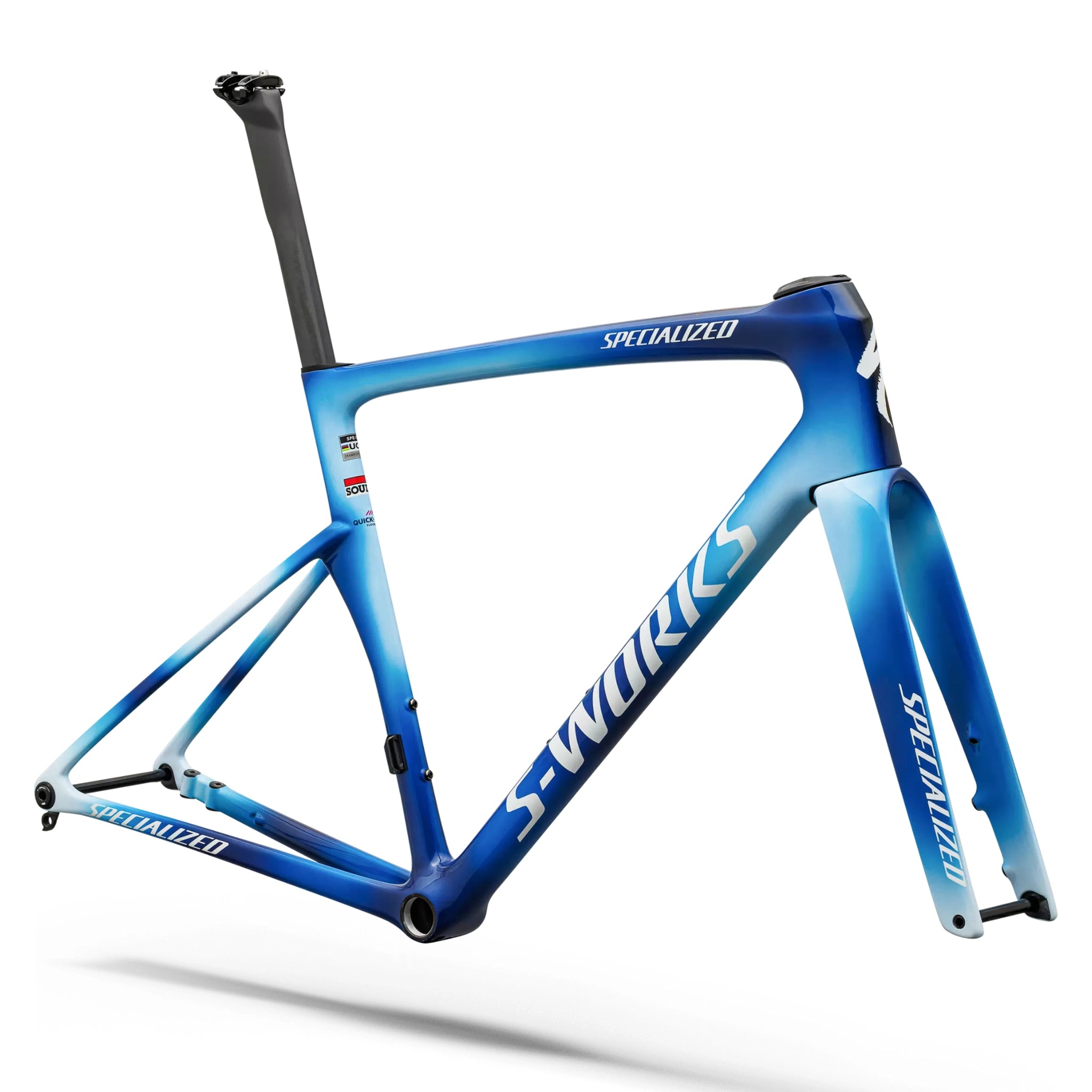

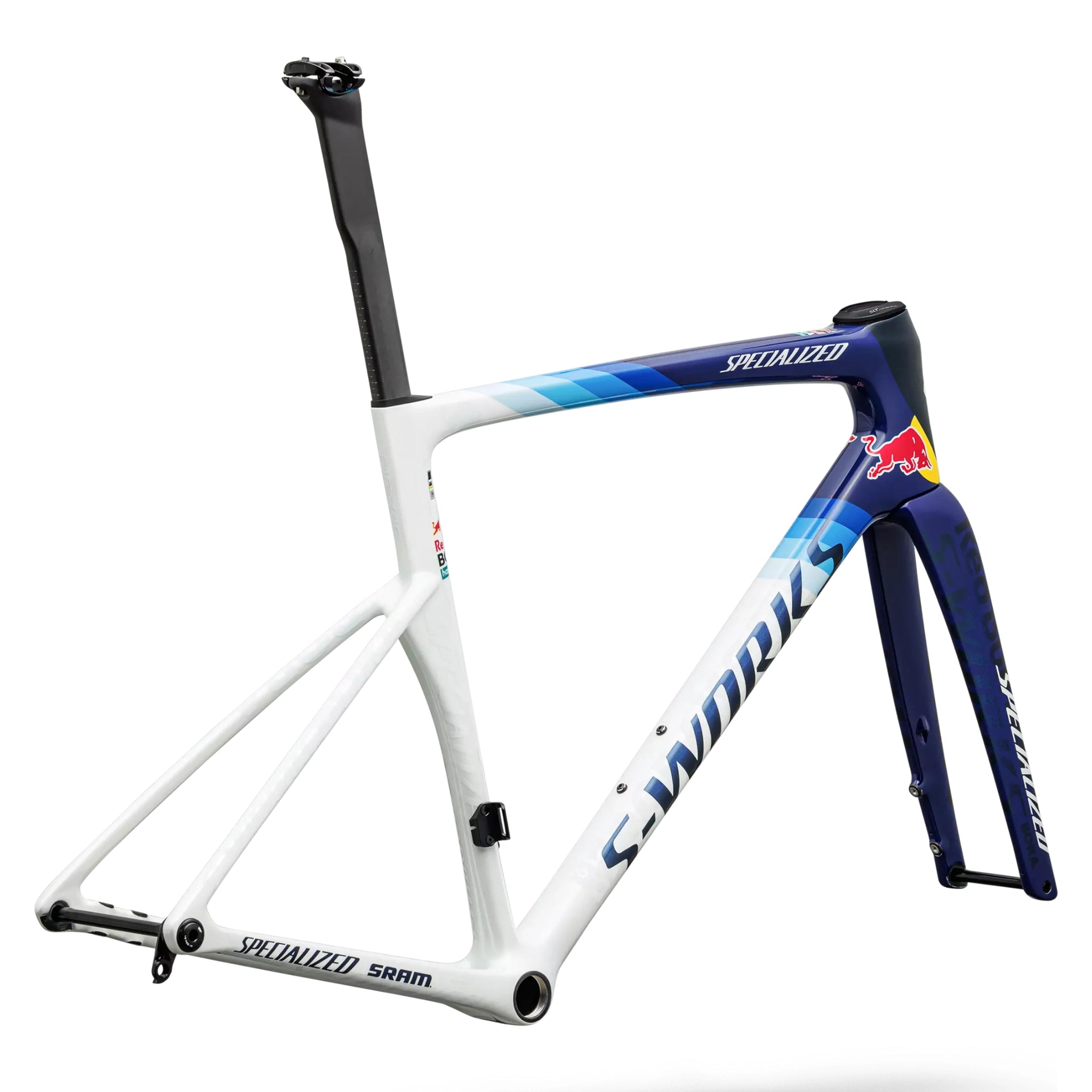

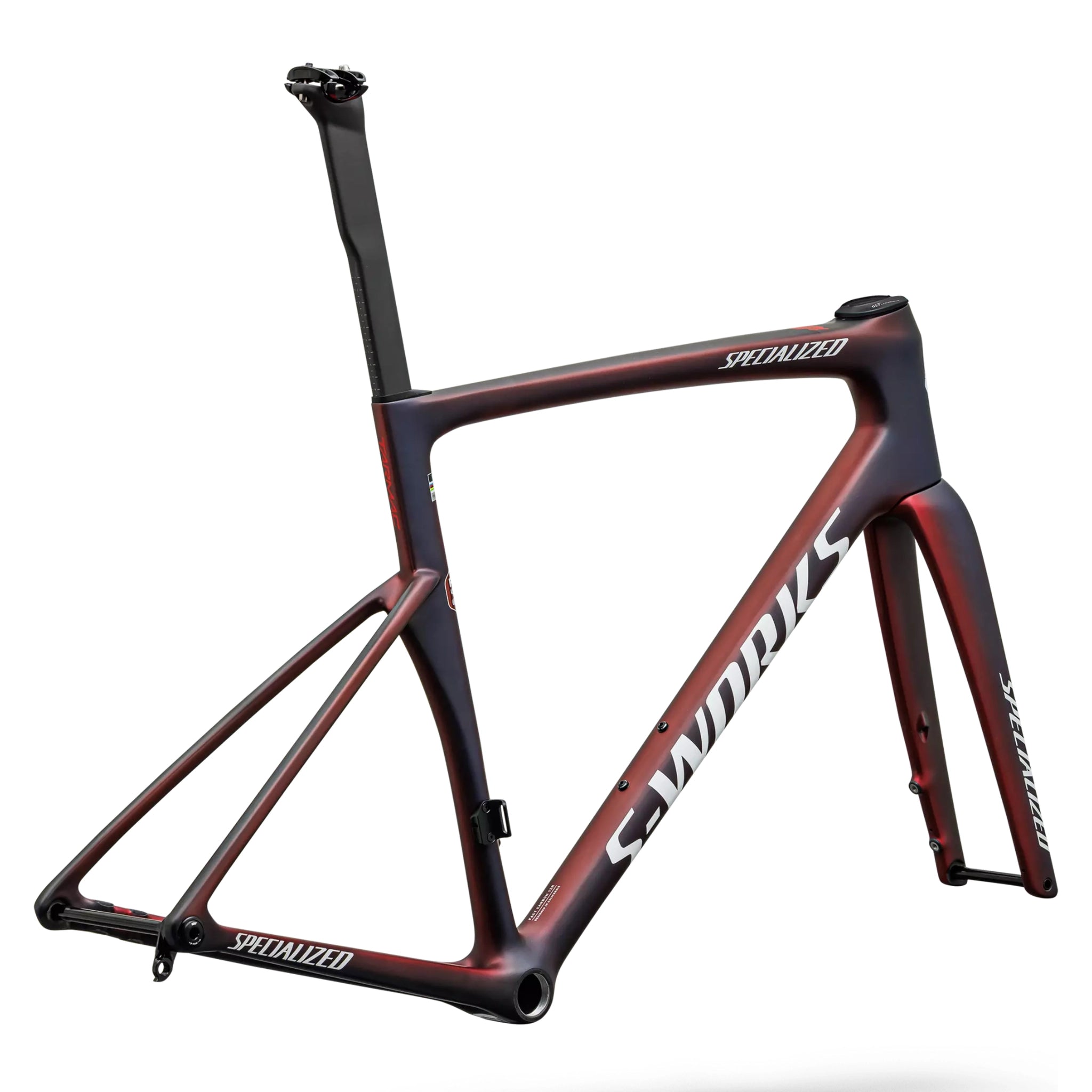

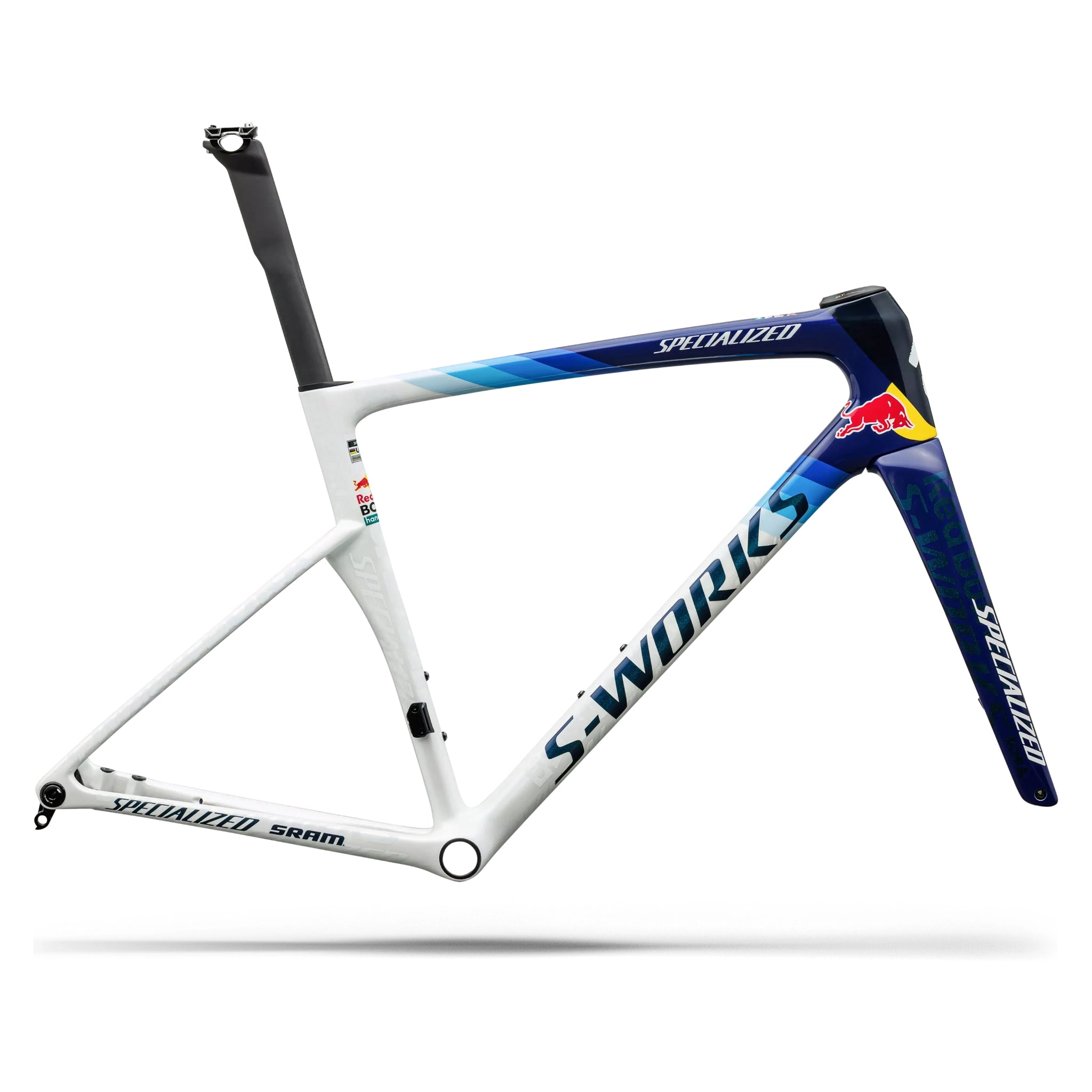

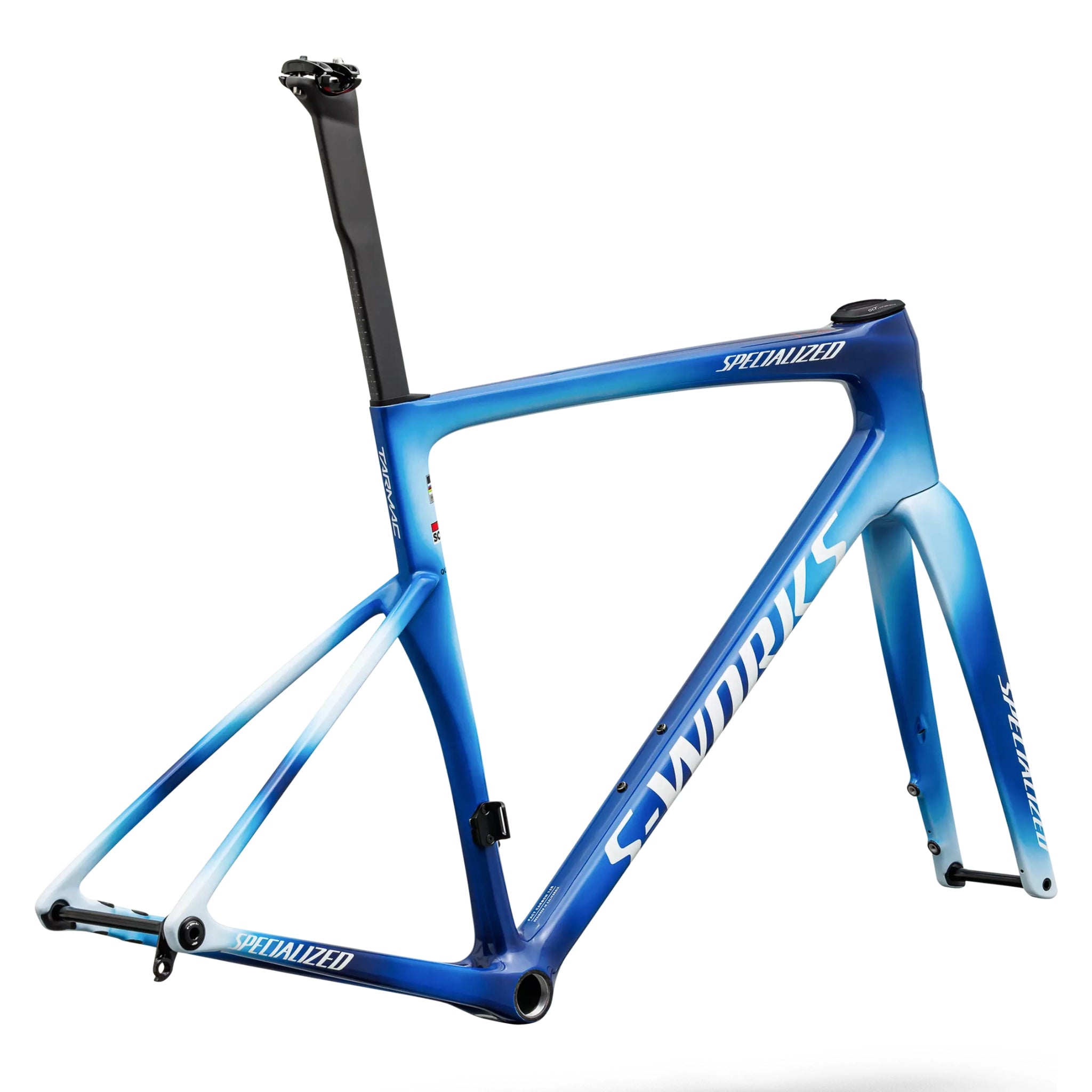

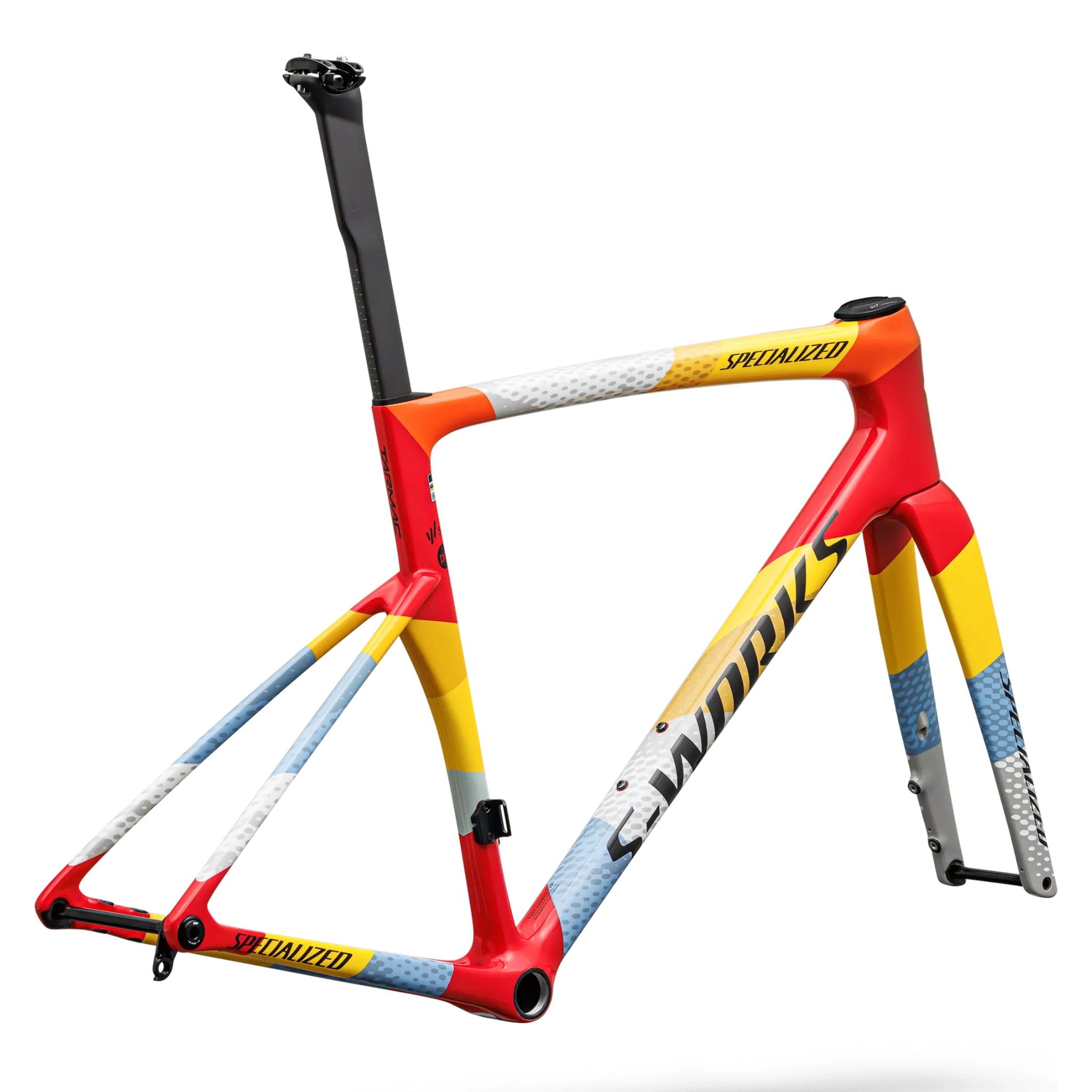

| FDJ United - SUEZ | Red Bull - BORA - hansgrohe | SD Worx - Protime | Soudal Quick-Step | ||
| 44 | 74927-0944 | 74927-1144 | 74927-1244 | 74927-1044 | |
| 49 | 74927-0949 | 74927-1149 | 74927-1249 | 74927-1049 | |
| 52 | 74927-0952 | 74927-1152 | 74927-1252 | 74927-1052 | |
| 54 | 74927-0954 | 74927-1154 | 74927-1254 | 74927-1054 | |
| 56 | 74927-0956 | 74927-1156 | 74927-1256 | 74927-1056 | |
| 58 | 74927-0958 | 74927-1158 | 74927-1258 | 74927-1058 | |
| 61 | 74927-0961 | 74927-1161 | 74927-1261 | 74927-1061 | |
