One Bike to Rule All Trails

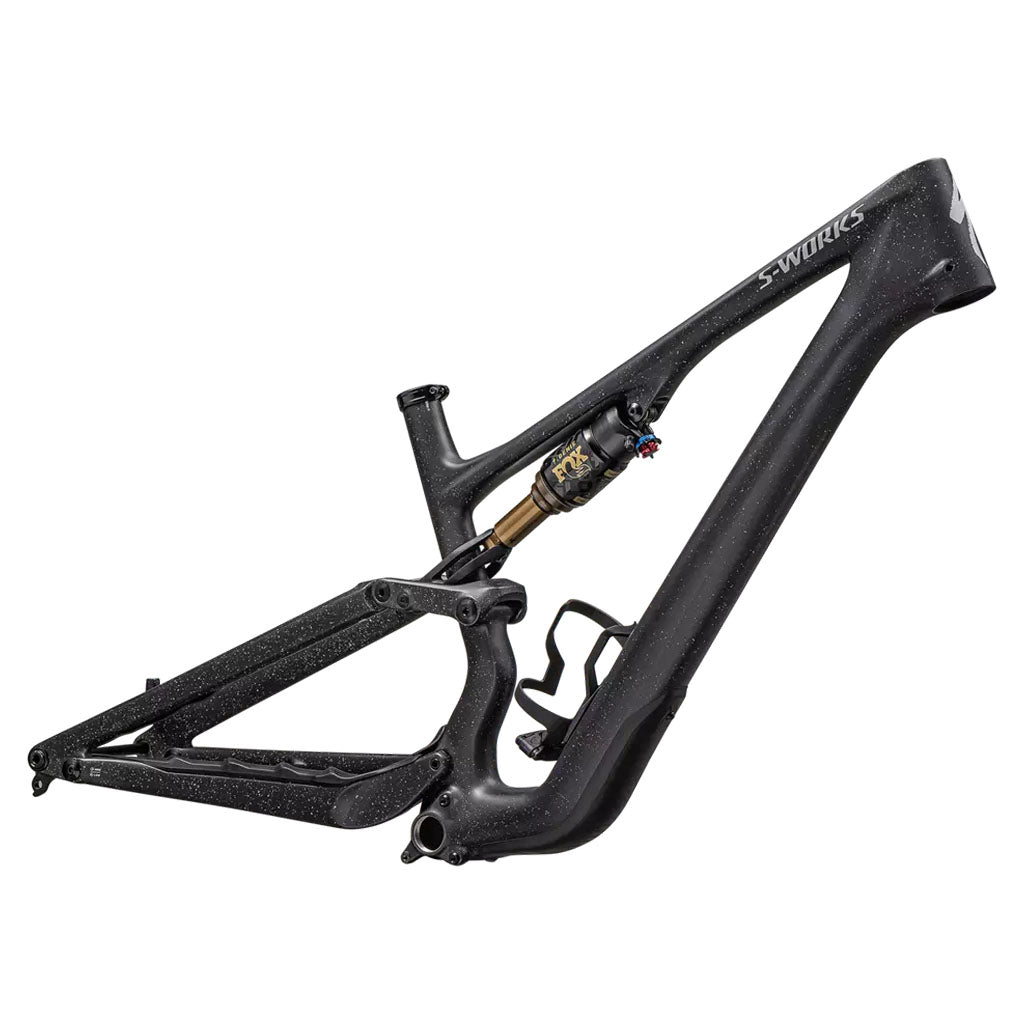

Specialized S-Works Stumpjumper 15 Frameset
The Stumpjumper 15 carries the legacy of one of the famous names in mountain biking. Labelled as the ultimate trail bike, the new Stumpjumper handles bumps like a heavyweight, ensuring a smooth ride.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
One Bike to Rule All Trails
Specialized S-Works Stumpjumper 15 Frameset
Features
Specifications
Frame FACT 11m carbon chassis, rear-end and link, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
Seat Binder Alloy, 38.6mm
SWAT SWAT 4.0 internal downtube storage
Rear Shock FOX FLOAT Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, S1:210x52.5mm, S2-S6:210x55mm
Weight 2.84 kg (6 lb, 4.2 oz) Size S4
*Specifications are subject to change without notice
Geometry
| S1 | S2 | S3 | S4 | S5 | S6 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 400 | 425 | 450 | 475 | 500 | 530 |
| B | Stack | 608 | 618 | 627 | 640 | 654 | 667 |
| C | Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| D | Seat Tube Length | 385 | 385 | 405 | 425 | 445 | 465 |
| E | Front Centre | 720 | 751 | 780 | 812 | 843 | 879 |
| F | Bottom Bracket Height | 334 | 337 | 337 | 337 | 337 | 337 |
| G | Bottom Bracket Drop | 41 | 38 | 38 | 38 | 38 | 38 |
| H | Wheelbase | 1149 | 1181 | 1213 | 1244 | 1285 | 1322 |
| I | Chainstay Length | 430 | 432 | 435 | 435 | 445 | 445 |
| J | Headtube Length | 95 | 100 | 110 | 125 | 140 | 155 |
| K | Top Tube Length | 541 | 573 | 595 | 624 | 647 | 677 |
| L | Seat Tube Angle | 77° | 76.5° | 77° | 76.9° | 77.3° | 77.6° |
| M | Standover Height | 738 | 751 | 745 | 745 | 745 | 751 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S1 | 4'11" - 5'3" | 150 - 160cm |
| S2 | 5'2" - 5'8" | 157 - 173cm |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
| S6 | 6'2" - 6'8" | 188 - 203cm |
Model Numbers
| Size | Model Number |
|---|---|
| Satin Nearly Black | |
| S1 | 73325-0001 |
| S2 | 73325-0002 |
| S3 | 73325-0003 |
| S4 | 73325-0004 |
| S5 | 73325-0005 |
| S6 | 73325-0006 |
