The Lightest, Fastest, Most Capable XC Race Bike in the World

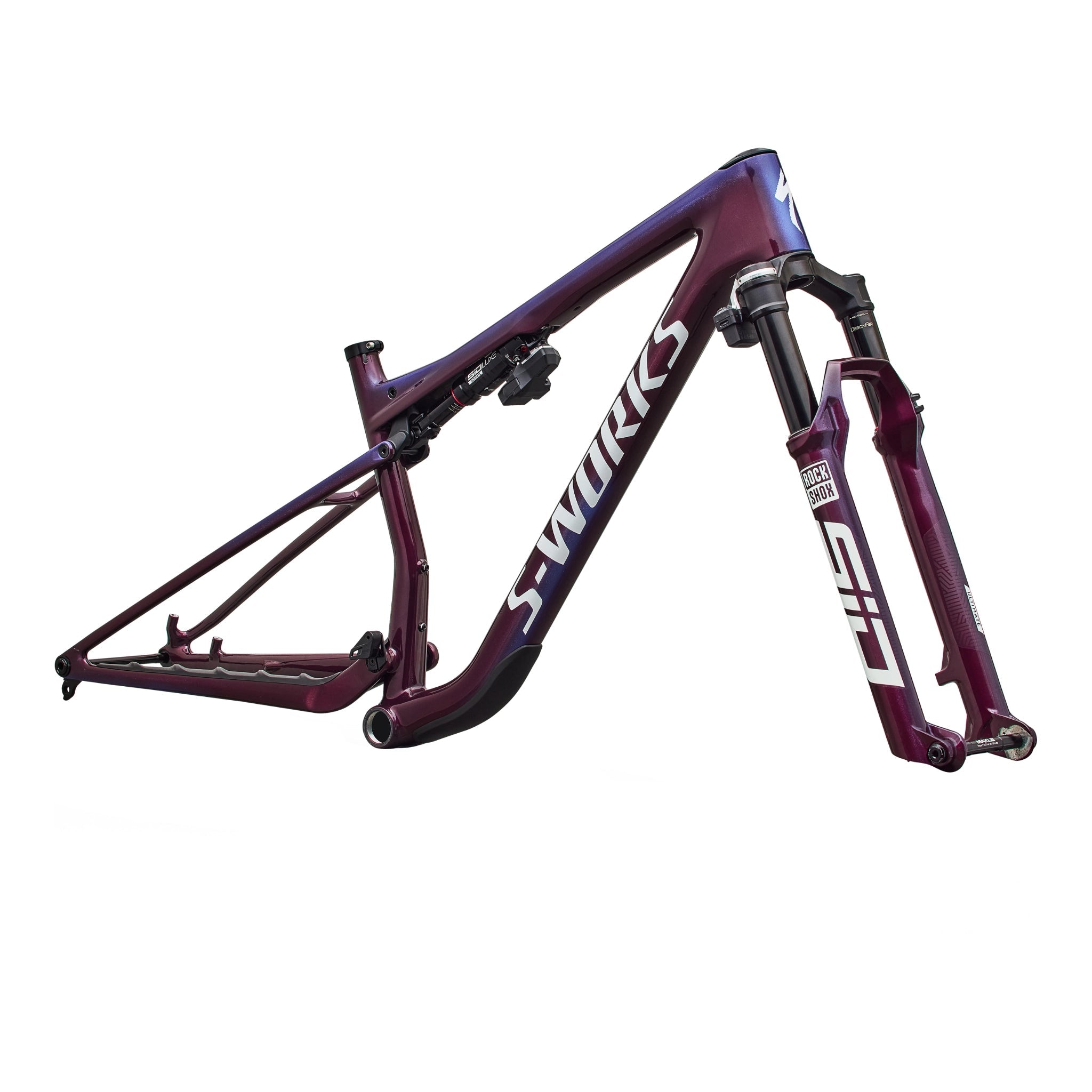

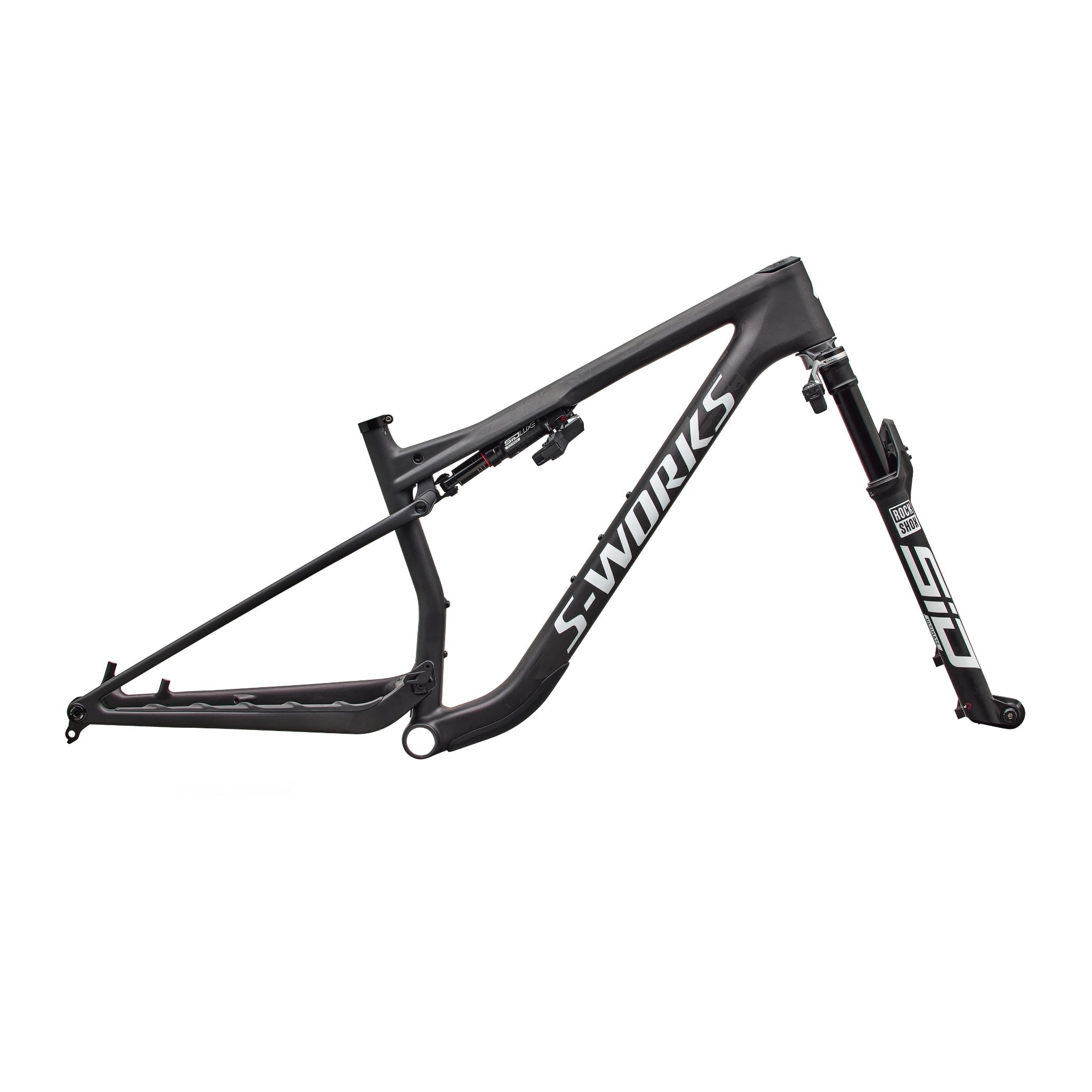

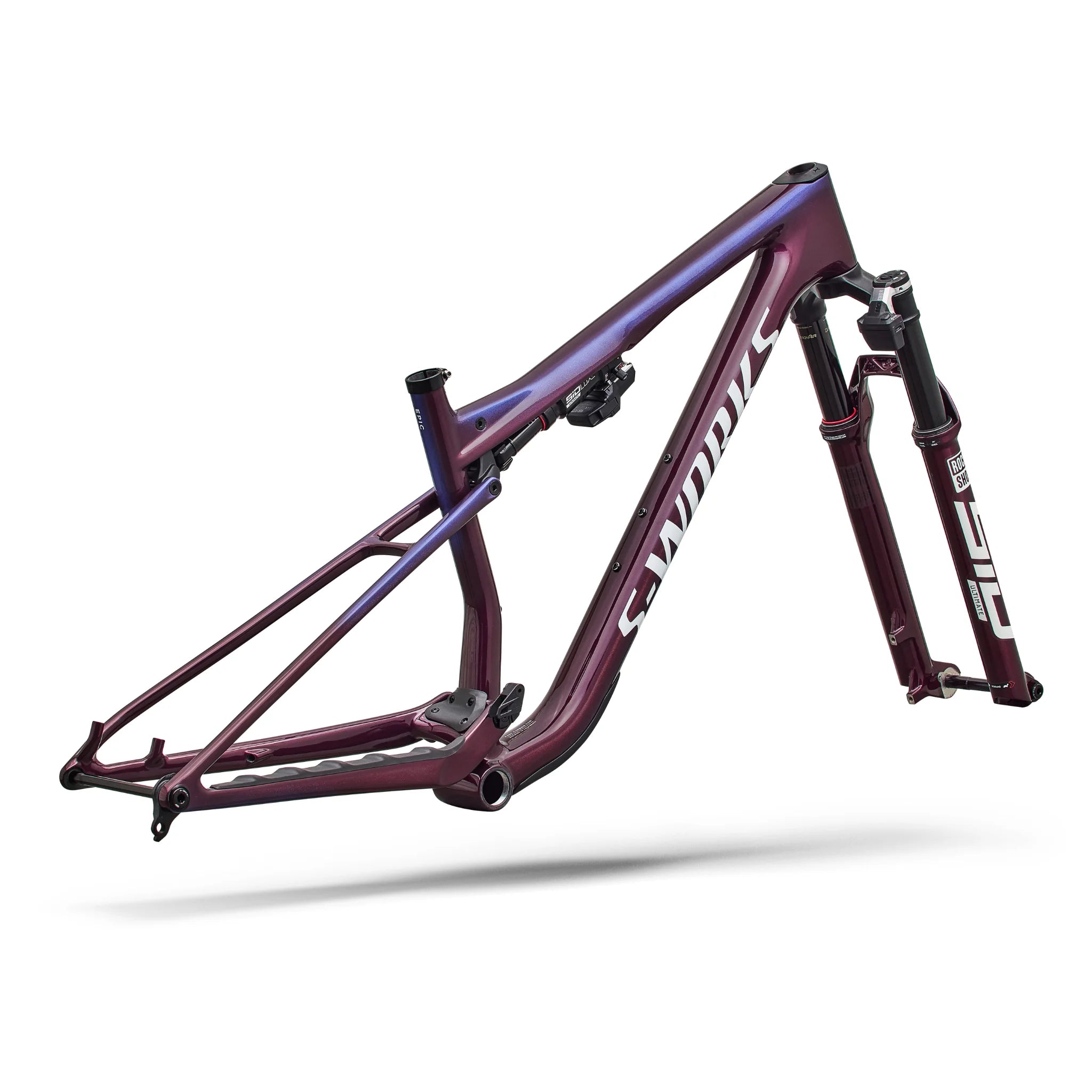

Specialized S-Works Epic 9 Frameset
Shipping Canada Wide
Specialized S-Works Epic 9 Frameset
$8,999.99 CAD
210000121322
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
World’s lightest full-suspension XC platform
Peerless capability at race speed
No wasted watts
Specifications
Frame S-Works FACT 12m Carbon, Progressive XC Race Geometry, Rider-First Engineered™, threaded BB, 12x148mm UDH compatible rear dropout, internal cable routing, 120mm of travel, Optimized for wireless drivetrain
SWAT SWAT BOX 2.0 ASSY
Seat Binder Specialized Alloy 34.9, Ti Bolt
Fork RockShox SID ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Debon Air, 15x110mm, 44mm offset, 120mm Travel
Rear Shock RockShox SIDLuxe ULTIMATE Flight Attendant, Ride Dynamics developed 3 position, Solo Air, 190x45mm
Weight 3.49 kg (7 lb, 11.1 oz) - Size MD
*Specifications are subject to change without notice
Geometry
| XS | S | M | L | XL | ||
|---|---|---|---|---|---|---|
| HI | LO | HI | LO | HI | LO | HI | LO | HI | LO | ||
| A | Reach | 420 | 450 | 480 | 505 | |
| B | Stack | 594 | 604 | 618 | 645 | |
| C | Head Tube Angle | 66.3° | 65.9° | 66.3° | 65.9° | 66.3° | 65.9° | 66.3° | 65.9° | |
| D | Seat Tube Length | 390 | 410 | 455 | 505 | |
| E | Front Centre | 788 | 823 | 716 | 752 | |
| F | Bottom Bracket Height | 335 | 333 | 335 | 333 | 335 | 333 | 335 | 333 | |
| G | Bottom Bracket Drop | 42 | 40 | 40 | 40 | |
| H | Wheelbase | 1148 | 1184 | 1223 | 1264 | |
| I | Chainstay Length | 435 | 435 | 438 | 442 | |
| J | Head Tube Length | 92 | 105 | 120 | 150 | |
| K | Top Tube Length | 568 | 601 | 634 | 666 | |
| L | Seat Tube Angle | 76° | 76° | 76° | 76° | |
| M | Standover Height | 749 | 755 | 757 | 764 | |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'2" - 5'5" | 158 - 165cm |
| M | 5'5" - 5'10" | 165 - 178cm |
| L | 5'10" - 6'1" | 178 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
Model Numbers
| Size | Model Number | |
|---|---|---|
| Gloss Bordeaux Metallic | Satin Carbon | |
| S | 70327-0102 | 70327-0602 |
| M | 70327-0103 | 70327-0603 |
| L | 70327-0104 | 70327-0604 |
| XL | 70327-0105 | 70327-0605 |
