Pure Speed, Earned Through Control
Specialized S-Works Demo 11 Frameset
Demo 11 was built for one objective: go faster everywhere. Not through excess or hype, but through control, predictability, and race-proven engineering that lets riders commit without hesitation and carry more speed from top to bottom.
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Pure Speed, Earned Through Control

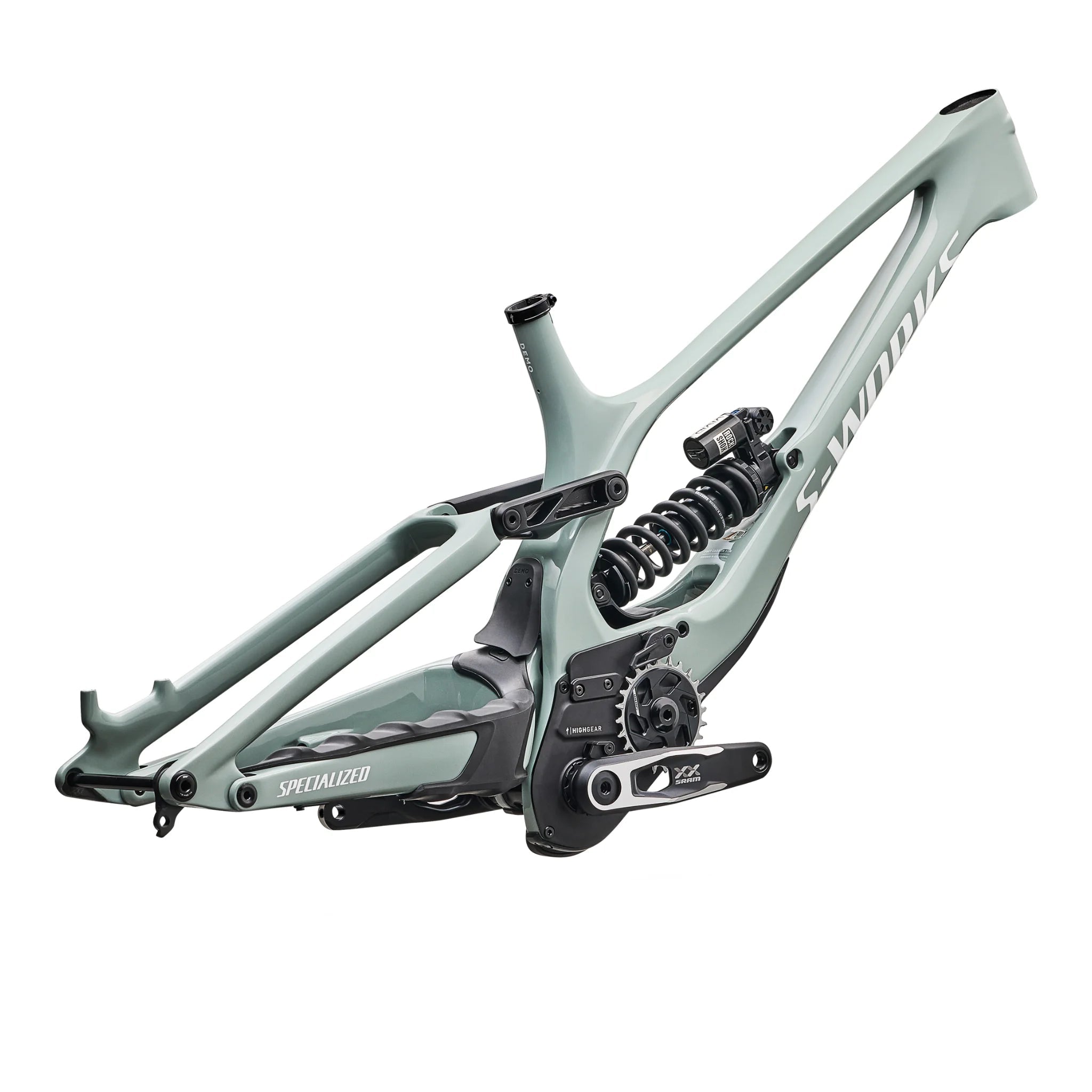

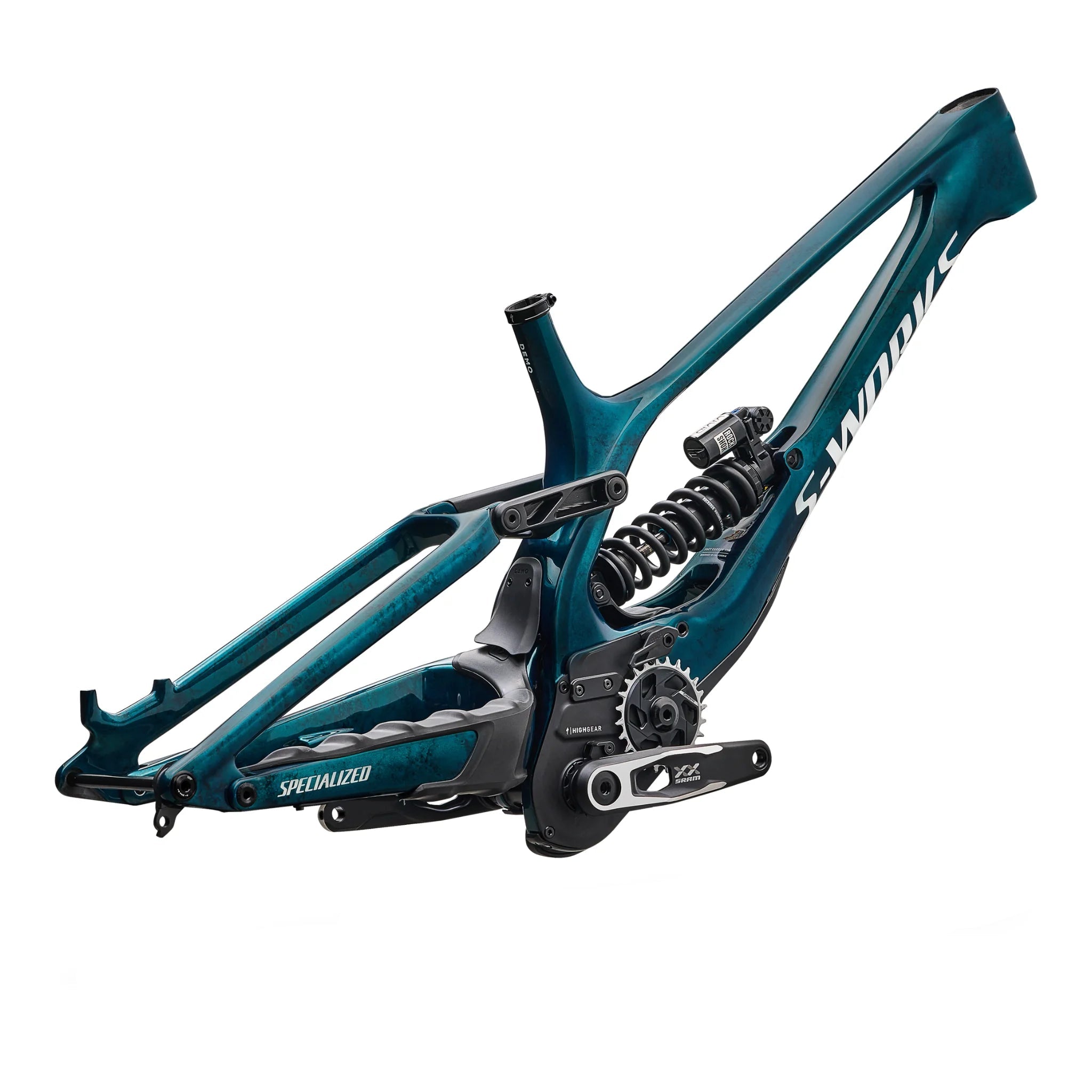

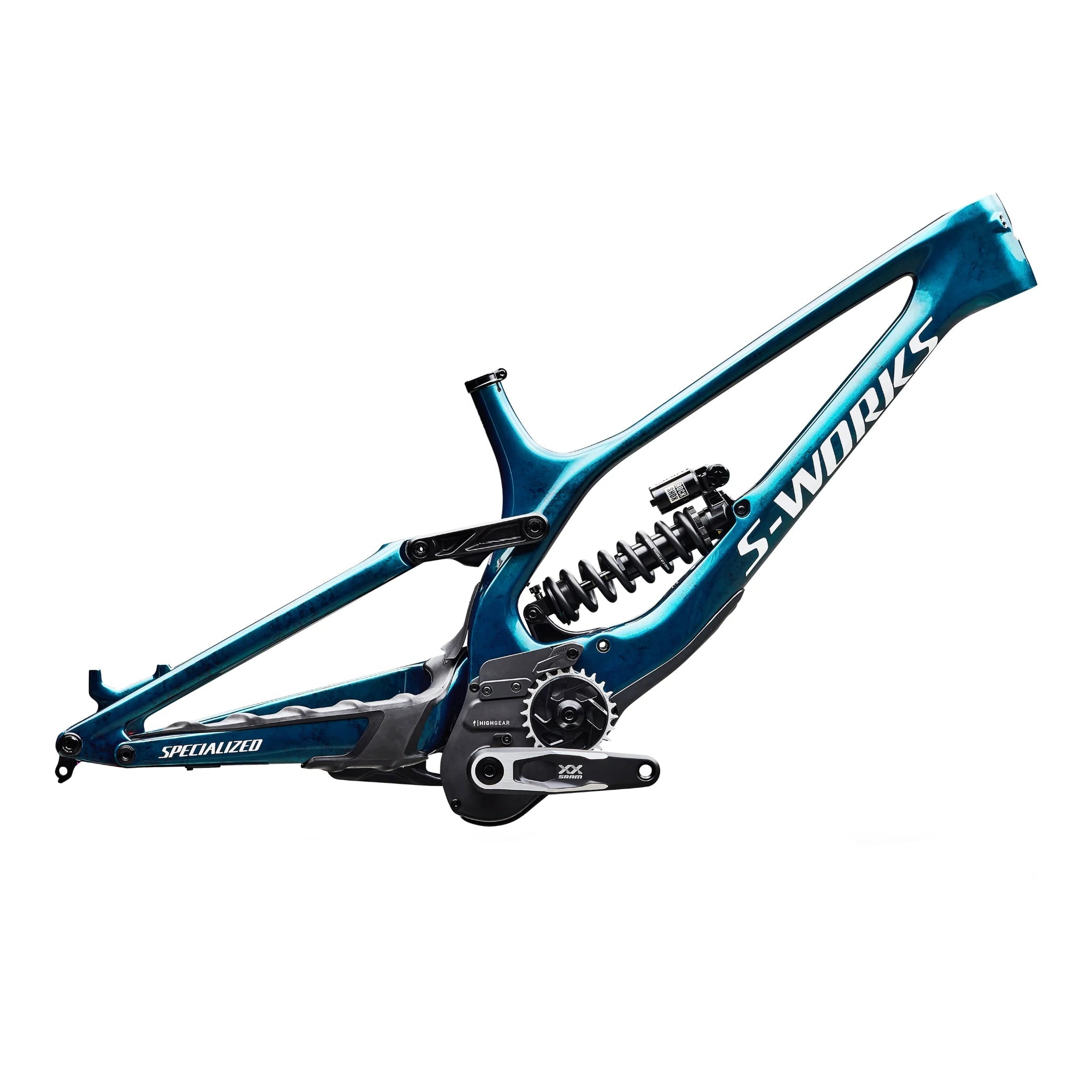

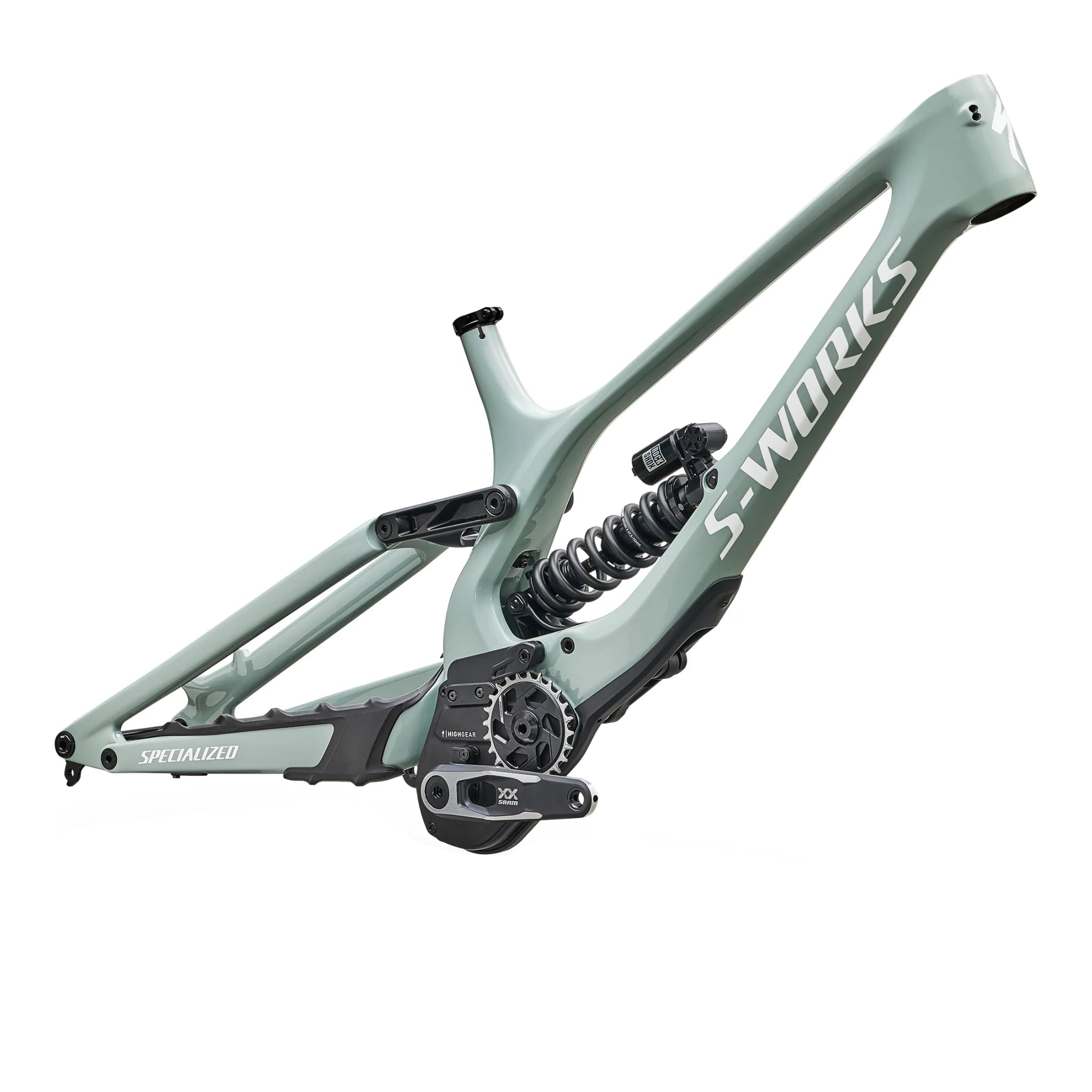

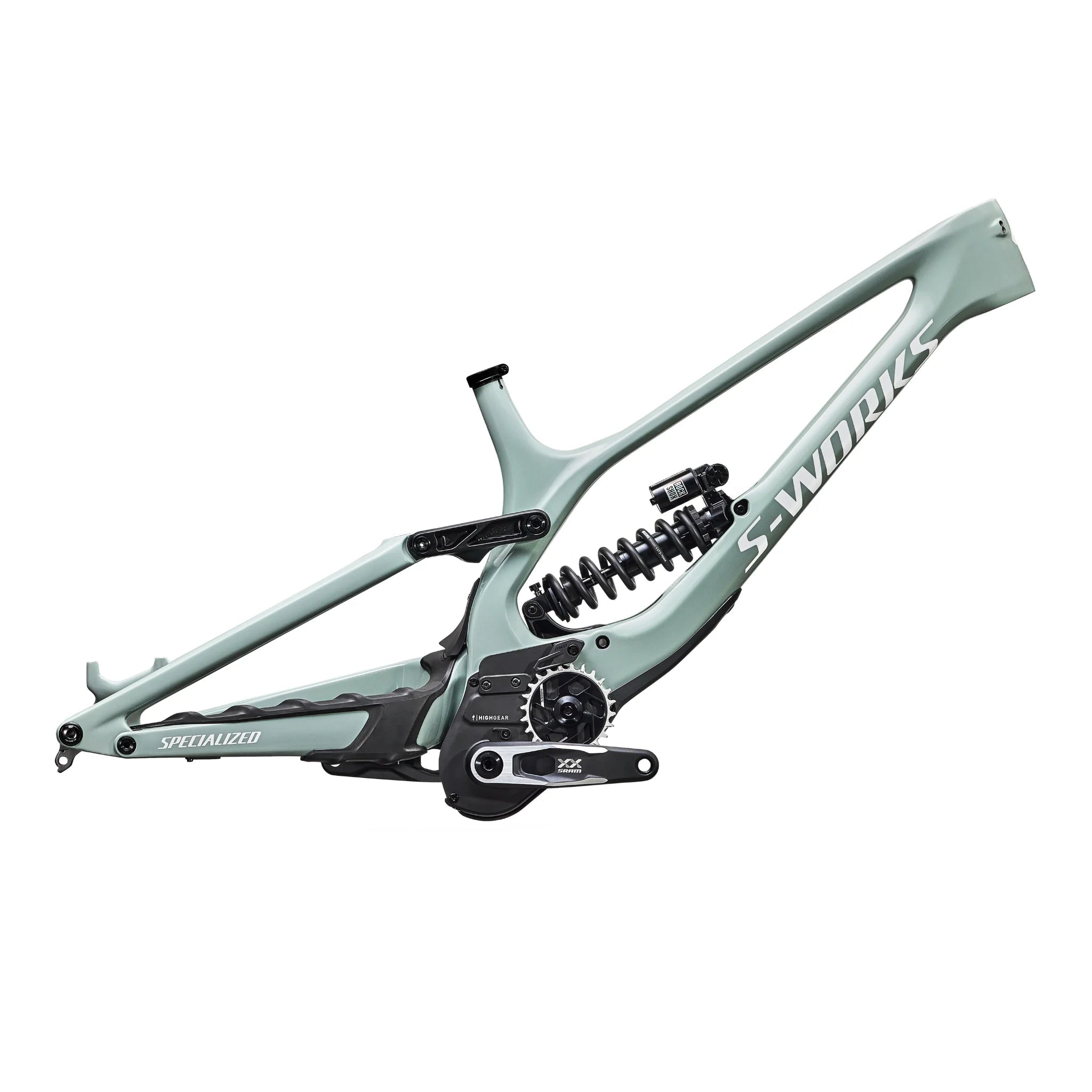

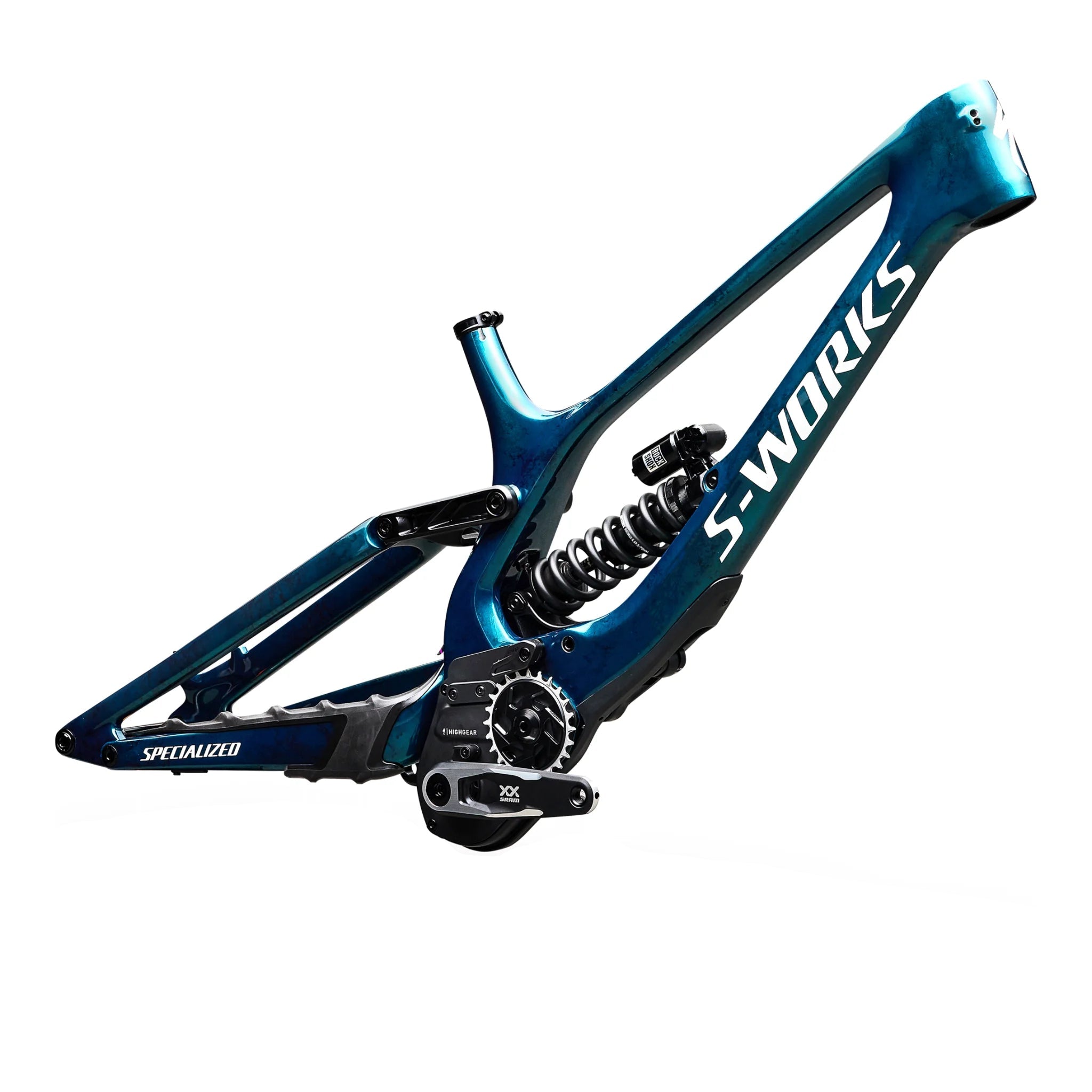

Specialized S-Works Demo 11 Frameset
Features
Specifications
Frame 200mm travel FACT 11m carbon frame with HighGear system, 165mm cranks, reach adjust headset cups, BB adjust, full internal cable routing, 148mm rear spacing
Seat Binder Specialized Alloy 34.9, Steel Bolt
Rear Shock Rockshox Vivid Coil Ultimate DH, 250x75mm,S3 - 450lbs., S4 - 500lbs., S5 - 525lbs
Bottom Bracket SRAM GXP
Crankset SRAM XX HighGear Crankset, 165mm length.
Product ID 293957
Weight 5.79 kg (12 lb, 12.2 oz) with Cranks and HighGear System - Size S4
*Specifications are subject to change without notice
Geometry
| S3 | S4 | S5 | ||
|---|---|---|---|---|
| A | Reach | 445 | 475 | 500 |
| B | Stack | 640 | 640 | 640 |
| C | Headtube Angle | 62.5° | 62.5° | 62.5° |
| D | Seat Tube Length | 420 | 400 | 420 |
| E | Front Centre | 825 | 857 | 880 |
| F | Bottom Bracket Height | 355 | 355 | 355 |
| G | Bottom Bracket Drop | 20 | 20 | 20 |
| H | Wheelbase | 1260 | 1302 | 1335 |
| I | Chainstay Length | 435 | 445 | 455 |
| J | Headtube Length | 110 | 110 | 110 |
| K | Top Tube Length | 582 | 614 | 637 |
| L | Seat Tube Angle | 78° | 78° | 78° |
| All measurements in degrees or millimetres | ||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S3 | 5'5" - 5'11" | 165 - 180cm |
| S4 | 5'8" - 6'2" | 173 - 188cm |
| S5 | 5'10" - 6'4" | 178 - 193cm |
Model Numbers
| Size | Model Number | |
|---|---|---|
| GLoss Teal | Gloss Agave | |
| S3 | 74527-0003 | 74527-0103 |
| S4 | 74527-0004 | 74527-0104 |
| S5 | 74527-0005 | 74527-0105 |
