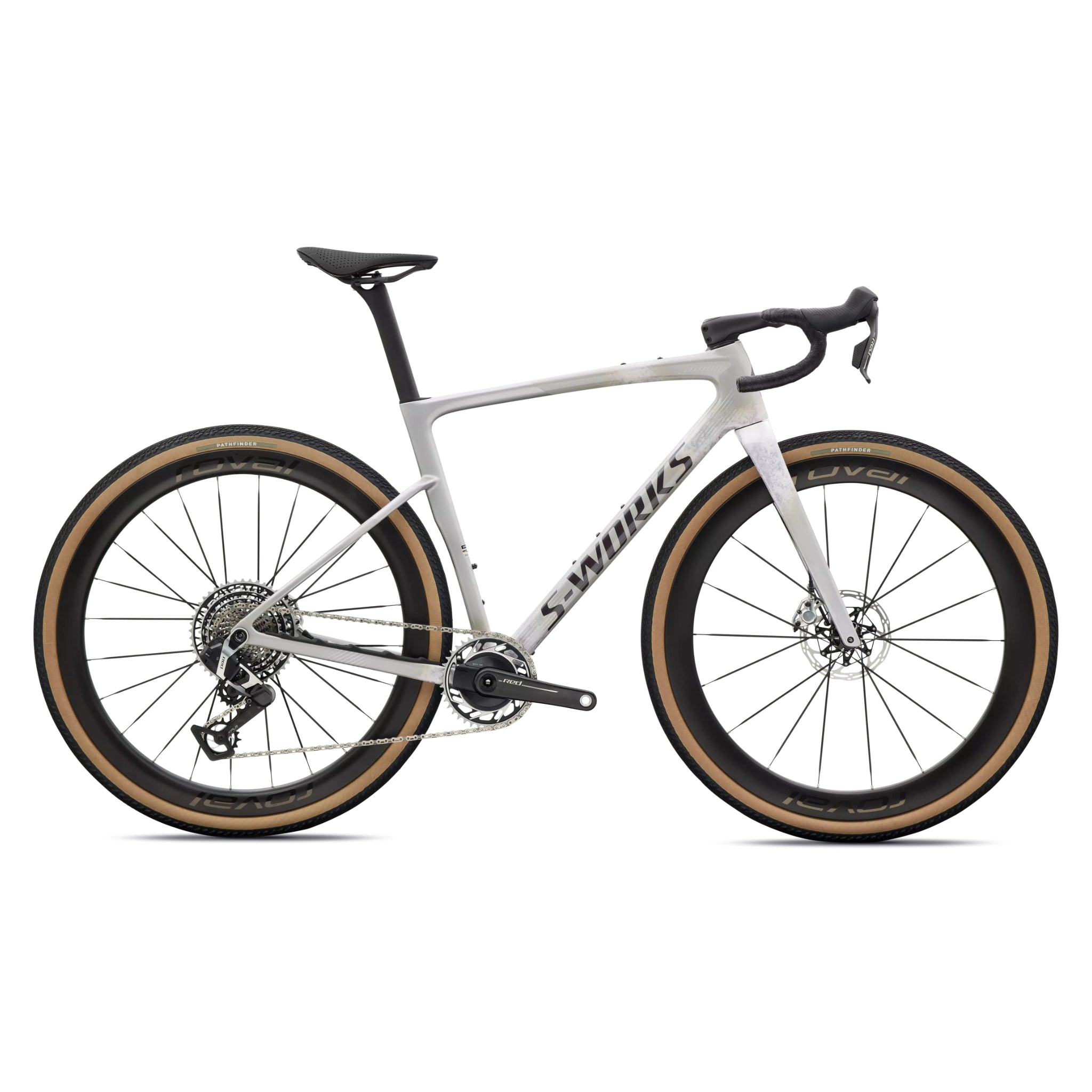

Specialized S-Works Crux 5

$18,999.99
Click here for more info
210000122997
Colour
Size
Quantity
Have a question?

If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.


Contact Us
Specialized S-Works Crux 5

Specialized S-Works Crux 5

$18,999.99

Eat My Dust

Specialized S-Works Crux 5

Meet the Crux 5, the fastest gravel race bike Specialized has ever built. It wasn't designed around one single breakthrough, but around the only number that actually matters on race day: Time to Finish. Every decision, from the aerodynamic shaping borrowed from the Tarmac SL8 and validated in the Win Tunnel, to the 789g FACT 12r frame* that keeps complete builds starting at just 6.9kg, was made with one outcome in mind: getting you to the line first. The result is a bike that's 15.2 watts faster at race speeds, with race-tuned geometry and 55mm of tire clearance that keeps you riding strong and in control long after others start to fade. In real race conditions over a course like Unbound, that adds up to nearly 10 minutes. For anyone who lines up to win, the Crux 5 is the only bike worth racing.

*S-Works frame only

Features

Time to Finish. The only metric that matters

Time to Finish. The only metric that matters

Crux 5 is engineered around real-world race outcomes, not isolated lab numbers. Delivers up to 9:58 faster over Unbound vs. Crux 4.

Specialized's most aerodynamic gravel bike

Specialized's most aerodynamic gravel bike

Shaped by Tarmac SL8 learnings and validated in the Win Tunnel, Crux 5 is 15.2 watts faster at race speeds.

Nothing is lighter

Nothing is lighter

A 789g FACT 12r frame with complete builds starting at 6.9kg sets the benchmark for gravel weight.

*S-Works Only

Specifications

trdl>
Frame S-Works Crux 5 FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake SRAM RED E1, hydraulic disc
Rear Brake SRAM RED E1, hydraulic disc
Bottom Bracket Ceramic Speed BB Alpha, BSA DUB
Shift Levers SRAM RED AXS E1, hydraulic disc
Rear Derailleur SRAM RED AXS XPLR E1, 13-speed
Chain SRAM RED E1
Cassette SRAM RED XPLR E1, 13-speed, 10-46t
Crankset SRAM RED XPLR E1, Quarq power meter, 40t
Inner Tubes 700x32x50mm, 60mm Presta valve
Front Tire Pathfinder 700x45, Tubeless Ready
Rear Tire Pathfinder 700x45, Tubeless Ready
Front Wheel Roval Terra Aero CLX, 27mm internal width, tubeless ready, 50mm depth, 18h, Roval LF18-F hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces
Rear Wheel Roval Terra Aero CLX, 27mm internal width, tubeless ready, 45mm depth, 24h, Roval LF19-R hub with ceramic SINC bearings, Centerlock disc, Roval by ARRIS, Composite Aero Spoke with Ti End Pieces
Stem Included in Handlebar
SeatPost S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset, Lightweight Saddle Clamp
Handlebars Roval Terra Cockpit, Integrated Bar/Stem
Saddle S-Works Power with Mirror
Tape Supacaz Super Sticky Kush
Seat Binder Integrated Wedge
Weight Size 56
Weight 7.1 kg (15 lb, 10.4 oz)

*Specifications are subject to change without notice

Geometry

49 52 54 56 58 61
A Reach 375 382 388 400 412 425
B Stack 530 547 560 578 598 621
C Head Tube Angle 70.5° 70.25° 71° 71.5° 71.5° 71.5°
D Front Centre 594 604 613 626 644 665
E Bottom Bracket Drop 80 80 78 78 78 78
F Wheelbase 1008 1016 1026 1039 1057 1078
G Chainstay Length 425 425 425 425 425 425
H Head Tube Length 95 110 125 142 163 188
I Top Tube Length 512 534 543 566 583 603
J Seat Tube Angle 75.5° 74.5° 74.5° 74° 74° 74°
K Standover Height 753 766 781 803 823 849
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
49 5'1" - 5'5" 155 - 163cm
52 5'4" - 5'7" 163 - 170cm
54 5'7" - 5'9" 170 - 175cm
56 5'9" - 5'11" 175 - 180cm
58 5'11" - 6'2" 180 - 188cm
61 6'2" - 6'5" 188 - 196cm

Model Numbers

Size Model Number
Fjord Gold Sandstone Blurred Impasto Silver Dust
49 91427-0049 91427-0149
52 91427-0052 91427-0152
54 91427-0054 91427-0154
56 91427-0056 91427-0156
58 91427-0058 91427-0158
61 91427-0061 91427-0161
