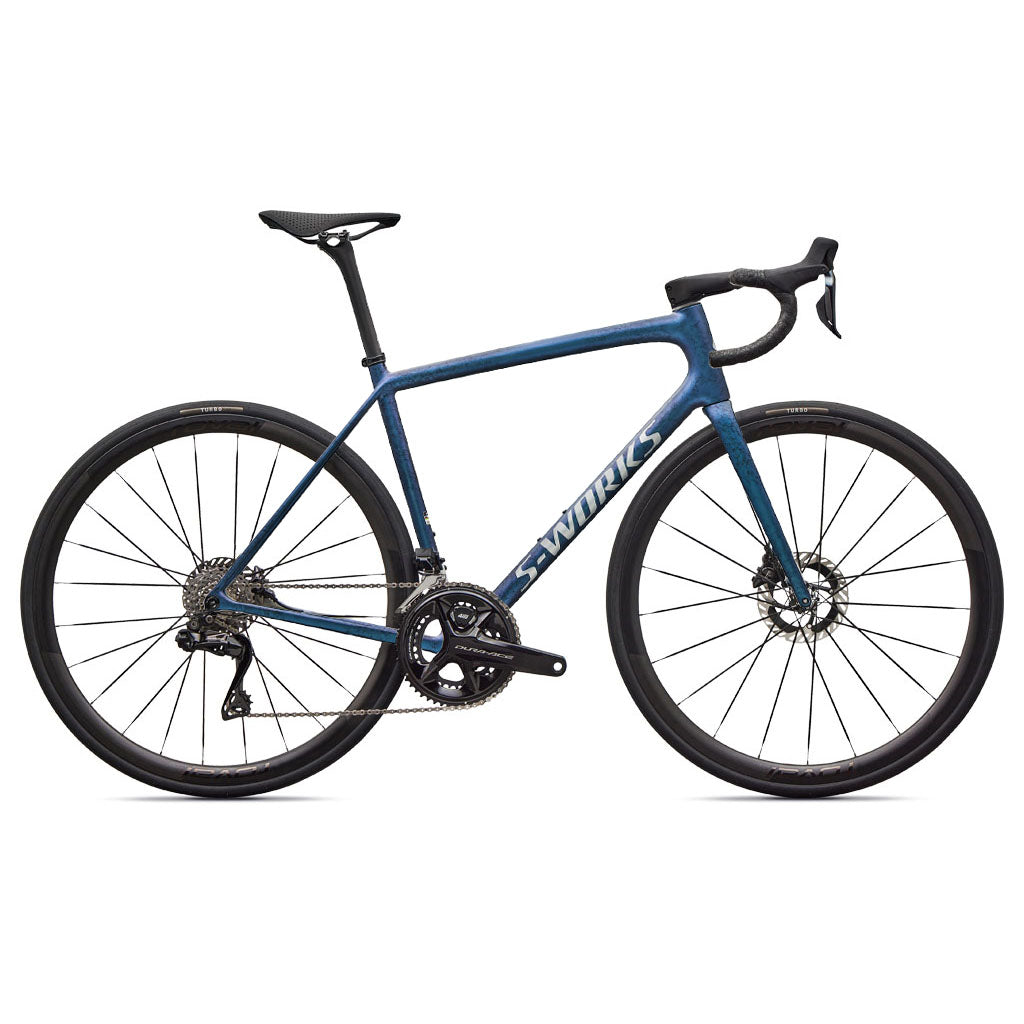

Specialized S-Works Aethos 2 Dura-Ace Di2
Specifications
Frame S-Works Aethos 2 FACT 12r Carbon, Rider First Engineered™, Threaded BB, Hidden Cable Routing, 12x142mm thru-axle, flat- mount disc
Fork S-Works Aethos 2 FACT 12r Carbon, 12x100mm thru-axle, flat- mount disc
Handlebars Roval Alpinist Cockpit II, Integrated Bar/Stem
Shift Levers Shimano Dura-Ace Di2 R9270, hydraulic disc
Front Brake Shimano Dura-Ace BR-R9270 hydraulic brake
Rear Brake Shimano Dura-Ace BR-R9270 hydraulic brake
Front Derailleur Shimano Dura-Ace Di2 R9250, braze-on
Rear Derailleur Shimano Dura-Ace Di2 R9250, 12-speed
Cassette Shimano Dura-Ace, 12-speed, 11-30t
Chain Shimano XTR M9100, 12-speed w/quick link
Crankset Shimano Dura-Ace R9200, HollowTech II, 12-speed with 4iiii Precision Pro dual-sided powermeter, 52/36t
Bottom Bracket Shimano Dura-Ace, BB-R9100
Front Wheel Roval Alpinist CLX III, Tubeless, 33mm depth, 26.5 width, and 21mm internal width carbon rim, Roval LF21-F 21H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings
Rear Wheel Roval Alpinist CLX III, Tubeless, 33mm depth, 26.5 width, and 21mm internal width carbon rim, Roval LF19-R 24H hub with Sinc Ceramic Bearings, Roval by ARRIS Composite Aero Spoke with Ti end fittings
Front & Rear Tires S-Works Turbo TLR Race Tire, 700x28c
Inner Tubes 700x25-35, 50mm Presta Valve, TPU
Tape Supacaz Super Sticky Kush
Saddle S-Works Power with Mirror
SeatPost Roval Alpinist Carbon Seatpost, light weight clamp
Seat Binder Specialized Alloy, 30.0mm, titanium bolt
Weight 6.05kg (13 lb, 5.4 oz) Size - 56cm
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 373 | 377 | 384 | 391 | 398 | 404 |
| B | Stack | 522 | 538 | 559 | 580 | 606 | 627 |
| C | Head Tube Angle | 71.4° | 72.1° | 72.5° | 73° | 73° | 73.5° |
| D | Front Centre | 581 | 584 | 594 | 599 | 614 | 621 |
| E | Bottom Bracket Drop | 76.5 | 76.5 | 75 | 75 | 73.5 | 73.5 |
| F | Wheelbase | 978 | 981 | 992 | 998 | 1013 | 1020 |
| G | Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| H | Head Tube Length | 114 | 128 | 150 | 169 | 198 | 218 |
| I | Top Tube Length | 508 | 526 | 544 | 557 | 572 | 584 |
| J | Seat Tube Angle | 74° | 74° | 74° | 74° | 75.5° | 74.5° |
| K | Standover Height | 719 | 737 | 759 | 779 | 805 | 834 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Gloss Premium Fjord Metallic | Gloss Dolomite Metallic |
|---|---|---|---|
| 49 | 97226-0049 | 97226-0149 | |
| 52 | 97226-0052 | 97226-0152 | |
| 54 | 97226-0054 | 97226-0154 | |
| 56 | 97226-0056 | 97226-0156 | |
| 58 | 97226-0058 | 97226-0158 | |
| 61 | 97226-0061 | 97226-0161 | |
