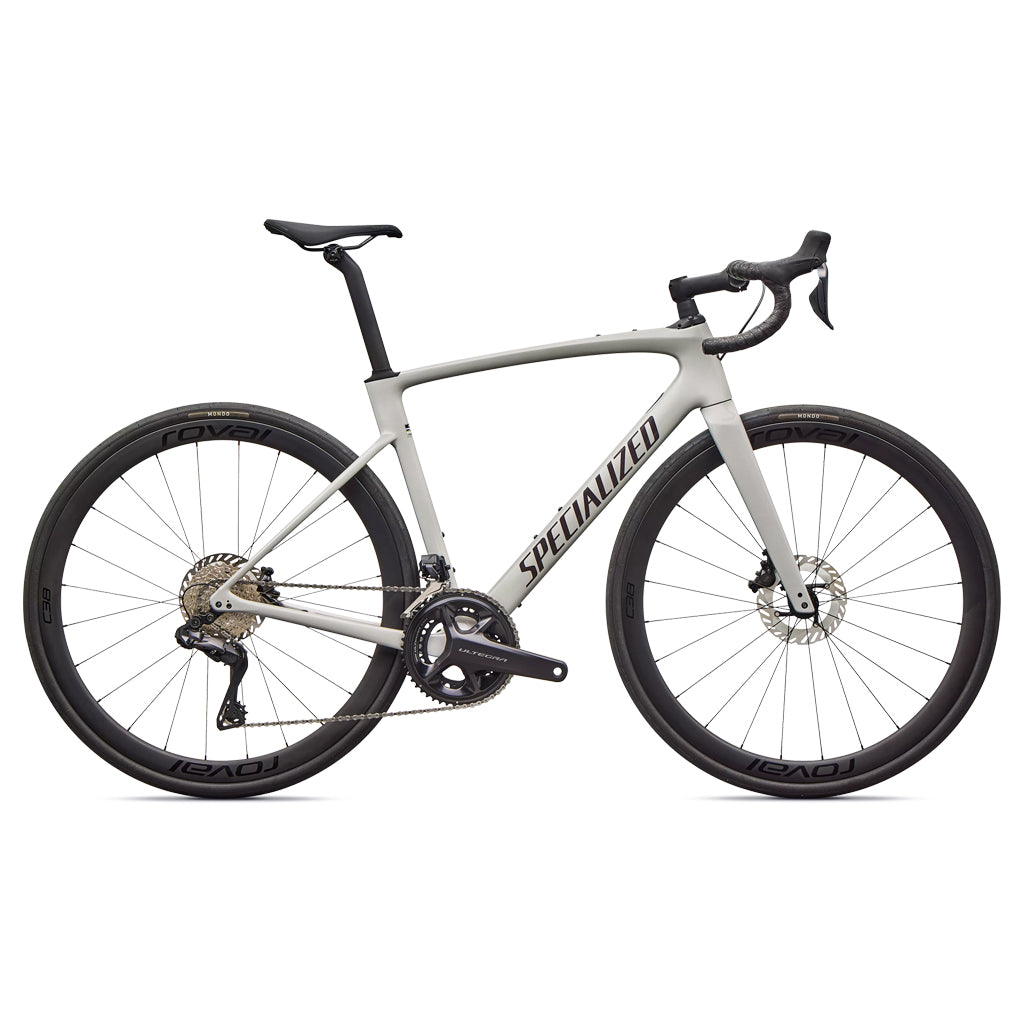

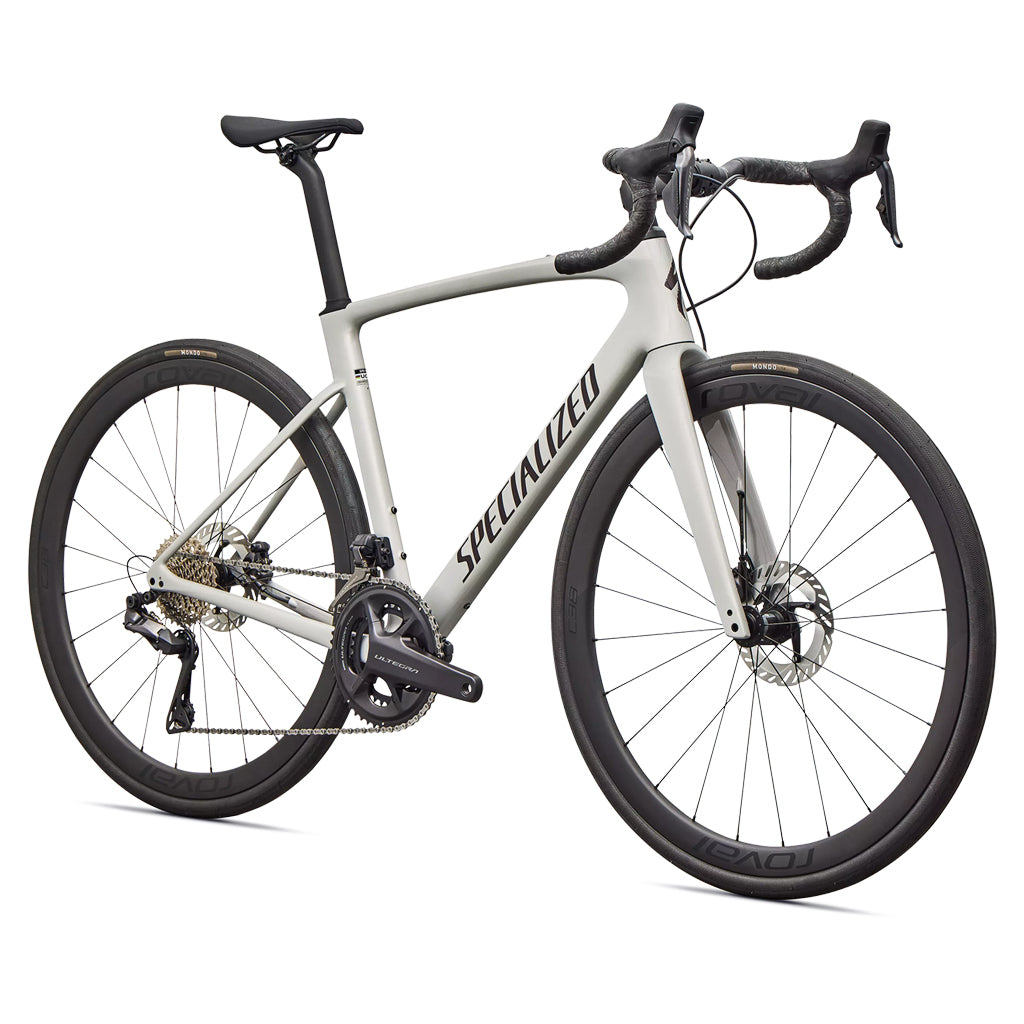

Specialized Roubaix SL8 Expert Shimano Ultegra Di2
Specifications
Frame FACT 10R, Rider First Engineered™ (RFE), FreeFoil Shape Library tubes, threaded BB, 12x142mm thru-axle, flat-mount disc
Fork Future Shock 3.2 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Front Brake Shimano Ultegra R8100, hydraulic brake
Rear Brake Shimano Ultegra R8100, hydraulic brake
Chain Shimano XT M8100, 12-speed w/ quick link
Cassette Shimano Ultegra, 12-speed, 11-34t
Bottom Bracket Shimano Threaded BSA BB
Shift Levers Shimano Ultegra Di2 R8170, hydraulic disc
Front Derailleur Shimano Ultegra Di2 R8150, braze-on
Rear Derailleur Shimano Ultegra R8150, 12-speed
Crankset Shimano Ultegra R8100, 50/34t
Inner Tubes 700x28/38mm, 48mm Presta valve
Front Tire Mondo TLR Endurance Tire, 700x32c, GRIPTON T2/T5
Rear Tire Mondo TLR Endurance Tire, 700x32c, GRIPTON T2/T5
Front Wheel Roval C38, 21mm internal width carbon rim
Rear Wheel Roval C38, 21mm internal width carbon rim
Saddle Body Geometry Power Expert
Stem Future Stem Pro
Seat Binder Hidden drop clamp
SeatPost S-Works Pave Seat post
Handlebars Specialized Hover Expert, Alloy, 125mm Drop, 75mm Reach w/Di2 Hole
Tape Supacaz Super Sticky Kush
Weight 8.17kg (18 lb, 0.2 oz) Size - 56cm
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | 64 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 353 | 363 | 370 | 381 | 389 | 397 | 403 | 409 |
| B | Stack | 543 | 549 | 566 | 585 | 605 | 630 | 665 | 685 |
| C | Head Tube Angle | 69.3° | 70.8° | 71.5° | 72.3° | 73° | 73° | 73.5° | 73.5° |
| D | Front Centre | 589 | 587 | 593 | 598 | 604 | 620 | 631 | 634 |
| E | Bottom Bracket Drop | 80 | 80 | 80 | 78 | 78 | 78 | 78 | 78 |
| F | Wheelbase | 994 | 992 | 998 | 1005 | 1012 | 1031 | 1042 | 1054 |
| G | Chainstay Length | 418 | 418 | 418 | 420 | 420 | 423 | 423 | 423 |
| H | Head Tube Length | 90 | 90 | 105 | 122 | 140 | 168 | 202 | 222 |
| I | Top Tube Length | 503 | 523 | 534 | 550 | 569 | 584 | 600 | 618 |
| J | Seat Tube Angle | 75° | 74° | 74° | 74° | 73.5° | 73.5° | 73.5° | 73° |
| K | Standover Height | 686 | 719 | 747 | 766 | 787 | 809 | 847 | 865 |
| All measurements in degrees or millimetres | |||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Dolomite Metallic |
|---|---|
| 44 | 94426-3044 |
| 49 | 94426-3049 |
| 52 | 94426-3052 |
| 54 | 94426-3054 |
| 56 | 94426-3056 |
| 58 | 94426-3058 |
| 61 | 94426-3061 |
| 64 | 94426-3064 |
