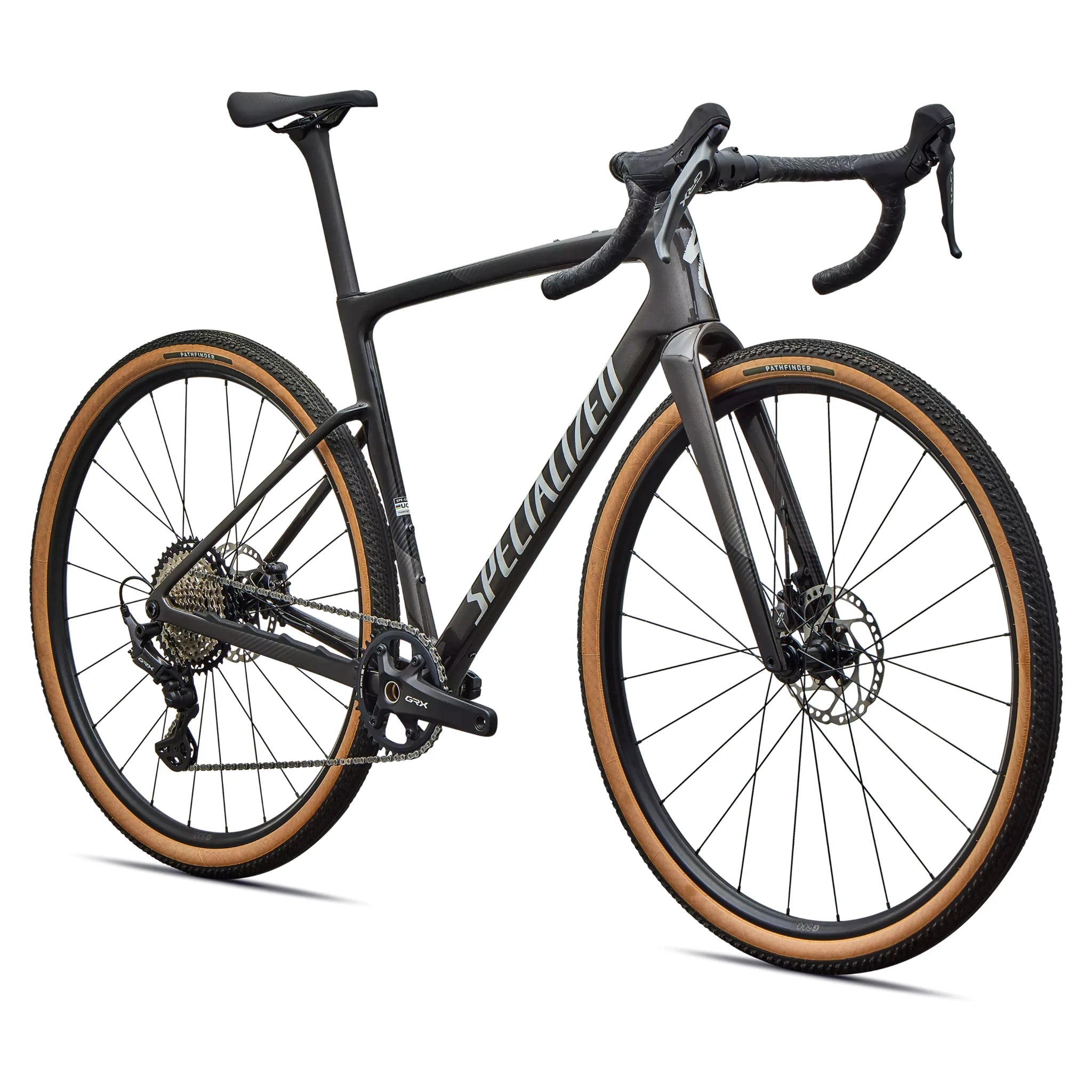

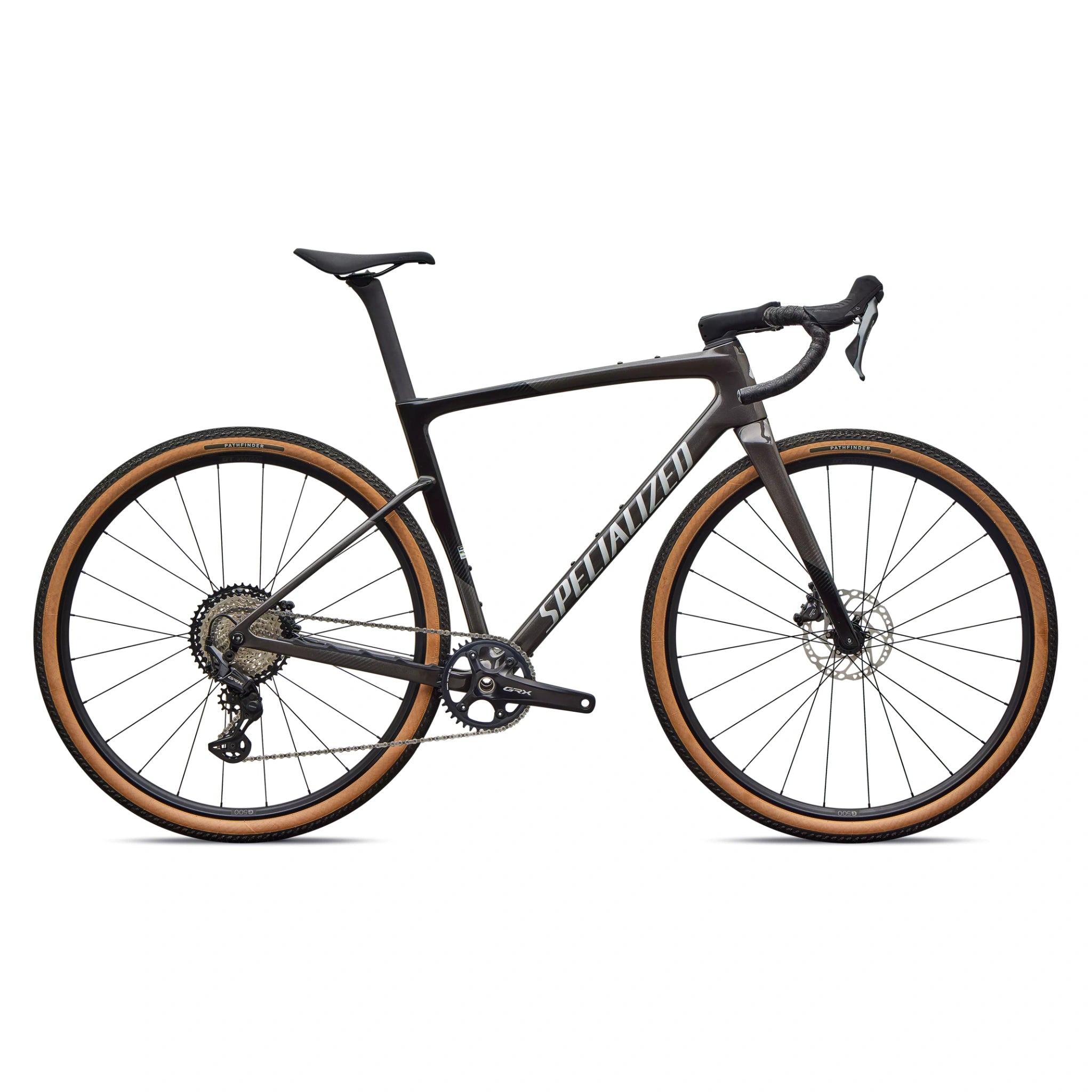

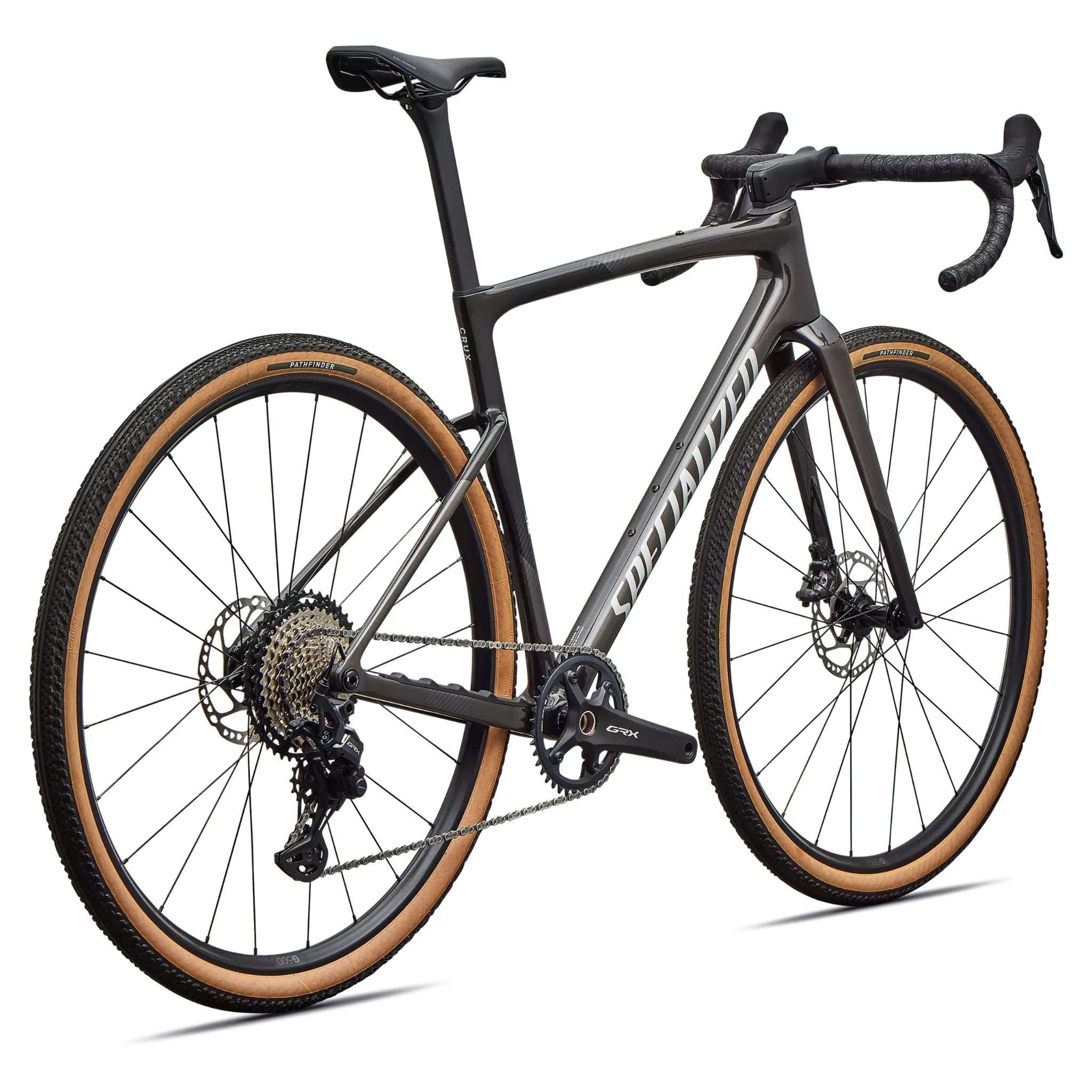

Specialized Crux 5 Sport
$5,299.99
Discover gravel greatness with the Crux Sport. Built with a lightweight FACT 10r carbon frame, Shimano GRX 12-speed groupset, and DT G500 Disc wheels, it delivers exceptional performance and value for adventurous riders.
210000122934
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
Time to Finish. The only metric that matters
Specialized's most aerodynamic gravel bike
Nothing is lighter
Specifications
| Frame | Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Front Brake | Shimano GRX BR-RX820 |
| Rear Brake | Shimano GRX BR-RX820 |
| Crankset | Shimano GRX FC-RX820, 40t |
| Rear Derailleur | Shimano GRX RD-RX822-GS, 12-speed |
| Bottom Bracket | Shimano Threaded BSA BB |
| Chain | Shimano XT CN-M8100, 12-speed |
| Cassette | Shimano XT CS-M8100, 12-speed, 10-45t |
| Shift Levers | Shiimano GRX ST-RX820 |
| Inner Tubes | 700x32-50mm, 40mm Presta valve |
| Front Wheel | DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Rear Wheel | DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples |
| Front Tire | Pathfinder 700x45, Tubeless Ready |
| Rear Tire | Pathfinder 700x45, Tubeless Ready |
| Saddle | Body Geometry Power Sport, steel rails |
| SeatPost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset |
| Stem | Roval Rapide, alloy, 4 bolt, -6 degrees |
| Handlebars | Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare |
| Tape | Supacaz Super Sticky Kush |
| Seat Binder | Integrated Wedge |
| Weight Size | 56 |
| Weight | 8.94 kg (19 lb, 11.3 oz) |
*Specifications are subject to change without notice
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 375 | 382 | 388 | 400 | 412 | 425 |
| B | Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| C | Head Tube Angle | 70.5° | 70.25° | 71° | 71.5° | 71.5° | 71.5° |
| D | Front Centre | 594 | 604 | 613 | 626 | 644 | 665 |
| E | Bottom Bracket Drop | 80 | 80 | 78 | 78 | 78 | 78 |
| F | Wheelbase | 1008 | 1016 | 1026 | 1039 | 1057 | 1078 |
| G | Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| H | Head Tube Length | 95 | 110 | 125 | 142 | 163 | 188 |
| I | Top Tube Length | 512 | 534 | 543 | 566 | 583 | 603 |
| J | Seat Tube Angle | 75.5° | 74.5° | 74.5° | 74° | 74° | 74° |
| K | Standover Height | 753 | 766 | 781 | 803 | 823 | 849 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Model Numbers
| Size | Model Number |
|---|---|
| Silver Pearl Smoke | |
| 49 | 91427-6149 |
| 52 | 91427-6152 |
| 54 | 91427-6154 |
| 56 | 91427-6156 |
| 58 | 91427-6158 |
| 61 | 91427-6161 |
