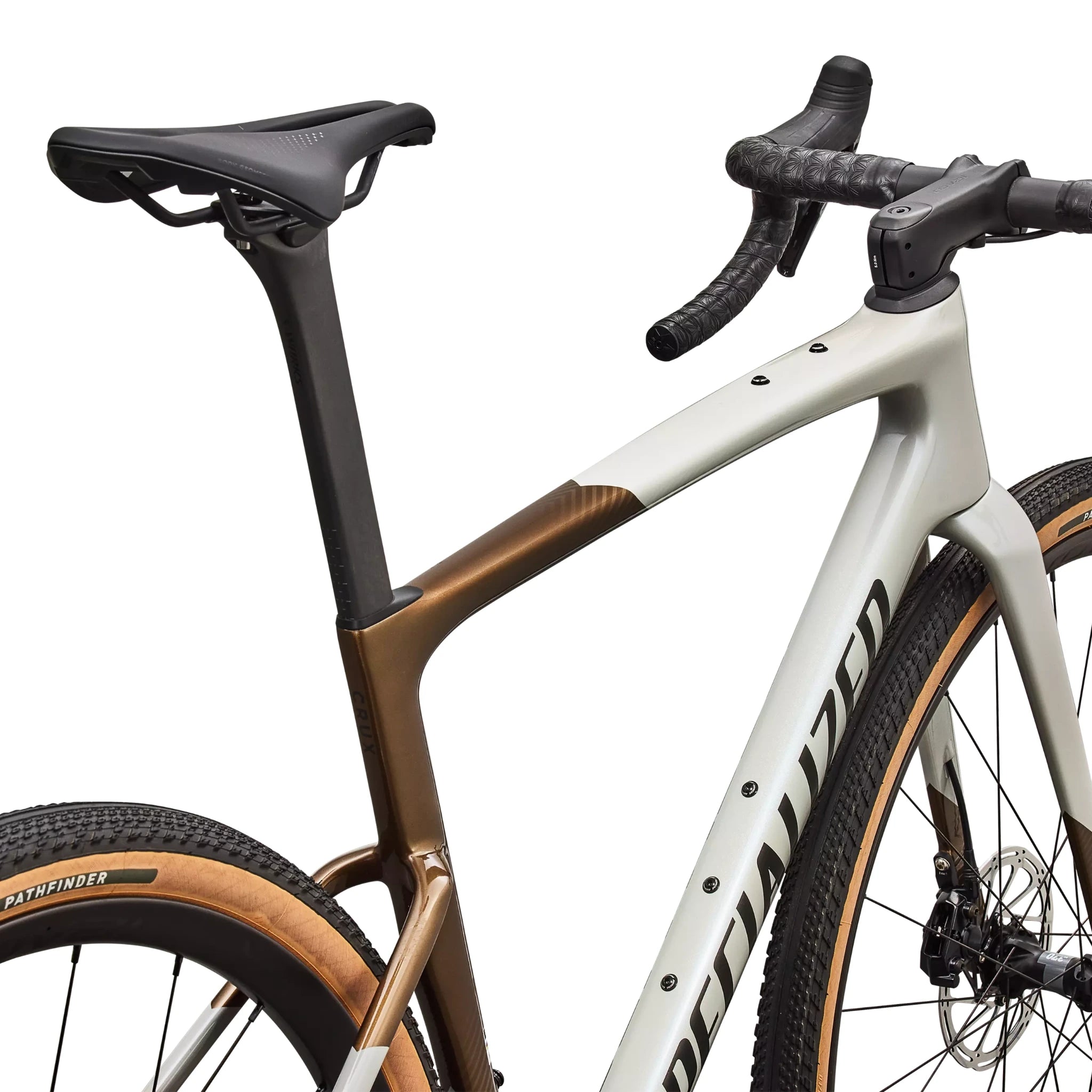

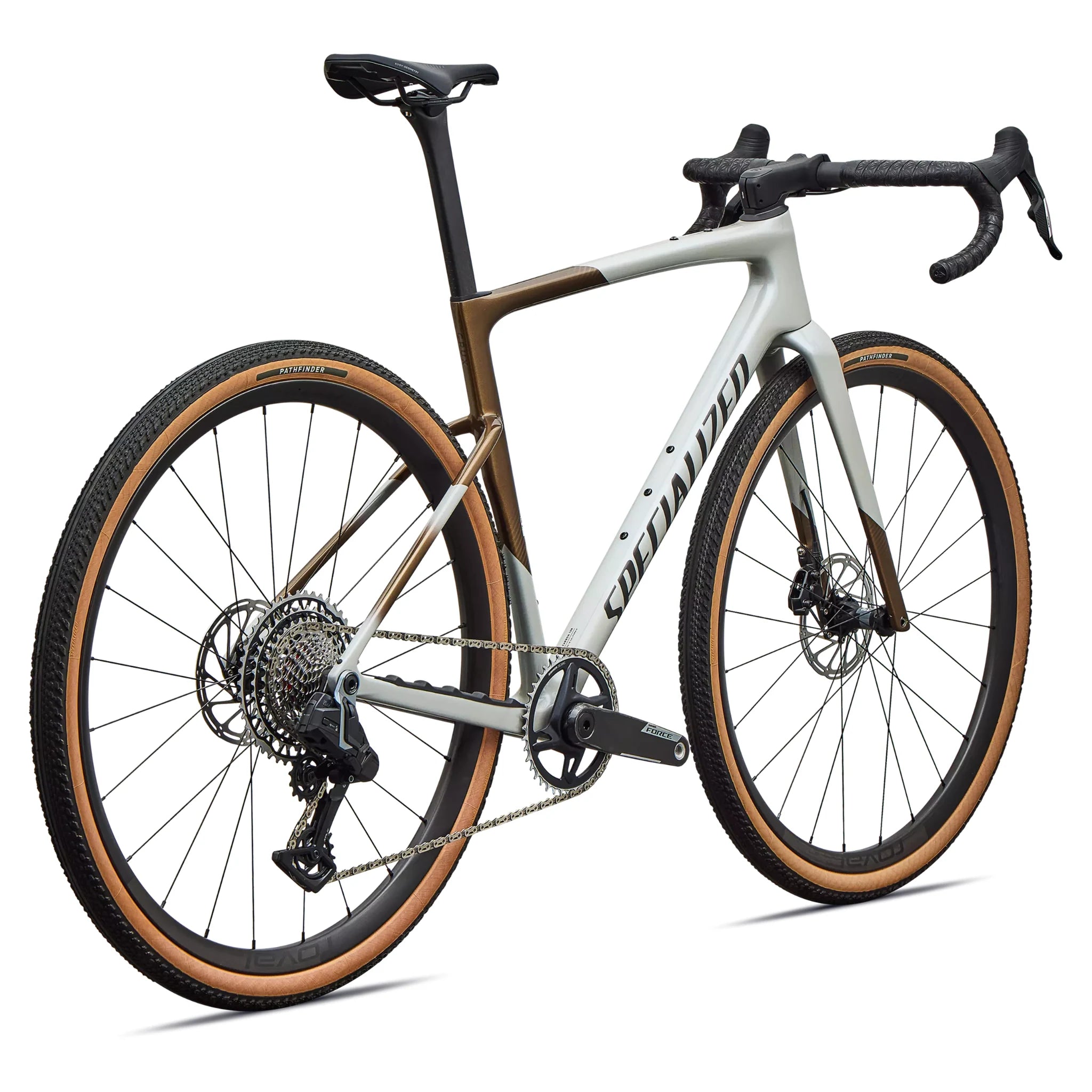

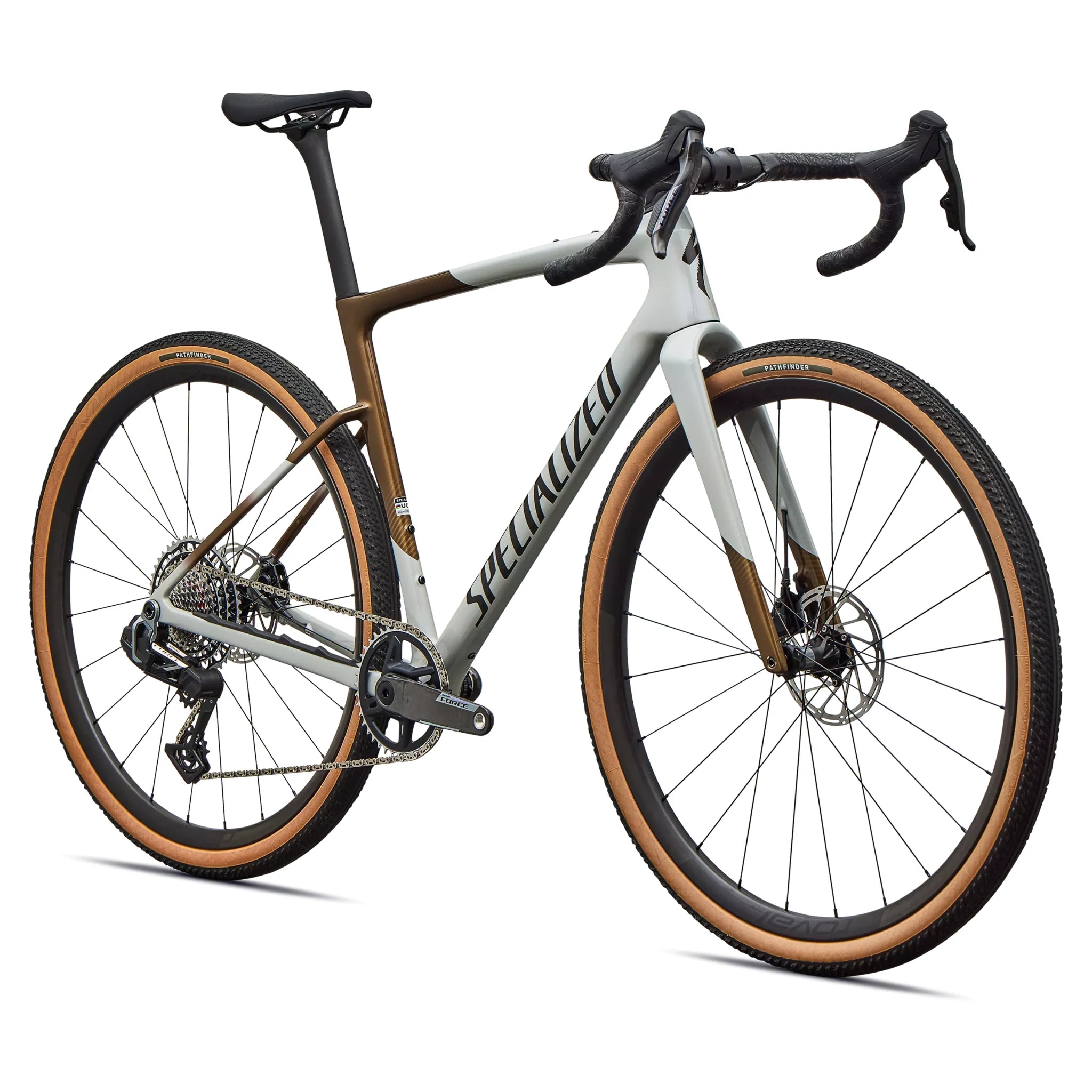

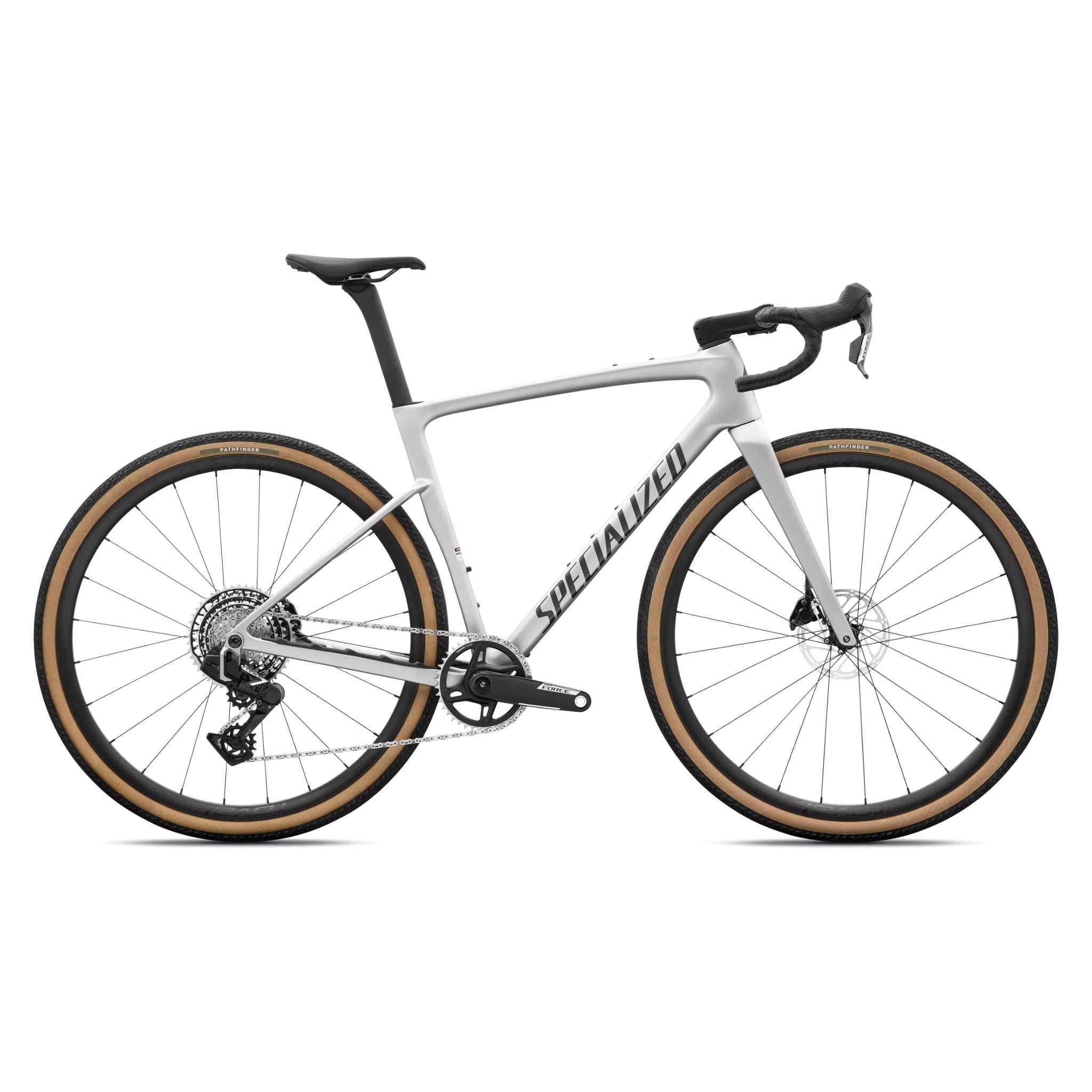

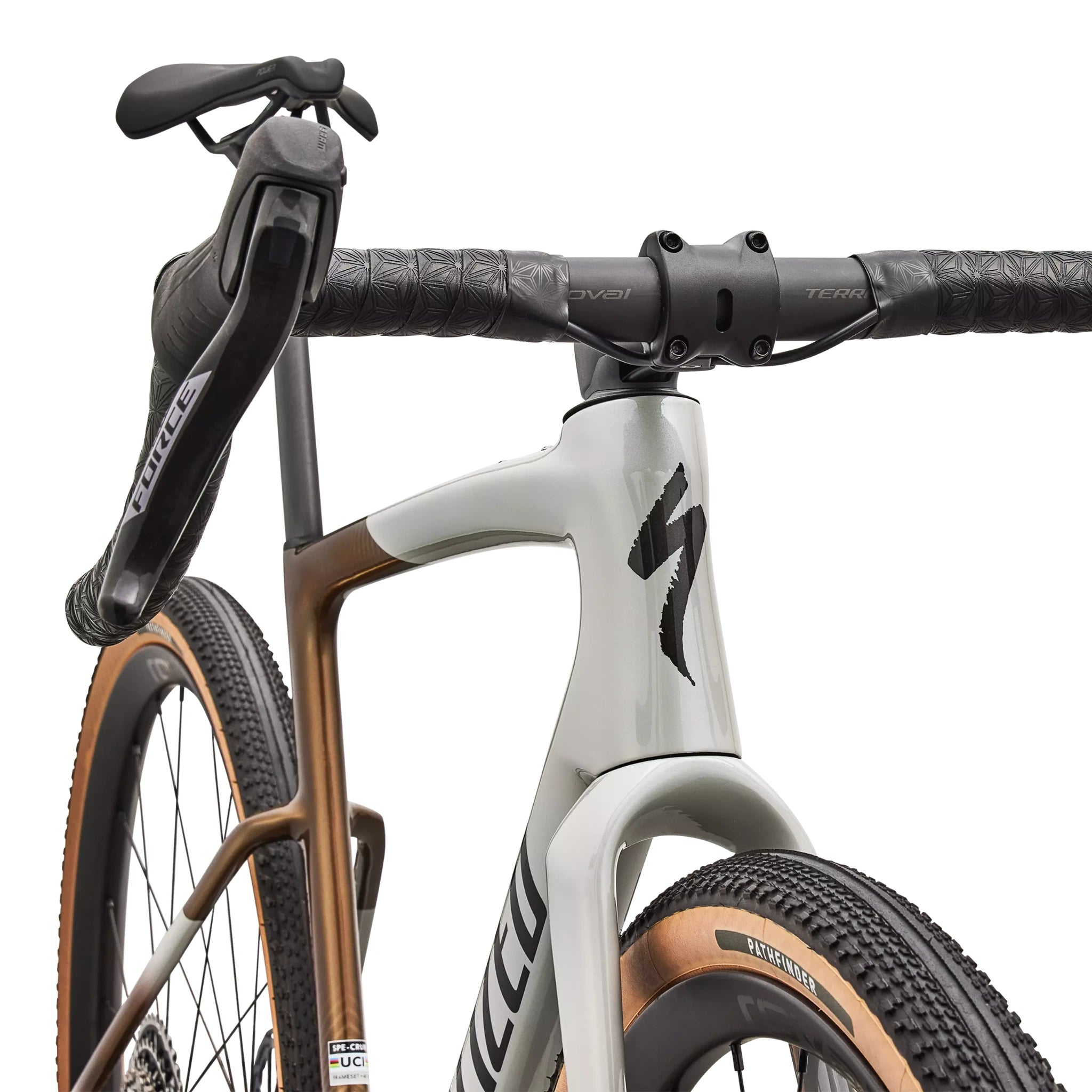

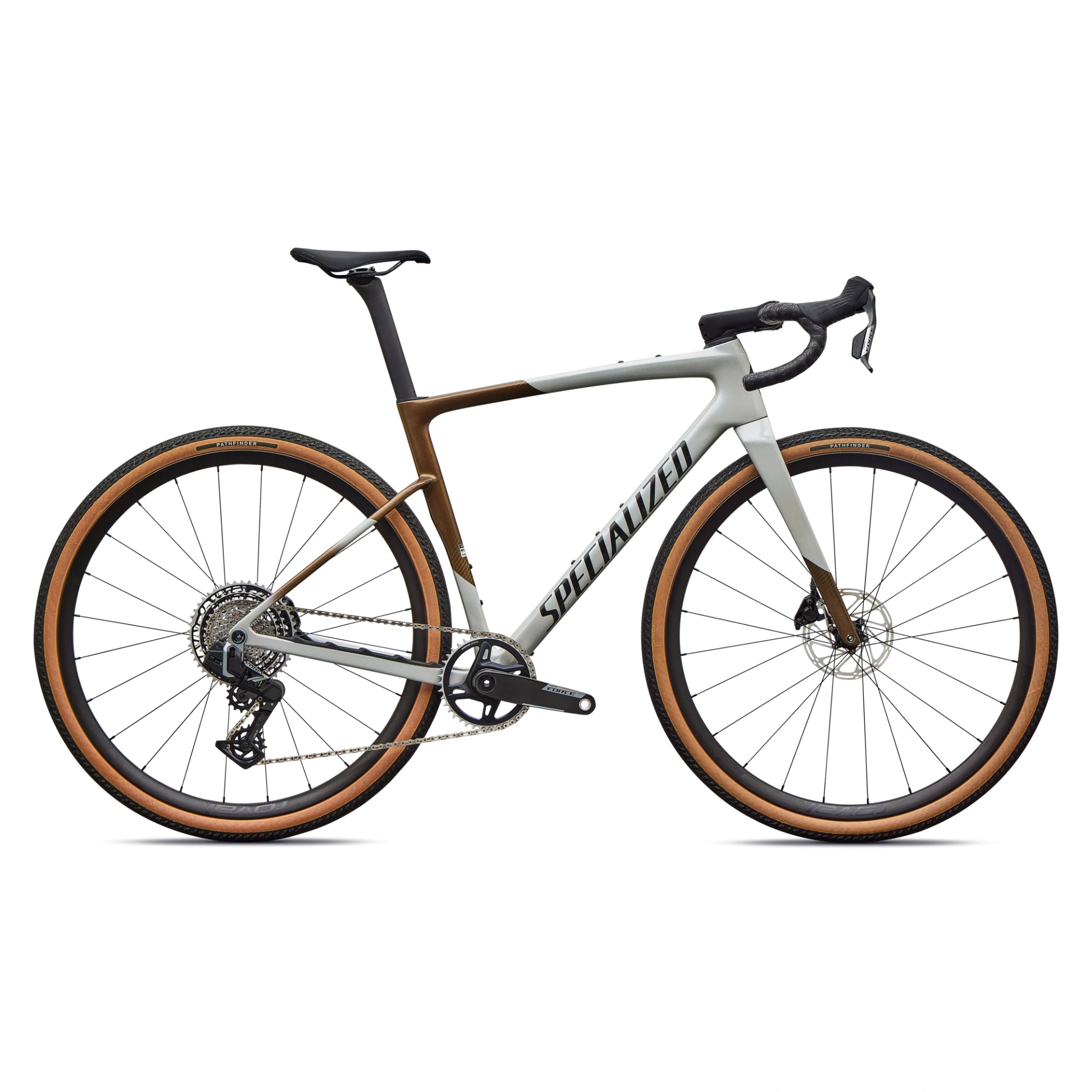

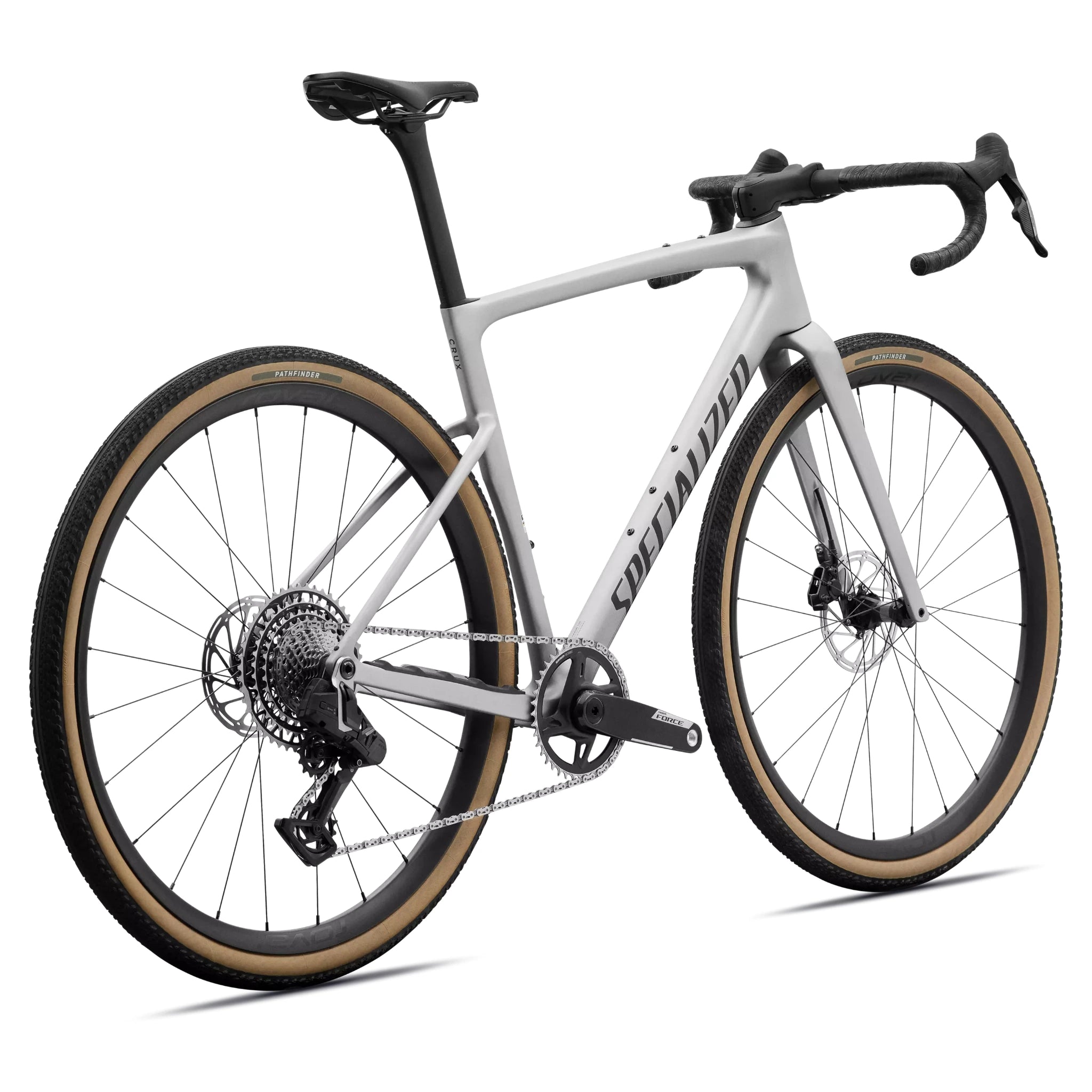

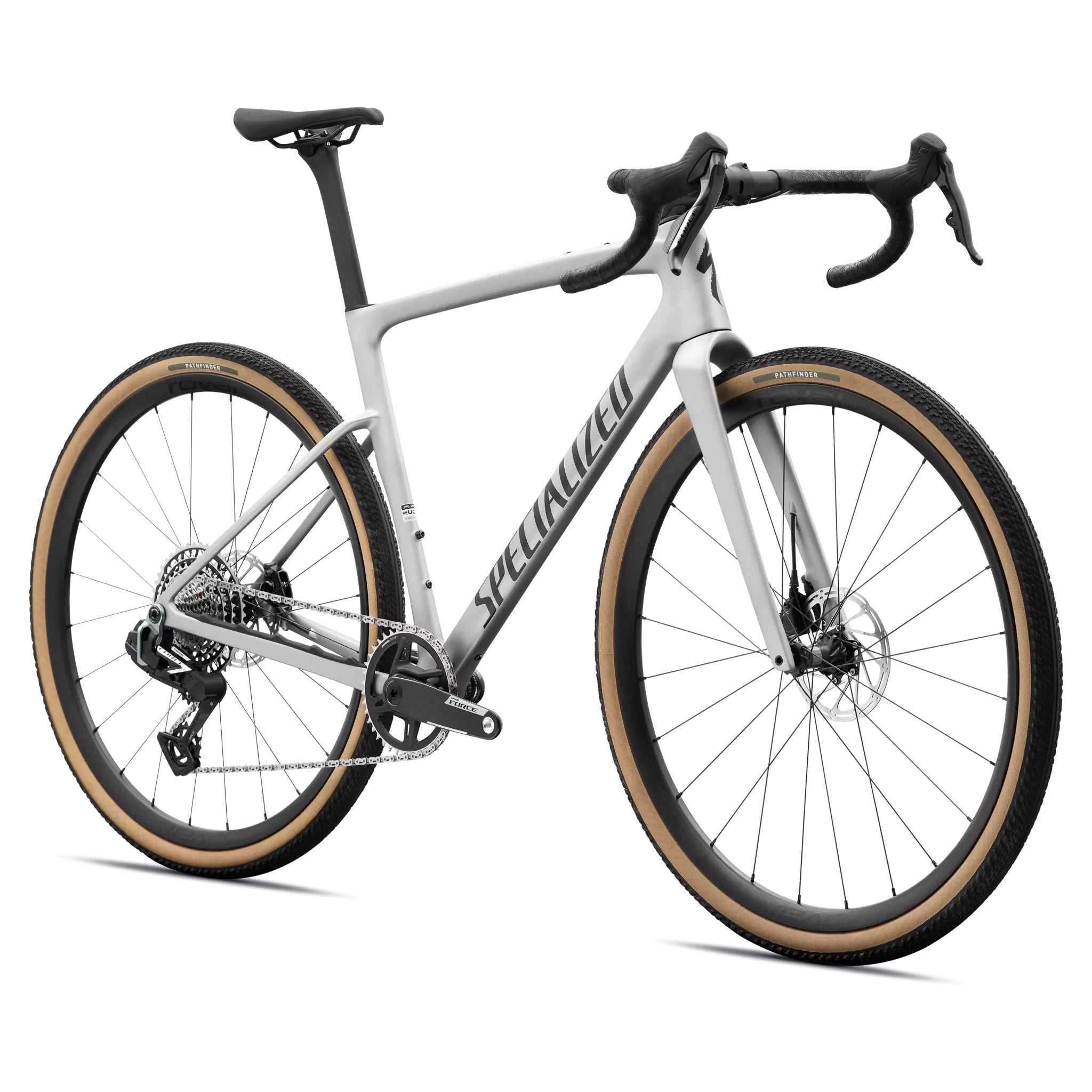

Specialized Crux 5 Expert
$9,499.99
Unleash your gravel potential with the Crux Expert. Its lightweight FACT 10r carbon frame and fork, SRAM Force AXS XPLR groupset, and Roval Terra C III wheels deliver speed, reliability, and versatility for every epic adventure.
210000122955
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
Time to Finish. The only metric that matters
Specialized's most aerodynamic gravel bike
Nothing is lighter
Specifications
| Frame | Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout |
|---|---|
| Fork | S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc |
| Front Brake | SRAM Force E1, hydraulic disc |
| Rear Brake | SRAM Force E1, hydraulic disc |
| Bottom Bracket | SRAM DUB BSA 68 Wide |
| Rear Derailleur | SRAM Force AXS E1 XPLR, 13-speed |
| Shift Levers | SRAM Force AXS E1, hydraulic disc |
| Chain | SRAM Force E1 |
| Cassette | SRAM Force E1 XPLR, 13-speed, 10-46t |
| Crankset | SRAM Force E1 XPLR, DUB Wide, 40t |
| Inner Tubes | 700x32-50mm, 40mm Presta valve |
| Front Wheel | Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes |
| Rear Wheel | Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes |
| Front Tire | Pathfinder 700x45, Tubeless Ready |
| Rear Tire | Pathfinder 700x45, Tubeless Ready |
| Saddle | Body Geometry Power Expert |

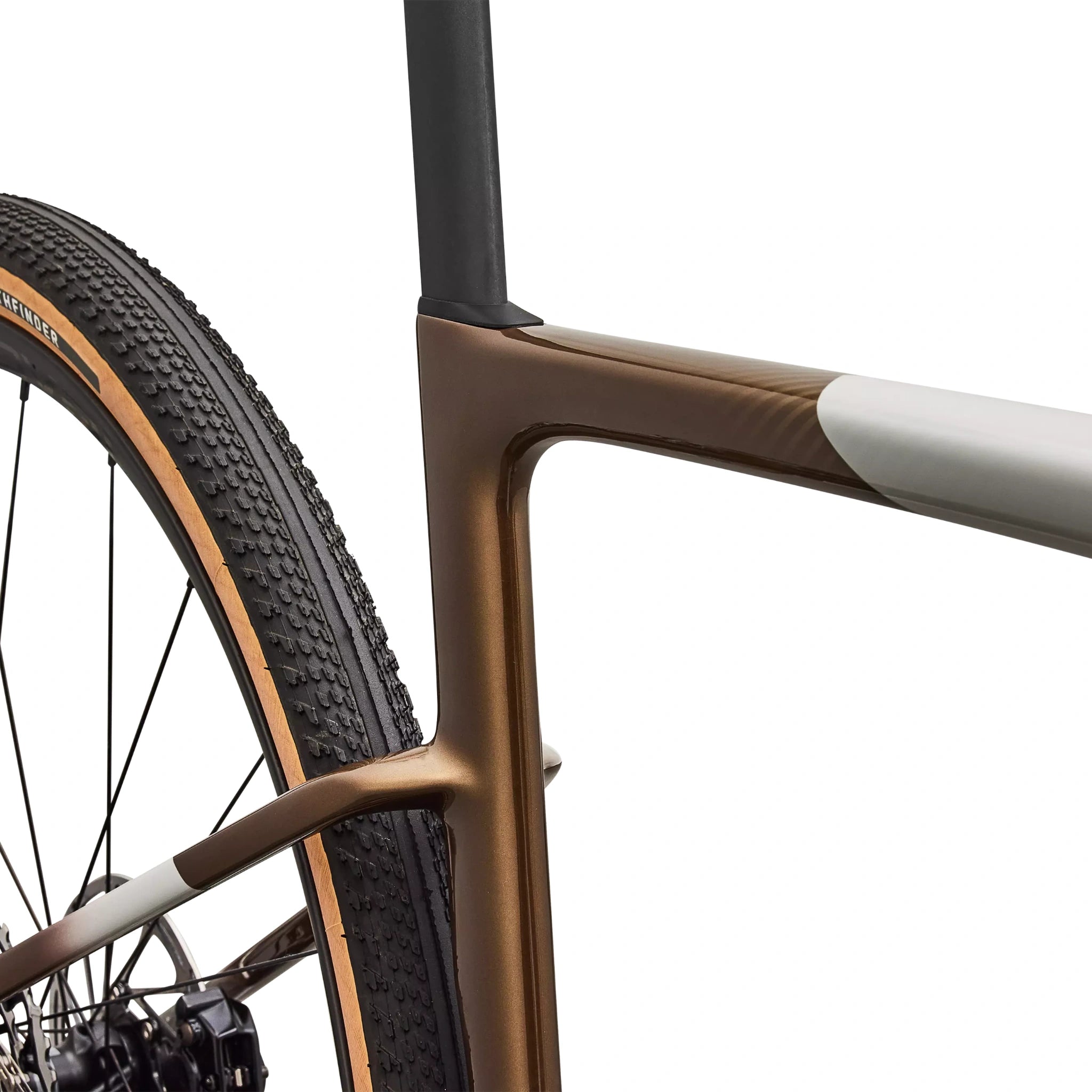

| SeatPost | S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset |
| Stem | Roval Rapide, alloy, 4 bolt, -6 degrees |
| Handlebars | Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare |
| Tape | Supacaz Super Sticky Kush |
| Seat Binder | Integrated Wedge |
| Weight Size | 56 |
| Weight | 8.22 kg (18 lb, 2.0 oz) |
*Specifications are subject to change without notice
Geometry
| 49 | 52 | 54 | 56 | 58 | 61 | ||
|---|---|---|---|---|---|---|---|
| A | Reach | 375 | 382 | 388 | 400 | 412 | 425 |
| B | Stack | 530 | 547 | 560 | 578 | 598 | 621 |
| C | Head Tube Angle | 70.5° | 70.25° | 71° | 71.5° | 71.5° | 71.5° |
| D | Front Centre | 594 | 604 | 613 | 626 | 644 | 665 |
| E | Bottom Bracket Drop | 80 | 80 | 78 | 78 | 78 | 78 |
| F | Wheelbase | 1008 | 1016 | 1026 | 1039 | 1057 | 1078 |
| G | Chainstay Length | 425 | 425 | 425 | 425 | 425 | 425 |
| H | Head Tube Length | 95 | 110 | 125 | 142 | 163 | 188 |
| I | Top Tube Length | 512 | 534 | 543 | 566 | 583 | 603 |
| J | Seat Tube Angle | 75.5° | 74.5° | 74.5° | 74° | 74° | 74° |
| K | Standover Height | 753 | 766 | 781 | 803 | 823 | 849 |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Model Numbers
| Size | Model Number | |
|---|---|---|
| Shadow Silver | Burnt Gold | |
| 49 | 91427-3049 | 91427-3149 |
| 52 | 91427-3052 | 91427-3152 |
| 54 | 91427-3054 | 91427-3154 |
| 56 | 91427-3056 | 91427-3156 |
| 58 | 91427-3058 | 91427-3158 |
| 61 | 91427-3061 | 91427-3161 |
