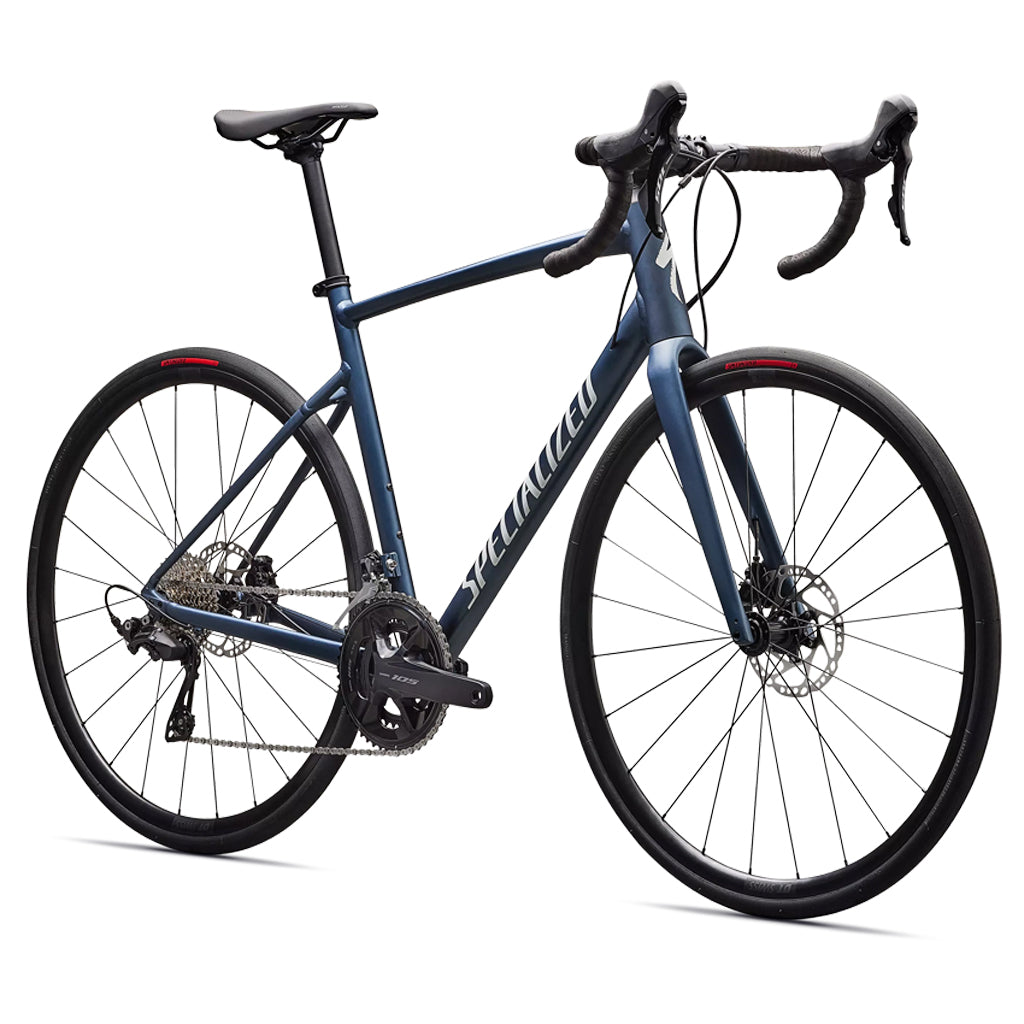

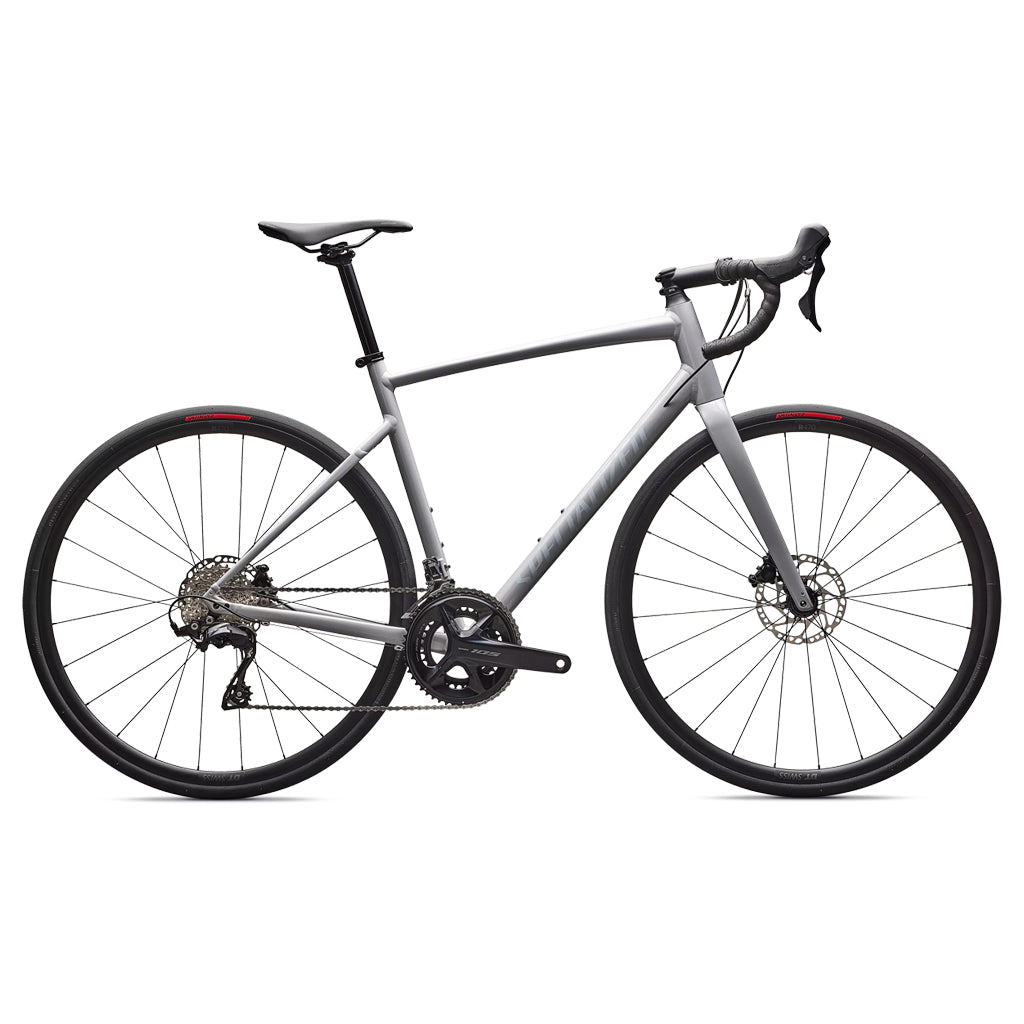

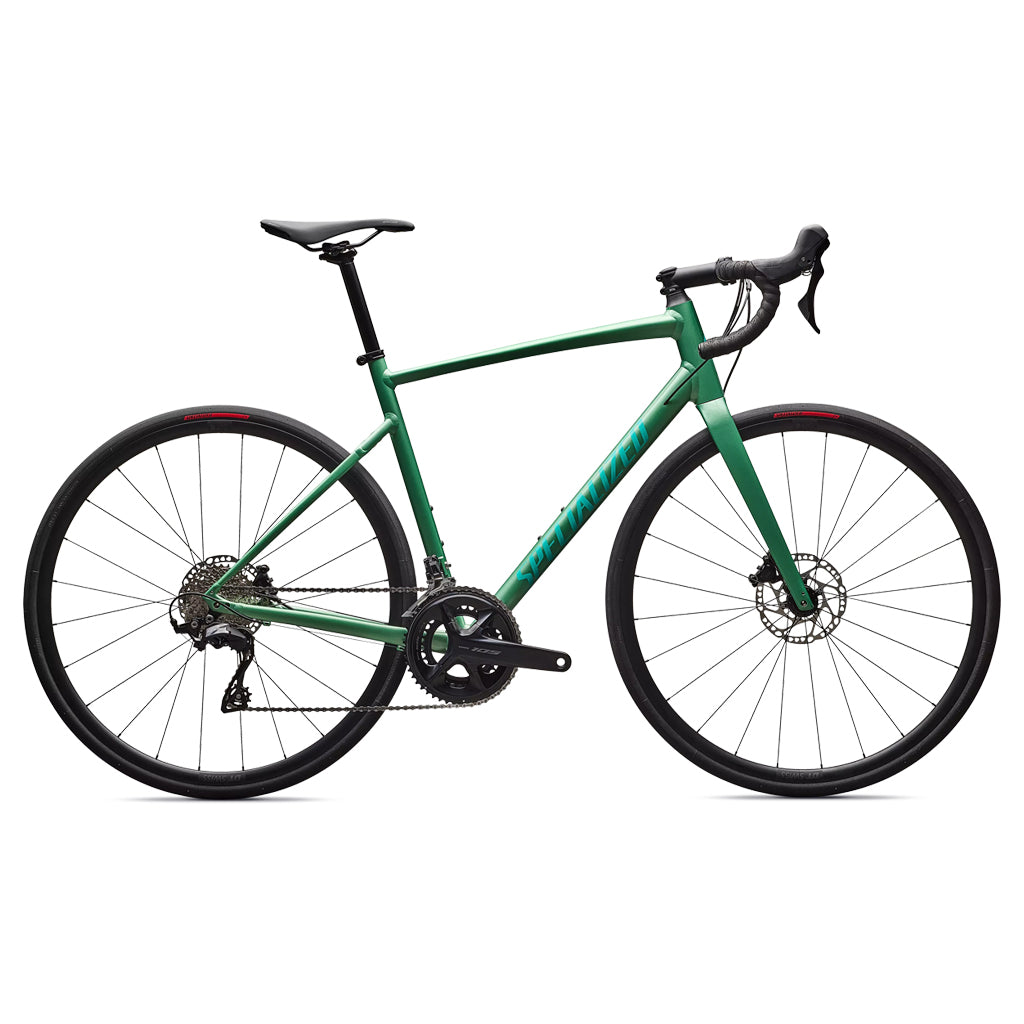

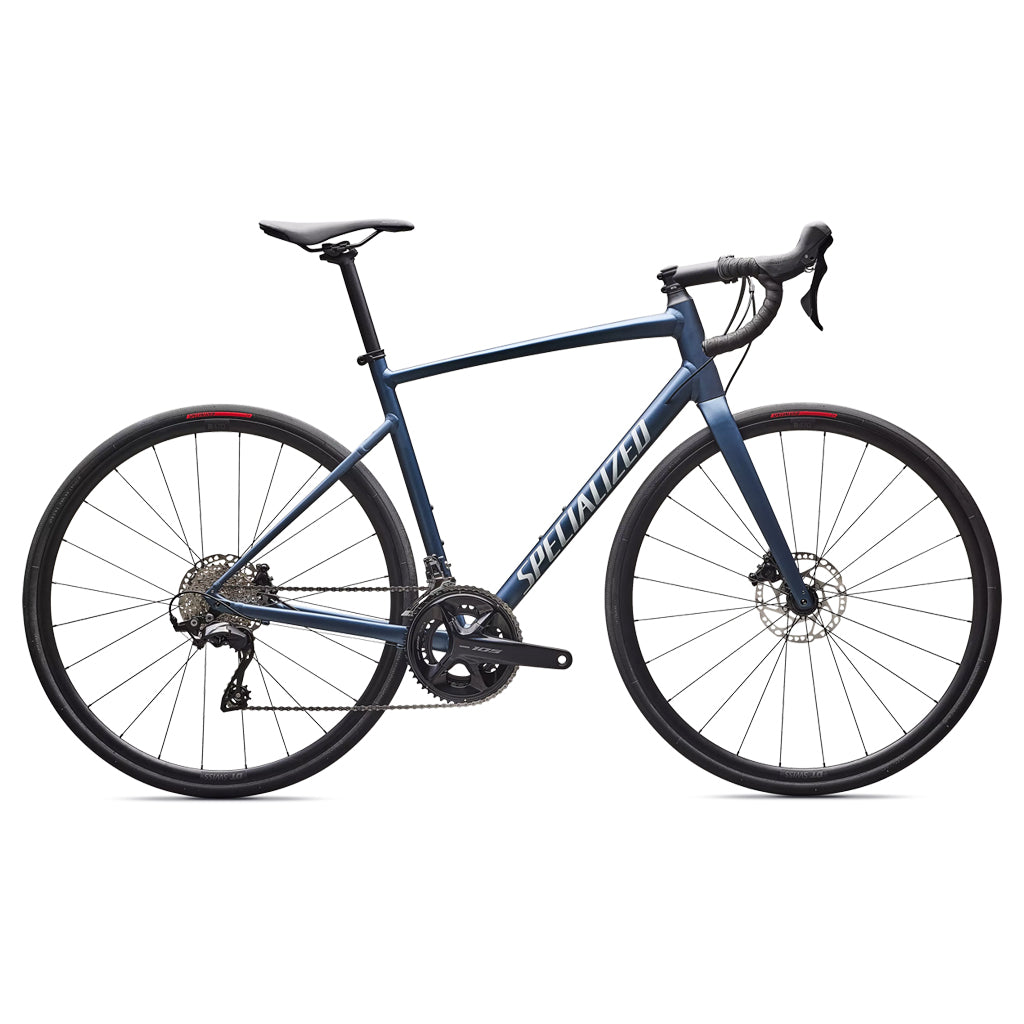

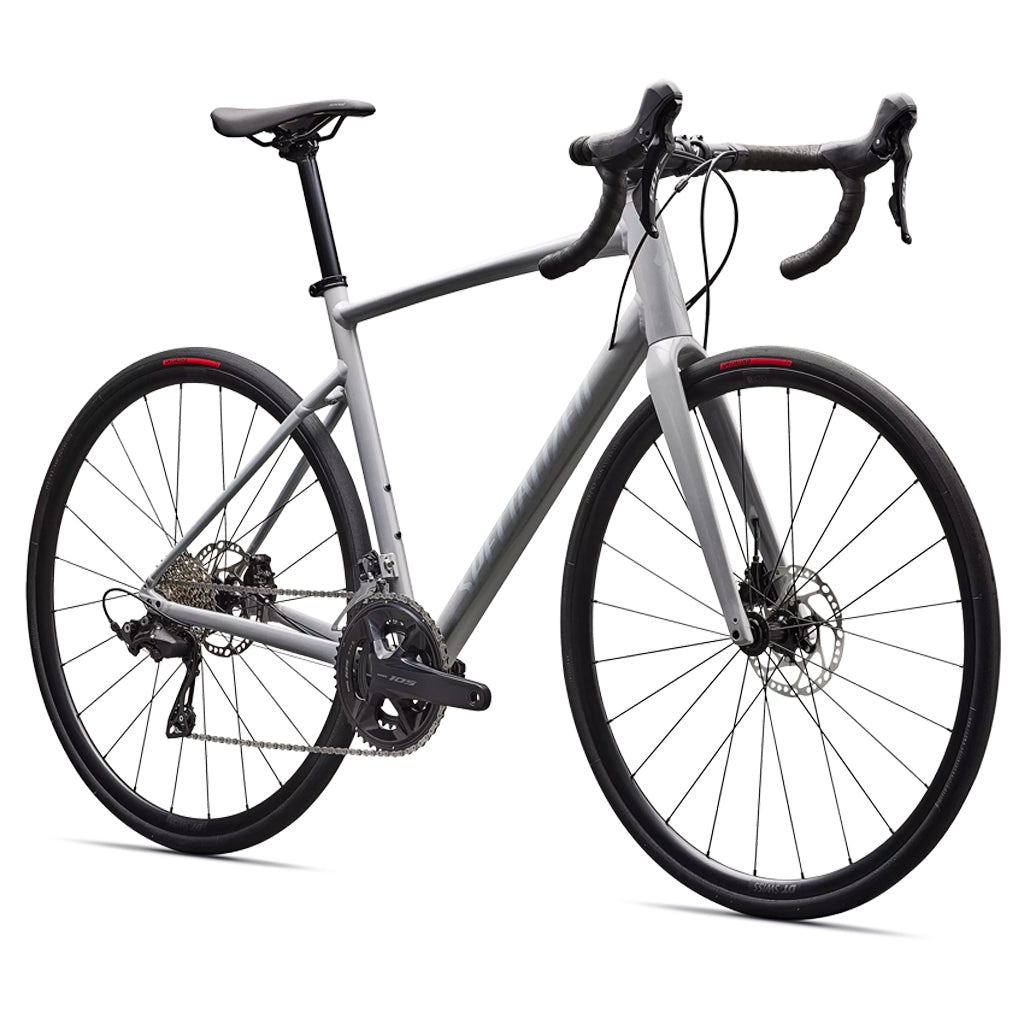

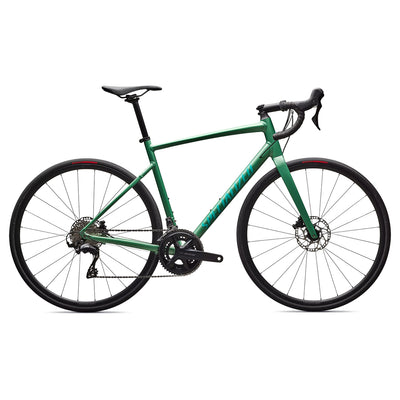

Specialized Allez Comp
Specifications
FrameSpecialized E5 Premium Aluminum, flat mount disc, fully manipulated tubing w/ SmoothWelds, internal cable routing, threaded BB, 12x142mm thru-axle
ForkSpecialized FACT full carbon, flat mount disc, 1-1/8" to 1-3/8" taper, fender eyelets, 12x100mm thru-axle
Stem3D-forged alloy, 31.8mm, 7-degree rise
SeatPostAlloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
SaddleBody Geometry Bridge Saddle, steel rails
Seat BinderBolt-type, Rack Compatable 31.8mm
TapeSupacaz Suave
HandlebarsSpecialized Shallow Drop, 70x125mm, 31.8mm clamp
Front BrakeShimano 105, Hydraulic disc, 160mm rotor
Rear BrakeShimano 105, Hydraulic disc, 160mm rotor
Chainrings32T
ChainShimano SLX, M7100, 12-speed
Bottom BracketShimano Threaded BSA BB
Shift LeversShimano 105, 12 speed Mechanical
CranksetShimano 105, 12-Speed, Holllowtech 2
Rear DerailleurShimano 105, 12 speed Mechanical
Front DerailleurShimano 105, Braze-on
CassetteShimano 105, 12-speed, 11-34t
Inner TubesPresta, 700x28-32mm
Front WheelDT R470 Disc
Rear WheelDT R470 Disc
Rear TireTurbo Pro, 700x30
Front TireTurbo Pro, 700x30
Geometry
| 44 | 49 | 52 | 54 | 56 | 58 | 61 | |||
|---|---|---|---|---|---|---|---|---|---|
| A | Reach | 356 | 359 | 364 | 370 | 378 | 386 | 392 | |
| B | Stack | 519 | 536 | 552 | 569 | 590 | 610 | 643 | |
| C | Head Tube Angle | 69.5° | 70.5° | 71° | 72° | 72.5° | 73° | 73° | |
| D | Front Centre | 576 | 577 | 583 | 585 | 594 | 603 | 619 | |
| E | Bottom Bracket Drop | 77 | 77 | 77 | 76 | 76 | 74.5 | 74.5 | |
| F | Wheelbase | 984 | 984 | 995 | 998 | 1008 | 1017 | 1033 | |
| G | Chainstay Length | 420 | 420 | 425 | 425 | 425 | 425 | 425 | |
| H | Head Tube Length | 110 | 125 | 140 | 155 | 175 | 195 | 230 | |
| I | Top Tube Length | 493 | 500 | 530 | 541 | 556 | 569 | 586 | |
| J | Seat Tube Length | 430 | 460 | 490 | 510 | 530 | 550 | 580 | |
| K | Standover Height | 715 | 739 | 761 | 781 | 801 | 821 | 852 | |
| All measurements in degrees or millimetres | |||||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 44 | 4'8" - 5'1" | 142 - 155cm |
| 49 | 5'1" - 5'5" | 155 - 163cm |
| 52 | 5'4" - 5'7" | 163 - 170cm |
| 54 | 5'7" - 5'9" | 170 - 175cm |
| 56 | 5'9" - 5'11" | 175 - 180cm |
| 58 | 5'11" - 6'2" | 180 - 188cm |
| 61 | 6'2" - 6'5" | 188 - 196cm |
Part Numbers
| Size | Model Number | Cast Blue Metallic | Dolomite Metallic | Oasis Tint Over Silver Dust |
|---|---|---|---|
| 44 | 90026-7044 | 90026-7144 | 90026-7244 |
| 49 | 90026-7049 | 90026-7149 | 90026-7249 |
| 52 | 90026-7052 | 90026-7152 | 90026-7252 |
| 54 | 90026-7054 | 90026-7154 | 90026-7254 |
| 56 | 90026-7056 | 90026-7156 | 90026-7256 |
| 58 | 90026-7058 | 90026-7158 | 90026-7258 |
| 61 | 90026-7061 | 90026-7161 | 90026-7261 |
