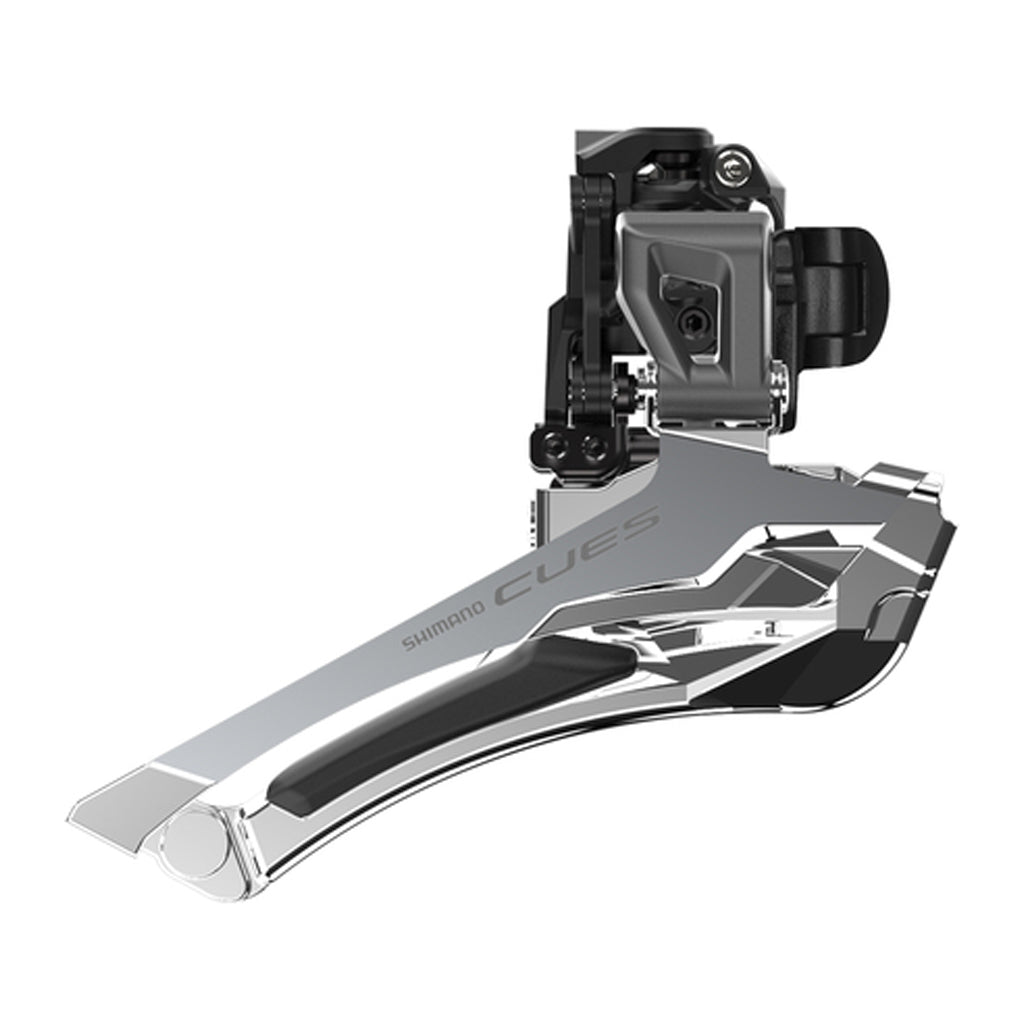

One Front Derailleur for all CUES drop bar bikes. The SHIMANO CUES U6030 Front Derailleur offers lighter front shifting operation and easier setup thanks to the toggle link construction and integrated cable tensioner. It features a 2.5 mm outboard chain line design for wider tire clearance.

FEATURES

• The toggle link construction delivers lighter front shifting with a smooth, natural shift action.
• The chain line is 2.5 mm wider than conventional road front derailleurs, allowing for greater tire clearance.

SPECIFICATIONS
Total Capacity: 16T
Top Gear Teeth: 46T, 50T
Mounts: Brazed-On, 34.9mm with 28.6mm and 31.8mm adapter
Chain Stay Angle: 62-66

SKUs
Product Code: EFDU6030X (34.9mm w/28.6mm and 31.8mm adapters)

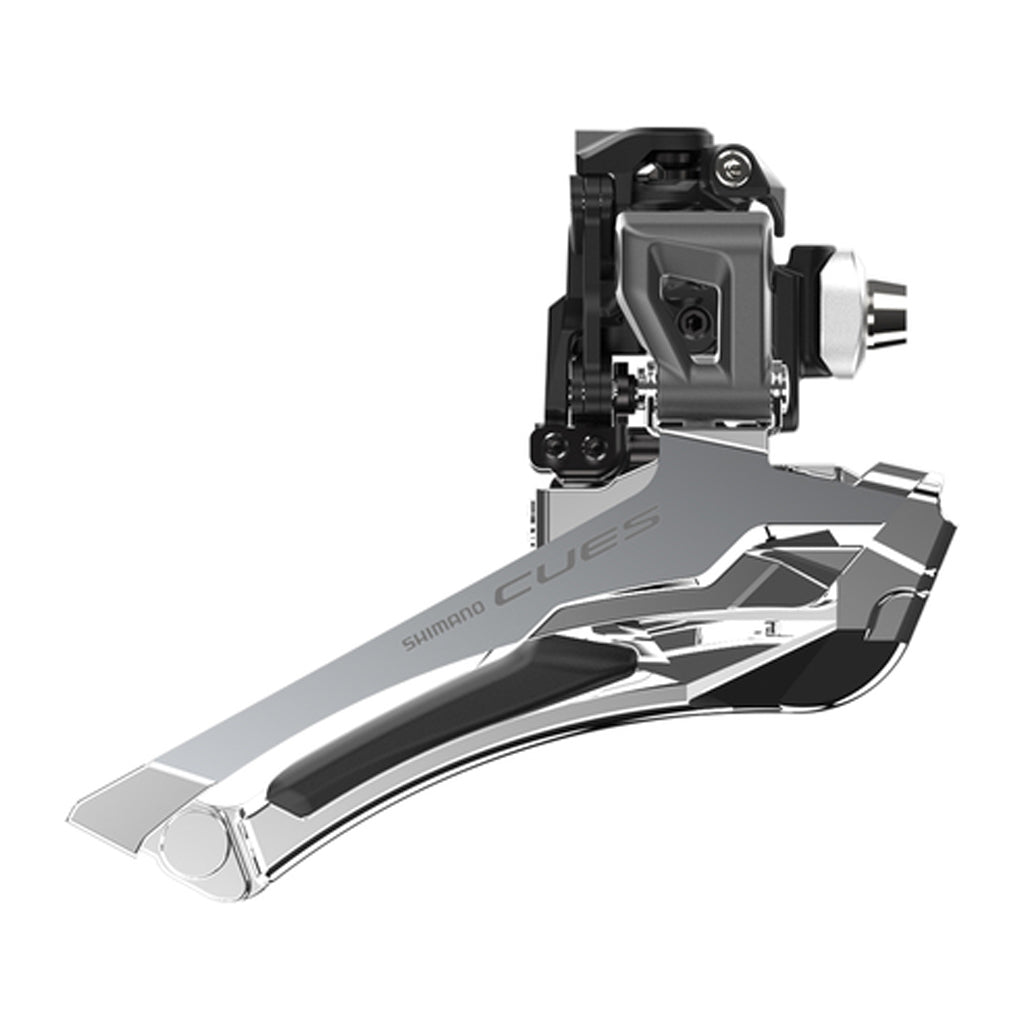

Product Code: EFDU6030F (Brazed-On)
Model No: FD-U6030
