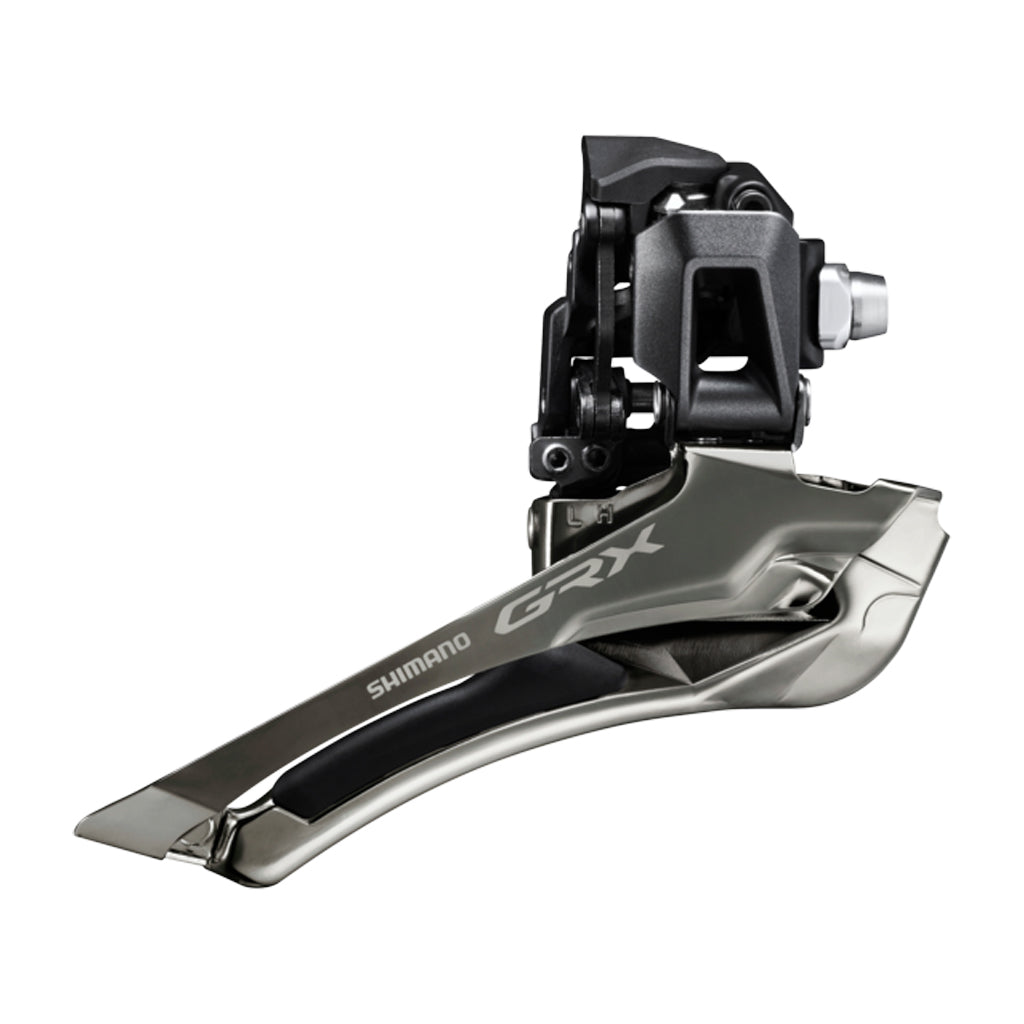

Shimano FD-RX820-F GRX 12-Speed Braze-On Front Derailleur

Lighter front shifting operation and easier setup for mixed-terrain riding

The SHIMANO GRX RX-820-F front derailleur offers lighter front shifting operation and easier setup thanks to its toggle link construction and integrated cable tensioner. Features include a 2.5 mm outboard chain line design that provides wider tire clearance for mixed-terrain riding, and it accommodates a 17T front chainring range for wider gearing options.

FEATURES

• Lighter front shifting
• Smooth and natural shift action
• Toggle link construction
• Wider tire clearance
• Chain line +2.5 mm vs. conventional road front derailleur
• Wider range front gearing
• 17T range
• Precise and easy front derailleur adjustment
• Routing options include bare shift cable and integrated cable housing stop
• Integrated cable tension adjustment

SPECIFICATIONS
Cage Length: One-Spec
Total Capacity: 42T
Max Front Difference: 17T
Colour: Series Colour
Average Weight: 270g
Mount: Direct attachment (conventional)
Number Of Pulley Teeth: 11/13T
Max Low Sprocket: 36T
Min Low Sprocket: 34T
Rear Speeds: 12

SKUs
Product Code: IFDRX820F
Model No: FD-RX820
