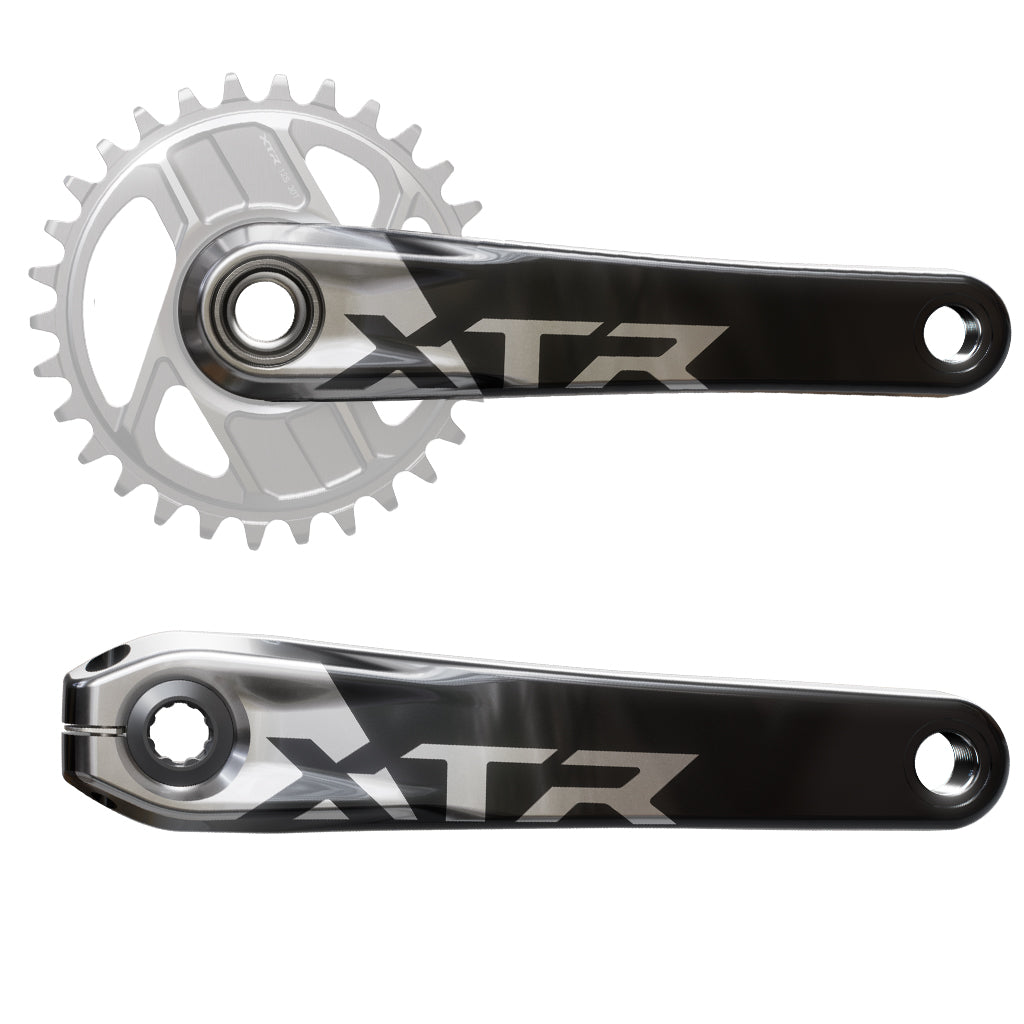

Built for the rigors of the Enduro World Series racing, FC-M9220 is the strongest XTR crankset ever produced. HOLLOWTECH II forging and a thicker steel spindle ensure this crank survives the burliest of impacts while optimizing rigidity and weight. Offered in lengths from 160-175 mm and with all sizes of the reinforced SM-CR96 direct-mount chainring, there is a specification of FC-M9220 for every enduro rider.

FEATURES

• Hollowtech 2 forged construction balances, weight, strength, and weight
• M9220 is built for the rigours of enduro riding
• 19.7% thicker spindle for improved durability


SPECIFICATIONS
Crank Arm Lengths: 160mm, 165mm, 170mm, 175mm
Number of speeds: 12
Compatible Chain: HG 12-speed
Chainring combination: 28T, 30T, 32T, 34T
Chain line: 55mm
O.L.D: 148mm
P.C.D.: Direct Mount
Q-factor: 176mm
Compatible Bottom Bracket: Outboard
Recommended Threaded Bottom Bracket: SM-BB93
Recommended Press-Fit Bottom Bracket: SM-BB94-41A
Thread Bottome Bracket Shell Width: 68/73mm

SKUs
Product Codes:
160mm: IFCM9220AMXX
165mm: IFCM9220AAXX
170mm: IFCM9220ACXX
175mm: IFCM9220AEXX
Model No: FC-M9220
