DESCRIPTION

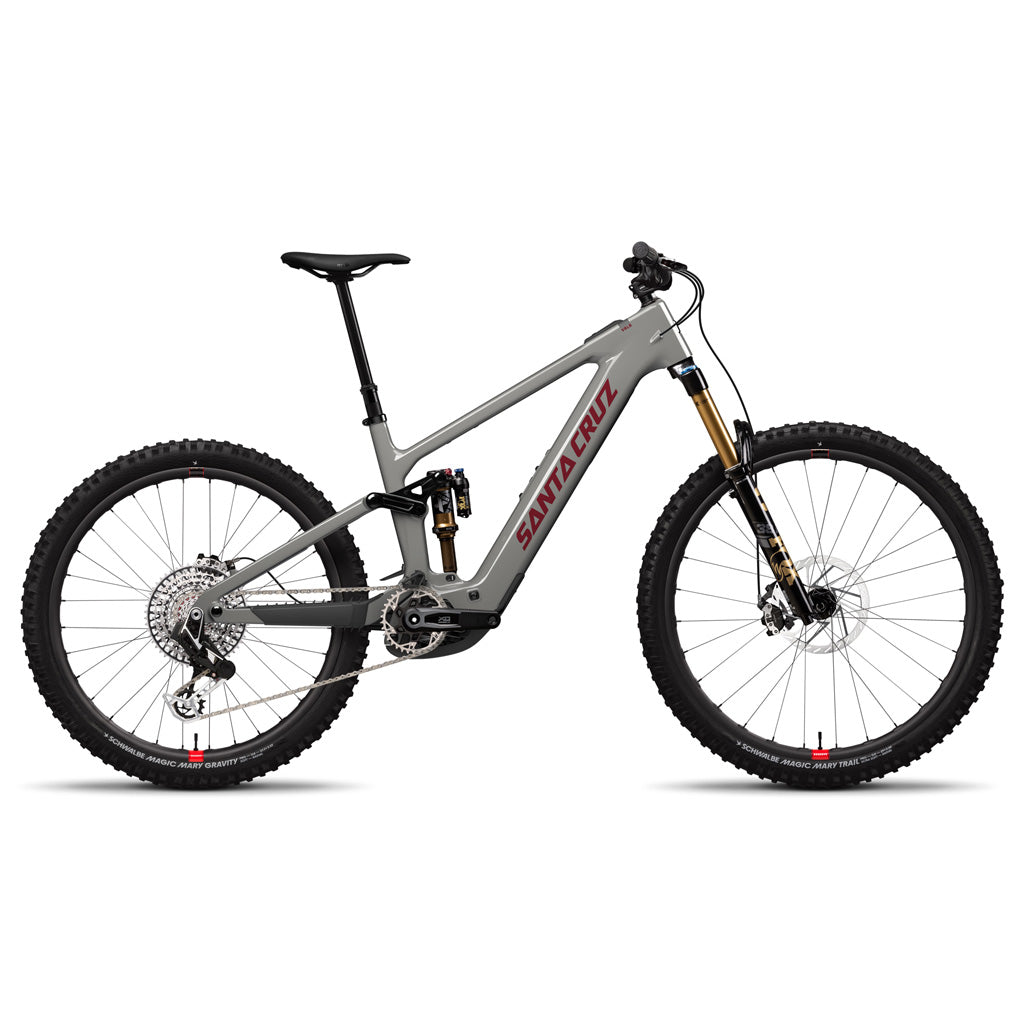

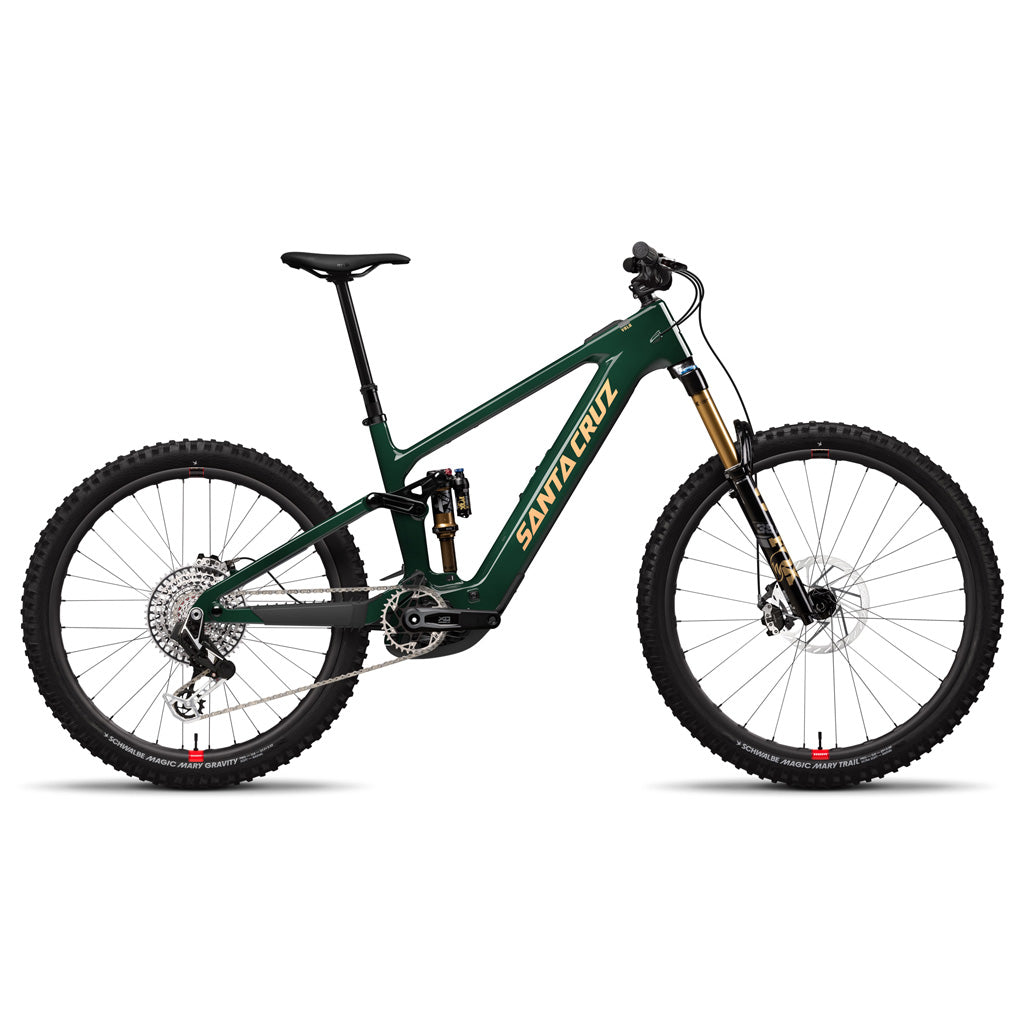

The Vala is Santa Cruz's latest full-power e-bike featuring 150mm rear/160mm front travel, Bosch's new Performance Line CX motor, a 600Wh battery, and MX wheels to keep it playful. It boasts a 4-bar suspension design that allowed Santa Cruz to dial in the kinematics and geometry for top tier handling and stability.
Specifications
Frame
Carbon CC MX 150mm Travel, 4-Bar
Rear Shock
FOX Float X Factory, 205x60
Fork
FOX 38 Factory, Grip X2, 160mm
Rear Derailleur
SRAM XX Eagle AXS T-Type, 12spd
Shifter
SRAM AXS Pod Controller Rocker Paddle
Cassette
SRAM XX Eagle T-Type, 10-52t
Chain
SRAM XX Eagle T-Type, Flattop, 12spd
Headset
Chris King DropSet 3 Integrated Headset
Rear Tire
Schwalbe Magic Mary, 27.5x2.5, Gravity Radial Soft
Front Tire
Schwalbe Magic Mary, 29x2.5, Trail Radial Ultra Soft
Front Hub
Industry Nine Hydra, 15x110, 6-Bolt 28h
Front Rim
Reserve 30|HD Carbon
Rear Hub
Industry Nine Hydra, 12x148, XD, 6-Bolt, 32h
Rear Rim
Reserve 31|DH Carbon
Front Rotor
SRAM HS2 200mm
Rear Rotor
SRAM HS2 200mm
Brakes
SRAM Maven Ultimate Stealth
Crankset
SRAM X0 Eagle Cranks, 160mm
Handlebar
Santa Cruz 35 Carbon Bar, 800mm
Stem
Burgtec Enduro MK3 Machined, 42mm
Saddle
WTB Silverado Medium Fusion, Stainless
Seatpost
OneUp Dropper Post, 31.6
Grips/Bar Tape
Santa Cruz Bicycles House Grips
Battery
Bosch PowerTube Battery 600Wh
Drive Unit
Bosch Performance CX BDU38
*Specifications are subject to change without notice
Geometry
| S | M | L | XL | XXL | ||
|---|---|---|---|---|---|---|
| HI|LO | HI|LO | HI|LO | HI|LO | HI|LO | ||
| A | Reach | 435 | 432 | 460 | 456 | 480 | 477 | 500 | 497 | 525 | 522 |
| B | Stack | 623 | 626 | 632 | 636 | 641 | 644 | 655 | 657 | 668 | 671 |
| C | Head Tube Angle | 64.2 | 63.9 | 64.2 | 63.9 | 64.2 | 63.9 | 64.2 | 63.9 | 64.2 | 63.9 |
| D | Seat Tube Length | 380 | 380 | 400 | 400 | 420 | 420 | 460 | 460 | 500 | 500 |
| E | Front Center | 771 | 771 | 801 | 801 | 825 | 825 | 852 | 852 | 883 | 883 |
| F | Bottom Bracket Height | 344 | 340 | 344 | 340 | 344 | 340 | 344 | 340 | 344 | 340 |
| G | F/R Bottom Bracket Drop | 29/11 | 32/17 | 29/11 | 32/17 | 29/11 | 32/17 | 29/11 | 32/17 | 29/11 | 32/17 |
| H | Wheelbase | 1210 | 1211 | 1241 | 1242 | 1268 | 1269 | 1298 | 1298 | 1333 | 1334 |
| I | Rear Center | 439 | 440 | 440 | 441 | 443 | 444 | 446 | 447 | 450 | 451 |
| J | Head Tube Length | 110 | 110 | 120 | 120 | 130 | 130 | 150 | 150 | 160 | 160 |
| K | Top Tube Length | 573 | 574 | 601 | 602 | 622 | 623 | 645 | 646 | 674 | 675 |
| L | Seat Tube Angle | 77.5 | 77.2 | 77.5 | 77.2 | 77.5 | 77.2 | 77.5 | 77.2 | 77.5 | 77.2 |
| M | Standover Height | 741 | 736 | 735 | 730 | 735 | 730 | 734 | 730 | 728 | 723 |
*All measurements in degrees or millimetres
Sizing
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| S | 5'1" - 5'5" | 155 - 165cm |
| M | 5'5" - 5'9" | 165 - 175cm |
| L | 5'9 - 6'1" | 175 - 185cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
| XXL | 6'4" - 6'7" | 193 - 201cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
