Name: Santa Cruz Tallboy 5 C 29 GX AXS
Brand: Santa Cruz
SKU: 210000066709
Price: 7298.99 CAD
Availability: OutOfStock

$9,099.99 CAD $7,279.99 CAD Save $1,820.00 CAD

The Santa Cruz Tallboy takes downcountry to the next level with 120mm of travel, a FOX 34 Float Performance fork, and Performance Elite shock. SRAM GX Eagle AXS T-Type wireless shifting and 29" wheels make it the perfect bike for rowdy XC laps.

Shipping Canada Wide

{"id":45324185960755,"title":"Gloss White \/ XL","option1":"Gloss White","option2":"XL","option3":null,"sku":"210000066709","requires_shipping":true,"taxable":true,"featured_image":{"id":41730828468531,"product_id":8330339025203,"position":2,"created_at":"2023-07-06T19:54:00-07:00","updated_at":"2023-07-06T19:54:01-07:00","alt":null,"width":1024,"height":1024,"src":"\/\/steedcycles.com\/cdn\/shop\/files\/SantaCruzTallboy5C29GXAXS.jpg?v=1688698441","variant_ids":[45324185698611,45324185764147,45324185829683,45324185895219,45324185960755,45324186026291]},"available":true,"name":"Santa Cruz Tallboy 5 C 29 GX AXS - Gloss White \/ XL","public_title":"Gloss White \/ XL","options":["Gloss White","XL"],"price":727999,"weight":50000,"compare_at_price":909999,"inventory_management":"shopify","barcode":"192219344447","featured_media":{"alt":null,"id":34104693063987,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1024,"width":1024,"src":"\/\/steedcycles.com\/cdn\/shop\/files\/SantaCruzTallboy5C29GXAXS.jpg?v=1688698441"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

EMAIL: sales@steedcycles.com

PHONE: 604-987-2168

Description
Specifications
Geometry
Sizing

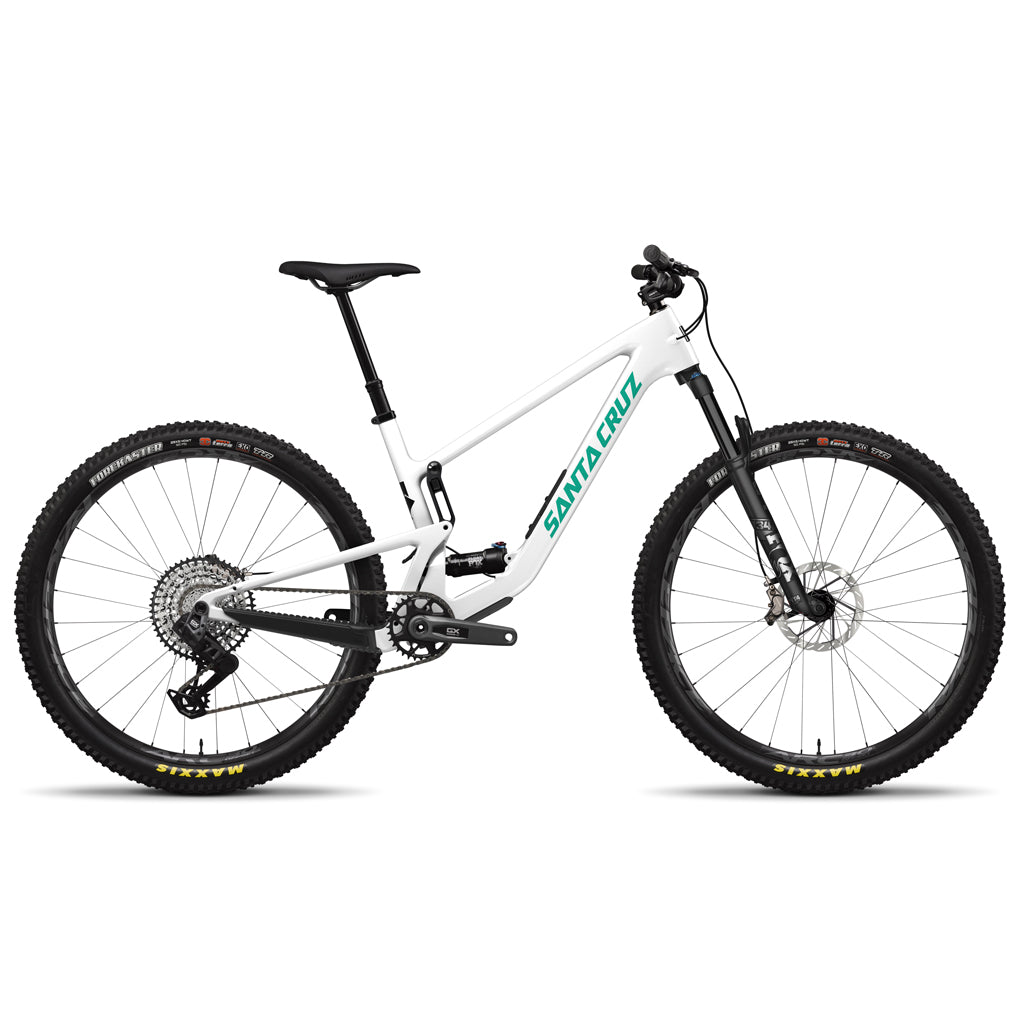

Santa Cruz Tallboy 5 C 29 GX AXS

The Santa Cruz Tallboy is the perfect blend of cross-country efficiency and downhill capability, making it the ideal choice for riders who demand versatility. With a 120mm VPP™ rear travel and a 130mm fork, the Tallboy offers a snappy, responsive ride that excels on both long climbs and technical descents. Its refined suspension system, featuring a reduced progression and a lower peak anti-squat, enhances both small bump sensitivity and big hit compliance, providing a smoother and more controlled experience. The proportional geometry adjusts the frame's design based on size, ensuring each rider benefits from optimal handling and comfort.

Built to withstand the rigors of aggressive riding, the Tallboy's C and CC carbon frames are lightweight yet robust, perfect for everything from all-day epics to "power hour" laps. With thoughtful features like the Glovebox™ for storing essentials and a progressive leverage curve for predictable support, the Tallboy delivers a unique combination of agility and stability. Santa Cruz backs the Tallboy with a lifetime warranty on frames and bearings, supported by a team of real riders who know what it takes to keep your bike on the trail.

Specifications

FrameCarbon C 29" 120mm Travel VPP™

Rear ShockFOX Float Performance Elite, 190x45

ForkFOX 34 Float Performance Elite, 130mm or RockShox Pike Select+

Rear DerailleurSRAM GX Eagle AXS T-Type, 12spd

ShifterSRAM AXS Pod Bridge

CassetteSRAM GX Eagle T-Type, 10-52t

ChainSRAM GX Eagle T-Type, Flattop, 12spd

Bottom BracketSRAM DUB 73mm MTB Wide BB

HeadsetCane Creek 40 IS Integrated Headset

Rear TireMaxxis Forekaster 29"x2.4", 3C, MaxxTerra, EXO

Front TireMaxxis Forekaster 29"x2.4", 3C, MaxxTerra, EXO

Front HubDT Swiss 370, 15x110, 6-Bolt, 28h

Front RimRaceFace ARC Offset 30 29"

Rear HubDT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h

Rear RimRaceFace ARC Offset 30 29"

Front RotorSRAM HS2 180mm

Rear RotorSRAM HS2 180mm

BrakesSRAM Level Bronze Stealth 4-Piston

CranksetSRAM GX Eagle DUB T-Type Crankset, 32t

HandlebarSanta Cruz 35 Carbon Bar, 800mm

StemBurgtec Enduro MK3, 42mm

SaddleWTB Silverado Medium, CroMo

SeatpostOneUp V2 Dropper Post, 31.6 or RockShox Reverb, 31.6 or Fox Transfer, 31.6

Grips/Bar TapeSanta Cruz Bicycles House Grips

*Specifications are subject to change without notice

Geometry

		XS	S	M	L	XL	XXL
		hi \| lo	hi \| lo	hi \| lo	hi \| lo	hi \| lo	hi \| lo
A	Reach	405 \| 403	430 \| 428	455 \| 453	475 \| 473	495 \| 493	520 \| 518
B	Stack	601 \| 603	610 \| 612	619 \| 621	628 \| 630	646 \| 648	656 \| 658
C	Head Tube Angle	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5
D	Seat Tube Length	370 \| 370	380 \| 380	405 \| 405	430 \| 430	460 \| 460	500 \| 500
E	Front Centre	708 \| 708	737 \| 737	766 \| 766	790 \| 790	818 \| 818	847 \| 847
F	Bottom Bracket Height	335 \| 332	335 \| 332	335 \| 332	335 \| 332	335 \| 332	335 \| 332
G	Bottom Bracket Drop	38 \| 41	38 \| 41	38 \| 41	38 \| 41	38 \| 41	38 \| 41
H	Wheelbase	1138 \| 1138	1167 \| 1167	1199 \| 1199	1227 \| 1227	1257 \| 1258	1290 \| 1291
I	Rear Centre	430 \| 431	430 \| 431	433 \| 434	437 \| 438	439 \| 440	443 \| 444
J	Head Tube Length	95 \| 95	105 \| 105	115 \| 115	125 \| 125	145 \| 145	160 \| 160
K	Top Tube Length	555 \| 556	579 \| 580	602 \| 603	622 \| 623	644 \| 645	671 \| 671
L	Seat Tube Angle	76 \| 75.7	76.3 \| 76	76.7 \| 76.4	76.8 \| 76.6	77 \| 76.8	77.1 \| 76.8
M	Standover Height	680 \| 676	693 \| 691	696 \| 693	698 \| 695	698 \| 695	701 \| 698
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Start a chat with our team

Size	Height
	Imperial	Metric
XS	4'8" - 5'1"	142 - 155cm
S	5'1" - 5'5"	155 - 165cm
M	5'5" - 5'9"	165 - 175cm
L	5'9 - 6'1"	175 - 185cm
XL	6'1" - 6'4"	185 - 193cm
XXL	6'4" - 6'7"	193 - 201cm

		XS	S	M	L	XL	XXL
		hi \| lo	hi \| lo	hi \| lo	hi \| lo	hi \| lo	hi \| lo
A	Reach	405 \| 403	430 \| 428	455 \| 453	475 \| 473	495 \| 493	520 \| 518
B	Stack	601 \| 603	610 \| 612	619 \| 621	628 \| 630	646 \| 648	656 \| 658
C	Head Tube Angle	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5	65.7 \| 65.5
D	Seat Tube Length	370 \| 370	380 \| 380	405 \| 405	430 \| 430	460 \| 460	500 \| 500
E	Front Centre	708 \| 708	737 \| 737	766 \| 766	790 \| 790	818 \| 818	847 \| 847
F	Bottom Bracket Height	335 \| 332	335 \| 332	335 \| 332	335 \| 332	335 \| 332	335 \| 332
G	Bottom Bracket Drop	38 \| 41	38 \| 41	38 \| 41	38 \| 41	38 \| 41	38 \| 41
H	Wheelbase	1138 \| 1138	1167 \| 1167	1199 \| 1199	1227 \| 1227	1257 \| 1258	1290 \| 1291
I	Rear Centre	430 \| 431	430 \| 431	433 \| 434	437 \| 438	439 \| 440	443 \| 444
J	Head Tube Length	95 \| 95	105 \| 105	115 \| 115	125 \| 125	145 \| 145	160 \| 160
K	Top Tube Length	555 \| 556	579 \| 580	602 \| 603	622 \| 623	644 \| 645	671 \| 671
L	Seat Tube Angle	76 \| 75.7	76.3 \| 76	76.7 \| 76.4	76.8 \| 76.6	77 \| 76.8	77.1 \| 76.8
M	Standover Height	680 \| 676	693 \| 691	696 \| 693	698 \| 695	698 \| 695	701 \| 698
All measurements in degrees or millimetres
