DESCRIPTION
Fast, Light, Or Powerful - Choose All Three

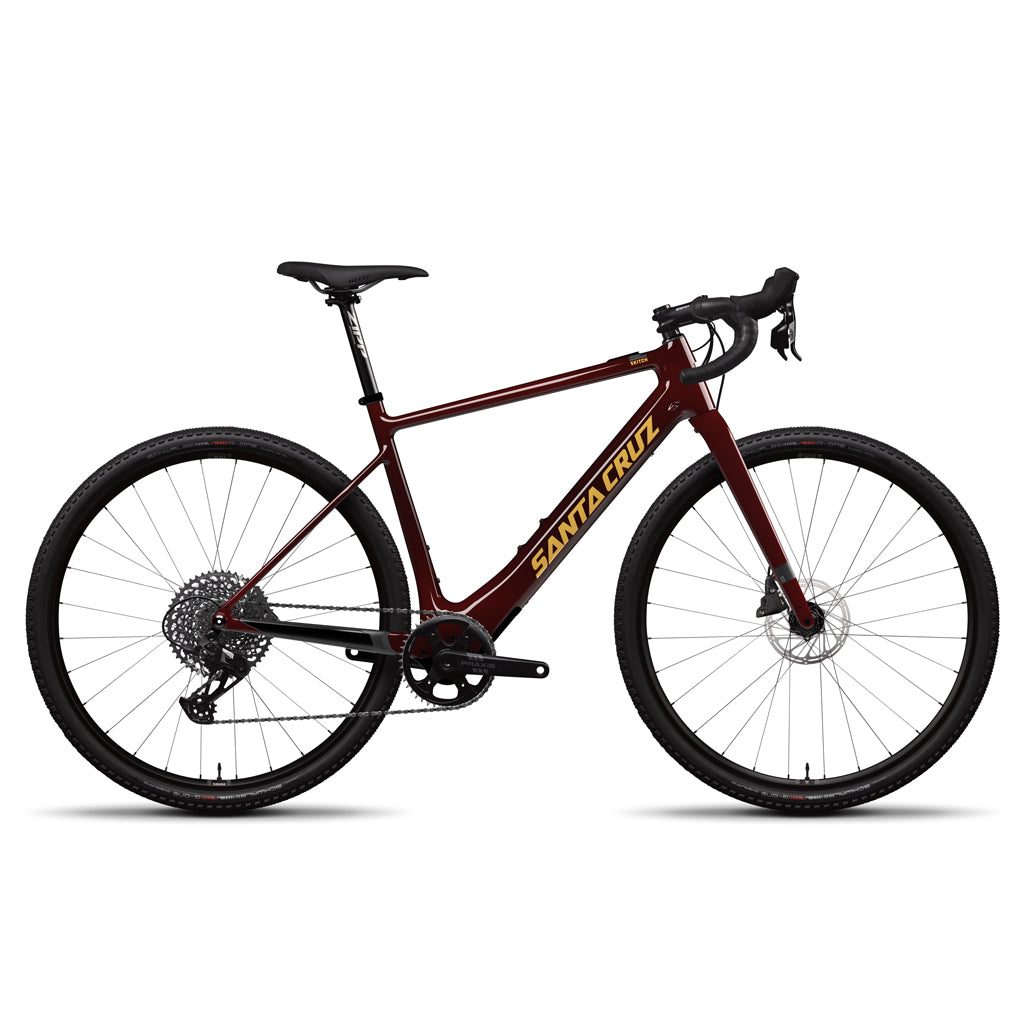

The Skitch is the ultimate city-slicking, traffic-flicking, alleycat-slipping, rat race-escaping teleportation device. The powerful and light motor gives you a nudge to spend less time behind a glass windscreen and more time with your knees in the breeze. You’ll look for even more excuses to get on your bike because even a city commute can be as much fun as bike park laps.
- 30lb complete weight
- 100+ kilometer range
- 60 Nm of torque
- Maximum speed of 32kph
- Customizable ride modes thanks to the Fazua app
Specifications
Frame
Carbon CC Gravel
Fork
CC Carbon, 12x100mm Thru-Axle
Battery
Fazua 430 Wh Integrated Battery
Drive Unit
Fazua Ride60
Rear Derailleur
SRAM Apex Eagle, 12spd
Shifter
SRAM NX Eagle, 12spd
Cassette
SRAM XG1275 Eagle, 12spd, 10-50t
Chain
SRAM SX Eagle, 12spd
Headset
Cane Creek 40 IS Integrated Headset
Rear Tire
Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Front Tire
Schwalbe G-One Overland Evo, 700x45c, ADDIX SpeedGrip
Front Hub
DT Swiss 370, 12x100, Centerlock, 28h
Front Rim
WTB ASYM i25 700c
Rear Hub
DT Swiss 370, 12x148, XD, Centerlock, 28h
Rear Rim
WTB ASYM i25 700c
Front Rotor
Avid Centerline, Centerlock, 160mm
Rear Rotor
Avid Centerline, Centerlock, 160mm
Brakes
SRAM S-300
Crankset
Praxis eTor AL
Handlebar
RaceFace Ride
Stem
RaceFace Ride, 80mm
Saddle
WTB Silverado Medium, CroMo
Seatpost
RaceFace Ride, 27.2
Grips/Bar Tape
ESI Chunky Grips
Charger
Fazua Charger
* Specifications are subject to change without notice
Geometry
| S | M | L | XL | XXL | |
|---|---|---|---|---|---|
| A | Reach | 390 | 405 | 420 | 435 | 450 |
| B | Stack | 563 | 579 | 596 | 610 | 630 |
| C | Head Tube Angle | 69° | 69° | 69° | 69° | 69° |
| D | Seat Tube Length | 455 | 485 | 515 | 545 | 575 |
| E | Front Center | 624 | 646 | 668 | 689 | 711 |
| F | BB Height | 279 | 281 | 281 | 283 | 283 |
| G | BB Drop | 78 | 76 | 76 | 74 | 74 |
| H | Wheelbase | 1047 | 1070 | 1092 | 1112 | 1135 |
| I | Rear Center | 430 | 430 | 430 | 430 | 430 |
| J | Head Tube Length | 105 | 125 | 145 | 160 | 180 |
| K | Seat Tube Angle | 74° | 74° | 74° | 74° | 74° |
| M | Standover | 728 | 753 | 778 | 804 | 830 |
Sizing
| Size | Height |
|---|---|
| S | 160 - 168cm |
| M | 168 - 178cm |
| L | 175 - 183cm |
| XL | 183 - 191cm |
| XXL | 191 - 198cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
