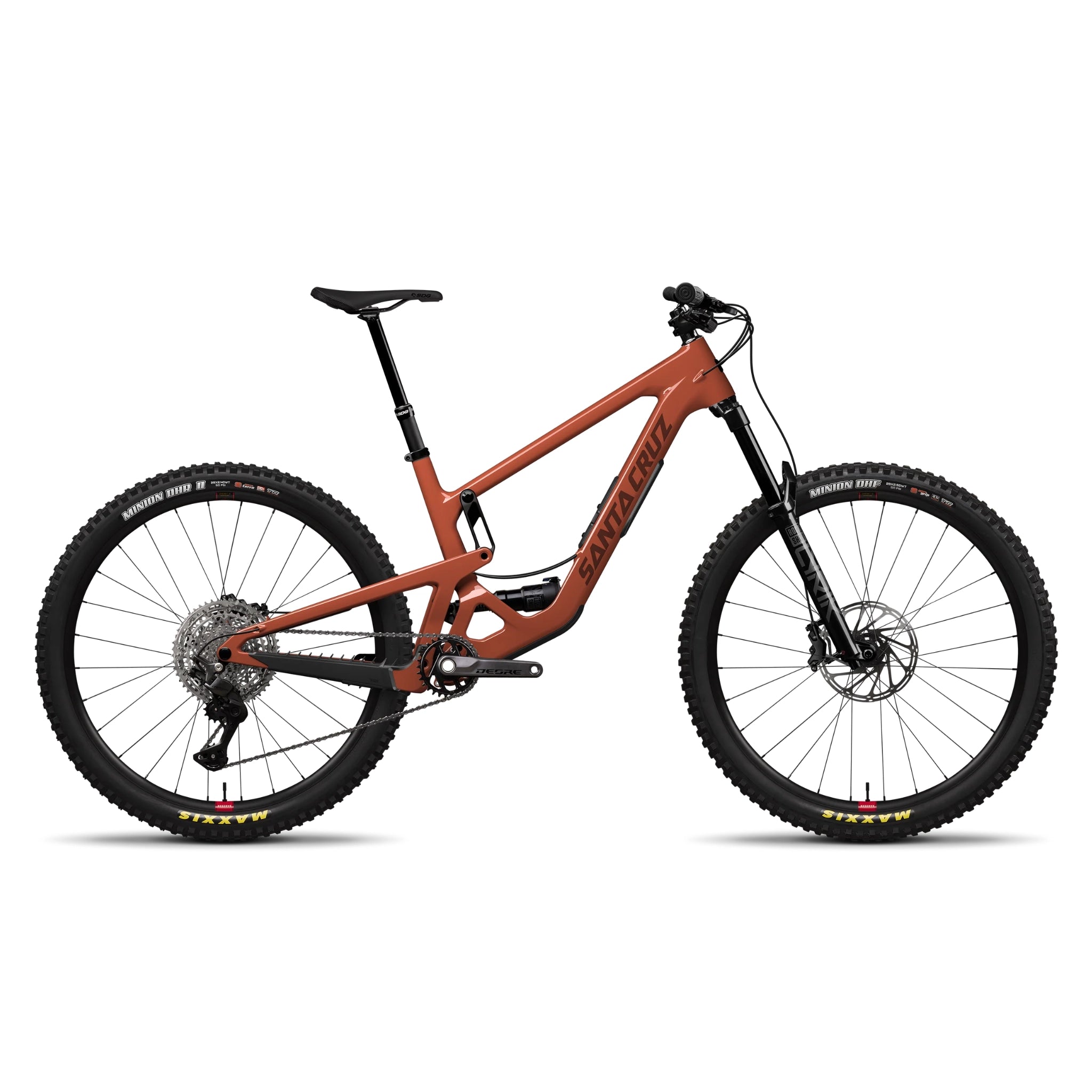

Santa Cruz Hightower 4 C Deore

$6,799.00

The Santa Cruz Hightower Deore pairs 150mm of smooth travel and rolls on 29" wheels combined with a Shimano Deore drivetrain so it’s ready for any trail.


210000126350
Colour
Quantity
Have a question?

If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.


Contact Us

Santa Cruz Hightower 4 C Deore

Santa Cruz Hightower 4 C Deore

$6,799.00

More Travel, More Brawn, Higher Power

Santa Cruz Hightower 4 C Deore

The Hightower 4 is the latest iteration of Santa Cruz's versatile trail bike, designed to tackle a wide range of terrains with enhanced capability. It features a 150mm rear and 160mm front suspension, offering more travel and improved performance compared to previous models. The Hightower's suspension layout has been reconfigured with a focus on reducing anti-squat, which provides a smoother and more efficient ride. Built with either CC or C carbon frames, it supports 29-inch wheels and comes in sizes from SM to XXL, catering to a wide range of riders. The design also includes modern amenities like internal cable routing and a “Glovebox” for secure storage of essentials.

The Hightower 4 is designed for riders seeking a do-it-all bike. With a slacker 64-degree head tube angle and a more robust suspension system, it provides confidence on descents while remaining nimble on climbs. Riders can choose between multiple kits, including SRAM AXS wireless drivetrains and various high-performance components. Its versatility, great reviews, and robust warranty make it ideal for those who want a reliable and capable mountain bike for diverse uses, from local trails to enduro racing.

Features

Specifications

Material Carbon C
Frame Carbon C 29" 150mm Travel VPP™
Travel 150mm
Weight 34.76 lbs / 15.77 kg
Wheel Size 29"
Fork RockShox Lyrik Base, 160mm
Shock RockShox Deluxe Select+, 230x57.5
Bottom Bracket Shimano MT501 68/73mm Threaded
Cassette Shimano Deore M6200, 10-51t
Chain Shimano Deore M6100, 12spd
Crankset Shimano Deore M6200, 32t S: 165mm; M-XXL: 170mm
Rear Derailleur Shimano Deore M7200, 12spd
Right Shifter Shimano Deore M6200, 12spd w/ Wolf Tooth Shiftmount Adapter for MM
Brakes SRAM DB8
Front Rotor SRAM Centerline, 200mm
Rear Rotor SRAM Centerline, 200mm
Grips / Bar Tape Santa Cruz Bicycles House Grips
Handlebars Burgtec Aluminum Bar, 35mm S: 760mm, 20mm Rise; M-XXL: 800mm, 30mm Rise
Headset FSA IS-2/47/42 ACB
Saddle SDG Bel-Air V3 Steel
Seatpost SDG Tellis Dropper, 31.6 S: 125mm; M: 150mm; L: 170mm; XL-XXL: 200mm
Stem Burgtec Enduro Stem All Sizes: 42mm -or- OneUp Enduro Stem All Sizes: 42mm
Front Rim Reserve 30|TR AL
Front Hub Shimano TC500, 15x110, 6-Bolt
Front Tire Maxxis Minion DHF 29"x2.5", 3C MaxxGrip, EXO
Rear Rim Reserve 30|TR AL
Rear Hub Shimano TC600, 12x148, MicroSpline, 6-Bolt
Rear Tire Maxxis Minion DHR II 29"x2.4", 3C MaxxTerra, EXO+
Valves Reserve Fillmore Valves

*Specifications are subject to change without notice

Geometry

S M L XL XXL
hi | lo hi | lo hi | lo hi | lo hi | lo
A Reach 435 | 432 460 | 458 480 | 478 500 | 498 525 | 523
B Stack 623 | 634 641 | 643 634 | 636 659 | 661 668 | 670
C Head Tube Angle 64.2° | 63.9° 64.2° | 63.9° 64.2° | 63.9° 64.2° | 63.9° 64.2° | 63.9°
D Seat Tube Length 380 405 430 460 500
E Front Center 742 | 771 801 | 801 825 | 825 854 | 854 883 | 883
F Bottom Bracket Height 344/ | 341 344/ | 341 344/ | 341 344/ | 341 344/ | 341
G Bottom Bracket Drop 29 | 32 29 | 32 29 | 32 29 | 32 29 | 32
H Wheelbase 1176 | 1206 1237 | 1238 1265 | 1265 1296 | 1297 1329 | 1329
I Rear Center 434 | 435 436 | 437 439 | 440 442 | 443 445 | 446
J Head Tube Length 110 120 130 150 160
K Top Tube Length 572 | 573 596 | 596 614 | 615 637 | 638 663 | 664
L Seat Tube Angle 77.6° | 77.3° 77.9° | 77.6° 78.2° | 77.9° 78.3° | 78.0° 78.4° | 78.1°
M Standover Height 722 | 714 723 | 719 726 | 722 727 | 723 731 | 727
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
S 5'1"-5'5" 155 - 165cm
M 5'5"-5'9" 165 - 175cm
L 5'9-6'1" 175 - 185cm
XL 6'1"-6'4" 185 - 193cm
XXL 6'4" - 6'7" 193 - 201cm
