Salsa Confluence Cues 10
Shipping Canada Wide
Salsa Confluence Cues 10
$4,349.00

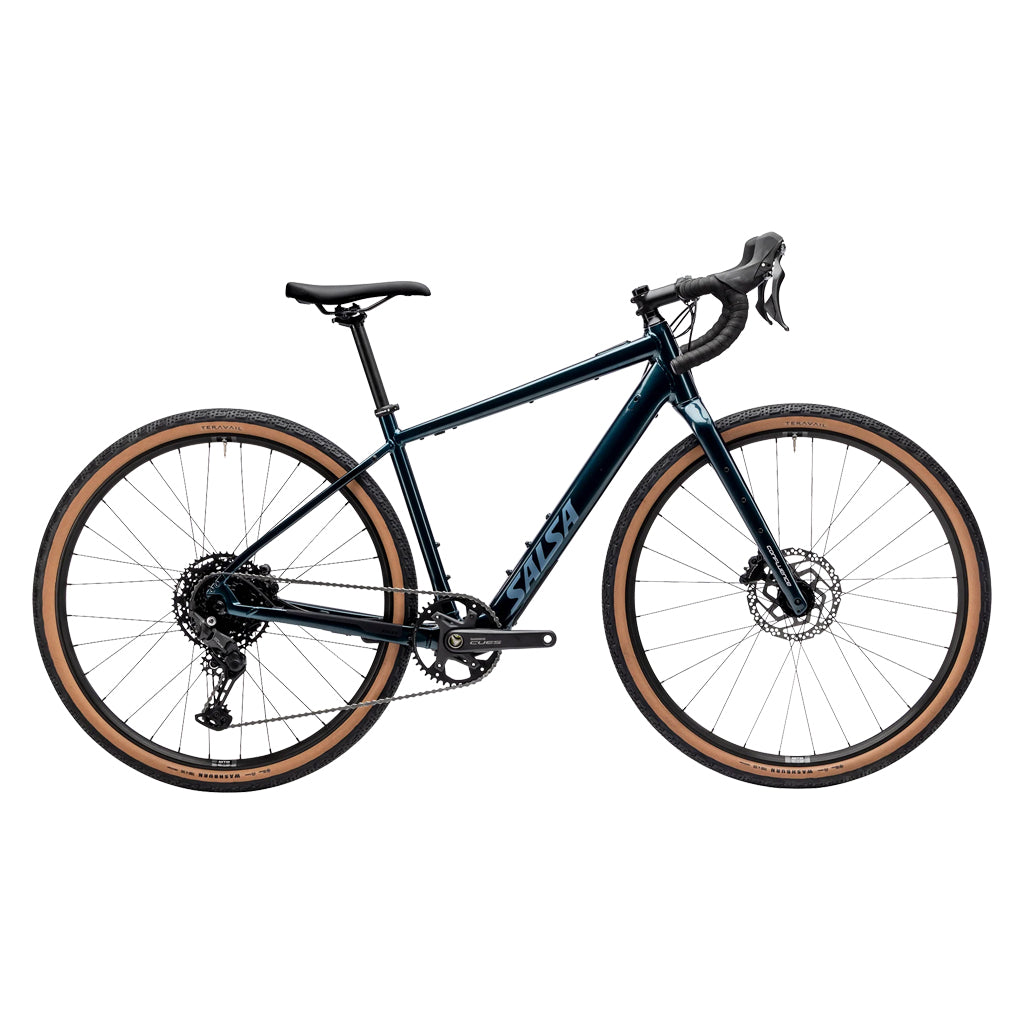

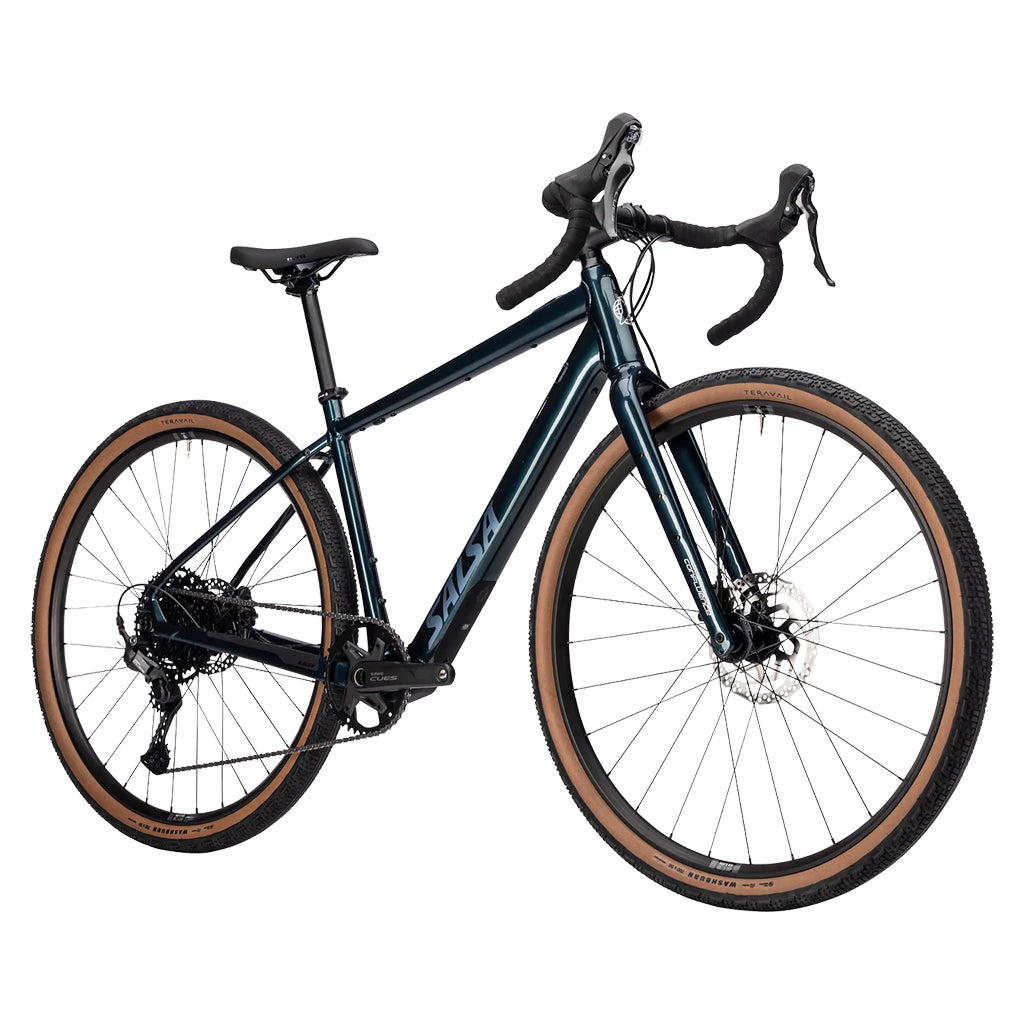

Can’t get enough gravel? Confluence Drop Bar CUES 10 gets it. Our light gravel ebike enables more rides, more miles, and more fun on a wide range of terrain. It starts with a MAHLE X30 hub-drive motor that’s lightweight and discreet, yet packs 45Nm of torque - think of it as a tailwind everywhere you go. Confluence’s geometry keeps you comfortable and stable on all those extra miles at higher speeds. And it’s equipped with all the mounts for supplying bigger rides or if you want to take the long, gravel-strewn route to work.
210000113169
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications
Frame Confluence 2.0
Colour Midnight Blue
Fork Confluence Carbon 2.0
Headset FSA
Seatpost Promax 12mm setback
Stem Salsa Guide
Grips/Bar Tape Velo Cork
Saddle WTB Volt
Handlebar Salsa Cowbell
Rear Derailleur Shimano CUES U6000
Cassette Shimano CUES LG300, 11–50t, 10-speed
Chain Shimano LG500

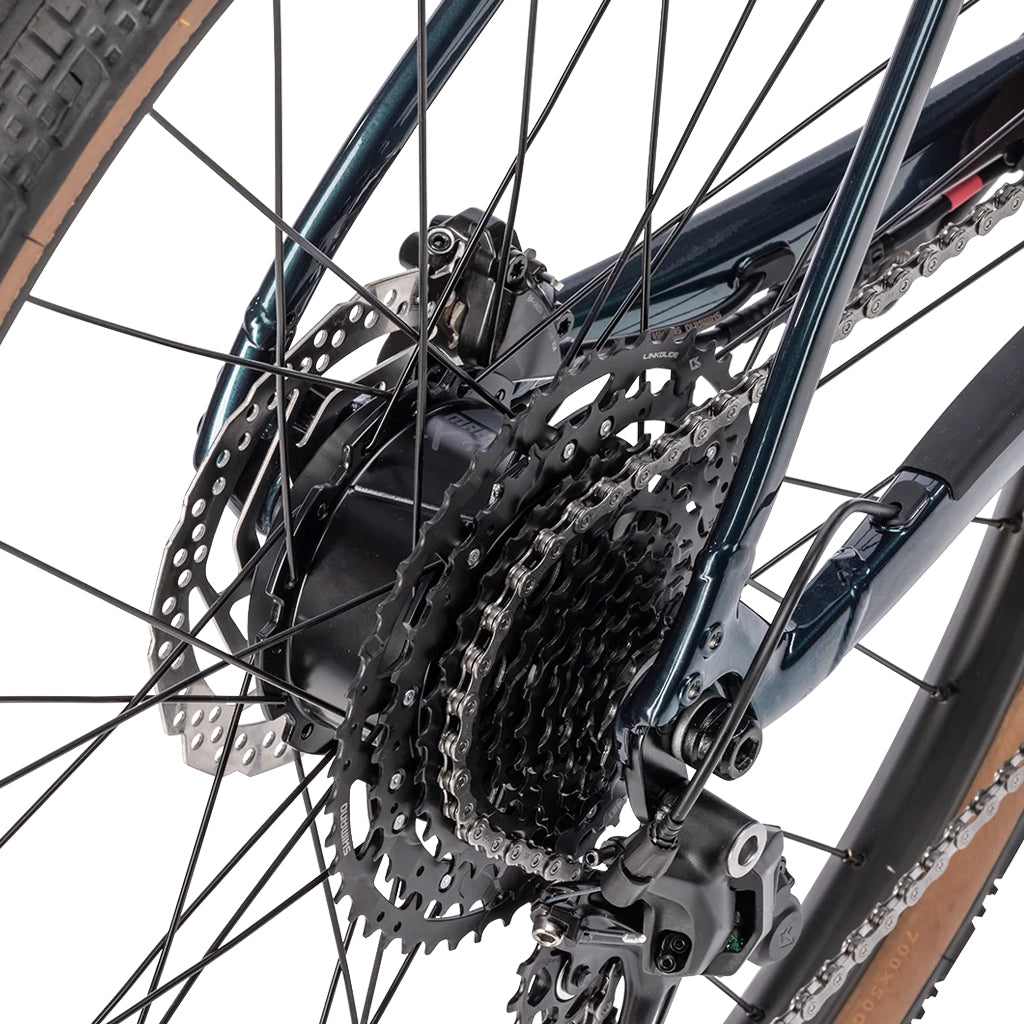

Drive Unit MAHLE X30
Drive Type Hub Drive
Assist Levels Three
Ebike Classification Class 1
Max Assist Speed 20 mph / 32 km/h
Max Torque 45Nm
Max Motor Assist 250W
Battery Capacity Watt Hours 237Wh
Battery Type Li-ion
Removable Battery No
Estimated Charge Time 3.5 Hours
Throttle No
Walk Assist Yes
Crankset Shimano GRX RX600
Shifter Shimano CUES U6030
Brake Levers Shimano CUES U6030
Brake Calipers Shimano CUES U6030
Rotors Shimano RT26 (6-bolt, 180mm front, 160mm rear)
Rims WTB ST i25
Tires Teravail Washburn 700c x 50mm
*Specifications are subject to change without notice
Geometry
| 49 | 51 | 53 | 55 | 59 | |||
|---|---|---|---|---|---|---|---|
| A | Reach | 366 | 370 | 373 | 377 | 388 | |
| B | Stack | 510 | 524 | 548 | 566 | 594 | |
| C | Head Tube Angle | 68.5 | 68.5 | 68.5 | 68.5 | 68.5 | |
| D | Bottom Bracket Drop | 70 | 70 | 70 | 70 | 70 | |
| E | Wheelbase | 1027 | 1037 | 1049 | 1061 | 1083 | |
| F | Chainstay Length | 440 | 440 | 440 | 440 | 440 | |
| G | Head Tube Length | 90 | 105 | 130 | 150 | 180 | |
| H | Top Tube Length | 493 | 510 | 530 | 550 | 570 | |
| I | Seat Tube Angle | 76.0 | 75.0 | 74.0 | 73.0 | 73.0 | |
| M | Standover Height | 626 | 658 | 688 | 733 | 760 | |
| All measurements in degrees or millimetres | |||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| 49 | 4'8" - 4'11" | 142 - 150cm |
| 51 | 4'10" - 5'2" | 147 - 157cm |
| 53 | 5'1" - 5'6" | 155 - 168cm |
| 55 | 5'4" - 5'9" | 163 - 175cm |
| 57 | 5'7" - 6'0" | 170 - 183cm |
| 60 | 5'11" - 6'4" | 180 - 193cm |
