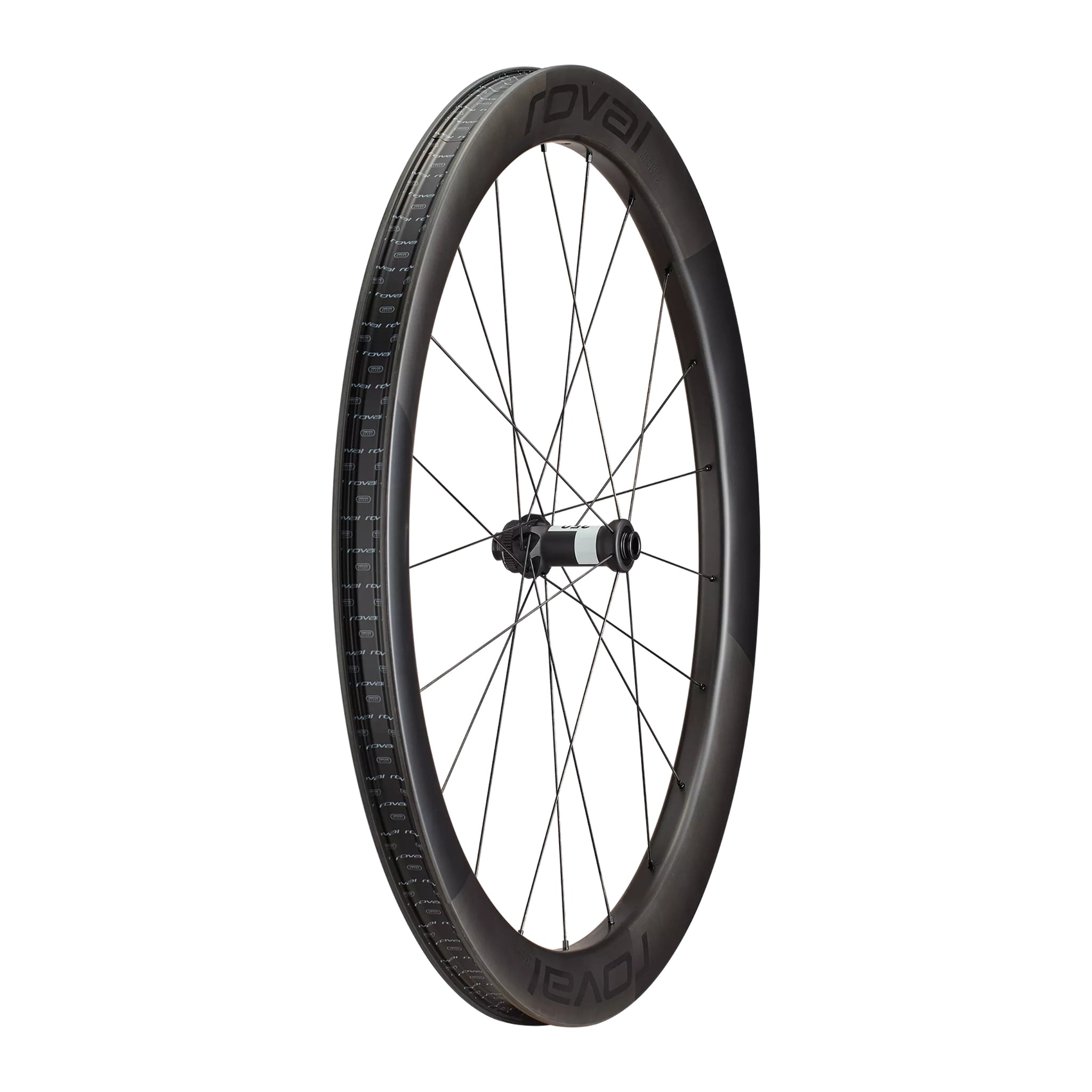

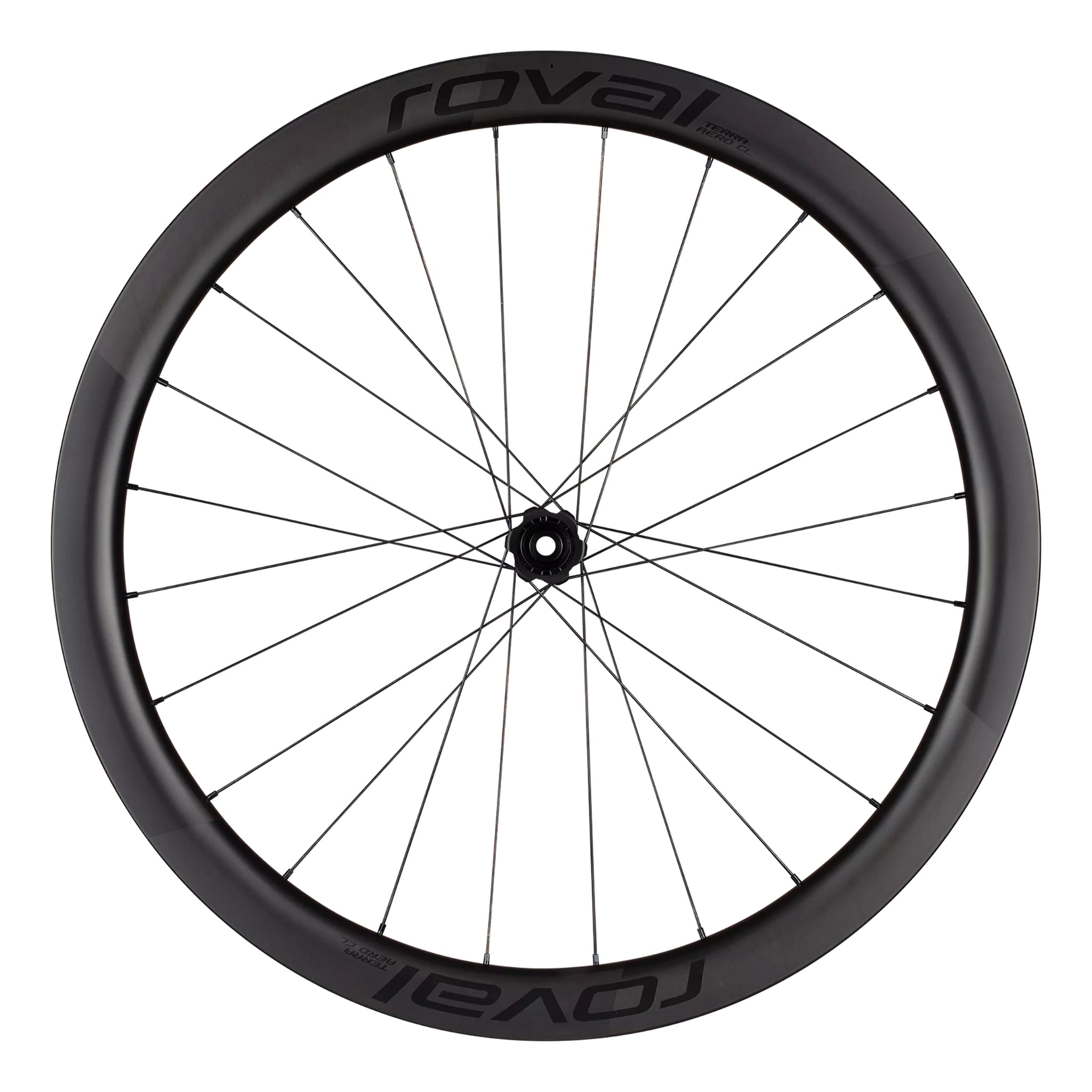

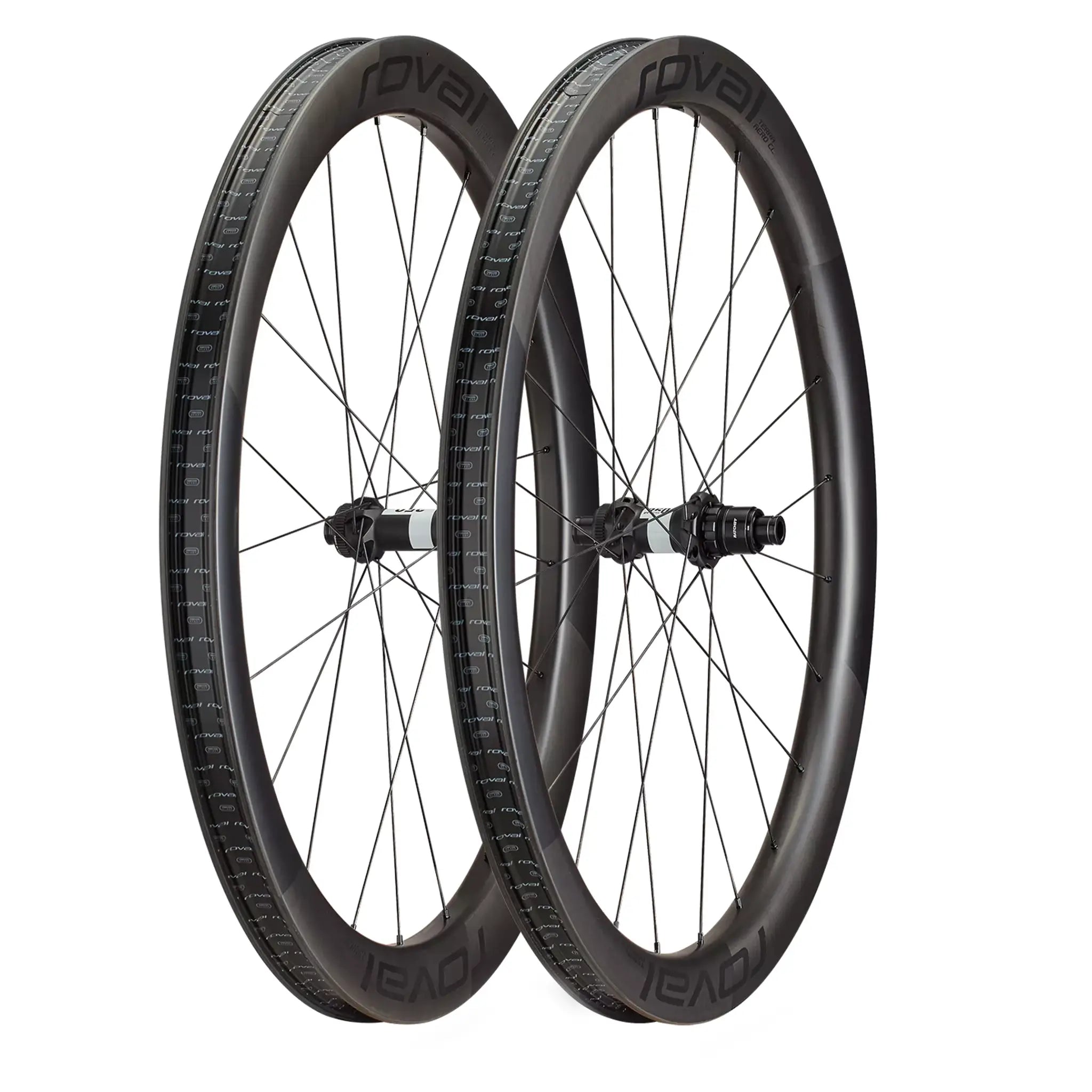

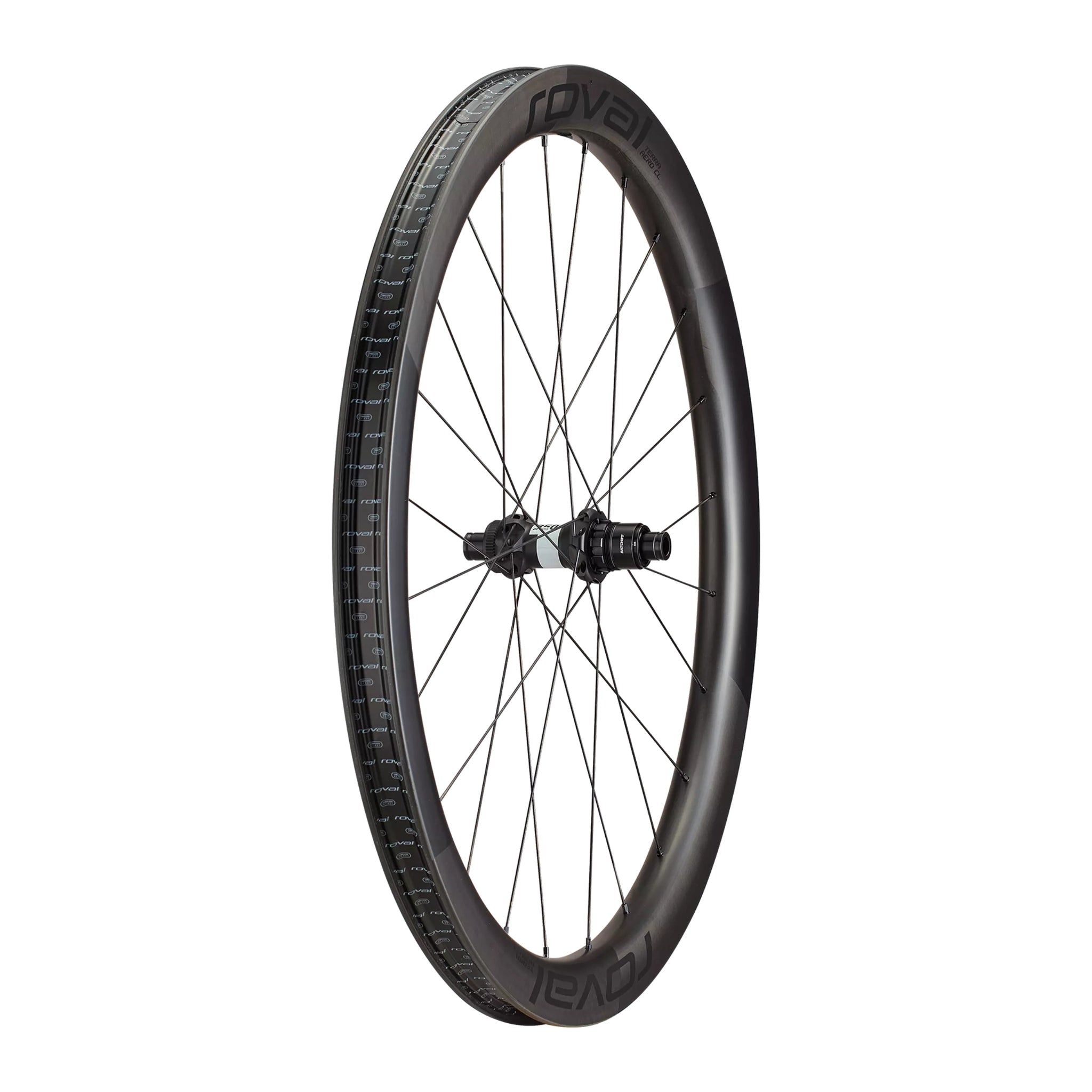

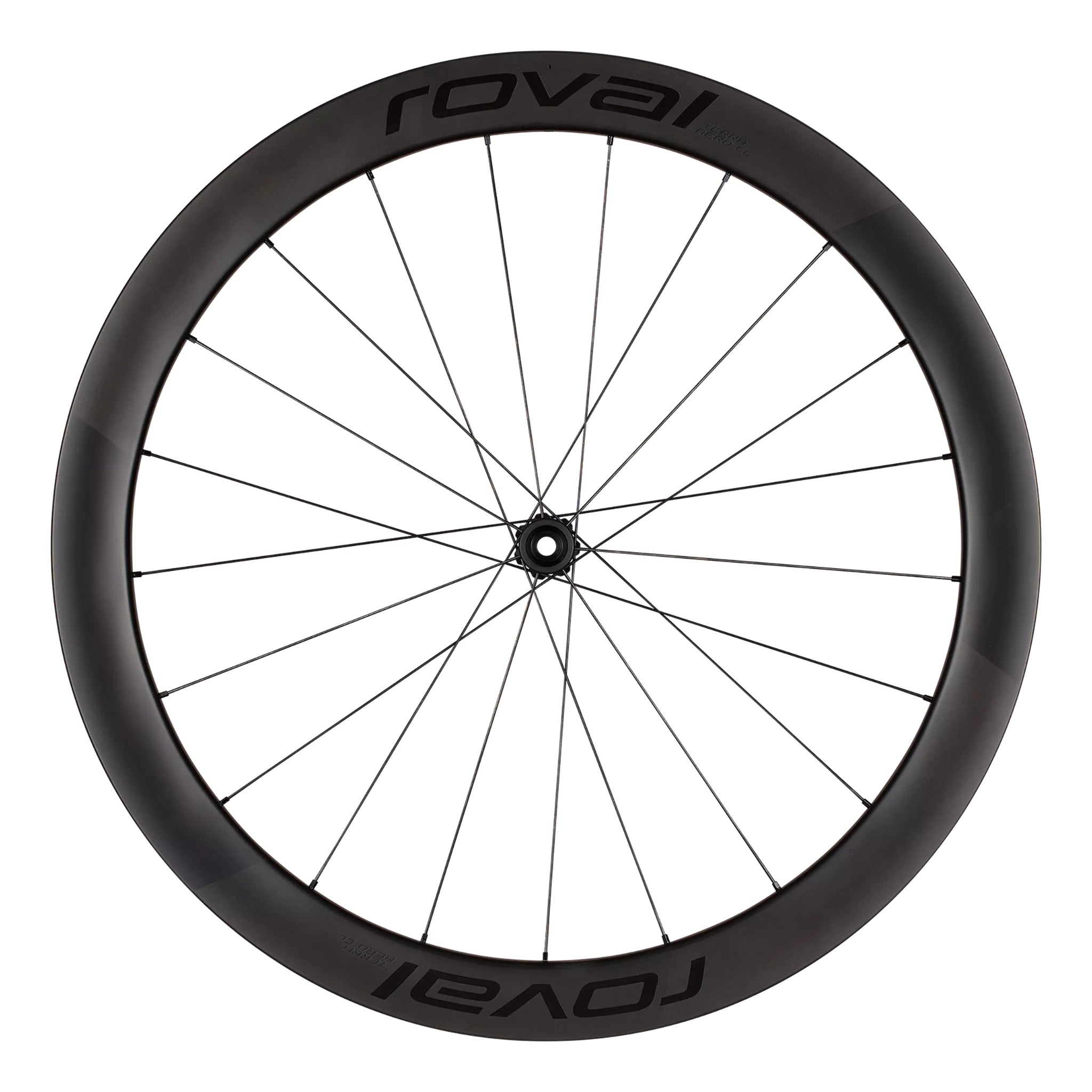

Featuring the same Chopped Aero Speed design as the Terra Aero CLX wheel set, the all new Terra Aero CL delivers the performance demanded by today’s best gravel racers, packaged for the everyday rider. The 5.38mm bead hook delivers FlatStop protection to keep you focused on what’s important—delivering your best no matter the terrain.
Features
Use: Gravel Racing and Riding
Weight: 1,608g with tape and valves
Rim Depth & Width: 50mm / 45mm F/R depth, 38.5mm external width
Bead Hook Width: 5.38mm
Hub & Engagement: DT Swiss 350, 36T
Tire Recommendation: Tracer TLR - 45mm
Specifications
Wheel Size / ETRTO:
622 × 27 (700c)
Tubeless Compatibility:
Yes
Insert Compatibility:
Yes
Brake Compatibility:
Disc (Centerlock)
Rim Construction:
Carbon Clincher Hooked
Valve Stem Length:
Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)
Hole Count:
Front: 21H, Rear: 24H
Rear Rim:
Terra Aero CL Carbon Clincher, 700c (CR2477)
Rear Rim Dimensions:
Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm,
Bead Hook Width: 5.38mm
Front Rim:
Terra Aero CL Carbon Clincher, 700c (CR2478)
Front Rim Dimensions:
Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm,
Bead Hook Width: 5.38mm
Rear Hub:
DT Swiss 350 Straight Pull, Center Lock, 12x142mm
Rear Freehub Body:
DT Swiss Ratchet (36T): Sram XD-R
Rear Hub Bearing:
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7
mm)
Front Hub:
DT Swiss 350 Straight Pull, Center Lock, 12x100mm
Front Hub Bearing:
DT Swiss Stainless Steel - DS: 6902 (15 x 28 x 7 mm), NDS: 6902 (15 x 28 x 7
mm)
Nipples:
DT Swiss Hex Prolock Al 2.0x14mm
Rear Spokes:
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 24qty, (DS: 270mm, NDS:
274mm)
Rear Lacing Pattern:
One-Cross / Three-Cross (2:1), Not Tucked
Front Spokes:
DT Swiss Competition Race Straight Pull, 2.0x1.6mm: 21qty, (DS: 260mm, NDS:
273mm)
Front Lacing Pattern:
Two-Cross / Radial (2:1), Not Tucked
Tubeless Tape Width:
30mm
Tire Type:
Clincher Tubeless and Clincher Tube Type
Design Tire:
Tracer TLR 45mm
Approved Tire Widths :
35mm-60mm (2.2")
Max Pressure:
35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
Wheelset Weight:
1608g (with valves and tape)
Rear Weight:
838g (with valves and tape)
Front Weight:
770g (with valves and tape)
Warranty:
Limited Lifetime Warranty
Assembly Method:
Hand Built
Weight Limit:
275 lbs. / 125 kg.
Certifications:
ISO 5775-2, UCI Approved
E-bike Approved:
Yes, SL style systems or max 350W
Extras:
4 Extra Spokes and Nipples
