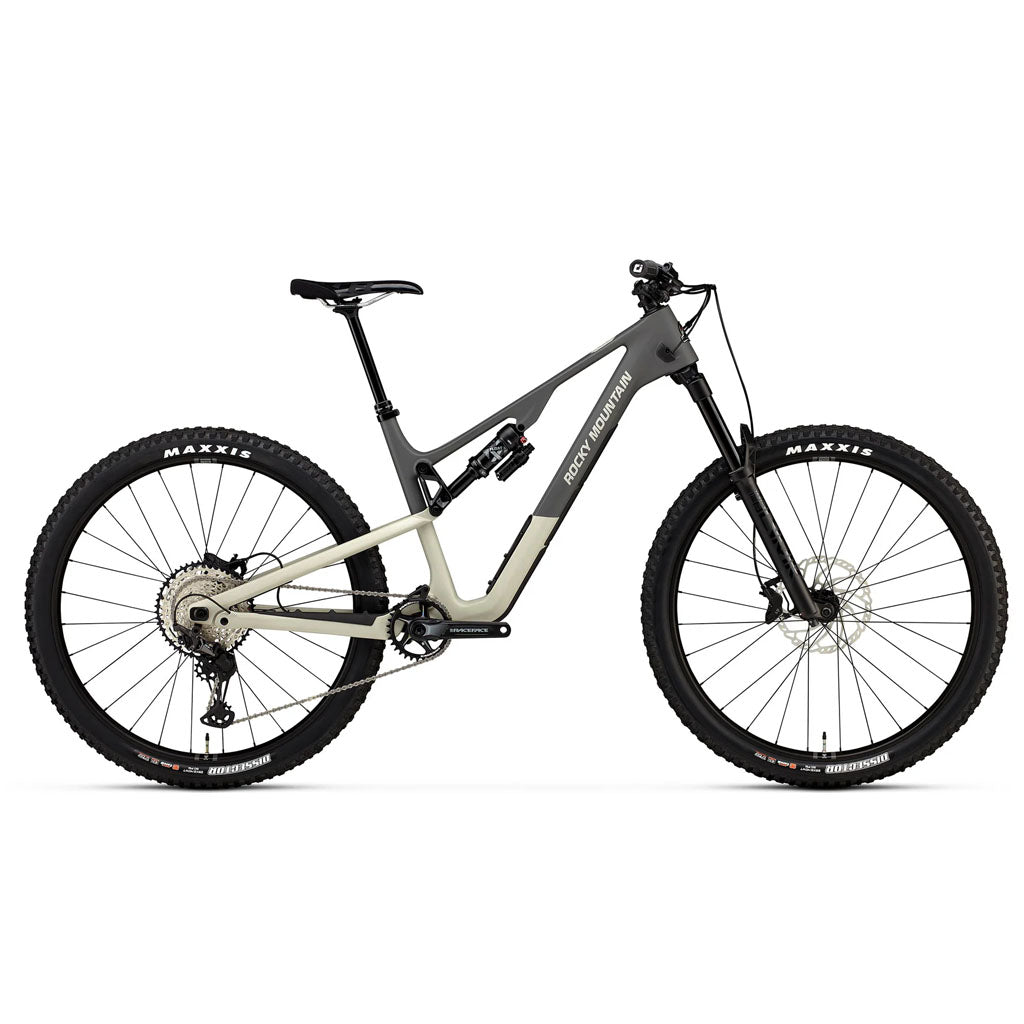

Rocky Mountain Instinct C50
210000084296
Regular price$6,999.99 CAD
/
- Shipping Canada Wide
- DESCRIPTION
- Specifications
- Geometry
- Sizing Guide
DESCRIPTION
In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Specifications
Frame
SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL™ Carbon Rear Triangle
Fork
RockShox Lyrik Select 150mm | Charger RC Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
Rear Shock
Fox Float X Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Headset
FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Handelbar
Rocky Mountain AM | 780mmWidth | 25mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp
Grips
ODI Elite Pro Lock On
Brakes
Shimano MT6120 4 Piston | Metal Pads
Shifters
Shimano XT
Rear Derailleur
Shimano XT
Cranks & Chainring
Race Face Aeffect Cinch | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Cassette
Shimano SLX 10-51T 12spd
Chain
Shimano M6100
Front Hub
Rocky Mountain SL Sealed Boost 15mm
Rear Hub
DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes
2.0 Stainless
Rims
WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl
Tires
Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready | Tubeless Set Up | Sealant Incl
Seatpost
X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
Saddle
WTB Volt Race 142 | Cromoly rails
*Specifications are subject to change without notice
Geometry
| XS - 27.5" | SM - 27.5" | SM | MD | LG | XL | ||
|---|---|---|---|---|---|---|---|
| Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | ||
| A | Reach | 398 | 408 | 423 | 433 | 423 | 437 | 449 | 458 | 474 | 483 | 504 | 513 |
| B | Stack | 585 | 582 | 594 | 591 | 612 | 611 | 621 | 623 | 640 | 634 | 649 | 645 | C | Head Tube Angle | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° |
| D | Bottom Bracket Drop | 27 | 15 | 27 | 15 | 44 | 32 | 44 | 32 | 44 | 32 | 44 | 32 |
| E | Wheelbase | 1150 | 1148 | 1179 | 1177 | 1198 | 1197 | 1227 | 1227 | 1259 | 1258 | 1293 | 1293 |
| F | Rear Centre | 428 | 438 | 427 | 437 | 426 | 436 | 428 | 438 | 437 | 447 | 437 | 447 |
| G | Head Tube Length | 100 | 110 | 100 | 110 | 125 | 135 |
| H | Top Tube Horizontal | 540 | 539 | 567 | 567 | 572 | 571 | 599 | 599 | 628 | 626 | 659 | 659 |
| I | Seat Tube Angle | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° |
| J | Standover Height | 757 | 760 | 753 | 757 | 760 | 765 | 798 | 801 | 796 | 800 | 792 | 798 |
*All specifications in millimetres and degrees
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'7" - 5'2" | 147.5 - 157.5cm |
| S | 5'0" - 5'6" | 152.5 - 167cm |
| M | 5'4" - 5'10" | 162.5 - 177.5cm |
| L | 5'8" - 6'2" | 172.5 - 188cm |
| XL | 6'0" - 6'6" | 183 - 198cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
