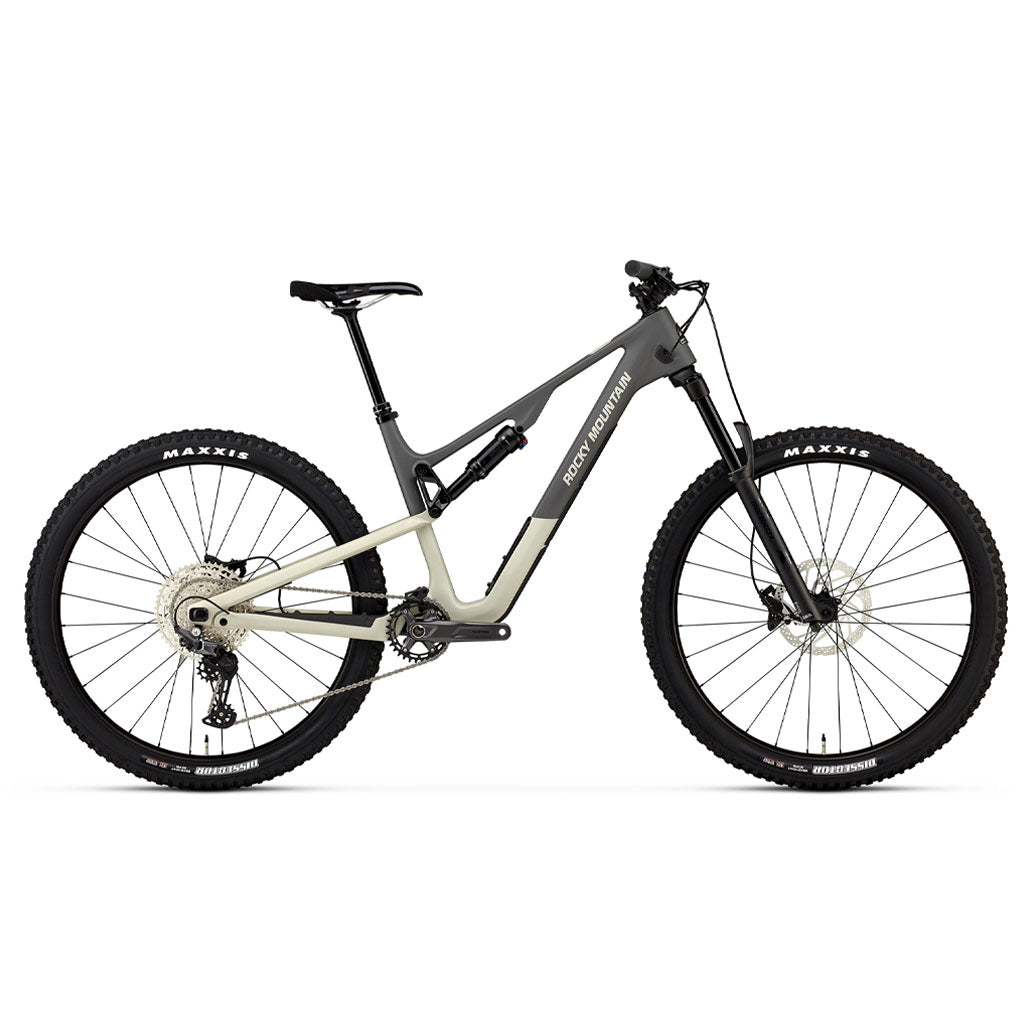

Rocky Mountain Instinct C30
210000084302
- Shipping Canada Wide
In search of a quiver-killer? we’ve got you covered with the Instinct Alloy. Designed to thrive on technical trails, but still allows you to push the distance and crush the climbs. We’ve updated the Instinct Alloy frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Specifications
Frame
SMOOTHWALL™ Carbon | Penalty Box 2.0 Storage | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel | SMOOTHWALL™ Carbon Rear Triangle
Fork
Marzocchi Z2 Float EVOL Rail 150mm | 44mm Offset
Front Travel
150
Rear Shock
Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel
140
Headset
FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem
Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm
Handelbar
Rocky Mountain AM | 780mmWidth | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips
Rocky Mountain Lock On Light
Brakes
Shimano MT4120 4 Piston | Resin Pads
Shifters
Shimano Deore 12spd
Rear Derailleur
Shimano Deore 12spd
Cranks & Chainring
Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm
Bottom Bracket
Shimano SM-BBMT500
Cassette
Shimano Deore 10-51T 12spd
Chain
Shimano M6100
Front Hub
Shimano TC500 | 15mm Boost
Rear Hub
Shimano TC500 Boost 148mm
Spokes
2.0 Stainless
Rims
WTB KOM Team i30 TCS 2.0 | 28H | Tubeless Set Up | Sealant Incl
Tires
Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready | Tubeless Set Up | Sealant Incl
Seatpost
X Fusion Manic Composite 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm
Saddle
WTB Volt Race 142 | Cromoly rails
*Specifications are subject to change without notice
Geometry
| XS - 27.5 | SM - 27.5 | SM - 29 | MD | LG | XL | ||
|---|---|---|---|---|---|---|---|
| Hi | Lo | Hi | Lo | Hi | Lo | Hi | Lo | Hi | Lo | Hi | Lo | ||
| A | Reach | 408 | 398 | 433 | 423 | 437 | 423 | 458 | 449 | 548 | 474 | 513 | 504 |
| B | Stack | 582 | 585 | 591 | 594 | 571 | 604 | 699 | 613 | 626 | 622 | 659 | 622 |
| C | Head Tube Angle | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° |
| D | Head Tube Length | 100 | 110 | 100 | 110 | 125 | 135 |
| E | Seat Tube Angle | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° | 77.3° | 76.5° |
| F | Seat Tube Length | 355 | 365 | 365 | 410 | 440 | 470 |
| G | Rear Centre | 430-440 | 430-440 | 440-450 | 440-450 | 440-450 | 440-450 |
| H | Wheelbase | 1148 | 1150 | 1177 | 1179 | 1197 | 1198 | 1227 | 1227 | 1258 | 1259 | 1293 | 1293 |
| I | Standover Height | 760 | 757 | 757 | 753 | 765 | 760 | 801 | 798 | 800 | 796 | 798 | 792 |
*All specifications in millimetres and degrees
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'7" - 5'2" | 147.5 - 157.5cm |
| S | 5'0" - 5'6" | 152.5 - 167cm |
| M | 5'4" - 5'10" | 162.5 - 177.5cm |
| L | 5'8" - 6'2" | 172.5 - 188cm |
| XL | 6'0" - 6'6" | 183 - 198cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
