Be in your Element.
Rocky Mountain Element Carbon 30
Contact For Availability

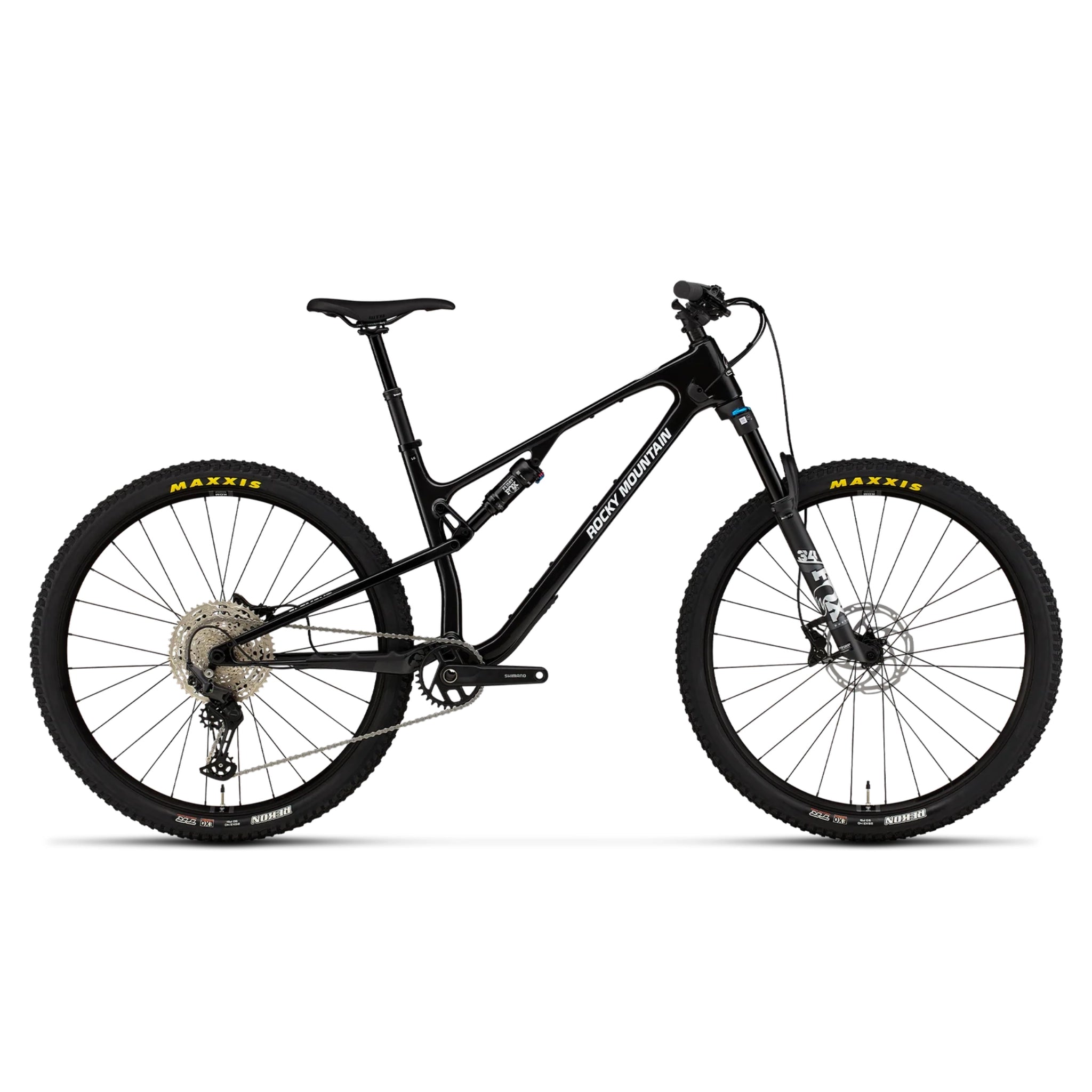

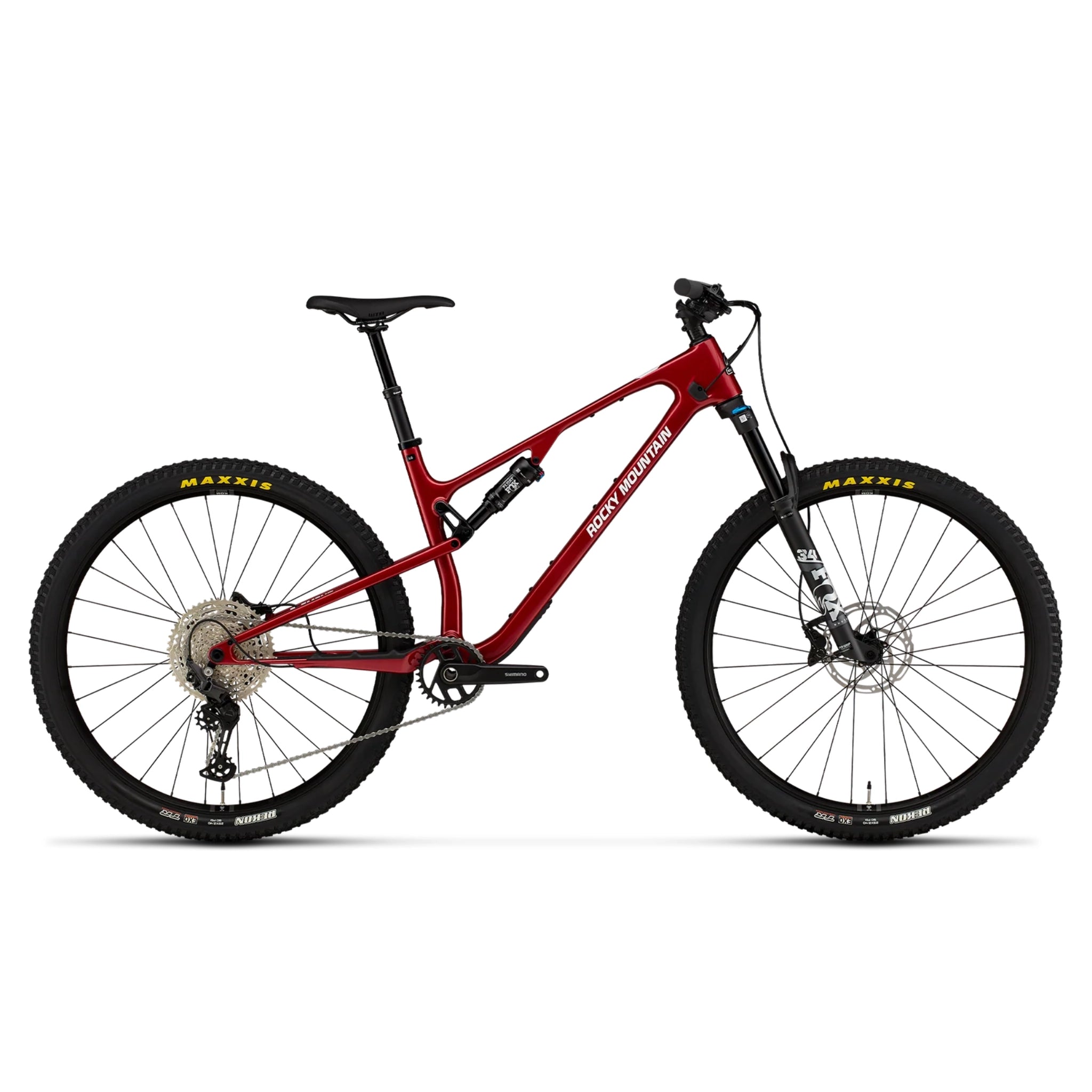

Rocky Mountain Element Carbon 30
$5,699.00
Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more.
Quick Highlights
- Fox 34 Rhythm Fork
- Shimano MT4120 4-piston Brakes
- Shimano Deore Drivetrain
210000132052
Colour
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
RIDE-4 Geometry Adjustment
Smoothlink SL
Accessories Mount
Specifications
| Frame | SMOOTHWALL™ Carbon | SMOOTHLINK SL™ Suspension | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry | 120mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 34 Rhythm 29 130mm | 44mm Offset |
| Headset | FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50mm |
| Handlebar | Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp |
| Grips | Rocky Mountain Lock On Light |
| Brakes | Shimano MT4120 4 Piston | Resin Pads |
| Shifters | Shimano Deore 12spd |
| Crankset | Shimano Deore | 32T | 24mm Spindle | Crankarm Length: XS - SM = 165mm | MD - XL = 170mm |
| Cassette | Shimano Deore 10-51T 12spd |
| Chain | Shimano M6100 |
| Spokes | 2.0 Stainless |
| Rims | WTB KOM Team i27 TCS 2.0 | 28H |
| Tires | F: Maxxis Rekon 2.4 EXO Tubeless Ready | R: Maxxis Rekon 2.4 EXO Tubeless Ready |
| Seatpost | Xfusion Manic| Plastic I-spec EV lever || 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm Tranz X +RAD1.0 Adjustable Dropper Post | 30mm Adjustment | Alloy I-Spec EV GL2 Lever | 30.9mm | XS = 125mm | SM = 150mm | MD = 170mm | LG - XL = 200mm |
| Saddle | WTB Silverado Race 142 | Steel Rails |
*Specifications are subject to change without notice
Geometry
| XS - 27.5" | SM | MD | LG | XL | ||
|---|---|---|---|---|---|---|
| Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | ||
| A | Reach | 397 | 405 | 425 | 433 | 450 | 458 | 475 | 483 | 505 | 513 |
| B | Stack | 561 | 566 | 606 | 610 | 615 | 619 | 624 | 628 | 633 | 637 |
| C | Head Tube Angle | 64.7° | 65.5° | 65.0° | 65.8° | 65.0° | 65.8° | 65.0° | 65.8° | 65.0° | 65.8° |
| D | Bottom Bracket Drop | 28 | 19 | 47 | 36 | 47 | 36 | 47 | 36 | 47 | 36 |
| E | Wheelbase | 1127 | 1127 | 1173 | 1173 | 1202 | 1202 | 1231 | 1231 | 1265 | 1265 |
| F | Rear Centre | 426 | 425 | 436 | 435 | 436 | 435 | 436 | 435 | 436 | 435 |
| G | Head Tube Length | 90 | 105 | 115 | 125 | 135 |
| H | Top Tube Length | 542 | 541 | 577 | 575 | 605 | 603 | 632 | 630 | 664 | 662 |
| I | Seat Tube Angle | 75.7° | 76.5° | 76.0° | 76.8° | 76.0° | 76.8° | 76.0° | 76.8° | 76.0° | 76.8° |
| J | Standover Height | 769 | 772 | 810 | 813 | 808 | 811 | 806 | 810 | 804 | 808 |
| All measurements in degrees or millimetres | ||||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'8" - 5'2" | 142.5 - 157.5cm |
| S | 5'2" - 5'7" | 157.5 - 170cm |
| M | 5'6" - 5'10" | 167.5 - 177.5cm |
| L | 5'9" - 6'2" | 175 - 188cm |
| XL | 6'1" - 6'6" | 185.5 - 198cm |
