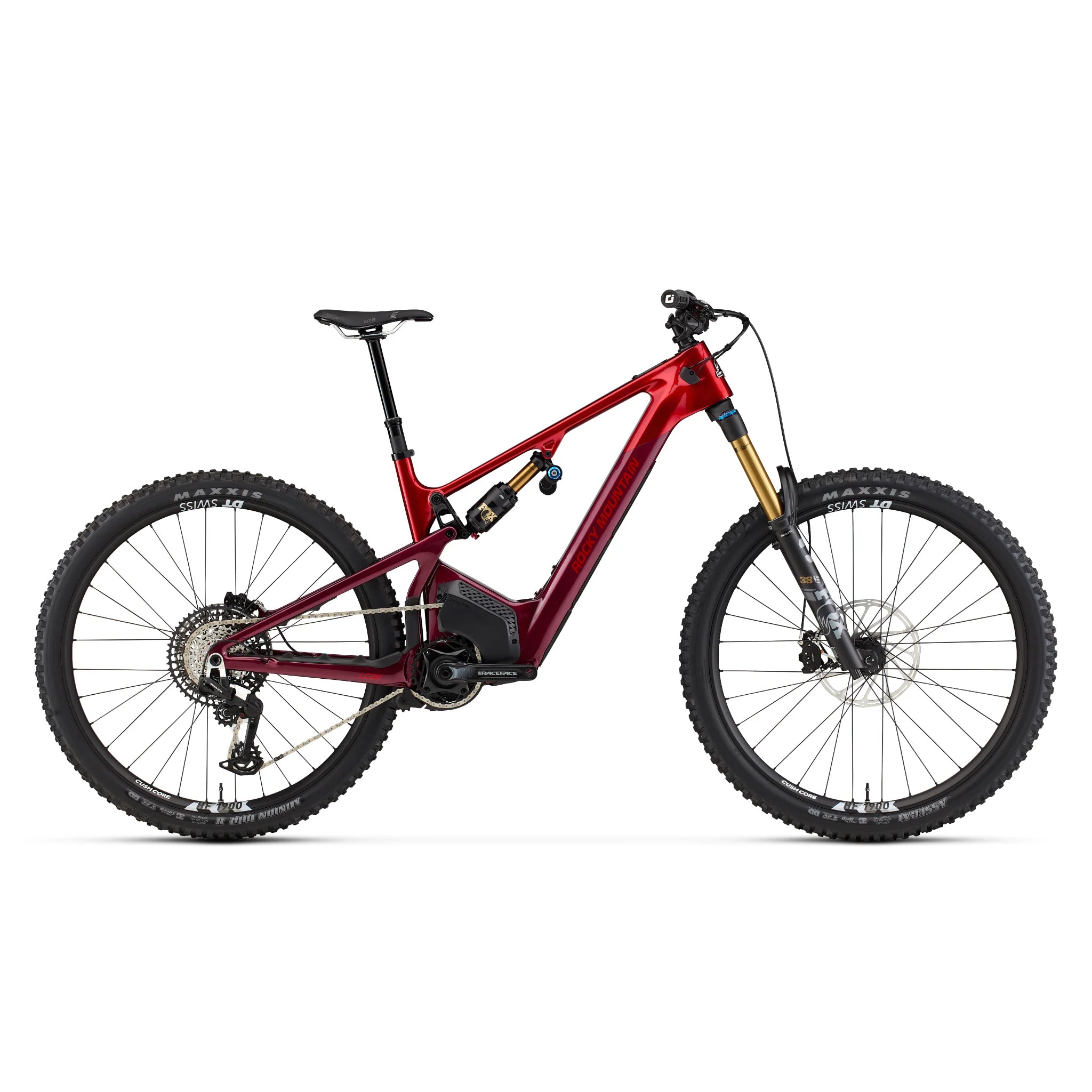

Rocky Mountain Altitude Powerplay Carbon 70
Contact For Availability
Rocky Mountain Altitude Powerplay Carbon 70
$12,499.99 CAD
The top-spec build of the Altitude Powerplay, equipped with Fox Factory suspension front and rear for maximum control and trail feedback in demanding conditions. SRAM's Eagle 90 Transmission rounds out the package with reliable, precise shifting throughout the entire range.
210000121658
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features

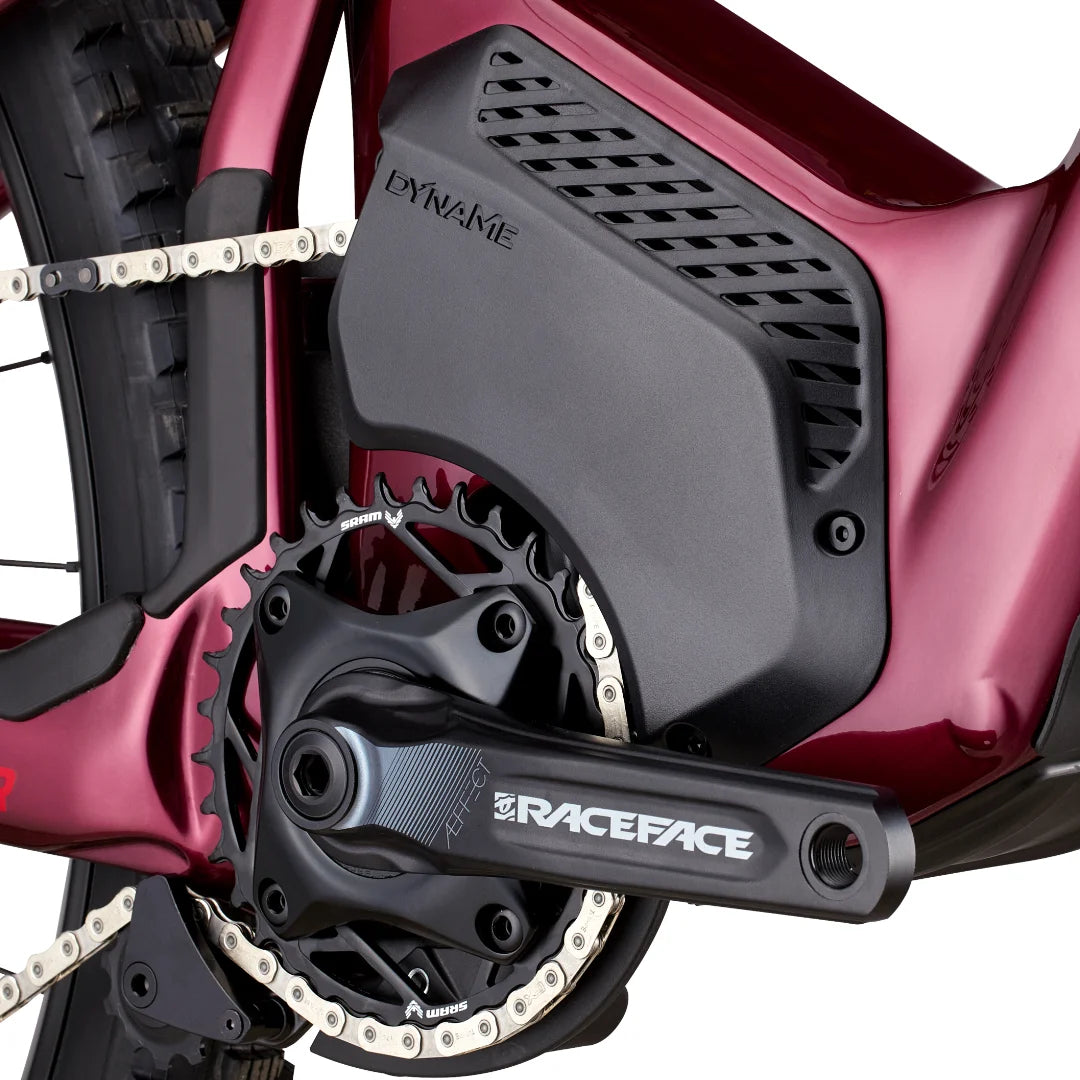

Dyname S4 Pro

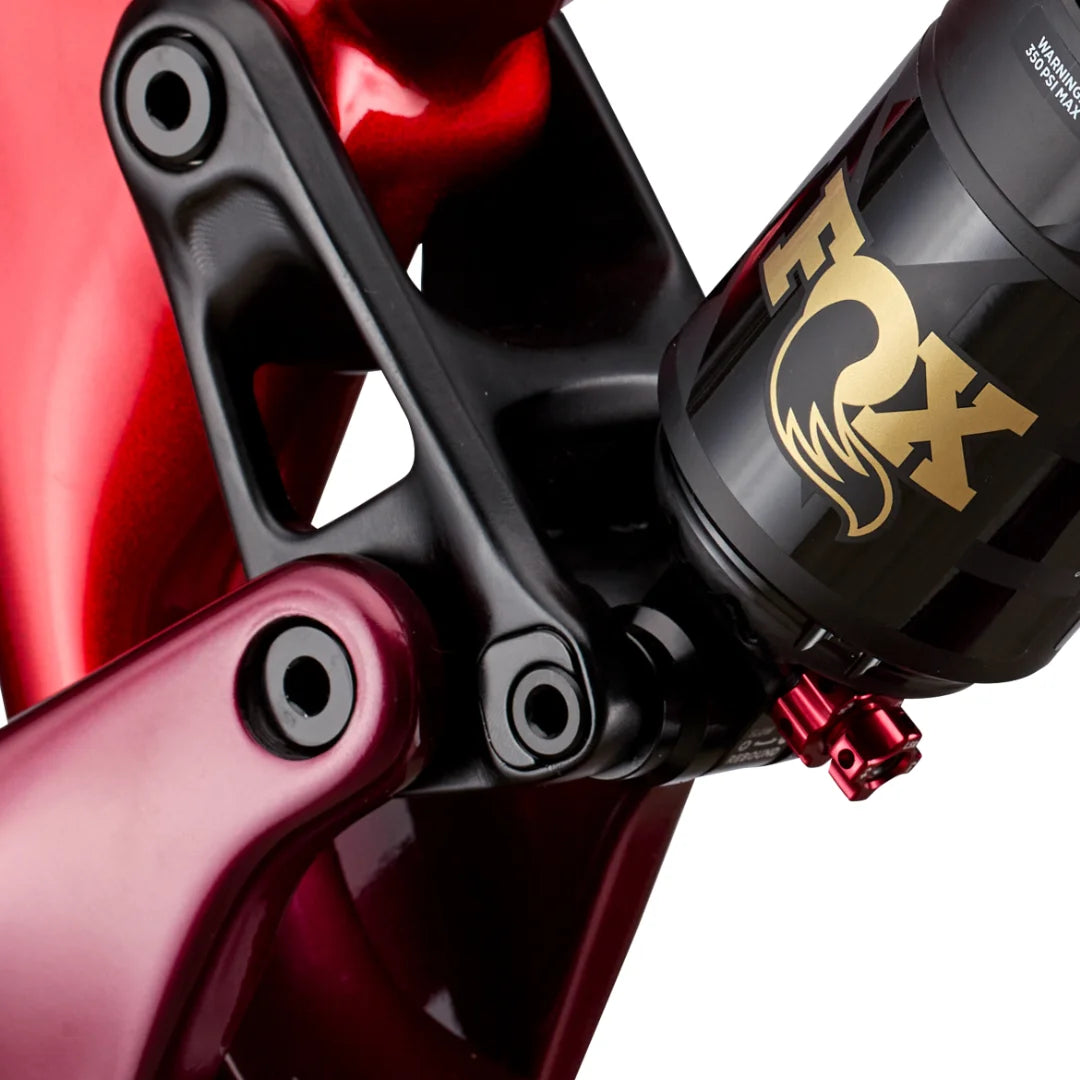

Ride-4 Adjustment System

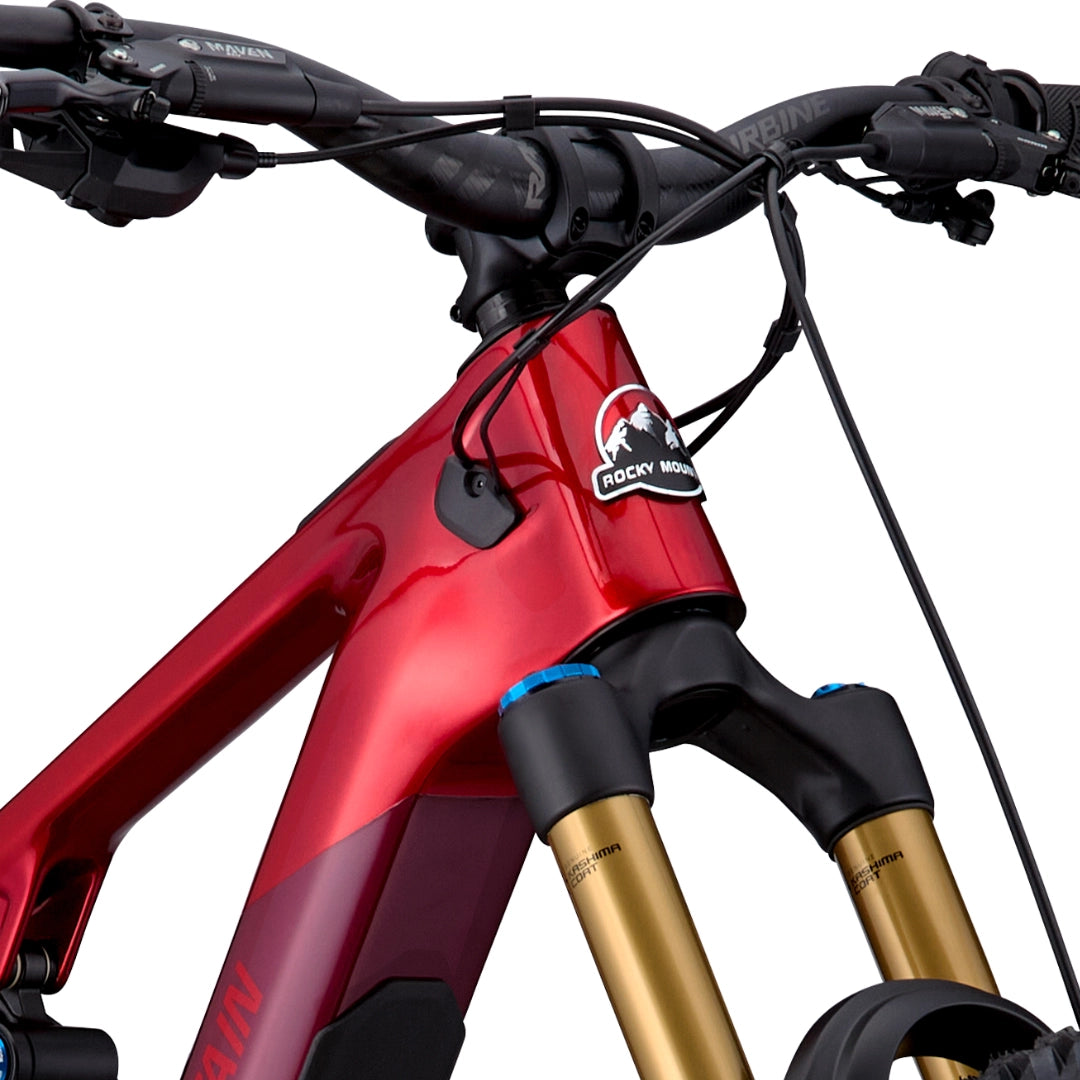

Reach Adjust Headset
Specifications
| Frame | SMOOTHWALL™ Carbon | Integrated Display | LC2R Suspension System | Threaded BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel | SMOOTHWALL™ Carbon Rear Triangle |
|---|---|
| Fork | Fox 38 Float EVOL GRIP X2 Factory Series 170mm | 27.5 = 37mm Offset | 29 = 44mm Offset |
| Rear Shock | Fox Float X2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | SM = 210 x 55mm | MD - LG - XL = 230 x 65mm | Size-Specific tune in FAQ |
| Headset | FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm |
| Handlebar | Race Face Turbine | 780mm Width | 40mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Sram Maven Silver Stealth 4 Piston | Metal Pads |
| Rotors | Front: Sram Centerline 220mm | Rear: Sram Centerline 2mm x 200mm |
| Shifters | Sram Eagle 90 Transmission Single Click |
| Rear Derailleur | Sram Eagle 90 Transmission |
| Crankset | Race Face Aeffect Cinch | 34T Transmission Ring | 24mm Spindle | SM - XL = 165mm |
| Bottom Bracket | Race Face BSA 73 24mm |
| Cassette | Sram GX Eagle Transmission 10-52T |
| Chain | Sram GX Eagle Transmission |
| Wheel (Front) | DT Swiss HF1900 |
| Wheel (Rear) | DT Swiss HF1900 | 370 SPLINE Boost 148mm | 18T Ratchet LN |
| Tires | Front: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready | Rear: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready |
| Seatpost | OneUp V3 Dropper 30.9mm | SM = 150mm | MD = 180mm | LG = 210mm | XL = 240mm |
| Saddle | WTB Solano Fusion Form 142 | Cromoly Rails |
| Accessories | WTB TCS Tubeless Sealant |
| Drive System | Dyname S4 Pro Mountain Bike Drive | 250w Nominal Power | 1000W Max Power | 110Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada |
| Battery | 720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A) |
| Display | Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration |
| Charger | Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector |
*Specifications are subject to change without notice
Geometry
| S - 27.5 | M | L | XL | ||
|---|---|---|---|---|---|
| Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | ||
| A | Reach | 424 | 433 | 450 | 458 | 475 | 483 | 505 | 513 |
| B | Stack | 628 | 623 | 628 | 623 | 638 | 632 | 652 | 645 |
| C | Head Tube Angle | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° | 63.5° | 64.3° |
| D | Bottom Bracket Drop | 34 | 24 | 34 | 24 | 34 | 24 | 34 | 24 |
| E | Wheelbase | 1210 | 1207 | 1237 | 1232 | 1264 | 1261 | 1301 | 1298 |
| F | Rear Centre | 439 | 436 | 439 | 436 | 439 | 436 | 439 | 436 |
| G | Head Tube Length | 100 | 100 | 110 | 125 |
| H | Top Tube Length | 587 | 585 | 612 | 610 | 639 | 637 | 673 | 671 |
| I | Seat Tube Angle | 75.5° | 76.3° | 75.5° | 76.3° | 75.5° | 76.3° | 75.5° | 76.3° |
| J | Standover Height | 834 | 838 | 832 | 836 | 831 | 836 | 831 | 836 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| S | 5'0" - 5'6" | 152.5 - 167cm |
| M | 5'4" - 5'10" | 162.5 - 177.5cm |
| L | 5'8" - 6'2" | 172.5 - 188cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
| XXL | 6'0" - 6'6" | 183 - 198cm |
