Charge harder. Go faster.

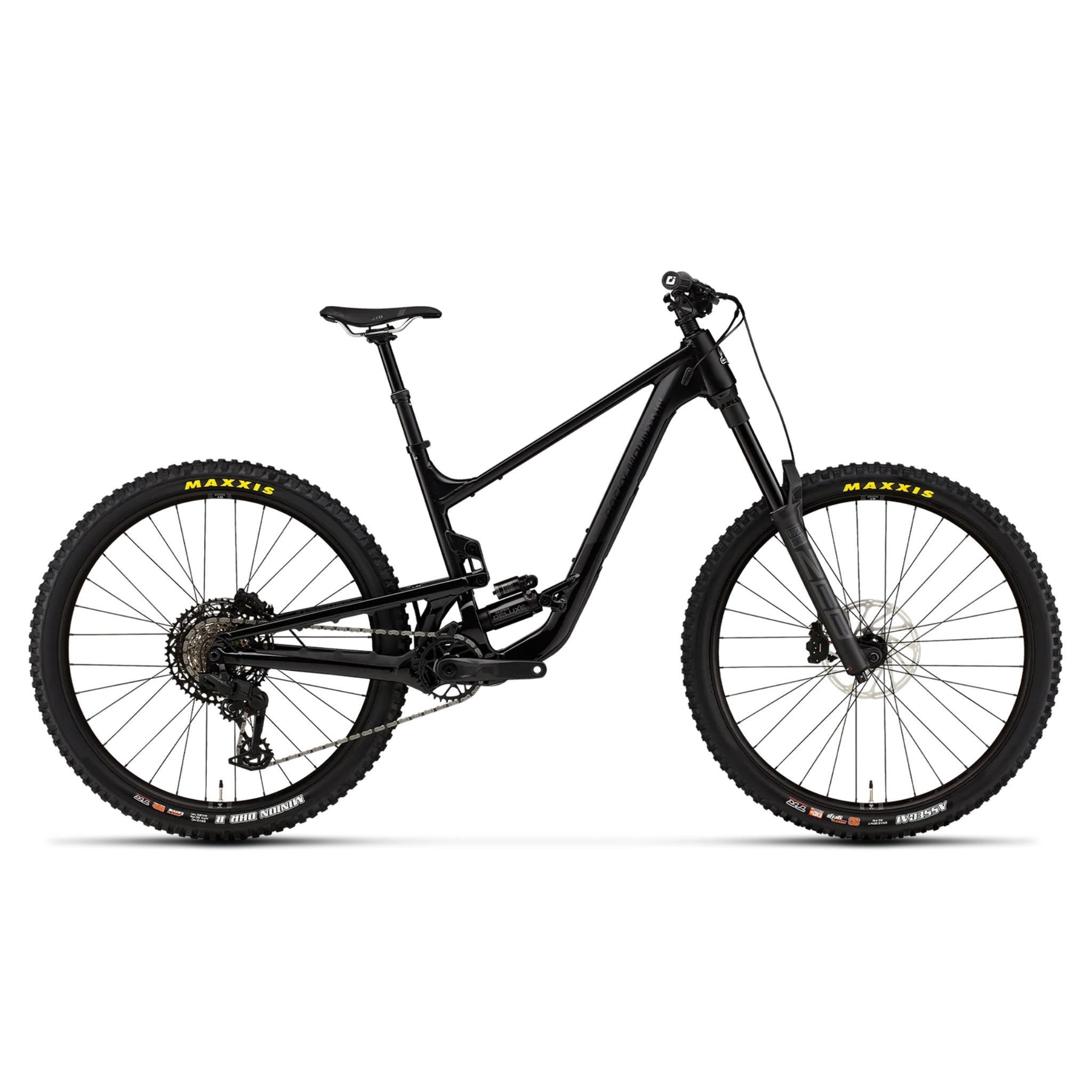

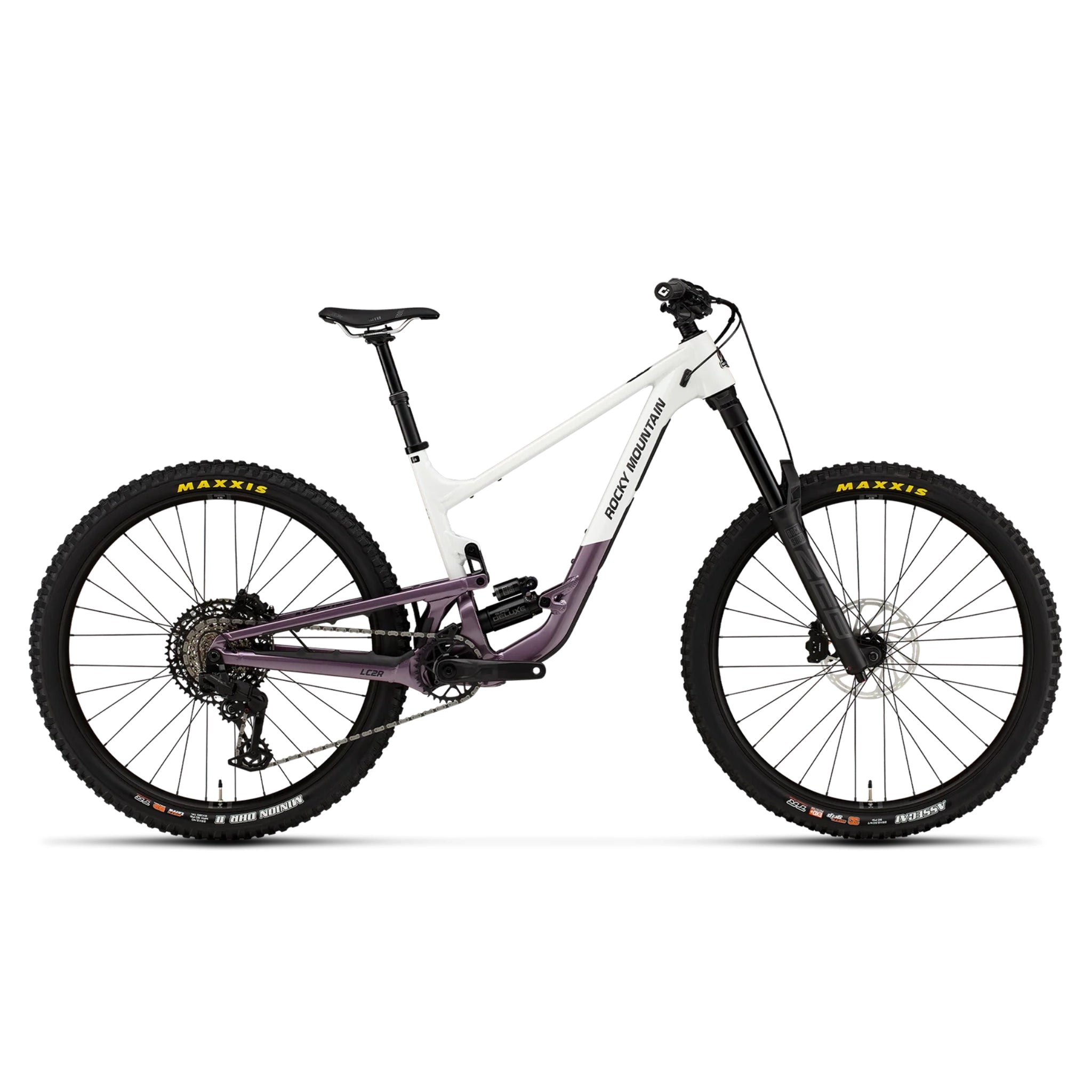

Rocky Mountain Altitude Alloy 50
Contact For Availability
Rocky Mountain Altitude Alloy 50
$5,799.00
Race circuits or Sunday Shreds, the Altitude has you covered. Purpose-built and race-proven, it’s the ultimate enduro weapon for demolishing steep trails and making every session faster.
Quick Highlights
- RockShox ZEB RC Fork
- SRAM 90/70 Transmission Drivetrain
- SRAM Maven 4-piston Brakes
210000132116
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Features
RIDE-4 Geometry Adjust
Reach Adjust Headset
PenaltyBox™ 2.0 downtube storage
Specifications
| Frame | FORM™ Alloy | Full Sealed Cartridge Bearings | Threaded BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 160mm Travel | FORM™ Alloy Rear Triangle |
|---|---|
| Fork | RockShox Zeb RC 170mm | 27.5 = 38mm Offset | 29 = 44mm Offset |
| Headset | FSA ZS56/66 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race |
| Stem | Rocky Mountain 35 AM | 0° Rise | All Sizes = 40mm |
| Handlebar | Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp |
| Grips | ODI Elite Pro Lock On |
| Brakes | Sram Maven Stealth 4 Piston | Metal Pads |
| Shifters | Sram Eagle 90 Transmission |
| Crankset | Sram Eagle 70 | 32T | DUB Spindle | Crankarm Length: SM - MD = 165mm | LG - XL = 170mm |
| Cassette | Sram XS-1270 Eagle Transmission 10-52T |
| Chain | Sram Eagle 70 Transmission |
| Spokes | 2.0 Stainless |
| Rims | WTB ST i30 TOUGH TCS 2.0 | 32H |
| Tires | F: Maxxis Assegai 2.5 3C MaxxGrip EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 3C MaxxTerra DD Tubeless Ready |
| Seatpost | Tranz X +RAD2.0 Adjustable Dropper Post | 30mm Adjustment | Alloy GL MMX Lever | 30.9mm | SM = 150mm | MD = 170mm | LG = 200mm | XL = 230mm |
| Saddle | WTB Solano Fusion Form 142 | Cromoly Rails |
*Specifications are subject to change without notice
Geometry
| S - 27.5 | M | L | XL | ||
|---|---|---|---|---|---|
| Slack | Steep | Slack | Steep | Slack | Steep | Slack | Steep | ||
| A | Reach | 424 | 433 | 450 | 458 | 475 | 483 | 505 | 513 |
| B | Stack | 599 | 599 | 630 | 630 | 639 | 640 | 653 | 653 |
| C | Head Tube Angle | 63° | 63.8° | 63° | 63.8° | 63° | 63.8° | 63° | 63.8° |
| D | Bottom Bracket Drop | 24 | 13 | 38 | 27 | 38 | 27 | 38 | 27 |
| E | Wheelbase | 1189 | 1188 | 1244 | 1242 | 1283 | 1282 | 1319 | 1319 |
| F | Rear Centre | 427 | 440 | 450 | 450 |
| G | Head Tube Length | 100 | 105 | 115 | 130 |
| H | Top Tube Length | 553 | 584 | 610 | 642 |
| I | Seat Tube Angle | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° | 77° | 77.8° |
| J | Standover Height | 760 | 768 | 792 | 798 | 798 | 806 | 809 | 817 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | Imperial | Metric |
|---|---|---|
| S | 5'0" - 5'6" | 152.5 - 167cm |
| M | 5'4" - 5'10" | 162.5 - 177.5cm |
| L | 5'8" - 6'2" | 172.5 - 188cm |
| XL | 6'1" - 6'4" | 185 - 193cm |
| XXL | 6'0" - 6'6" | 183 - 198cm |
