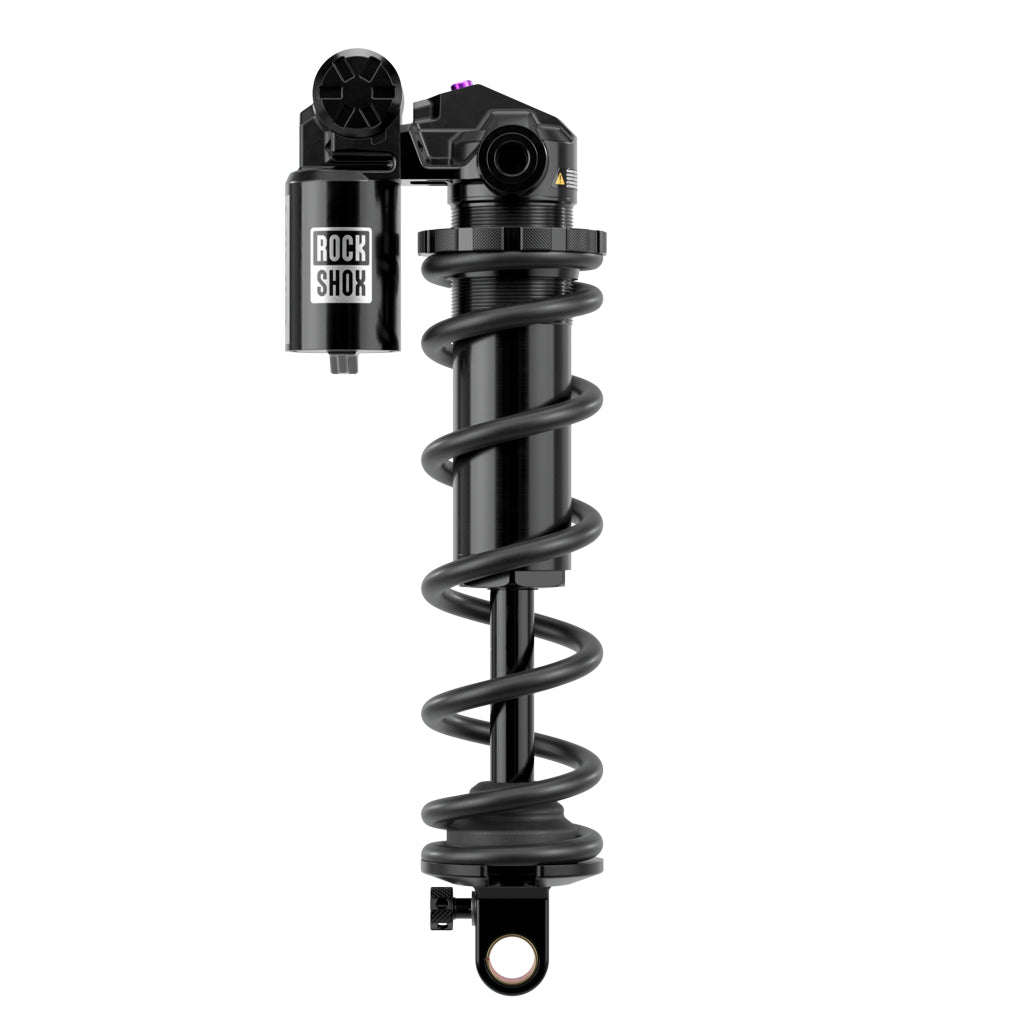

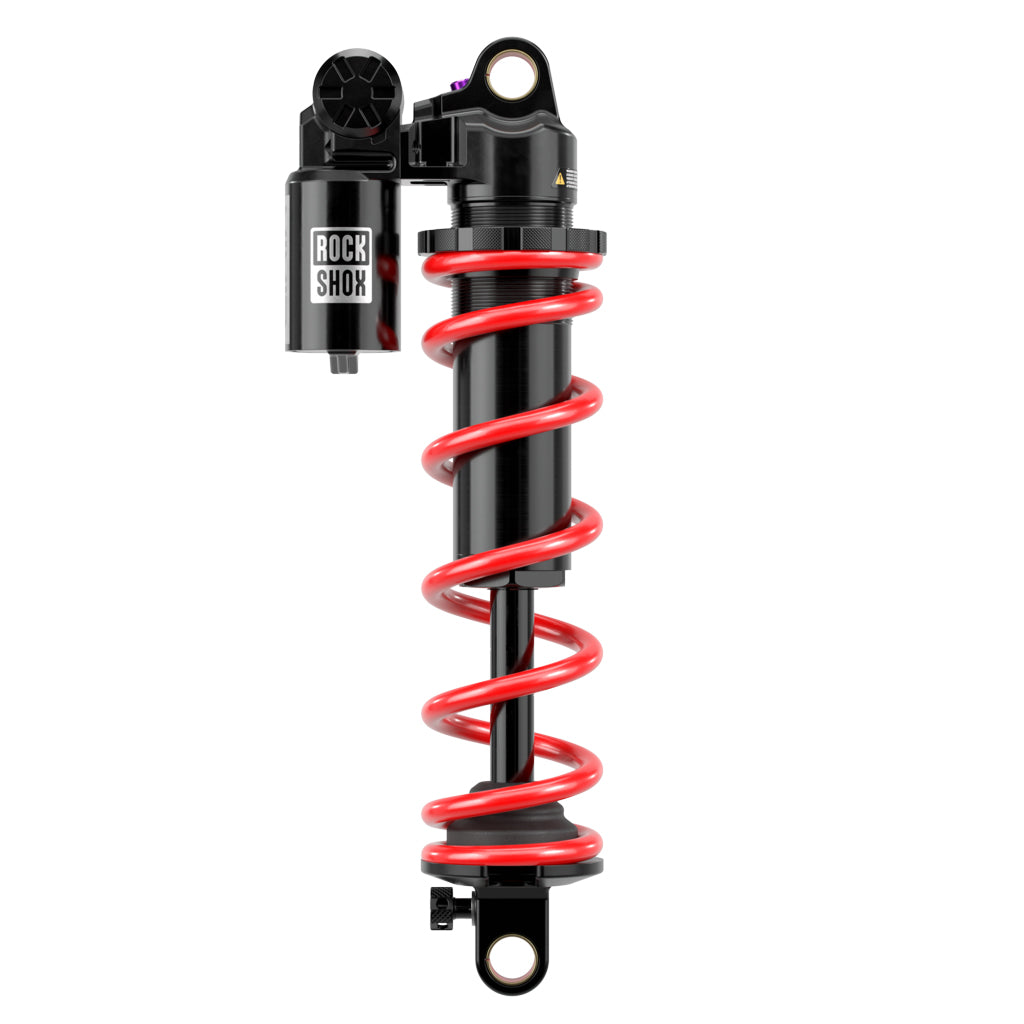

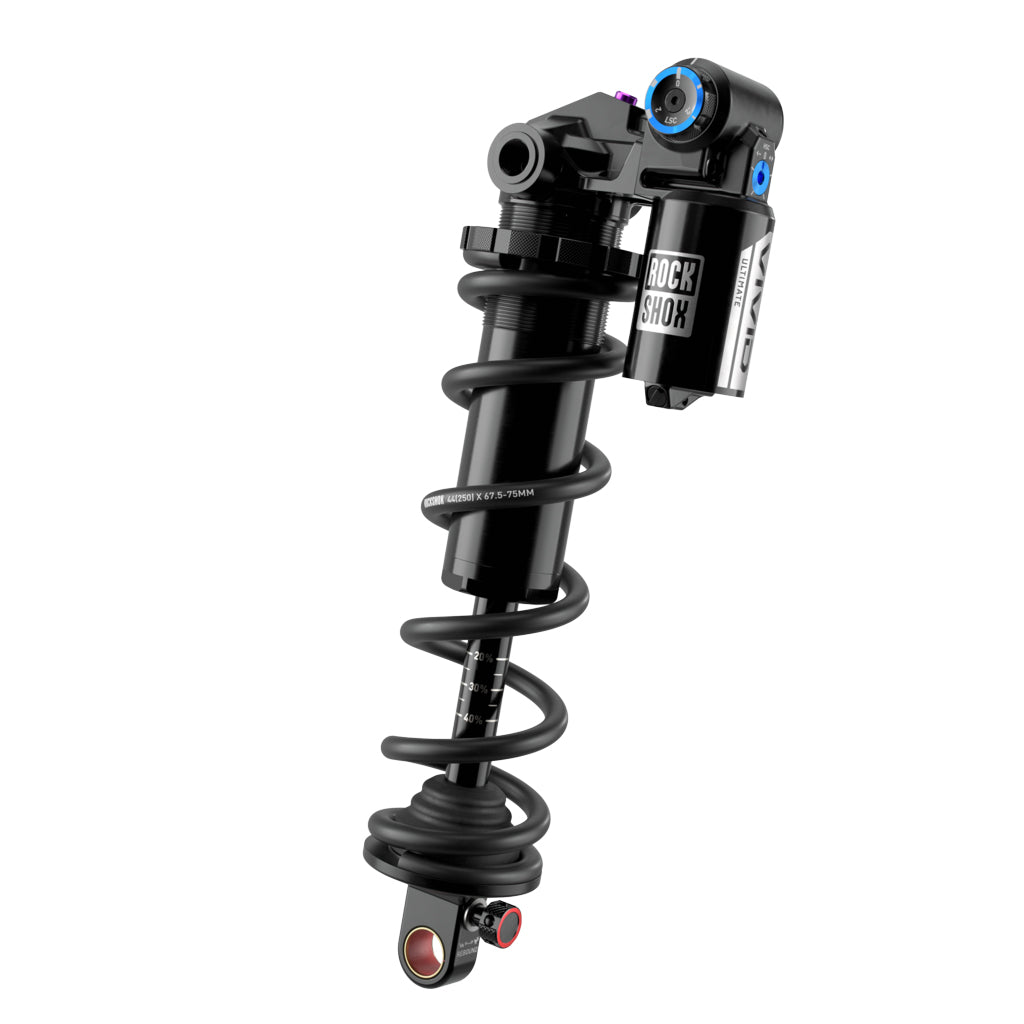

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2 damper’s new main piston compression tunes deliver confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Distilling decades of coil dominance into a shock built for today’s downhill bikes, Vivid Coil Ultimate DH carries the unmistakable heritage of coil into a new era of performance.

Features:

• NEW RCT2 damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk

• NEW Numbered Compression adjuster for intuitive adjustments—start at "0" and easily add or decrease damping

• NEW Base valve with 40% reduction in IFP forces, making it the most supple shock on the market while maintaining perfect traction

• NEW Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support

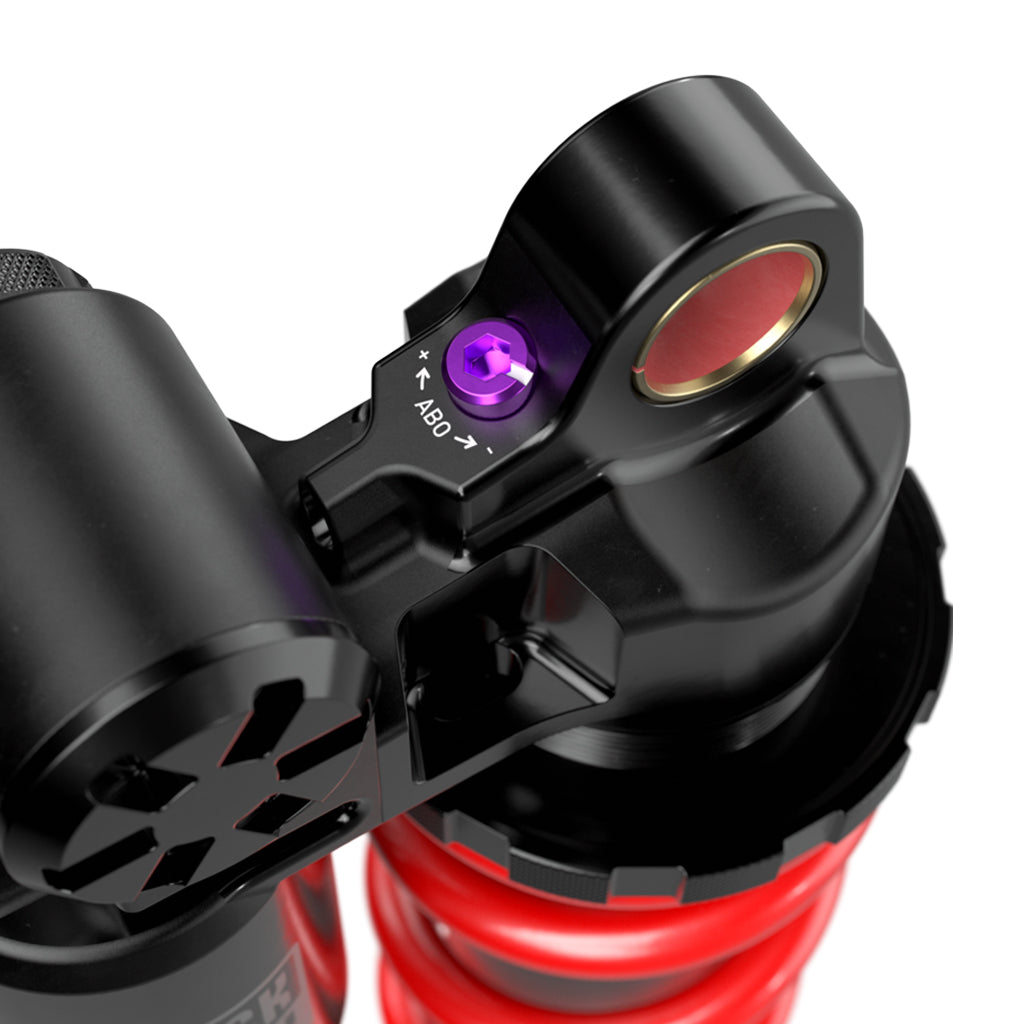

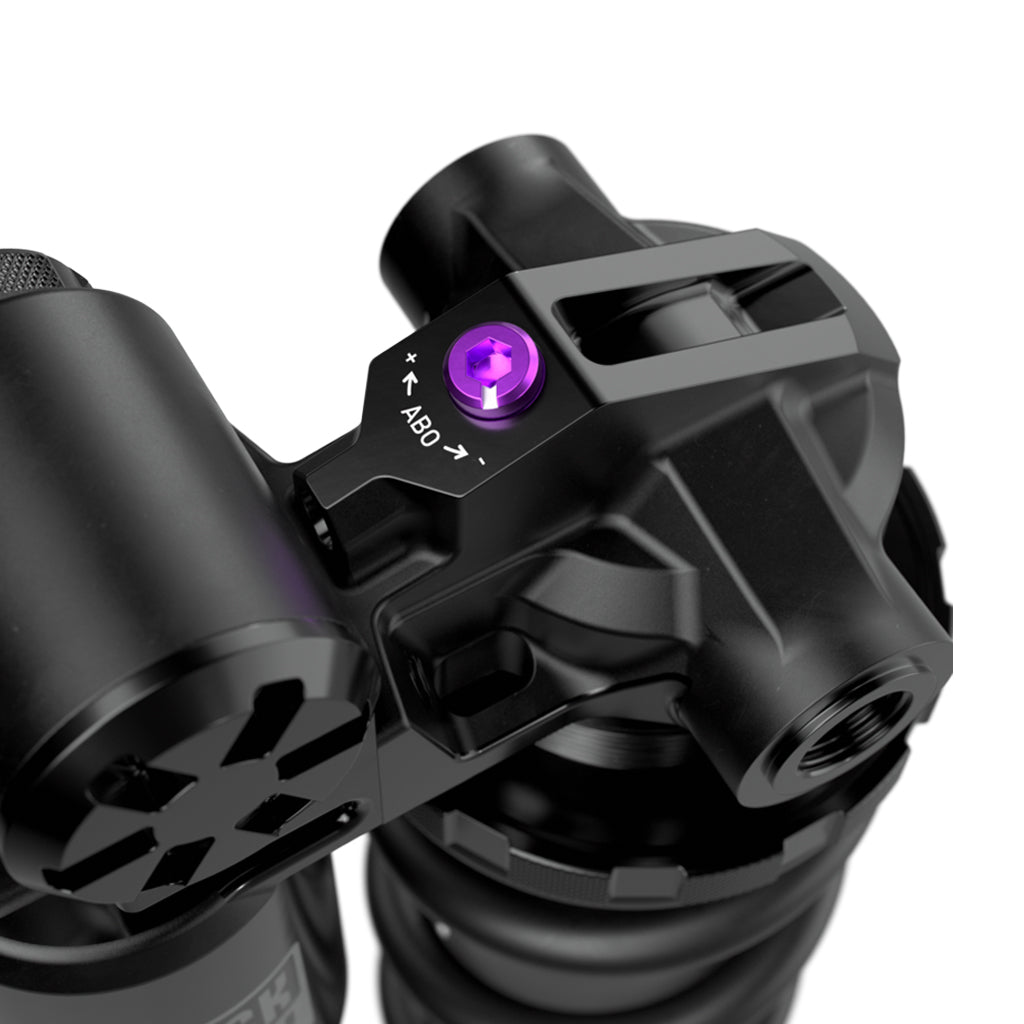

• Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel

• Removable Rebound knob doubles as HSC and ABO adjuster

• 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights

• 8x30 Bearing Adapter available for all standard eyelets, configured as hardware (upcharge applies)

Model ID: RS-VIVC-UDH-D1

Specifications:

Eye to Eye / Stroke: 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 250x67.5, 250x70, 250x72.5, 250x75
Damper Type: RC2 Adj. Hydraulic Bottom Out
Rebound Tune: R25, R55
Compression Tune: C26, C30, C34, C37, C40, C43
Lockout Force: N/A-V5
Shaft Eyelet: No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 90 Deg Rotation
Body Eyelet: No Bushing, Standard, Trunnion
E-Bike Approved: E-bike Approved
Bottom Out: Externally Adjustable Bottom Out
