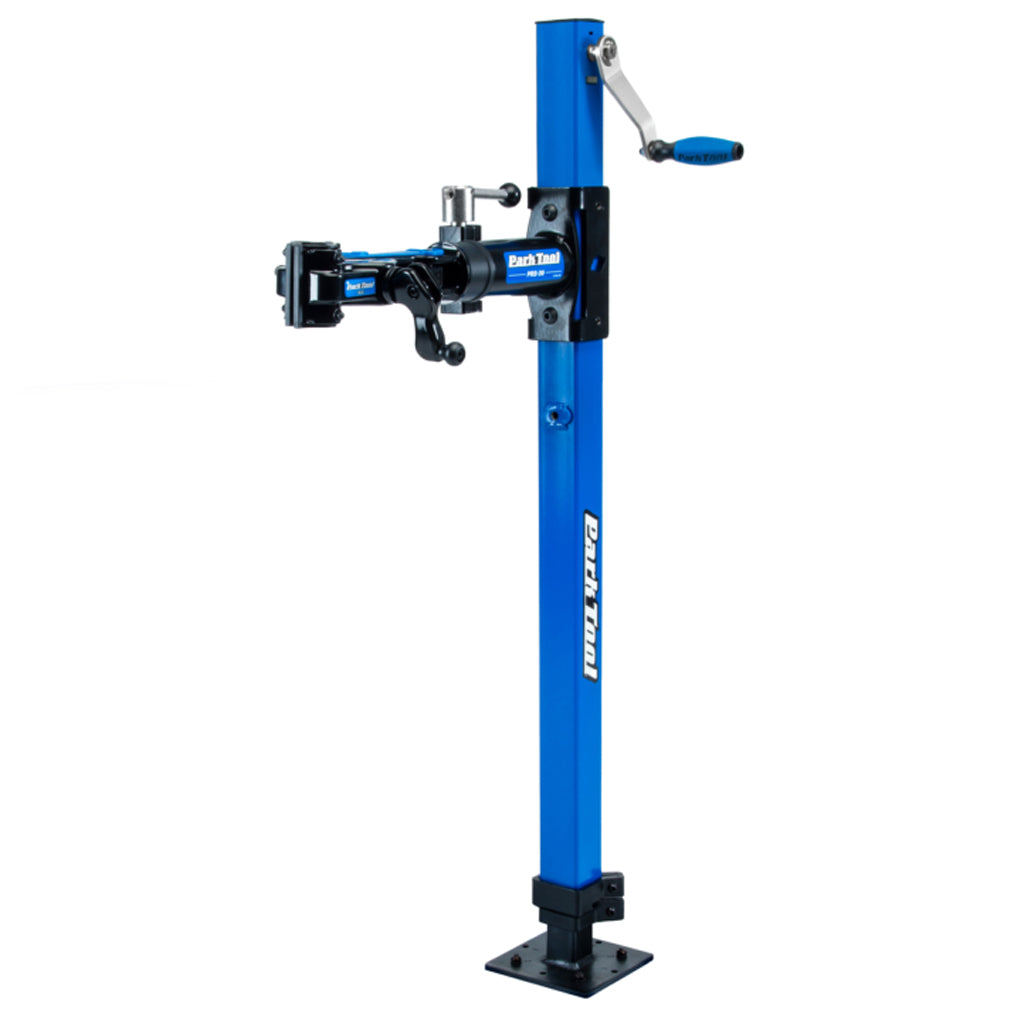

Park Tool PRS-30LB Mechanical Lift Repair Stand

The PRS-30 solves one of the biggest challenges of e-bike maintenance, repair, and cleaning: getting it off the ground. With a footprint no larger than a traditional bicycle repair stand, the PRS-30 easily lifts and lowers bikes up to 120 lbs. (54 kg) with ease.

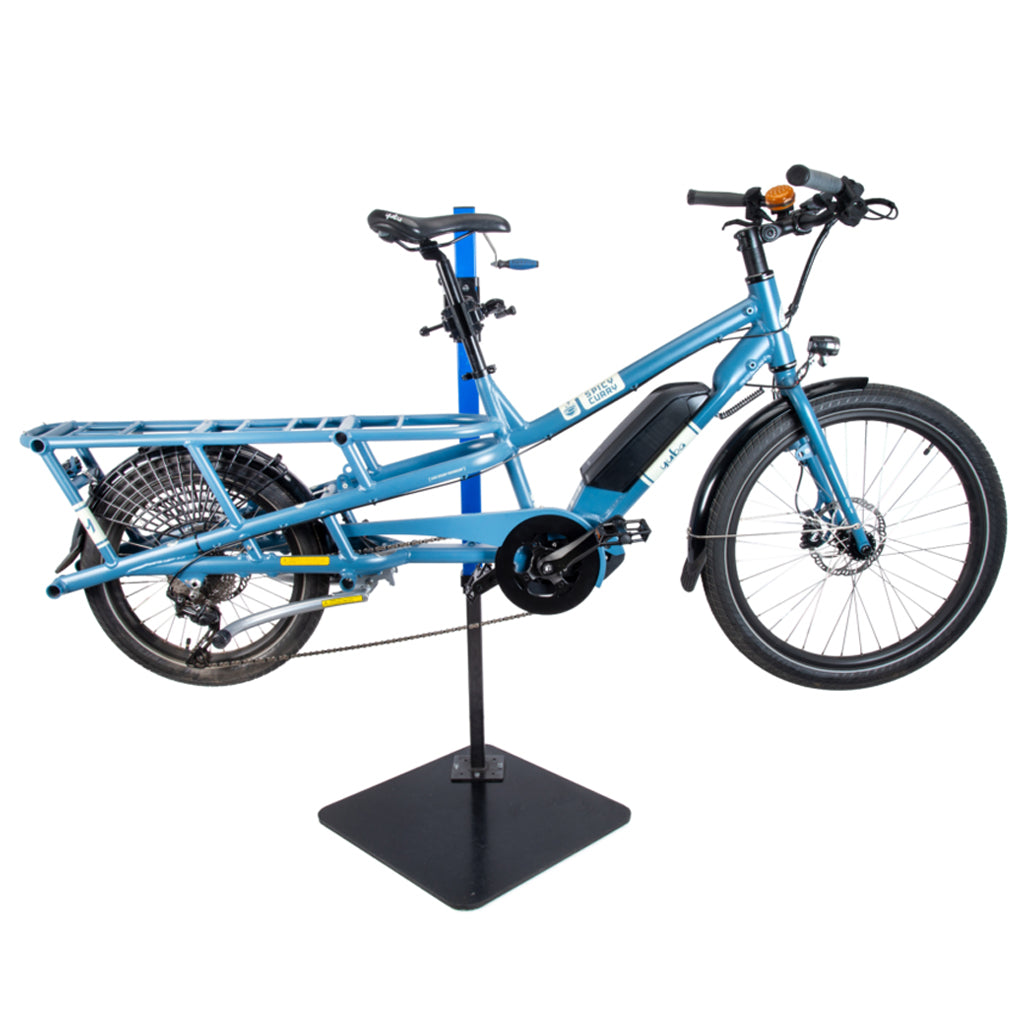

The professional-grade clamp lowers to a height of 29" (74 cm), allowing you to clamp onto the seatpost or seat tube of most bicycles without needing to lift them into the stand. From there, the PRS-30 features 23" (58 cm) of height adjustment, elevating the bike to a comfortable position for removing wheels, tuning the drivetrain, cleaning the chain, or any other procedure.

Height adjustment is accomplished using an internally-geared mechanism driven by a simple hand crank. Height can also be adjusted using a common battery-operated drill with 10 mm socket for truly effortless lifting of heavy bicycles.

Built to the same standards as our legendary professional repair stands, the PRS-30 is built from all-steel components and powder coated for a lifetime of use.

The PRS-30LB does not include legs or a base plate. It can be mounted to a #130 Repair Stand Base or directly to the floor using the FP-2 Floor Plate (both sold separately).

Features:

• Maximum weight capacity: 54 kg (120 lbs.)

• Clamp capacity: round and aero tubes from 23 to 76 mm (7/8" to 3") wide

• Jaw height: 70 mm (2.75")

• Clamp height: adjustable from 74 to 132 cm (29" to 52")

• Clamp can also be installed 10 cm (4") lower for a height range of 64 to 122 cm (25" to 48")

• Full stand height at maximum height adjustment: 154 cm (60.5")

• Can be installed onto the #130 Repair Stand Base or bolted directly to the floor using the FP-2 Floor Plate (both sold separately)

Also available with a built-in leg assembly as the PRS-30.
