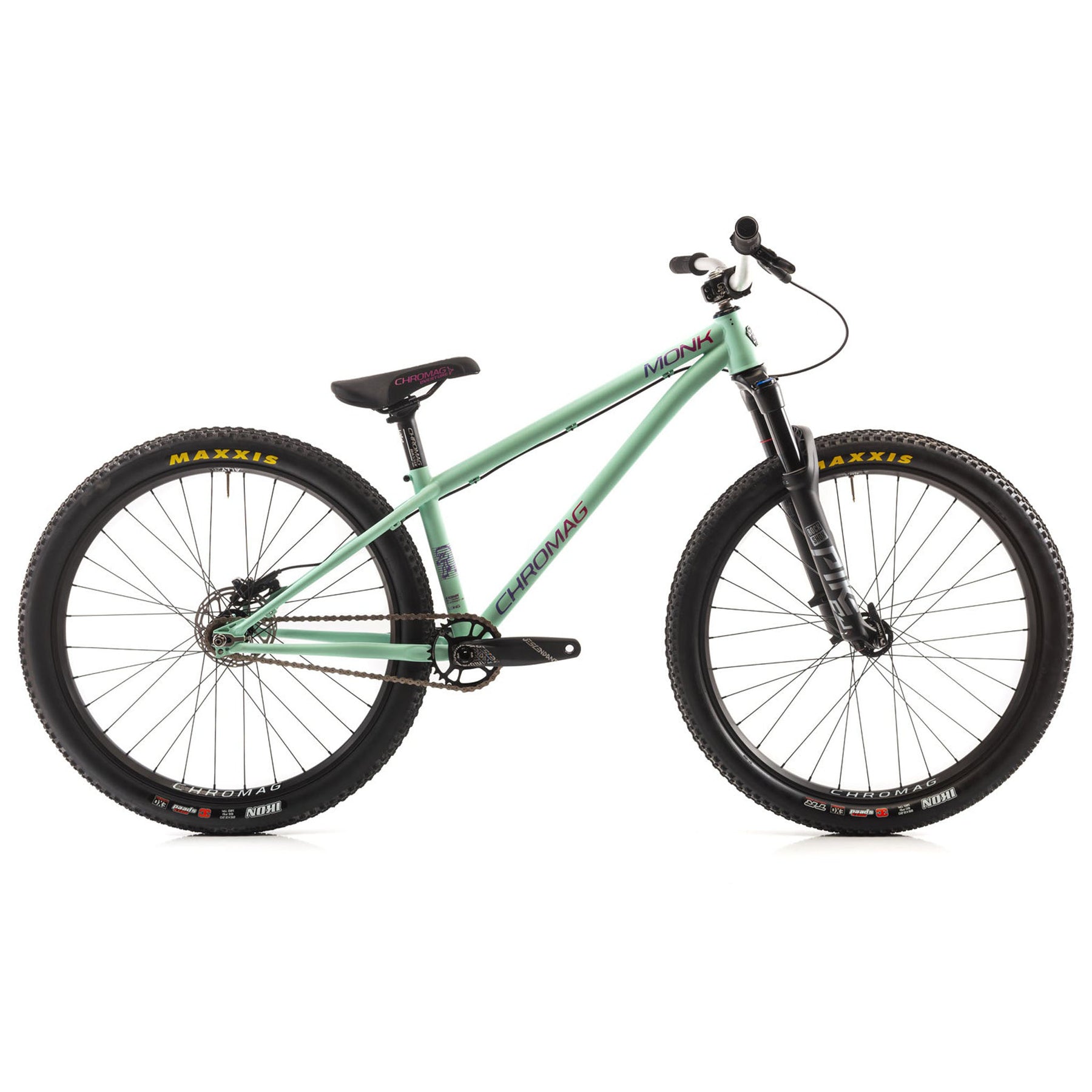

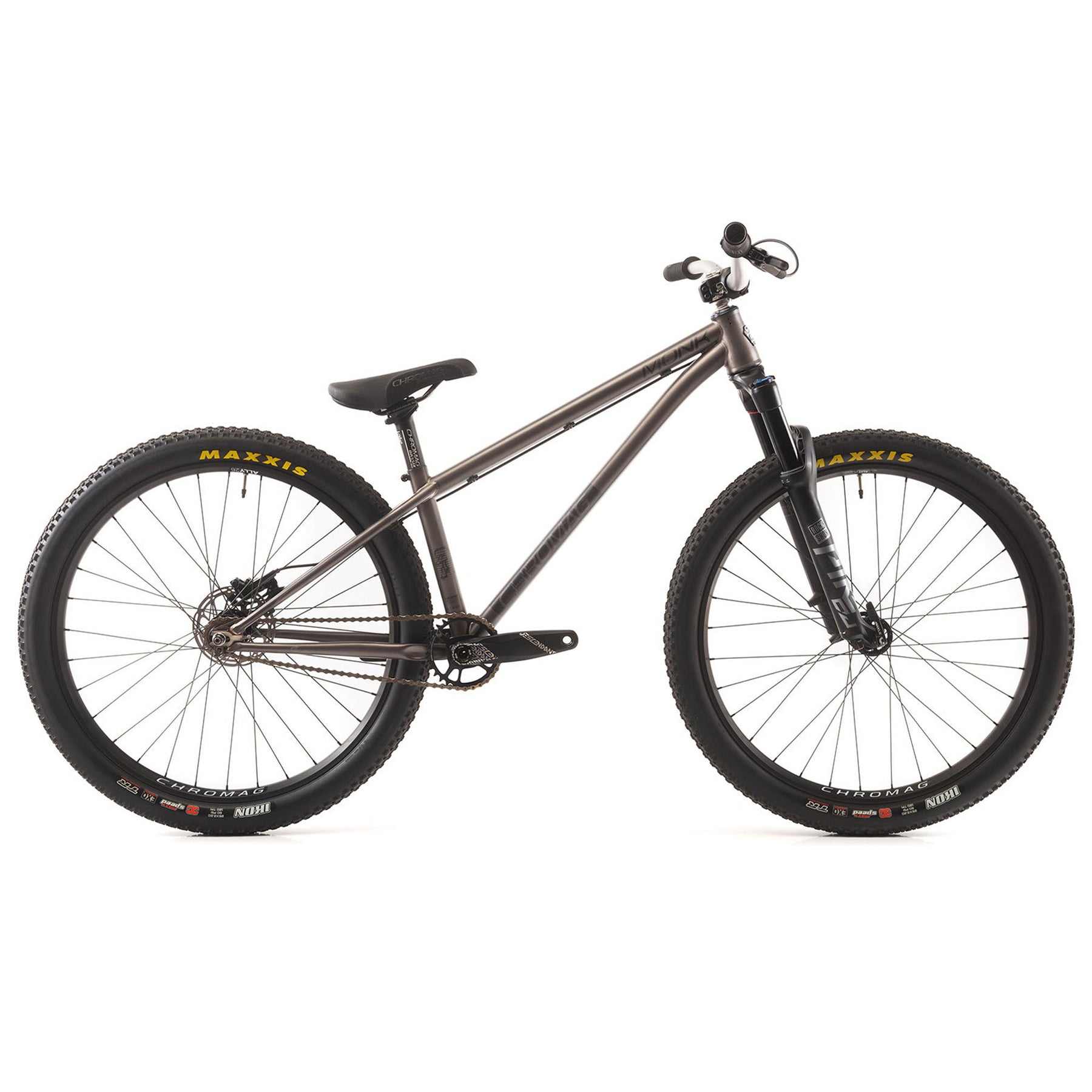

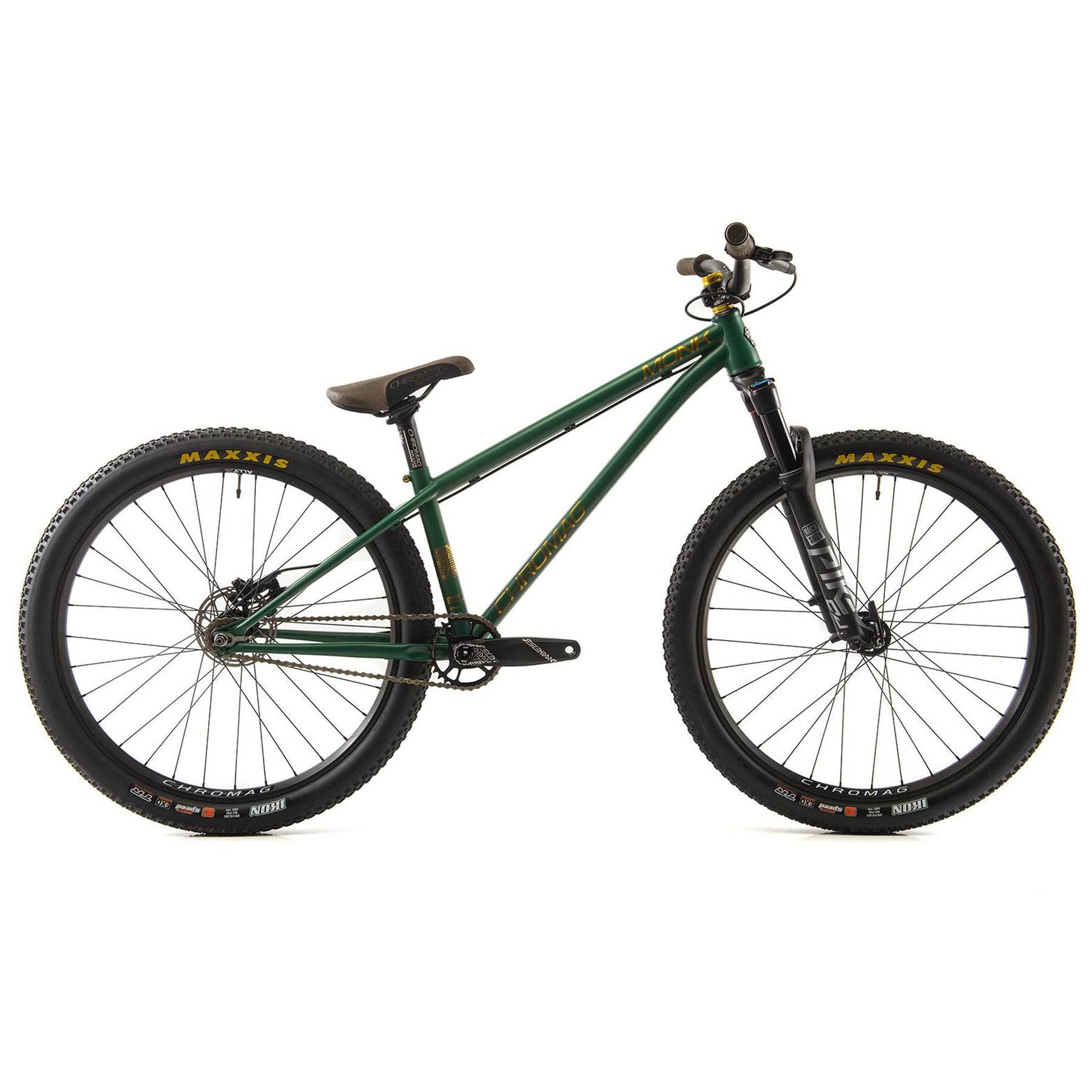

Chromag Monk
Specifications
ForkRock Shox Pike DJ 100mm, 100x15mm

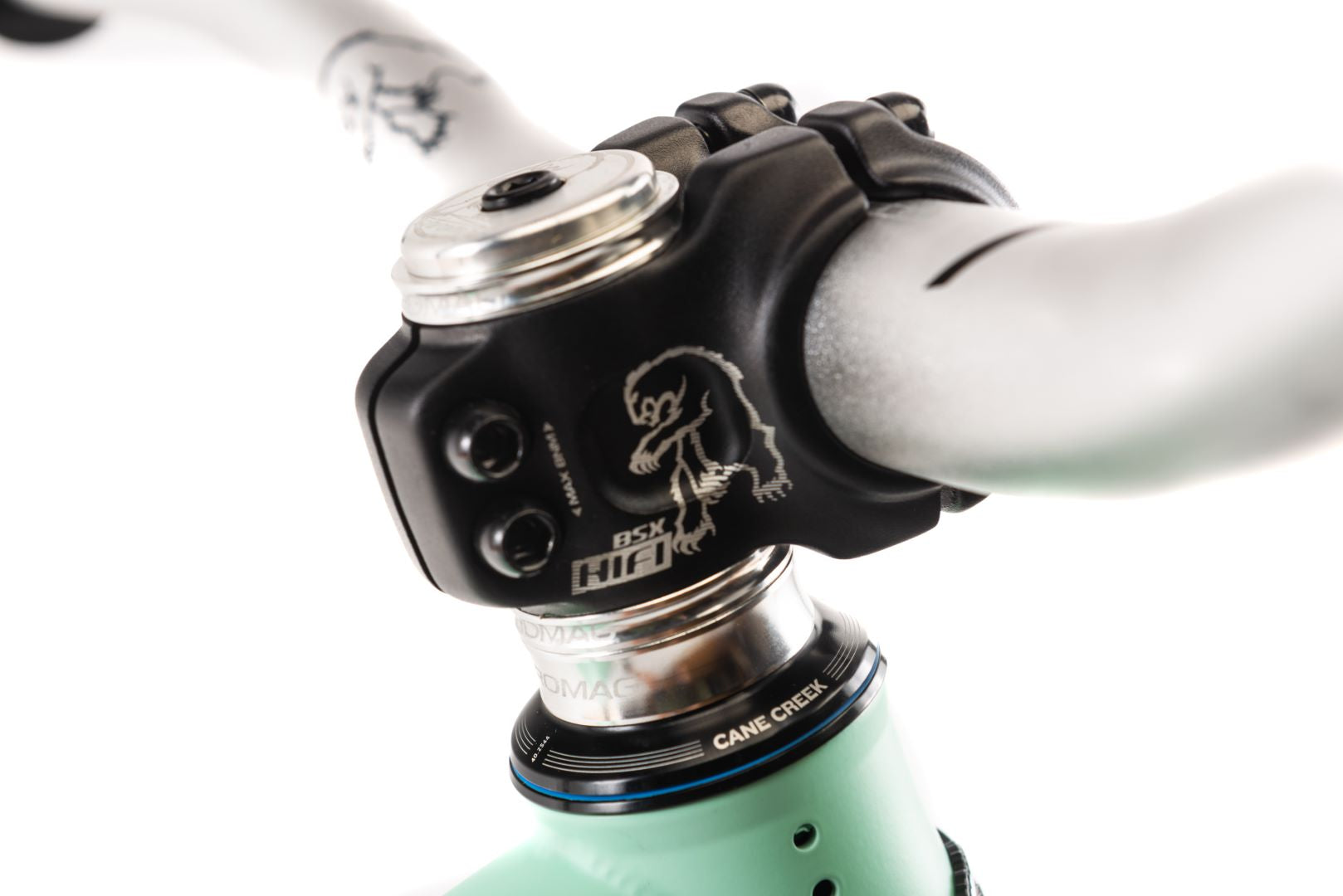

StemChromag HiFi BSX 31mm

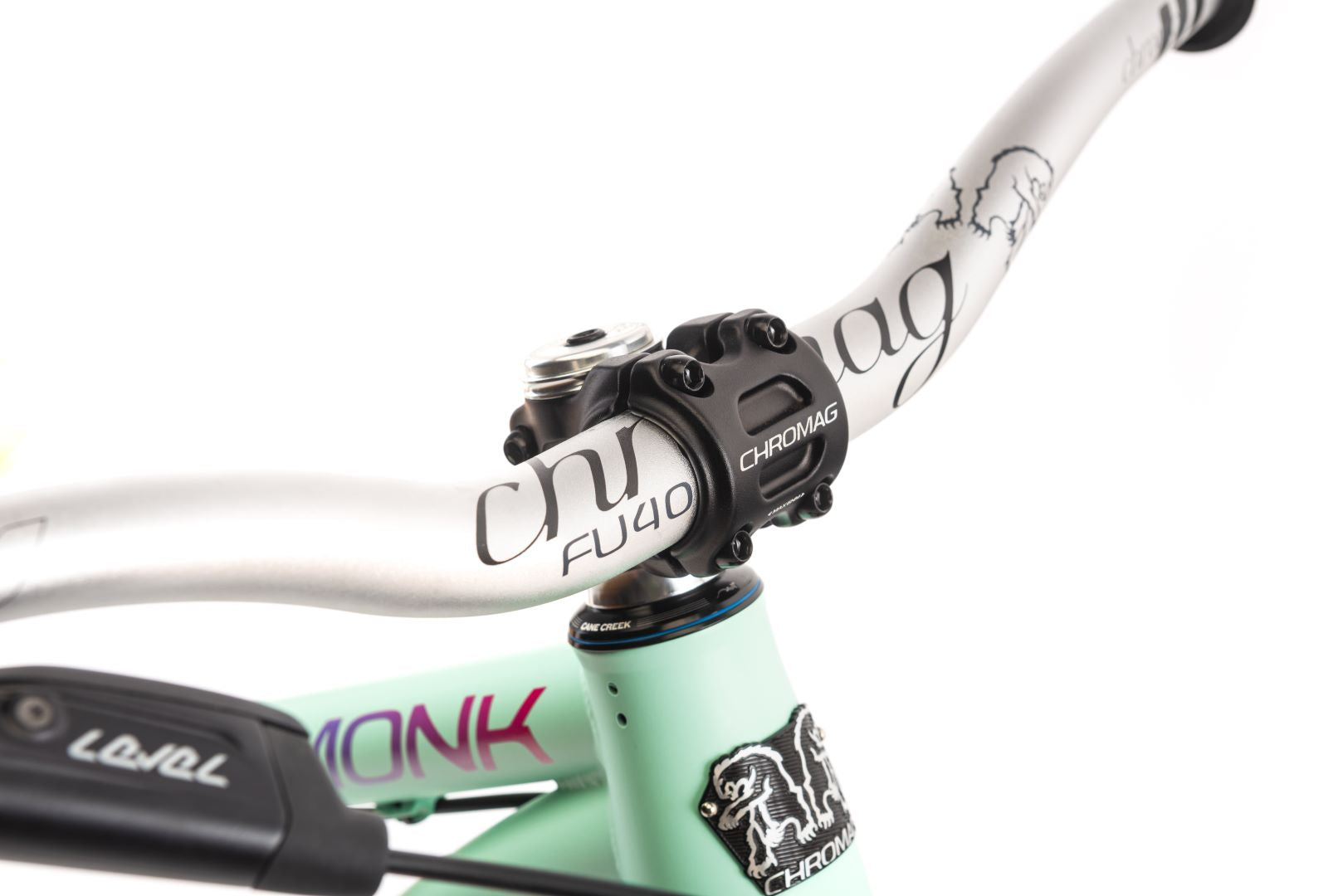

BarChromag FU40 40mm Rise, 800mm
HeadsetCane Creek Forty ZS
CrankDescendant 170mm
BrakeSRAM Level (Rear Only)
RotorSRAM 140mm
Cassette16t Single Speed
RimsChromag Ally 26" 32h
HubsChromag D1 4 pawl 32h
TiresMaxxis Ikon
SeatpostChromag Bassix 31.6
SaddleChromag Overture
GripsChromag Wax
ChainSS
Geometry
| X-Short | Short | Long | X-Long | ||
|---|---|---|---|---|---|
| A | Reach | 385 | 410 | 435 | 460 |
| B | Stack | 555 | 555 | 555 | 574 |
| C | Head Tube Angle | 70° | 70° | 70° | 70° |
| D | Bottom Bracket Drop | 30 | 30 | 30 | 30 |
| E | Wheelbase | 993 | 1018 | 1043 | 1068 |
| F | Chainstay Length | 381 | 381 | 381 | 381 |
| G | Head Tube Length | 95 | 95 | 95 | 115 |
| H | Top Tube Length | 520 | 545 | 570 | 595 |
| I | Seat Tube Angle | 76° | 76° | 76° | 76° |
| J | Standover Height | 619 | 619 | 619 | 619 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| X-Short | 4'6" - 5'6" | 137 - 168cm |
| Short | 5'3" - 5'10" | 160 - 178cm |
| Long | 5'7" - 6'2" | 170 - 188cm |
| X-Long | 5'11" - 6'6" | 180 - 198cm |
