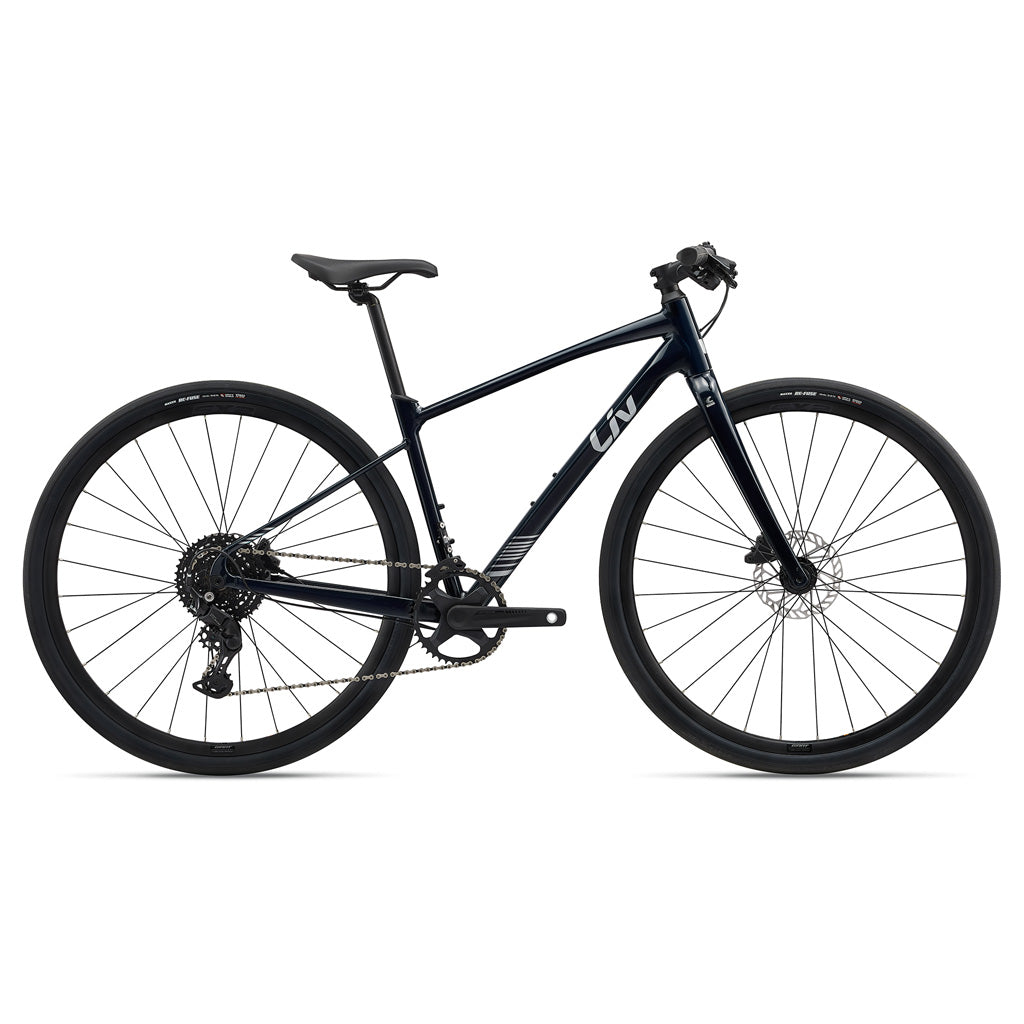

The Thrive is a fast, fun and confident fitness bike ready for short daily spins or long road rides.
Comfort
An upright riding position, flat handlebars and D-Fuse seatpost make commuting or a casual spin comfortable without compromising efficiency.
Fun Fitness
The lightweight, balanced geometry of the ALUXX-Grade Aluminum frame provides an energizing combination of speed and stability.
Control
Pedaling efficiency, reliable shifting and powerful braking are a perfect trio for predictable cruising.
Frame
ALUXX SL-grade aluminum, 12x142mm thru-axle, disc
Fork
Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Handlebar
Giant Sport flat, 31.8mm
Grips
Liv ErgoContact
Stem
Giant Sport, 7-degree
Seatpost
Giant D-Fuse, alloy
Saddle
Liv ErgoMax
Pedals
Platform
Shifters
Shimano CUES U4000, 1x9
Rear Derailleur
Shimano CUES RD-U4000
Brakes
Tektro HD-R280 hydraulic
Giant MPH rotors, F] 160mm, [R] 160mm
Brake Levers
Tektro HD-R280
Cassette
Shimano CUES LinkGlide, 9-speed, 11x41
Chain
KMC X11
Crankset
FSA Omega AGX+, 42t
Bottom Bracket
FSA, threaded
Rims
Giant S-X2 Disc wheelset, alloy
Hubs
Giant alloy, 12mm thru-axle
Spokes
Stainless, 14g
Tires
Maxxis Re-Fuse, tubeless, 700x40c, wirebead
Extras
Tubeless prepared, 42mm max tire size
* Specifications are subject to change without notice
XS | S | M | L | ||
---|---|---|---|---|---|
A | Reach | 376 | 380 | 385 | 391 |
B | Stack | 534 | 560 | 590 | 618 |
C | Head Tube Angle | 70.5° | 71.0° | 71.5° | 71.5° |
D | Bottom Bracket Drop | 70 | 70 | 70 | 70 |
E | Wheelbase | 1014 | 1020 | 1031 | 1046 |
F | Chain Stay Length | 425 | 425 | 425 | 425 |
G | Head Tube Length | 110 | 135 | 165 | 195 |
H | Top Tube Length | 525 | 540 | 560 | 580 |
I | Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° |
J | Stand Over Height | 680 | 710 | 745 | 770 |
*All measurements in degrees or millimetres
Size | Height | |
---|---|---|
Imperial | Metric | |
XS | 4'10" - 5'4" | 148 - 163cm |
S | 5'2" - 5'7" | 158 - 169cm |
M | 5'5" - 5'9" | 164 - 175cm |
L | 5'7" - 6'0" | 170 - 183cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
