Built for Speed
Liv Pique X Advanced SL 1
Local Pickup Only
Contact For Availability

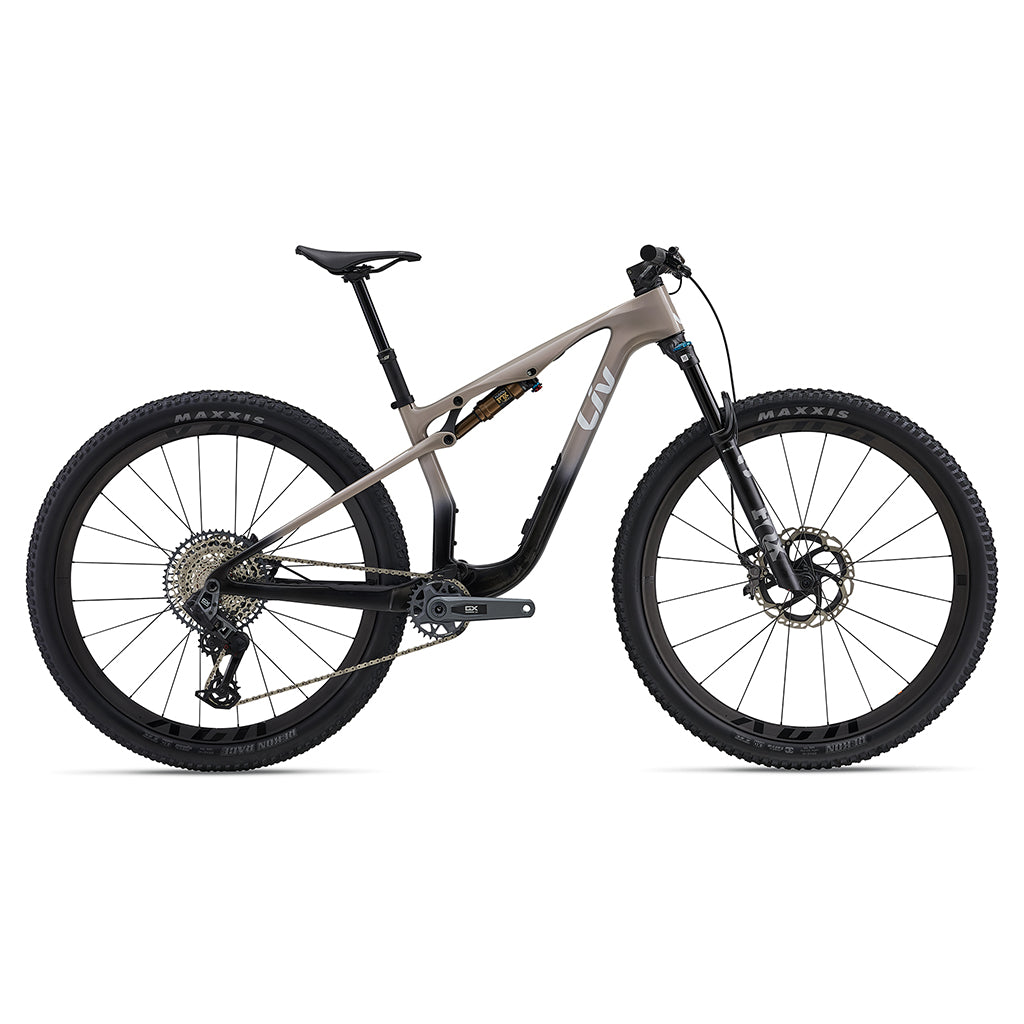

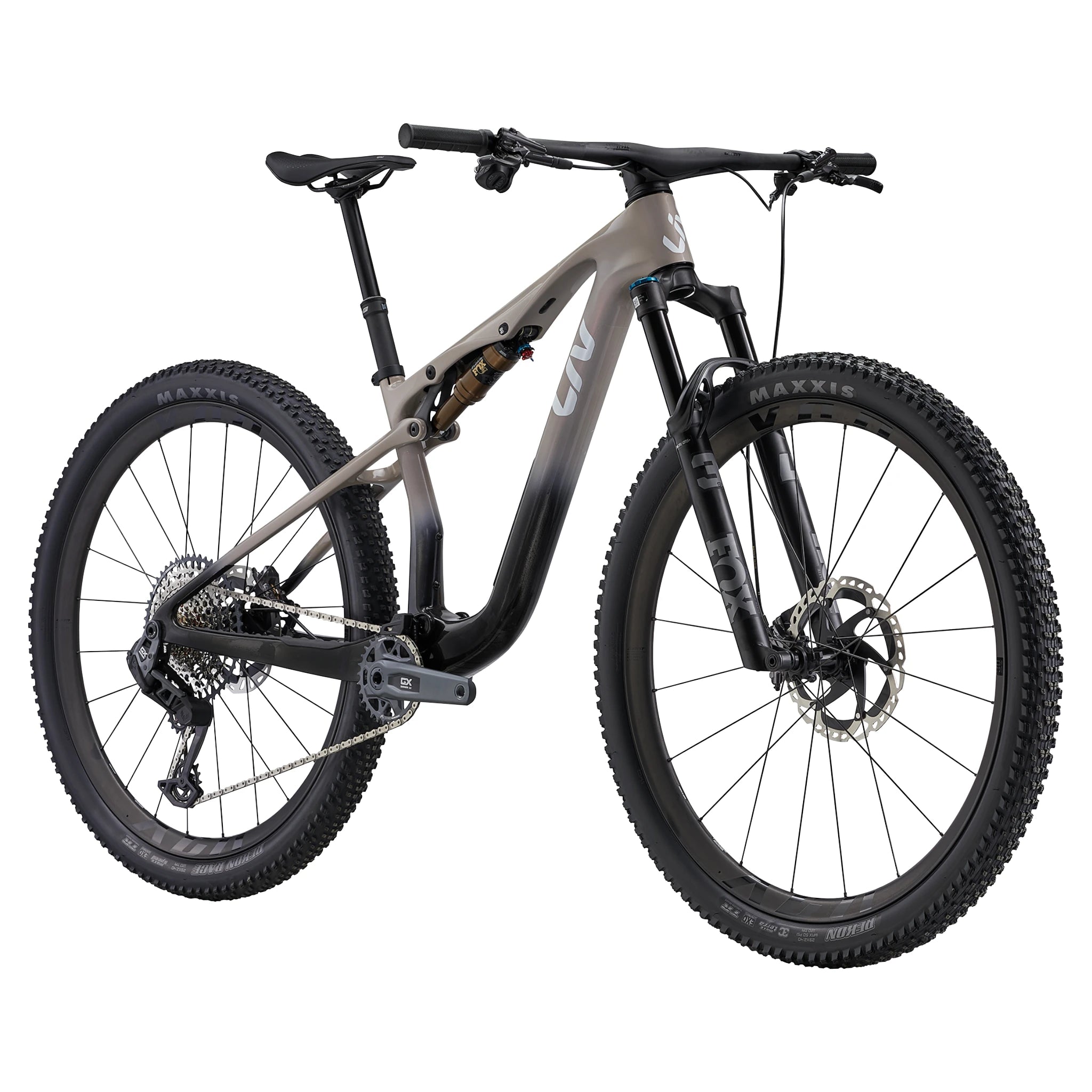

Liv Pique X Advanced SL 1
$8,699.00
Built for riders obsessed with speed, performance, and capability, the new Pique X Advanced SL is engineered to deliver. The flip chip lets you dial in your geometry for any terrain. And with in-frame storage, 130mm fork and 120mm semi-integrated FlexPoint Pro rear suspension, you’re ready for anything, from aggressive climbs and chunky descents, to gutsy lines and all-day epics.
Quick Highlights
- SRAM GX Transmission Drivetrain
- Shimano XT 4-Piston Brakes
- Giant XCR Carbon Wheels
210000106069
Colour
Quantity
Have a question?
If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.
Specifications

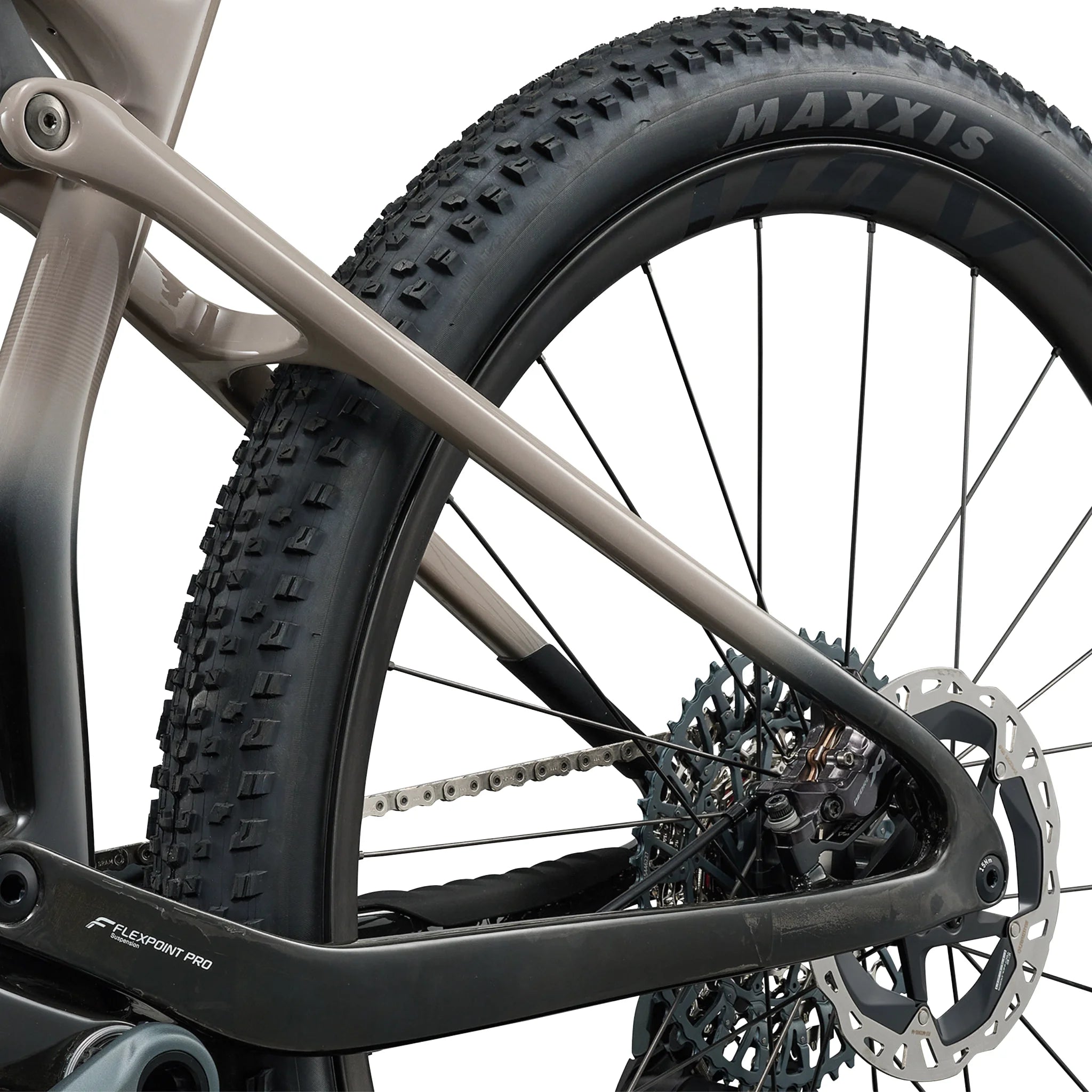

| Frame | Advanced SL-grade composite front and rear triangles, 120mm FlexPoint Pro suspension, flip chip, 12x148mm thru-axle, integrated downtube storage |
|---|---|

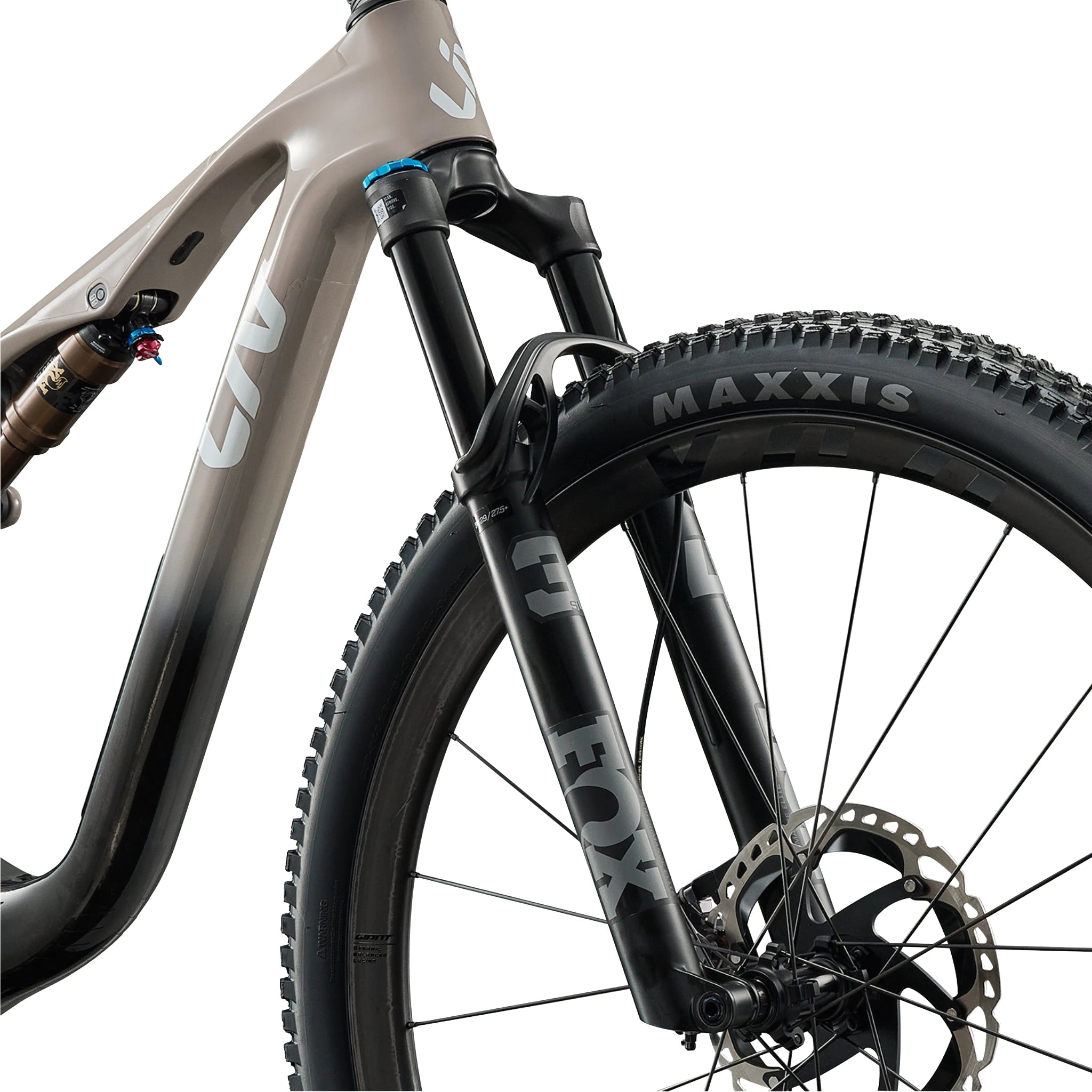

| Fork | Fox 34 SL Performance Elite, 130mm, GRIP X damper, 44mm offset, Boost 15x110mm |

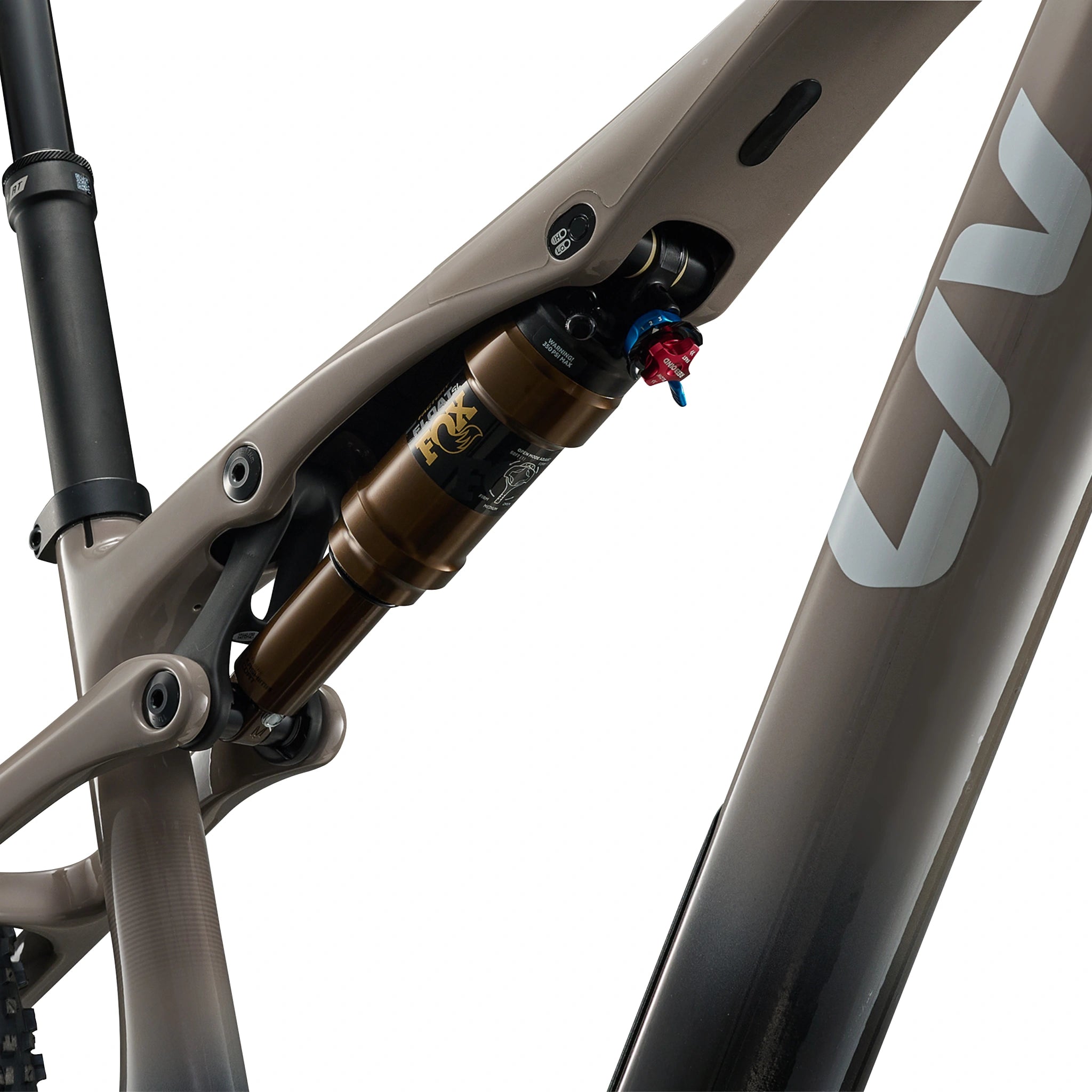

| Shock | Fox Float SL Factory, 210/50 |

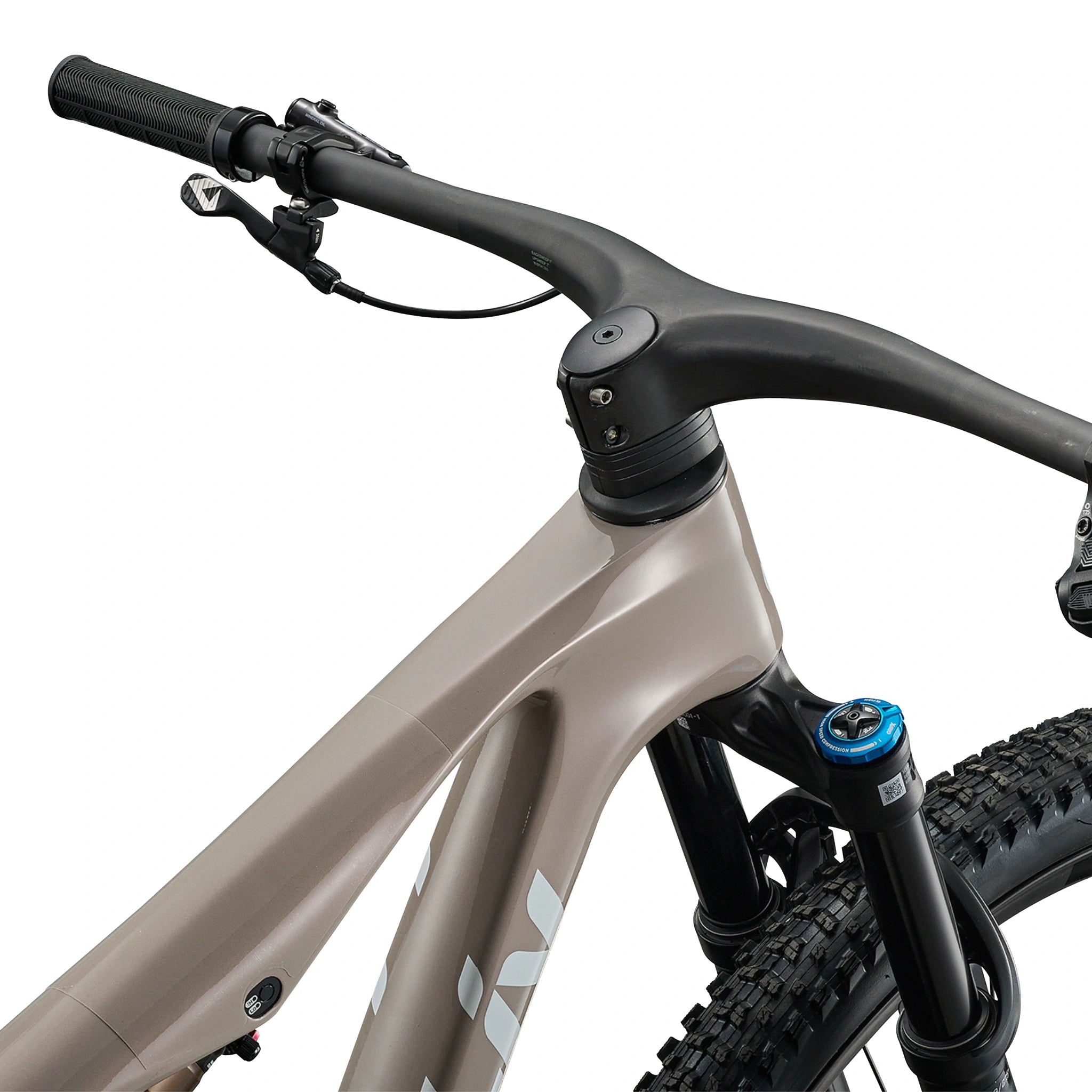

| Handlebar | Giant Integrated XC, composite, 780mm, 9-degree upsweep |
| Grips | Liv Tactal Pro single lock-on |
| Stem | Giant Integrated XC Carbon XS: 50, S: 50mm, M: 50mm, L: 60mm |
| Seatpost | Giant Contact Switch AT adjustable dropper, remote S/M: 110-140mm travel / 30.9 x 395mm L/XL: 140-170mm travel / 30.9 x 530mm |
| Saddle | Liv Grit SL |
| Shifters | SRAM AXS Pod, discrete clamp, 1x12 |

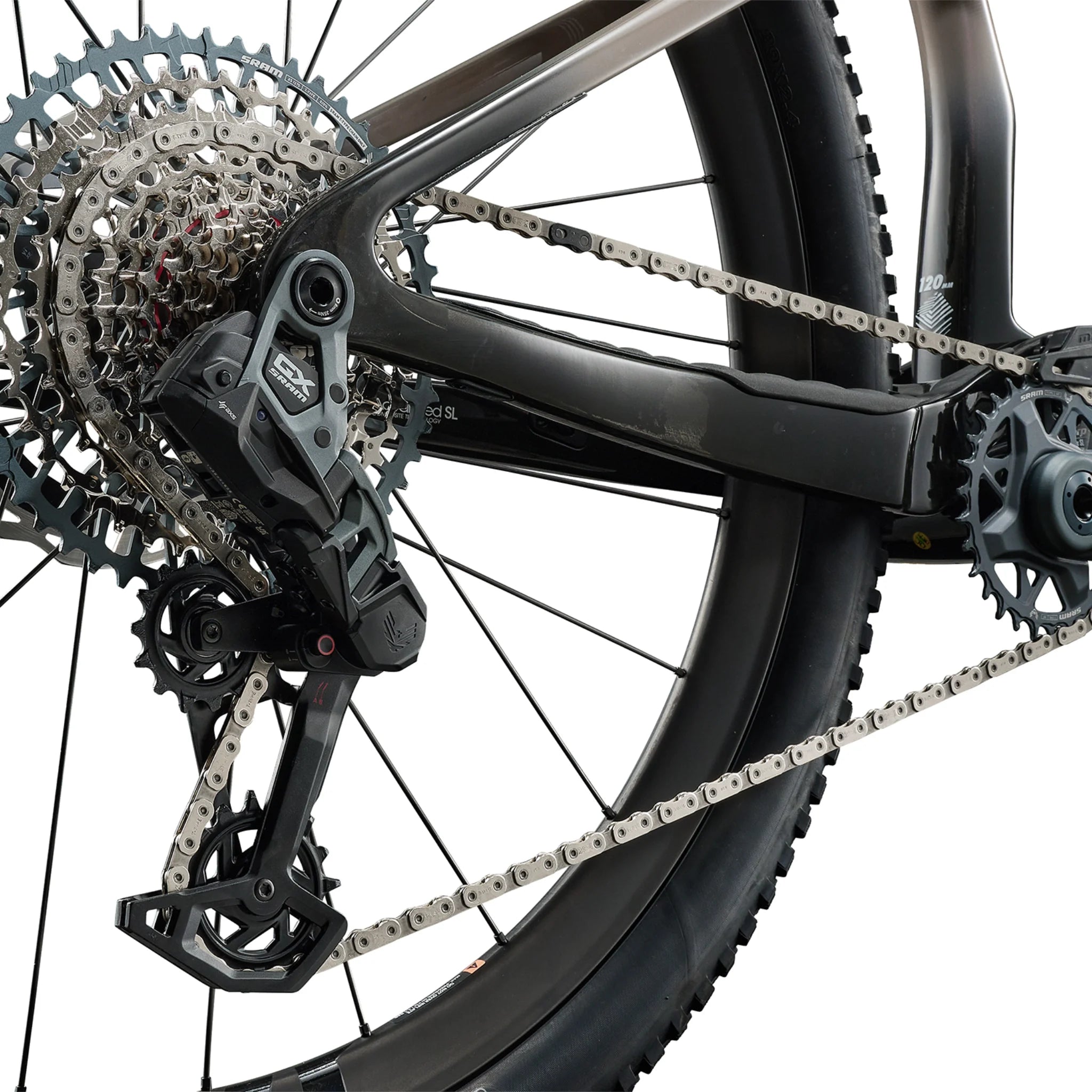

| Rear Derailleur | SRAM GX AXS Transmission |
| Brakes | Shimano XT BR-M8120, 4-piston, hydraulic Shimano RT-MT905 rotors [F] 203mm, [R] 180mm |
| Brake Levers | Shimano XT BL-M8100 |
| Cassette | SRAM XS-1275, 12-speed, 10x52 |
| Chain | SRAM GX Transmission |
| Crankset | SRAM GX Transmission, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant XCR Carbon WheelSystem, 30mm IW, 40mm OW, 29mm H, Wide Guard technology [F] 29, [R] 29 |
| Hubs | [F] Giant MTB alloy, 6-bolt, sealed [R] Giant MTB alloy, 120t POE, 3-pawl driver, 6-bolt |
| Spokes | Giant Carbon Spoke |
| Tires | Maxxis Rekon Race 29x2.4", folding, EXO, tubeless, 120TPI |
| Extras | MRP SL TR2 1x chain guide, integrated down tube storage bag, tubeless prepared, 2.4" max tire size, 34t max chainring size |
*Specifications are subject to change without notice
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| LO | HI | LO | HI | LO | HI | LO | HI | ||
| A | Reach | 394 | 400 | 410 | 416 | 430 | 436 | 445 | 450 |
| B | Stack | 605 | 602 | 610 | 607 | 620 | 616 | 629 | 625 |
| C | Head Tube Angle | 66.0° | 66.5° | 66.0° | 66.5° | 66.0° | 66.5° | 66.1° | 66.6° |
| D | Bottom Bracket Drop | 48 | 42 | 48 | 42 | 48 | 42 | 48 | 42 |
| E | Wheelbase | 1125 | 1124 | 1143 | 1142 | 1166 | 1166 | 1185 | 1184 |
| F | Chainstay Length | 437 | 435 | 437 | 435 | 437 | 435 | 437 | 435 |
| G | Head Tube Length | 90 | 90 | 95 | 95 | 105 | 105 | 115 | 115 |
| H | Top Tube Length | 557 | 555 | 574 | 572 | 596 | 594 | 613 | 611 |
| I | Seat Tube Angle | 75.0° | 75.5° | 75.0° | 75.5° | 75.0° | 75.5° | 75.1° | 75.6° |
| J | Standover Height | 777 | 784 | 775 | 782 | 770 | 777 | 765 | 771 |
| All measurements in degrees or millimetres | |||||
Sizing Guide
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'11" - 5'4" | 150 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 175cm |
| L | 5'7" - 5'11" | 170 - 181cm |
Model Numbers
| Size | Model Number |
|---|---|
| Dune Beige / Raw Carbon | |
| XS | 1072016103 |
| S | 1072016104 |
| M | 1072016105 |
| L | 1072016107 |
