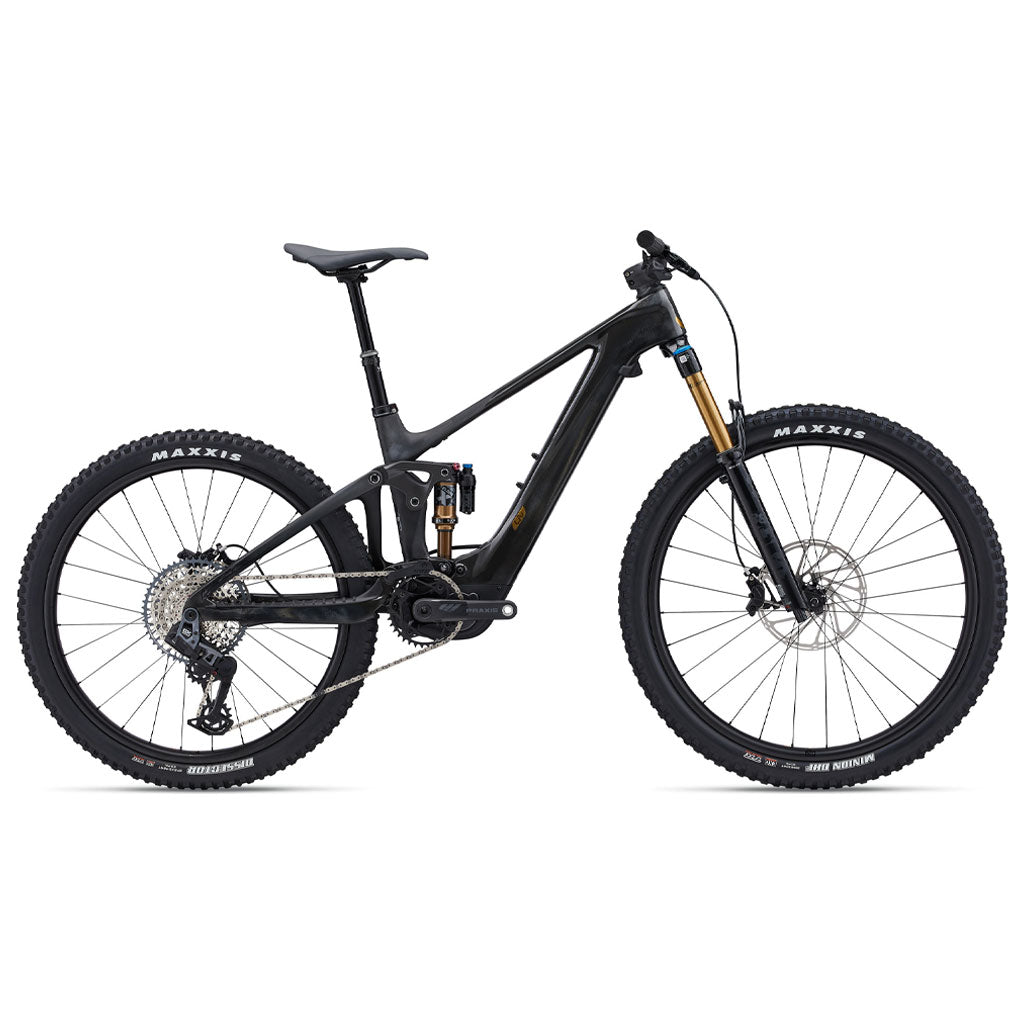

Liv Intrigue X Advanced E+ Elite 1
210000070703
Regular price$12,499.99 CAD
/
- Local Pickup Only
- DESCRIPTION
- Specifications
- Geometry
- Sizing Guide
DESCRIPTION
In-Store Pickup Only
Next-level performance and unforgettable fun await you on this premium E-MTB. The cutting-edge Intrigue X Advanced E+ Elite is remarkably light yet super powerful. Get ready to feel like a pro as you shred technical terrain with confidence, accelerate up climbs, and corner at top speed.
Lightweight and Nimble
This full-suspension E-MTB, with its short chainstay and 140mm (rear)/150mm (front) travel, is engineered to create an ultra-light, efficient and responsive ride. Exceptional shock absorption is an added bonus on rock gardens.
Powerful and Smooth
A potent 85Nm of torque delivered by the lightweight SyncDrive Pro 2 Mg motor is smooth and instant, keeping you efficient and in control at all times. The ultra-slim, 400Wh battery hidden in the down tube minimizes weight and provides a perfect balance of efficiency and range.
Sleek Design
From the integrated control unit to the sleek console on the top tube and the internal cable routing, every design element embodies a high-end, modern look. It combines leading-edge E-MTB design with a user-friendly experience.
Specifications
Frame
Advanced-grade composite front and rear triangles, Advanced Forged composite upper rocker, 140mm Maestro suspension, 12x148 thru-axle, flip chip - Maestro
Fork
Fox 36 Factory E-Tuned, 29er, 150mm travel, 44mm offset, Grip2 VVC damper, Kabolt-X 110
Shock
Fox Float X Factory, EVOL, 185x52.5mm Trunnion mount, custom tuned
Handlebar
Giant Contact SLR Trail, carbon, 760mm (XS-S), 800mm (M-L)
Grips
Liv Tactal Pro-E single lock-on
Stem
Giant Contact SLR Trail, integrated, 40/45/50mm Reach, 7/9degree Sweep Adjust System
Seatpost
Tranz-X Rad+ dropper, 30.9mm, 30mm travel adjustable (XS/S:90-125mm, M:120-150mm, L:140-170mm)
Saddle
Liv Sylvia E+
Shifters
SRAM AXS new NGD controller, wireless electronic shifting
Front Derailleur
MRP HD2 co-moulded chain guide
Rear Derailleur
SRAM GX Eagle Transmission, AXS
Brakes
SRAM Code R, 4-piston hydraulic, [F] 220mm, [R] 200mm
Brake Levers
SRAM Code R
Cassette
SRAM GX Eagle Transmission, 12-speed, 10x52
Chain
SRAM GX Eagle Transmission Flattop Chain, Powerlock
Crankset
Praxis Performance carbon e-crank arms (S/M:160, L/XL:165) SRAM Eagle Transmission E-MTB Chainring , steel 36t
Rims
E-TRX Hookless tubeless ready carbon 29 [F] / 27.5 [R] 30mm inner width
Hubs
E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (Pawl 36x2 T) Thru-axle [R]
Spokes
Sapim [F] Race, [R] E-Lite, e-bike optimized
Tires
[F] Maxxis Minion DHF 29X2.50" Foldable, TLR, EXO
[R] Maxxis Dissector 27.5x2.4" Foldable, TLR, EXO
Extras
Tubeless kit (liquid, valves, levers, manual, tool)
Inner tube supplied
Optional:
- Giant Recon series e-bike lights available and direct connectable
Motor
Giant SyncDrive Pro2 Mg, 85Nm, powered by Yamaha
Controls
Giant RideControl Ergo 3, grip integrated
Display
RideControl GO, frame integrated LED console Optional ANT+ wireless display compatible
Battery
EnergyPak Smart 400Wh, alloy casing with highest safety standard (EN50604), CO2 neutral production EnergyPak Plus 200Wh range extender compatible
Charger
EnergyPak 4A smart charger, 60% in 1:45h
* Specifications are subject to change without notice
Geometry
| XS | S | M | ||
|---|---|---|---|---|
| LOW | HIGH | LOW | HIGH | LOW | HIGH | ||
| A | Reach | 419 | 427 | 434 | 442 | 444 | 452 |
| B | Stack | 606 | 601 | 606 | 601 | 611 | 605 |
| C | Head Tube Angle | 65.7° | 66.5° | 65.7° | 66.5° | 65.8° | 66.5° |
| D | Bottom Bracket Drop | 30 | 20 | 30 | 20 | 30 | 20 |
| E | Wheelbase | 1174| 1175 | 1188| 1190 | 1200| 1201 |
| F | Chainstay Length | 447 | 447 | 447 |
| G | Head Tube Length | 95 | 95 | 100 |
| H | Top Tube Length | 557 | 555 | 572 | 570 | 597 | 595 |
| I | Seat Tube Angle | 77.2° | 77.2° | 76.0° |
| J | Stand Over Height | 722 | 730 | 726 | 735 | 717 | 726 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 5'0" - 5'4" | 152 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 175cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
