DESCRIPTION

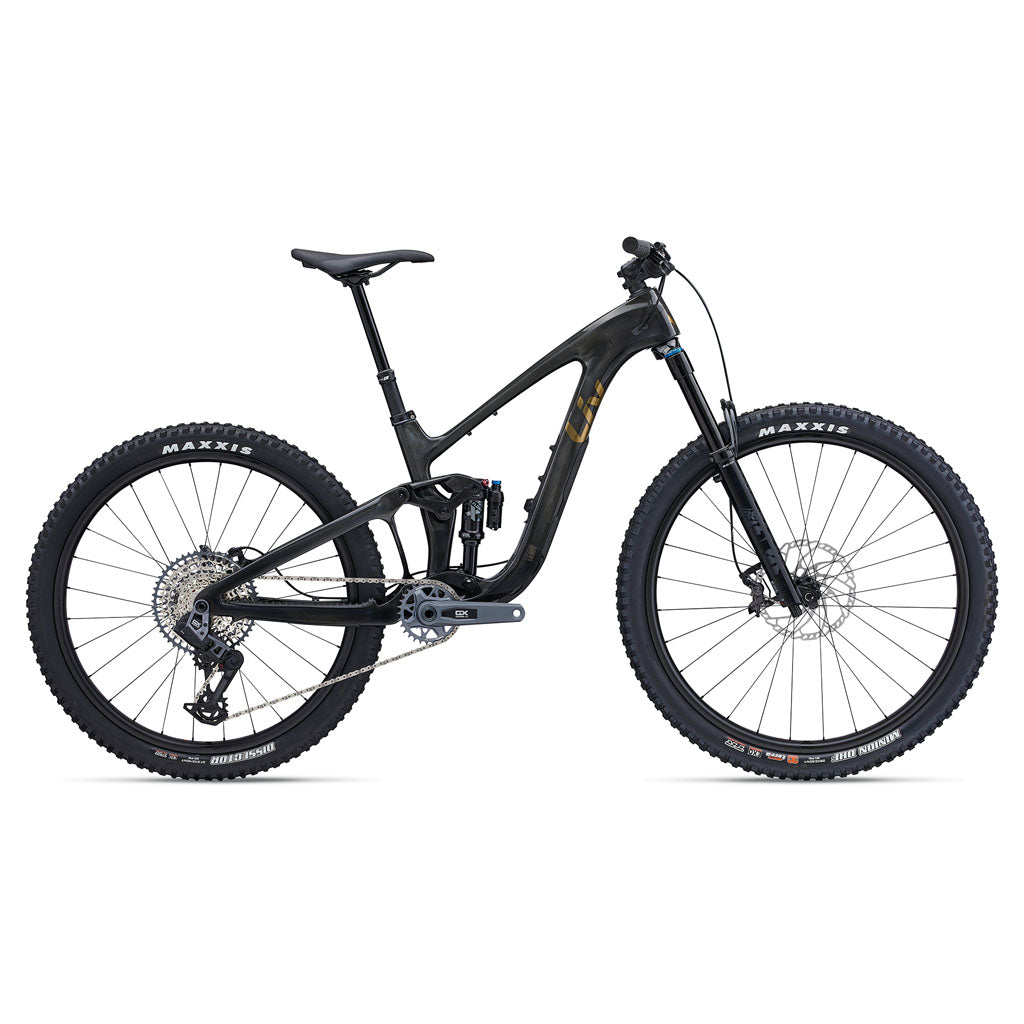

The exceptionally versatile Intrigue X Advanced was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.
Performance Mid Travel Trail
Constructed with lightweight Advanced-grade composite for an agile, responsive ride, the frame also boasts integrated down tube storage — a sleek solution for additional space to store your tools and snacks. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, you’ve got the ultimate trail bike that’s efficient on the ups and shreds on the downs.
Adjustable Frame Geometry
For ultimate adjustability, the Intrigue X Advanced features flip chip – Maestro 3 and the new flip chip – headset allowing you to customize the overall riding geometry to suit the trail, your riding preferences, and rear wheel choice*. Not only can you change the head tube angle, seat tube angle, and bottom bracket height — you can now adjust your headset position to achieve either a short, mid, or long reach. These fine-tuning adjustments optimize your riding position for better handling and stability, wherever your bike takes you. *Rear wheel size change available for M and L only.
Best of Both Wheels
Frame sizes XS and S are solely designed for an MX configuration – 29-inch wheel up front and 27.5-inch wheel in the rear. This set up optimizes rear wheel travel, allows a playful and nimble rear end and a fast rolling, stable front end. Frame sizes M and L come equipped with 29-inch wheels up front and in the rear with the ability to run a 27.5-inch wheel in the rear*. This provides two unique riding characteristics – fast and comfortable or quick and nimble – allowing you to customize your set up for how and where you ride. *27.5-inch wheel sold separately for frame sizes M and L.
Specifications
Frame
Advanced-grade composite front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, integrated down tube storage
Fork
Fox 36 Performance Elite, 150mm, Grip 2 damper, Boost 15x110 Kabolt X, tapered, 44mm offset
Shock
Fox Float X Performance Elite, 185x52.5, custom tuned for Liv
Handlebar
Giant Contact SLR TR35, 20mm rise, composite XS: 760mm, S: 760mm, M: 760mm, L: 780mm
Grips
Liv Tactal Pro single lock-on
Stem
Giant Contact SL, 35mm XS: 40mm, S: 50mm, M: 50mm, L: 50mm
Seatpost
Giant Contact Switch, adjustable dropper, remote XS: 140-170mm travel / 30.9 x 470mm S: 140-170mm travel / 30.9 x 470mm M: 170-200mm travel / 30.9 x 530mm L: 170-200mm travel / 30.9 x 530mm
Saddle
Liv Sylvia
Shifters
SRAM AXS Pod, 1x12
Rear Derailleur
SRAM GX Eagle, T-Type AXS
Brakes
Shimano XT M8120, hydraulic, Shimano RT-66 rotors [F] 203mm, [R] 180mm
Brake Levers
Shimano XT BL-8100
Cassette
SRAM GX CS 1275 T-Type, 10x52
Chain
SRAM GX Eagle Transmission
Crankset
SRAM GX Eagle Transmission, 30t, 55mm chainline XS: 165mm, S: 170mm, M: 170mm, L: 170mm
Bottom Bracket
SRAM DUB, press fit
Rims
Giant TRX Carbon WheelSystem, 30mm rim inner width XS/S: [F] 29, [R] 27.5 M/L: [F] 29, [R] 29
Hubs
[F] Giant MTB alloy, 6-bolt
[R] Giant MTB alloy, 3-pawl driver, 6-bolt
Spokes
Sapim
Tires
Size XS, S, M and L, [F]: Maxxis Minion DHF 29x2.5WT, 3C Max Terra, EXO, TR, tubeless
Size XS and S, [R]: Maxxis Dissector 27.5x2.4WT, 3C Max Terra, EXO, TR, tubeless
Size M and L, [R]: Maxxis Dissector 29x2.4WT, 3C Max Terra, EXO, TR, tubeless
Extras
Tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector, integrated down tube storage bag
* Specifications are subject to change without notice
Geometry
| XS | S | M | L | ||
|---|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
| A | Reach | 397 | 401 | 405 | 412 | 415 | 420 | 436 | 440 | 444 | 456 | 459 | 464 |
| B | Stack | 615 | 613 | 610 | 620 | 617 | 614 | 621 | 619 | 616 | 626 | 623 | 620 |
| C | Head Tube Angle | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° | 64.4° | 64.8° | 65.1° |
| D | Bottom Bracket Drop | 25 | 20 | 15 | 24 | 20 | 15 | 35 | 30 | 25 | 35 | 30 | 25 |
| E | Wheelbase | 1159 | 1159 | 1158 | 1176 | 1176 | 1175 | 1202 | 1201 | 1201 | 1224 | 1224 | 1223 |
| F | Chainstay Length | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 | 440 | 439 | 438 |
| G | Head Tube Length | 95 | 100 | 105 | 110 |
| H | Top Tube Length | 548 | 547 | 546 | 564 | 563 | 562 | 582 | 581 | 580 | 603 | 602 | 601 |
| I | Seat Tube Angle | 76.2° | 76.6° | 76.9° | 76.2° | 76.6° | 76.9° | 76.8° | 77.2° | 77.5° | 76.8° | 77.2° | 77.5° |
| J | Stand Over Height | 730 | 734 | 738 | 733 | 737 | 742 | 745 | 749 | 754 | 767 | 771 | 776 |
*All measurements in degrees or millimetres
Sizing Guide
| Size | Height | |
|---|---|---|
| Imperial | Metric | |
| XS | 4'11" - 5'4" | 150 - 163cm |
| S | 5'2" - 5'7" | 158 - 169cm |
| M | 5'5" - 5'9" | 164 - 175cm |
| L | 5'7" - 5'11" | 170 - 181cm |
The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.
We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.
