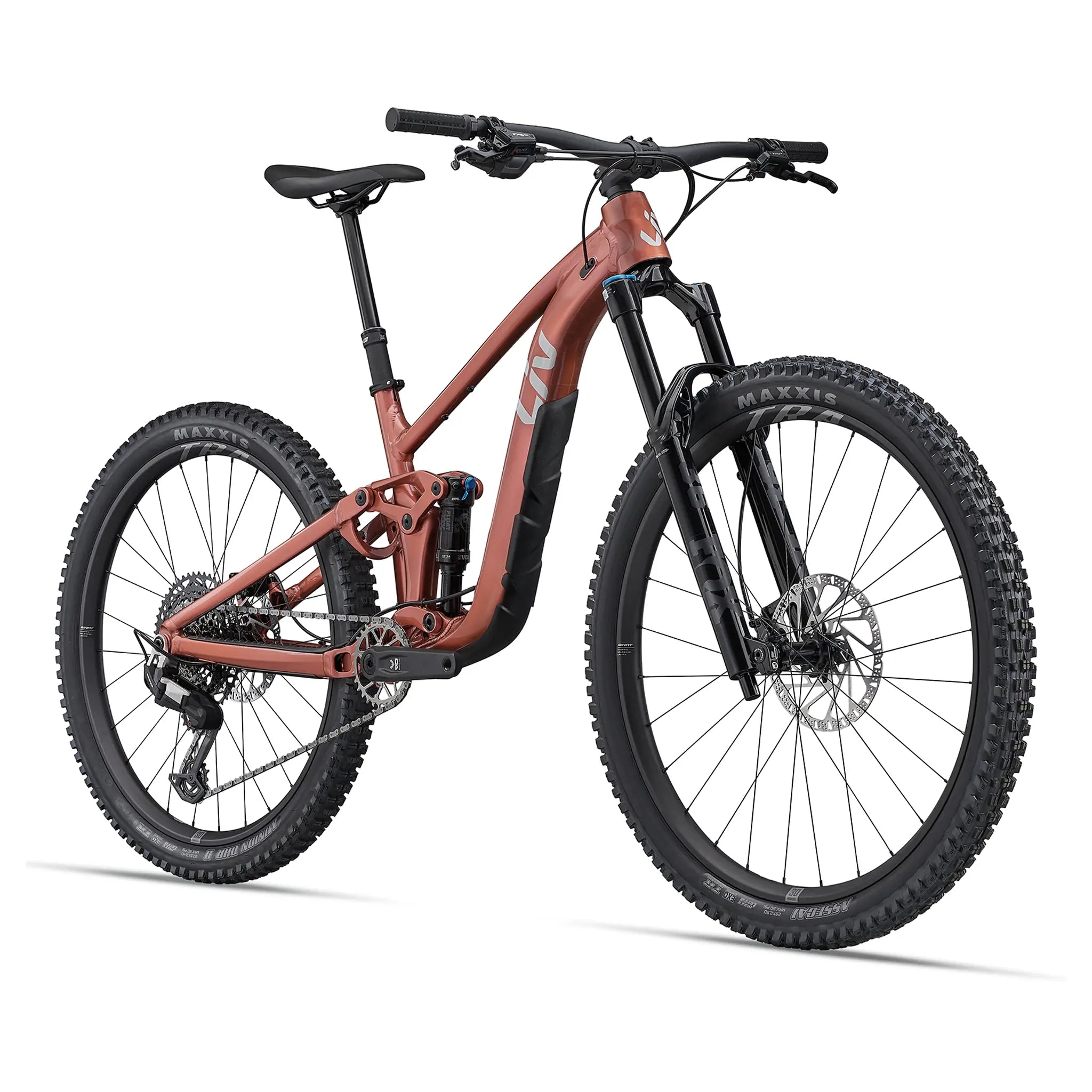

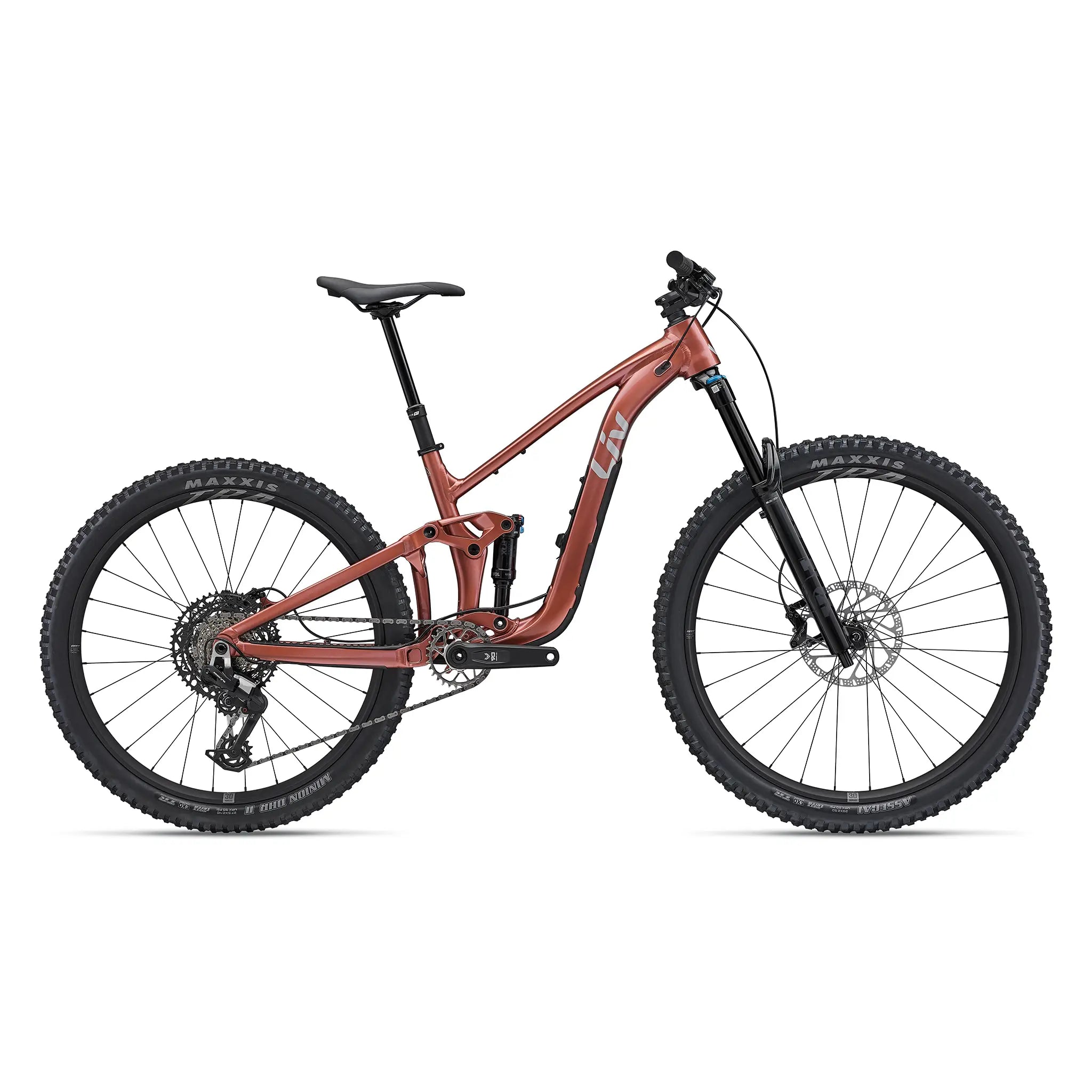

Liv Intrigue X 1

$5,299.00

The exceptionally versatile Intrigue X was designed to expand your trail capabilities, from technical descents to nimble and efficient climbs, and all the exhilarating flowy goodness in between. Extremely customizable with adjustable geometry, frame storage, and wheel options, the Intrigue X Advanced delivers extra performance and fun.

Quick Highlights

  • FOX Float Performance Suspension
  • TRP EVO 4-piston Brakes
  • SRAM Eagle 90 Transmission
Click here for more info
210000106077
Colour
Size
Quantity
Have a question?

If you have any questions do not hesitate to reach out to us and we'll get back to within 24 hours.


Contact Us
Liv Intrigue X 1

Liv Intrigue X 1

$5,299.00

Liv Intrigue X 1

The Intrigue X redefines versatility, ready for technical descents, efficient climbs, and flowy singletrack. With adjustable geometry, integrated frame storage, and customizable wheel options, it delivers top-tier performance and endless fun.

Built with lightweight Advanced-grade composite, the frame is agile, responsive, and features sleek down tube storage. Paired with 140mm of Maestro rear suspension and 150mm of front suspension, it excels on climbs and descents alike.

With flip chip adjustability, you can fine-tune the geometry, including head tube angle, seat tube angle, and reach, for optimal handling and stability. Wheel versatility lets XS and S sizes run a mullet setup, while M and L sizes support both dual 29-inch wheels or a mullet configuration, adapting to your preferred ride style. The Intrigue X Advanced is built to amplify every trail adventure.

Specifications

Sizes XS, S, M, L
Colour Ember Rose/Iris
Frame ALUXX SL-grade aluminum front and rear triangles, 140mm Maestro suspension, flip chip - Maestro 3, flip chip - headset, 12x148mm thru-axle, integrated downtube storage

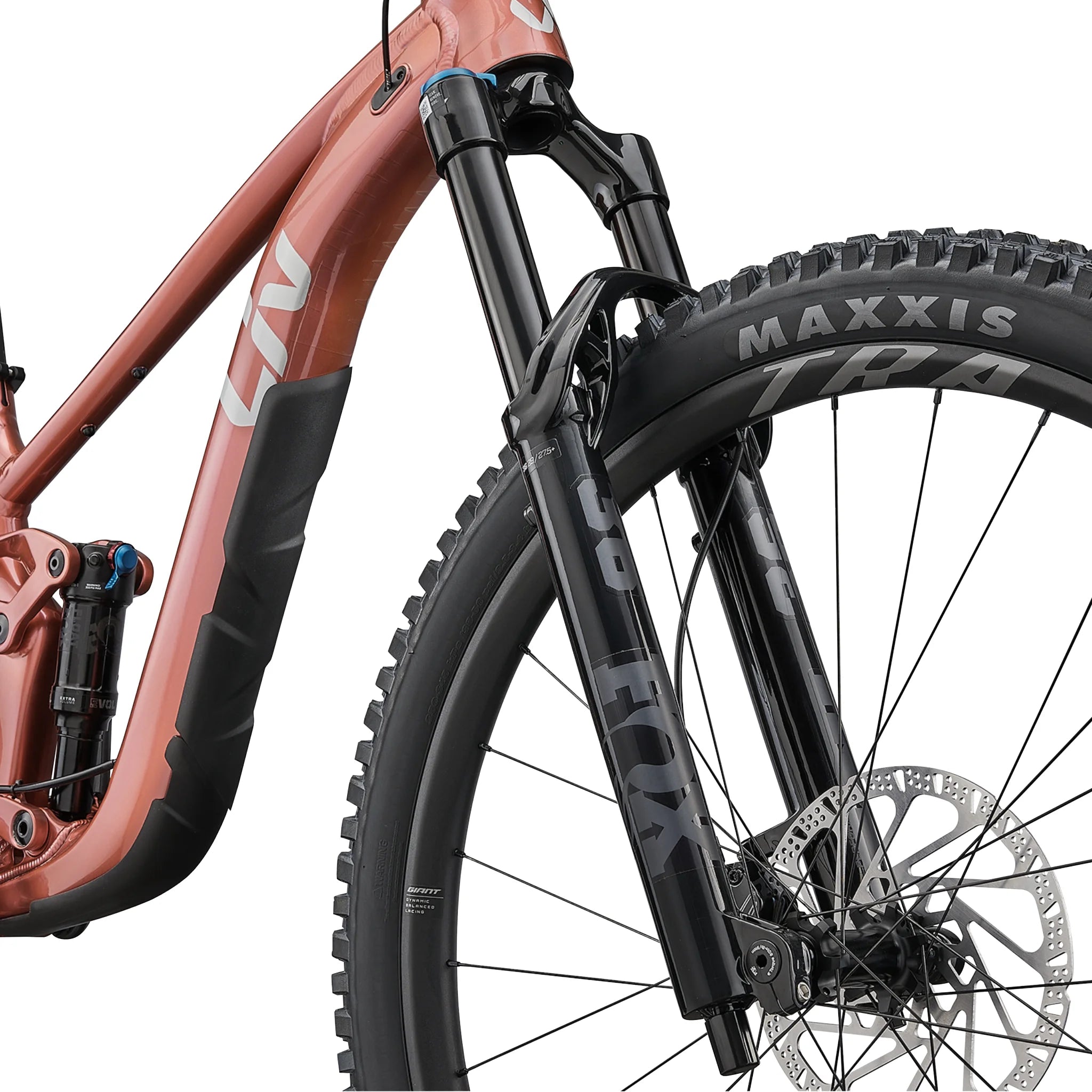

Fork Fox 36 Float Performance, 150mm, Grip Damper, 44MM OFFSET, 15x110 Kabolt X

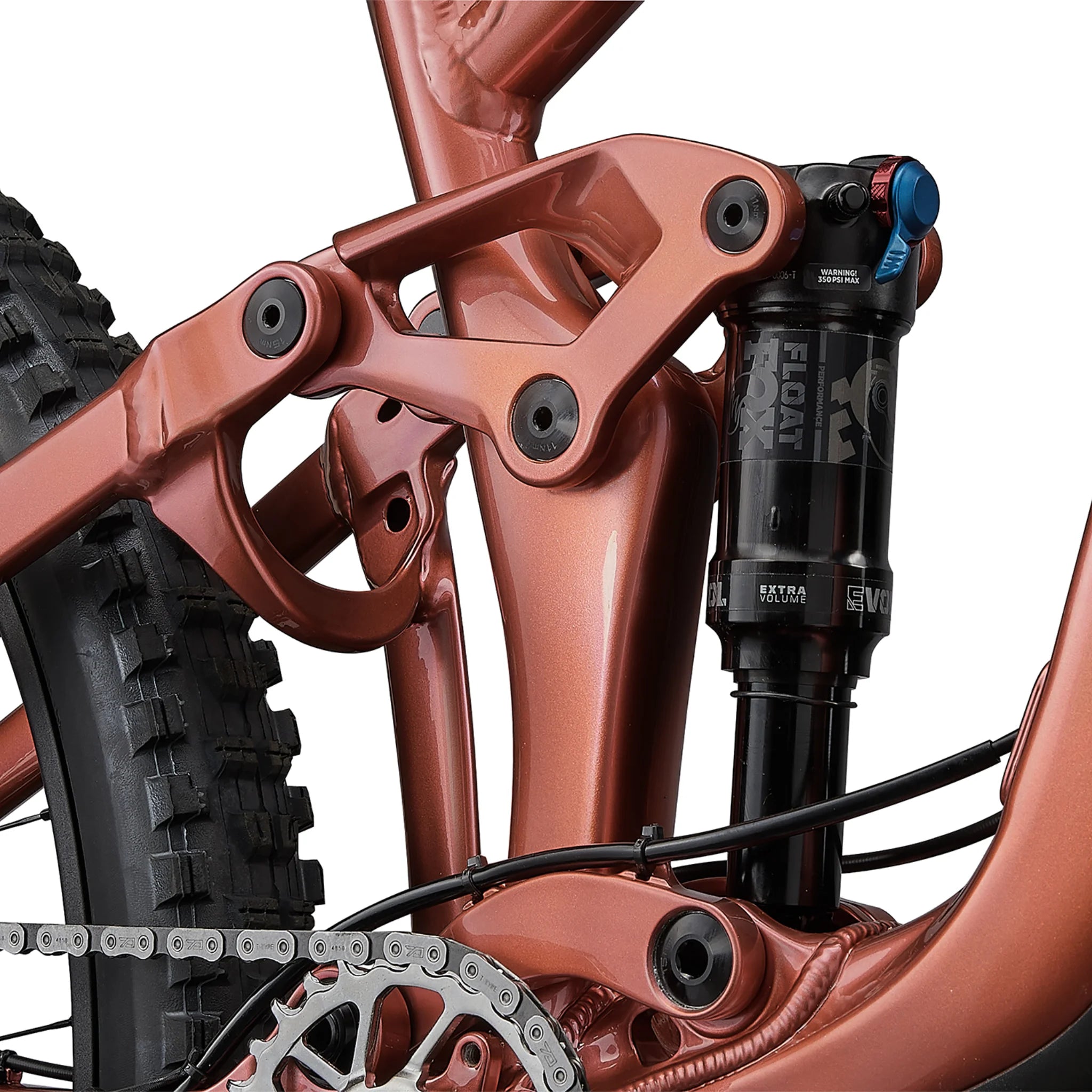

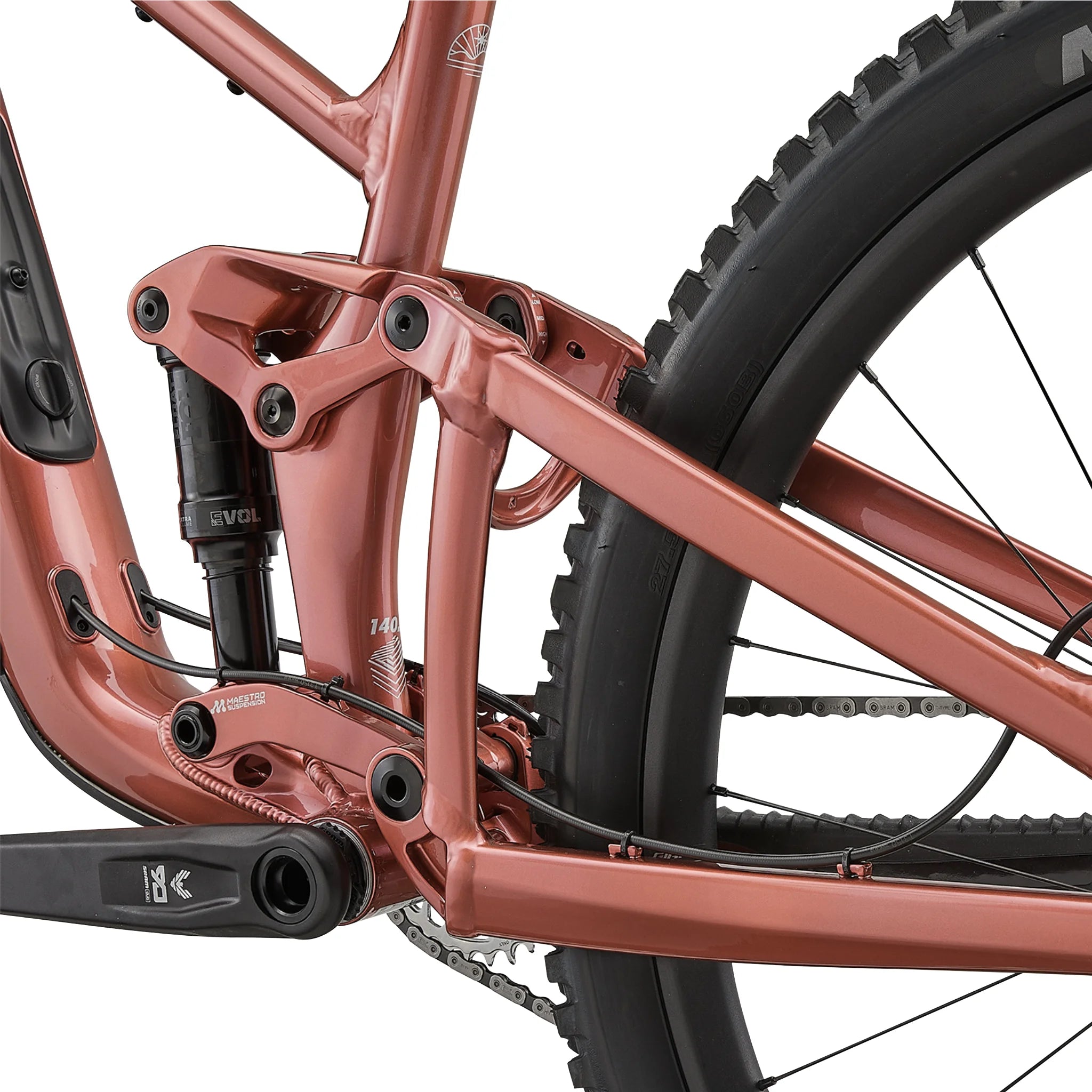

Shock Fox Float Performance, 185/52.5
Handlebar Giant Contact TR35, 20mm rise, 35mm
Grips Liv Tactal single lock-on
Stem Giant Contact SL 35

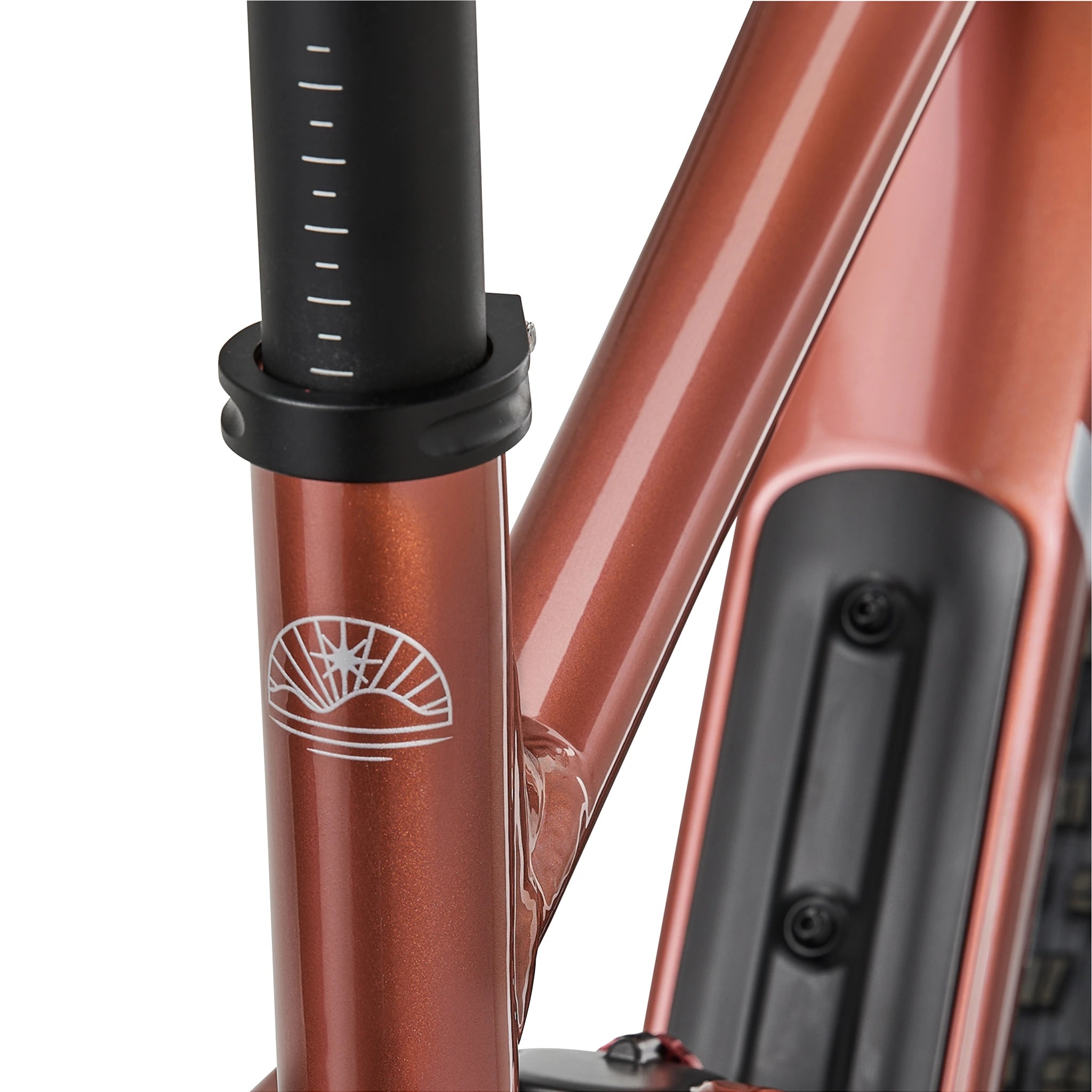

Seatpost Giant Contact Switch AT adjustable dropper, remote
XS/S: 140-170mm travel / 30.9 x 470mm
M/L: 170-200mm travel / 30.9 x 530mm
Saddle Liv Sylvia
Shifters SRAM Eagle 90, 1x12

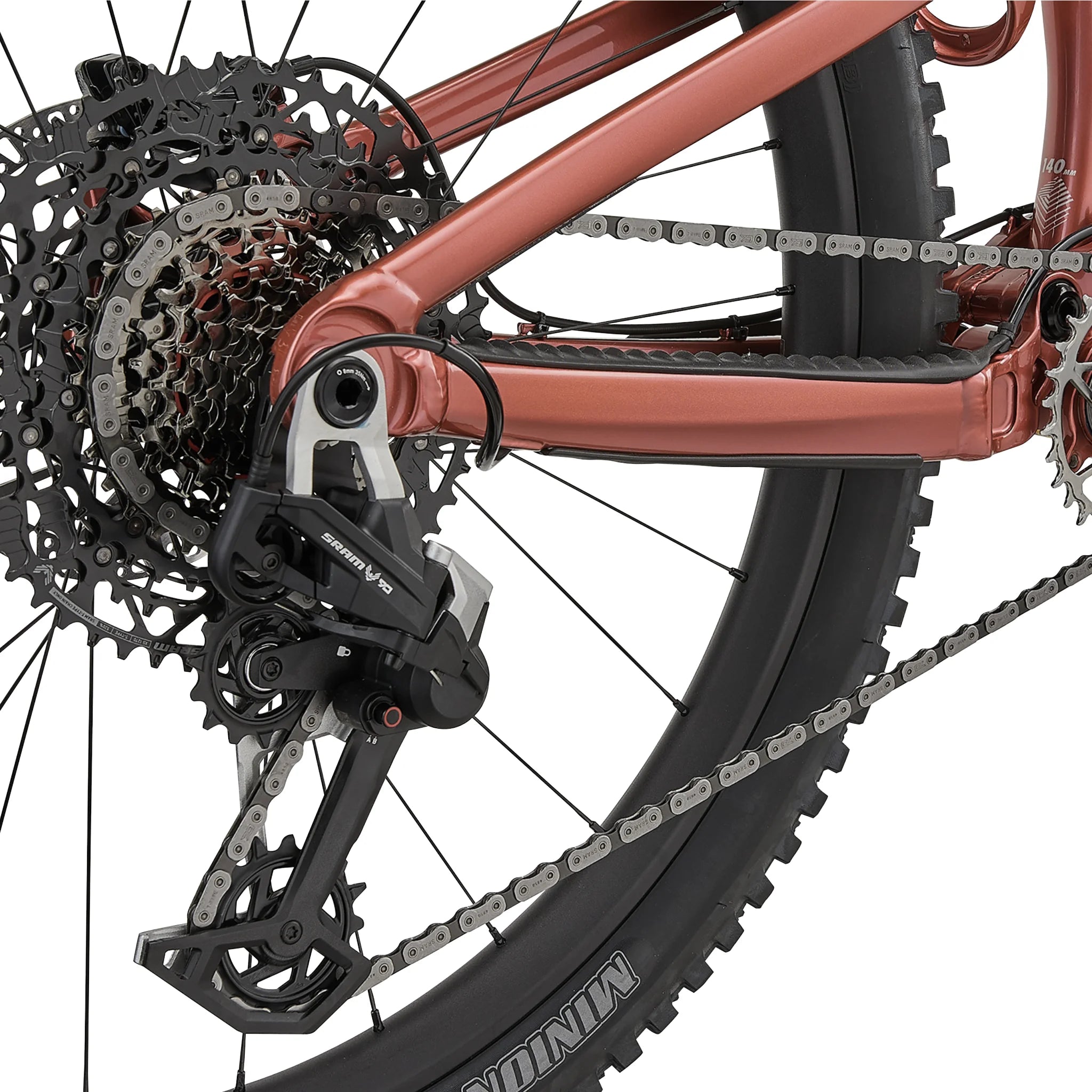

Rear Derailleur SRAM Eagle 90 transmission
Brakes TRP Trail EVO, hydraulic
TRP RS01E rotors [F]203mm, [R]180mm
Brake Levers TRP Trail EVO
Cassette SRAM XS-1270 Transmission, 12-speed, 10x52
Chain SRAM 70 Eagle Transmission
Crankset SRAM 90 Transmission, 30t, 55mm chainline
Bottom Bracket SRAM DUB, press fit
Rims Giant TRA 2 6061 alloy, sleevejoint, 30mm IW, 40mm OW, 21mm H, Wide Guard technology
XS/S: [F] 29, [R] 27.5
M/L: [F] 29, [R] 29
Hubs [F] Giant MTB alloy, 6-bolt
[R] Giant MTB alloy, 72t POE, 6-bolt, 6-pawl, HG-driver
Spokes Sapim Laser straight pull, DBL technology
Tires [F] Maxxis Assegai 29x2.5" WT, MaxxTerra, EXO, TR, 60TPI, folding [R]
XS/S: [R] Maxxis Minion DHR II 27.5x2.4" WT, MaxxTerra, EXO, TR, 60TPI, tubeless, folding
M/L: [R] Maxxis Minion DHR II 29x2.4" WT, MaxxTerra, EXO, TR, , 60TPI, tubeless, folding
Extras 3M tailgate protector, integrated down tube storage bag, tubeless prepared, 2.5" max tire size, 34t max chainring size

*Specifications are subject to change without notice

Geometry

XS S M L
LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH LOW | MID | HIGH
A Reach 397 | 401 | 405 412 | 415 | 420 436 | 440 | 444 456 | 459 | 464
B Stack 615 | 613 | 610 620 | 617 | 614 621 | 619 | 616 626 | 623 | 620
C Head Tube Angle 64.4° | 64.8° | 65.1° 64.4° | 64.8° | 65.1° 64.4° | 64.8° | 65.1° 64.4° | 64.8° | 65.1°
D Bottom Bracket Drop 25 | 20 | 15 24 | 20 | 15 35 | 30 | 25 35 | 30 | 25
E Wheelbase 1159 | 1159 | 1158 1176 | 1176 | 1175 1202 | 1201 | 1201 1224 | 1224 | 1223
F Chainstay Length 440 | 439 | 438 440 | 439 | 438 440 | 439 | 438 440 | 439 | 438
G Head Tube Length 95 100 105 110
H Top Tube Length 548 | 547 | 546 564 | 563 | 562 582 | 581 | 580 603 | 602 | 601
I Seat Tube Angle 76.2° | 76.6° | 76.9° 76.2° | 76.6° | 76.9° 76.8° | 77.2° | 77.5° 76.8° | 77.2° | 77.5°
J Standover Height 730 | 734 | 738 733 | 737 | 742 745 | 749 | 754 767 | 771 | 776
All measurements in degrees or millimetres

Sizing Guide

The sizing chart is a great place to start when picking your next bike but everyone will fit a bike a bit differently. Your torso, arm, and leg lengths all play into what size of bike you may need. Plus, there's your own personal preference.

We always recommend swinging by the shop and taking the bike that you're looking for a spin to see how it feels. If you're unable to come by, looking at the geometry of your current bike and comparing it is a good place to start. If you have any further questions, our customer service team is there to help.

Size Height
Imperial Metric
XS 4'11" - 5'4" 150 - 163cm
S 5'2" - 5'7" 158 - 169cm
M 5'5" - 5'9" 164 - 175cm
L 5'7" - 5'11" 170 - 181cm

Model Numbers

Size Model Number
Ember Rose
XS 1059020103
S 1059020104
M 1059020105
L 1059020107
